Industrial Cellular Router
Pocket-Sized Industrial Grade Router
Pro Series

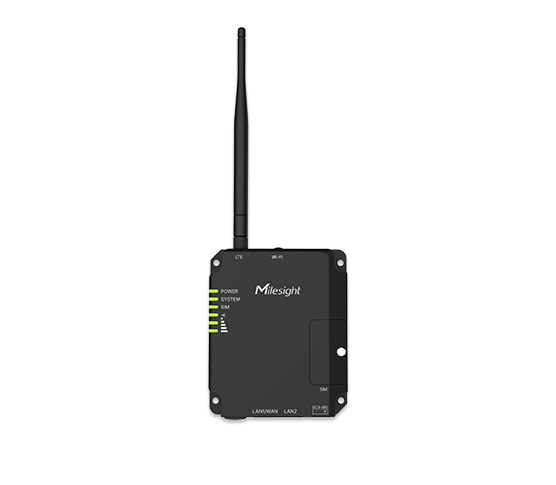

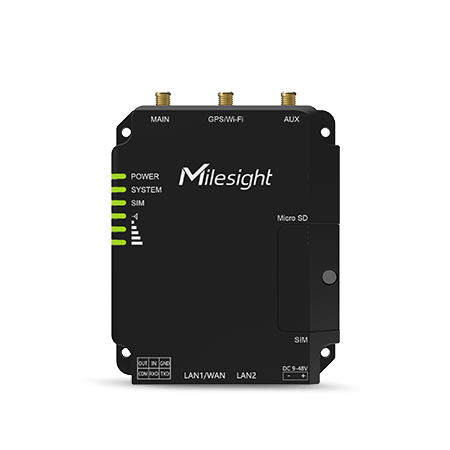

UR32
Enjoy Reliable Pocket-Sized Cellular Connectivity
With a compact size, UR32 is specially designed to be LOW-COST and HIGHLY-EFFICIENT.
- Industrial Grade Design for Harsh Environment
- Rugged And Pocket-Sized Design
- Embedded Python SDK for Secondary Development
- Ultra-High Protection System
- Rich Interfaces for Multiple Applications
- Stable Cellular, Ethernet, and Wi-Fi Transmission
- Open VPN Tunnel and Various Protocols
- Remote Management on MilesightVPN and DeviceHub
- FEATURES
- MODELS
- DOWNLOAD
- Home
- 5G & Cellular Products
- UR32
Industrial Grade Design
To fulfill the market demand, UR32 is built with NXP industrial grade processor, IP30 rated hardened enclosure, industrial components, and a wide operation range from -40°C to 70°C (-40℉ to +158℉) for even harsh environments. It also features a broad supply voltage range of 9V to 48V DC.
Compact Design
With a compact design, UR32 is specially designed to bring cost-effective performance. The small and lightweight enclosure allows it to easily fit into small cabinets or machines when space is limited.

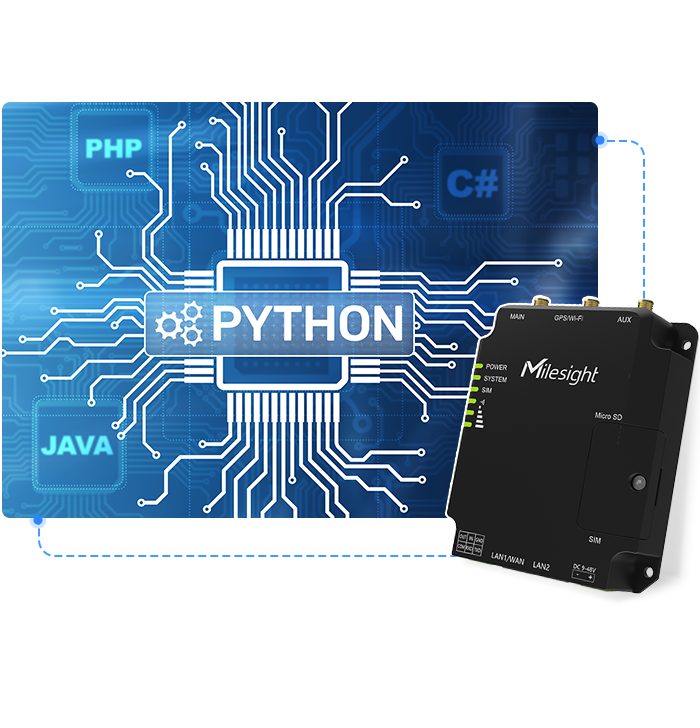

Embedded Python SDK
UR32 is scalable for secondary development with Python SDK embedded. It can be extended to be more applicable and customized to truly meet actual demands.

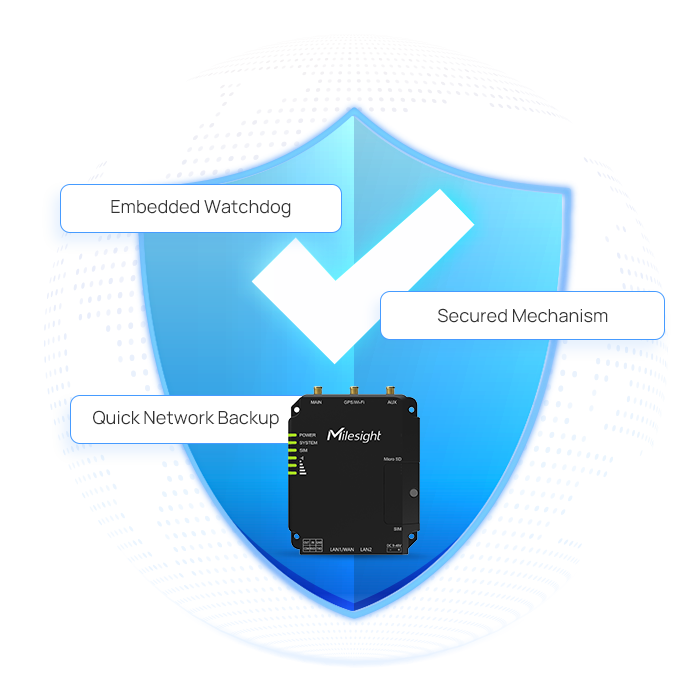

Ultra-Reliable Protection
System
- Quick Network BackupAutomated failover/failback backup among Ethernet, Cellular(dual SIM), and Wi-Fi
- Embedded WatchdogEmbedded with hardware watchdog to automatically recover from various failures
- Secured MechanismCentralized authentication and authorization of device access by supporting AAA (Radius, TACACS+, LDAP, local Authentication) and multiple levels of user authority
Rich Interfaces

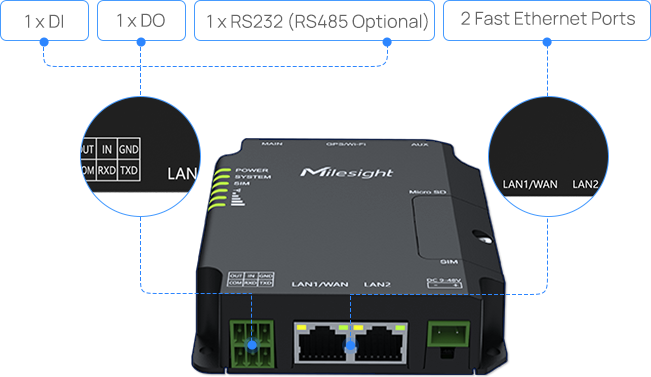

Scaling up M2M and IoT applications is made possible by the UR32's rich interfaces which include RS232 (RS485 optional), 2 fast Ethernet ports, and Digital Input/Output.
Stable Internet Access

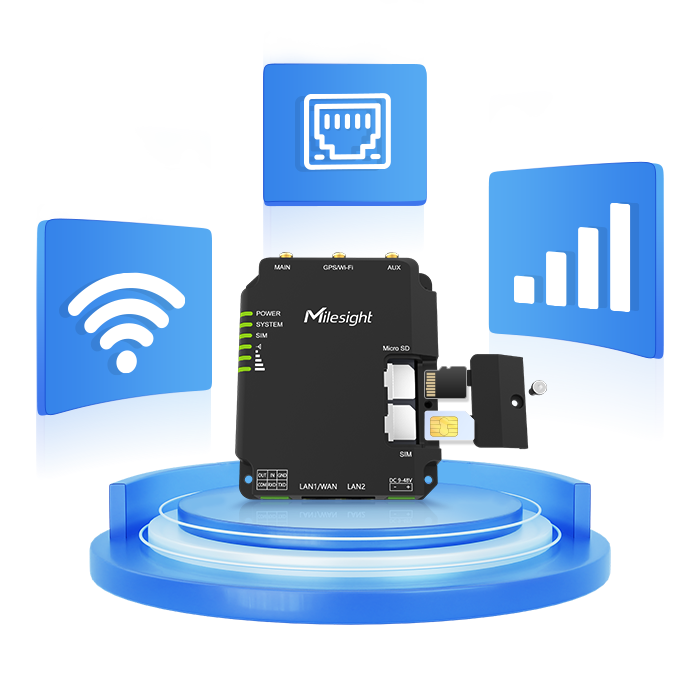

Integrating embedded cellular modem and dual SIM function, the UR32 provides a 3G/4G cellular network with reliable download and uplink speed. It also has 2 Ethernet ports and supports Wi-Fi that is complying with 802.11b/g/n standards for uninterrupted internet access.

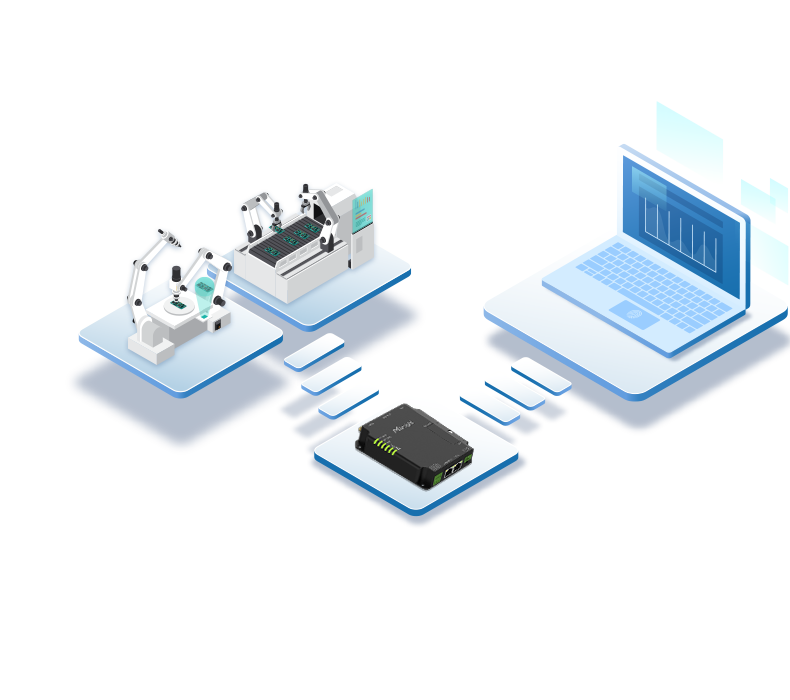

VPN Tunnels And
Various Protocols
Featuring with multiple network protocols and VPN tunnels, UR32 provides secure and reliable solutions for a range of M2M/IoT deployments.
- Network Protocols Such as SNMP, TR069, MOTT, and VRRP
- VPN tunnels Such as ZeroTier/lPsec/OpenVPN/GRE/L2TP/ PPTP/DMVPN/WireGuard
Unimpeded Applications
Certifying your trust with various certificates, UR32 is a trustworthy router that has undergone rigorous testing and meets high standards for quality, reliability, and security, and gets passes for some special markets such as Verizon for North American.
MilesightVPN
UR32 supports connection and management with MilesightVPN
- Easy Connection via Authentication Code
- Connection Status Overview
- Remote and Secure Access to Field Devices
- Magnetic Version
DeviceHub
Milesight DeviceHub offers a high-efficiency and low maintenance solution to easily deploy Milesight Industrial Cellular Routers across multiple locations, reducing complexity and increasing productivity.
- Central Management
- Device Status Monitoring
- Remote & Bulk Configuration
Milesight Development Platform
Milesight Development Platform streamlines integration and simplifies device deployment and management, enabling you to focus on application development for your projects based on an open architecture.
Learn MoreFlexible Installation

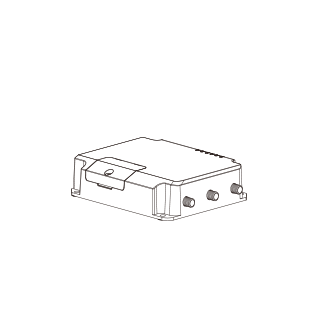

Desktop Mount

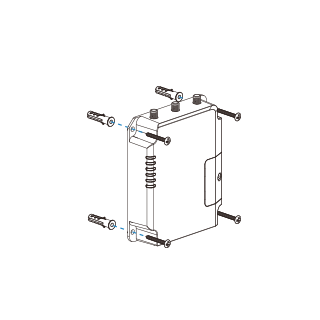

DIN Rail Mount

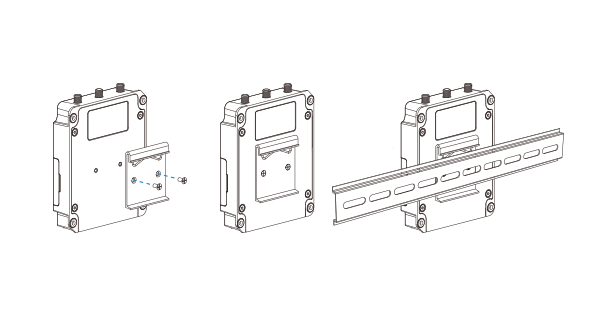

Wall Mount
Specifications
- Hardware Specifications
- Software Specifications
| Hardware System | |
|---|---|
| CPU | ARM Cortex-A7,528 MHz |
| Memory | 128 MB DDR3 RAM and 128MB Flash |
| Extendable Storage | 1 × Micro SD Slot |
| Cellular Interface | |
| Network | 4G LTE (CAT 4)/WCDMA/GSM (Differ as regions) |
| Antenna Connector | 2 × 50 Ω SMA Connectors (Center PIN: SMA Female) |
| SIM Slots | 2 × SIM Slot (Mini SIM-2FF), 1.8V/3V |
| Ethernet Interface | |
| Numbers | 2 × RJ45 10/100 Mbps |
| Property | 1 × WAN + 1 × LAN or 2 × LAN |
| Mode | Full or half duplex (Auto-Sensing) |
| Ethernet Isolation | 1.5 kV RMS |
| PoE (Optional) | 2 × 802.3 af/at PoE PSE on LAN Ports |
| Wi-Fi Interface (Optional) | |
| Antenna Connector | 1 × 50 Ω SMA Connector (Center PIN: RP-SMA Female) |
| Standards | IEEE 802.11 b/g/n,2.4GHz |
| Tx Power | 802.11b: 16 dBm +/-1.5 dBm (11 Mbps) 802.11g: 14 dBm +/-1.5 dBm (54 Mbps) 802.11n: 13 dBm +/-1.5 dBm (65 Mbps, HT20/40 MCS7) |
| GNSS (Optional) | |
| Antenna Connector | 1 × 50 Ω SMA Connector (Center PIN: SMA Female) |
| Technology | GPS/GLONASS/BDS/Galileo/QZSS |
| Positioning Accuracy | 2.5m CEP (Open Air) |
| Serial Port | |
| Numbers | 1 × RS232 (RS485 Hardware Optional) |
| Connector | 3.5mm Terminal Block |
| Baud Rate | 300bps to 230400bps |
| DI/DO | |
| Numbers | 1 × DI + 1 × DO, Galvanic Isolation |
| Connector | 3.5mm Terminal Block |
| Digital Input | Dry Contact |
| Digital Output | Wet Contact, maximum 0.3A@30VDC |
| Others | |
| Reset Button | 1 × RESET |
| LED Indicators | 1 × POWER, 1 × SYSTEM, 1 × SIM, 3 × Signal strength |
| Power Connector | 1 × 2-pin 5.08 mm Terminal Block, with Surge-Protection and Reverse Polarity Protection |
| Built-in | Watchdog, Timer |
| Power Supply and Consumption | |
| Power Input | 9-48 VDC (48V is needed for PoE output) |
| Power Output (Optional) | 2 × 802.3 af/at PoE PSE on LAN Ports Per Port 30W Max., Total 60W Max. |
| Power Consumption | Typical 1.9 W, Max 2.4 W (In Non-PoE mode) |
| Physical Characteristics | |
| Ingress Protection | IP30 |
| Housing & Color | Metal, Black |
| Weight | 271 g |
| Dimension | 108 x 90 x 26 mm (4.25 x 3.54 x 1.02 in) |
| Installation | Desktop, Wall or DIN Rail Mounting |
| Environmental | |
| Operating Temperature | -40°C to +70°C (-40℉ to +158℉) Reduced Cellular Performance Above 60°C |
| Storage Temperature | -40°C to +85°C (-40℉ to +185℉) |
| Relative Humidity | 0% to 95% (non-condensing) at 25°C/77℉ |
| Approvals | |
| Regulatory | CE, FCC, RCM, NBTC, JATE, Telec |
| Carrier | Verizon |
| Environmental | RoHS |
| EMC | EN 55032, EN 55035 |
| EMS | IEC 61000-4-2 Level 3 IEC 61000-4-3 Level 2 IEC 61000-4-4 Level 2 IEC 61000-4-5 Level 2 IEC 61000-4-6 Level 3 IEC 61000-4-8 Level 1 IEC 61000-4-11 Level 3 |
| Radio Frequency | EN 301 489-1/17/19/52, EN 301 511, EN 301 908-1/2/13, EN 303 413, EN300 328 |
| Safety | EN62368-1 |
| Network | |
|---|---|
| Network Protocols | IPv4/IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QOS, SNTP, Telnet, VLAN, SSH, MQTT, MQTTS, TR069, etc. |
| Routing | Static Routing, RIP, OSPF |
| DDNS | Supported >16 service providers, others can be configured manually |
| QoS | Upload/Download Bandwidth Limit |
| IP Passthrough | Support to assign WAN IP address to the device on LAN |
| Reliability | VRRP, WAN Failover, Dual SIM Backup |
| Diagnostics Tools | Ping, Traceroute, TCPDUMP, QXDM, Log Server, Cellular AT Command Debugger, Firewall iptables Debugger |
| Wi-Fi Interface (Optional) | |
| Modes | AP or Client mode |
| Security | WEP/WPA-PSK/WPA2-PSK/WPA-EAP/WPA2-EAP authentication, TKIP/AES encryption |
| Wi-Fi Users | Up to 15 simultaneous connections |
| MAC Filter | Blacklist, Whitelist |
| GNSS (Optional) | |
| Protocol | NMEA0183, PMTK |
| Mode | Support reading by Serial Port, MQTT, TCP Client/Server, UDP Server |
| Security | |
| Firewalls | Access Control, DMZ, Port Mapping, MAC Binding, SPI Firewalls, DoS&DDoS Protection, Filtering(IP&Domain) |
| VLAN | Port and tag-based VLAN separation |
| AAA | Radius, Tacacs+, LDAP, Local Authentication, 802.1x |
| Multilevel Authority | Multiple Levels of User Authority |
| VPN | |
| OpenVPN | Multiple Clients and a Server Support |
| IPsec | Multiple Clients and a Server Support |
| GRE | GRE Tunnel Support |
| L2TP | L2TP Client Support |
| PPTP | PPTP Client Support |
| DMVPN | DMVPN Spoke Support |
| WireGuard | Support |
| ZeroTier | Support |
| Others | |
| Serial Mode | Transparent(TCP Client/Server, UDP Server, MQTT Client), Modbus Server/Client, Modbus Gateway (Modbus RTU to Modbus TCP) |
| Digital Input | Support reading by SMS, Email, CLI, Modbus TCP/RTU Server, MQTT |
| Digital Output | Support triggering by DI, SMS, CLI, Modbus TCP/RTU Server, MQTT |
| App | Python SDK |
| Management | |
| Configuration | Web, CLI (SSH/Telnet), SMS, On-demand dial up, SNMP v1/v2c/v3, TR069, DeviceHub, Milesight Development Platform, HTTP(s) API |
| Update | Web, DeviceHub, Milesight Development Platform |
| Device Management | DeviceHub, Milesight Development Platform, MilesightVPN |
| SNMP | SNMP v1/v2/v3, Support SNMP Trap |
| TR069 | Support |
| SMS | Send/Receive SMS, SMS Control, SMS Configuration |
| Event Alarm | System Restart/Reboot, Network Up/Down, Link Switch, etc. |
