Request Structure
This topic explains the structure of Milesight Development Platform API request, including HTTP request method, request URL, and request authentication.
Restrictions
Click here to check the maximum number of API requests under different plans.
Request example
The following example shows a request of Add a Device.
POST /device/openapi/v1/devices HTTP/1.1
Host: demo.milesight.com
Authorization: Bearer eyJhbGciOiJSUzI1NiIsInR5cCI6IkpXVxxxxxxxxxxxxxxxxxxxxxxxx
Content-Type: application/json
{
"snDevEUI": "66003649xxxx",
"name": "Sample VS121-P",
"description": "VS121-P on meeting room 3D",
"project": "Workplace-management"
}
POST
is the specified HTTP method used in the request./device/openapi/v1/devices
is the target API endpoint of adding a device.HTTP/1.1
is the Hypertext Transfer Protocol.Host: milesight.demo.com
is the base URL included in the request URL, namely the domain name of Milesight Development Platform.Authorization: Bearer {access_token}
is used for request authentication.
Request methods
Milesight Development Platform API supports the following HTTP methods:
HTTP method | Usage |
---|---|
GET | Query data from Milesight Development Platform. |
POST | Send data to Milesight Development Platform to create a new resource or perform a specific operation. |
PUT | Update an existing resource on Milesight Development Platform. |
DELETE | Delete a specific resource on Milesight Development Platform. |
PATCH | Used for incremental update of resource on Milesight Development Platform. |
Request URL
The request URL format of Milesight Development Platform API is shown as
follows:
{base_url}/{endpoint}

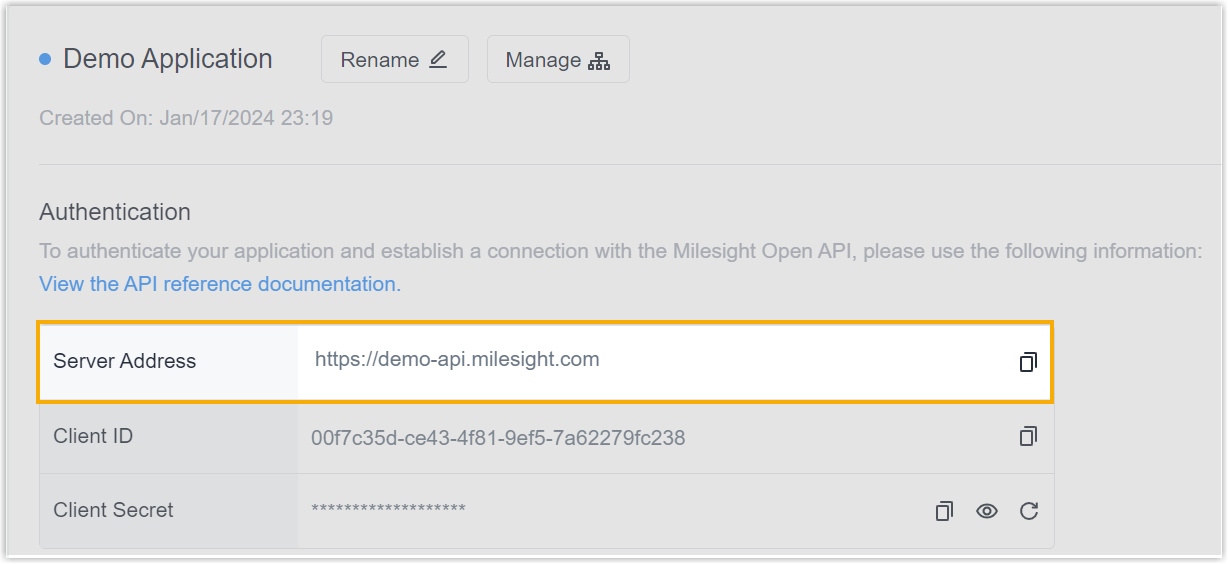

- base_url
- Base URL is the domain name of the server hosting the API, namely the
server address of Milesight Development
Platform:
https://{Milesight Development Platform server address}
- endpoint
- Endpoints represent different resources or functionalities that can be
accessed and interacted with through the API. Milesight Development
Platform API endpoints are constructed in the following
format:
For all the available endpoints of Milesight Development Platform API, see API Interface List./{serviceName}/openapi/{version}/**
Request authentication
After the third-party application obtains an
access token, it can use the token to make API calls. There are two ways
to pass the access token to Milesight Development Platform API.
Note: The use of HTTP headers is generally preferred over query
strings as the query string parameter appearing in URLs might be exposed.
Therefore, this documentation will provide API examples based on the
Authorization Bearer
authentication method.- Using the Authorization Bearer HTTP Header (Preferred)
- Send the access token in the
Authorization:Bearer
HTTP header, as the following code shows.POST /service/openapi/v1/devices Host: milesight.demo.com Authorization: Bearer {access_token}
- Using the access token querying string parameter
- You can also send the access token via a querying string parameter
access_token
, as the following code shows.POST https://demo.milesight.com/devices?access_token={access_token}
