Live Video

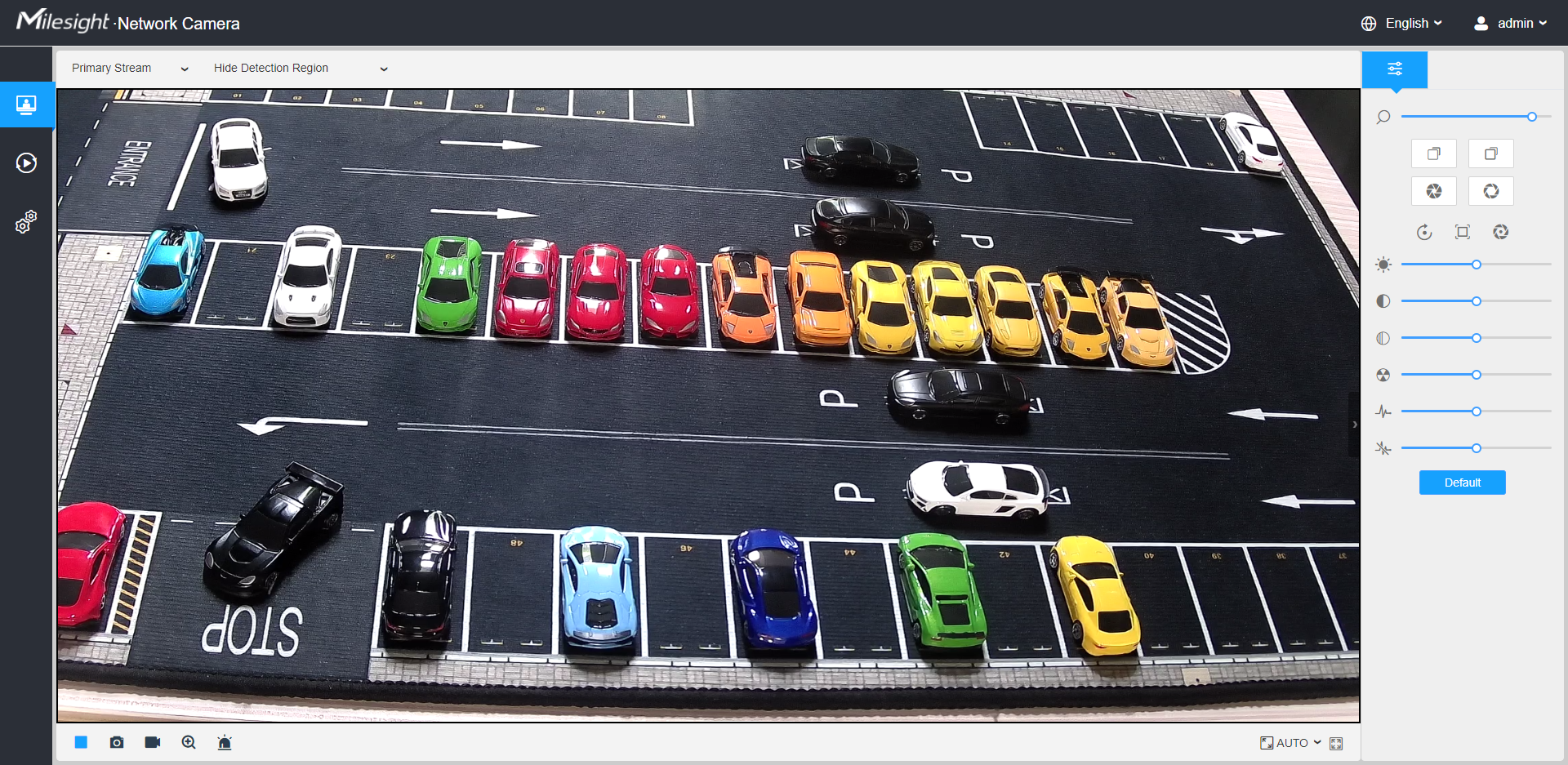

After logging in the network camera web GUI successfully, user is allowed to view live video as follows.



Table 1. Description of the buttons
No. Parameter Description
1

Live Video

 Click to access the live view page.
2

Playback

 Click to access the playback page.
3

Settings		 Click to access the configuration page.
4 Click to select system language.
5 Display the user name and click to logout.
6 Choose the stream (Primary/Secondary/Tertiary) to show on the current video window.
7

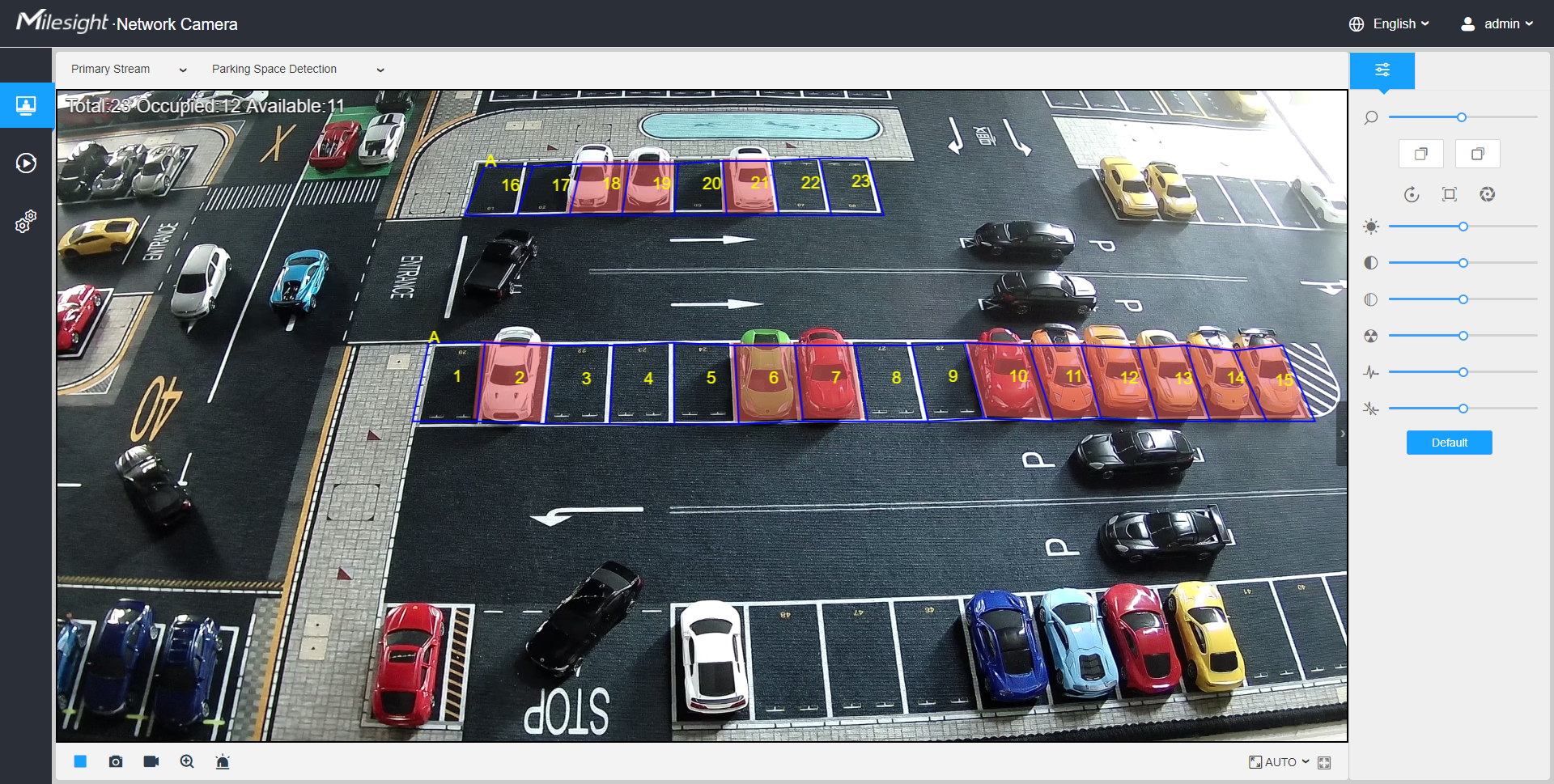

Choose the options (Hide Detection Region/Parking Space Detection) to hide/display detection region on the current video window.

8

Recording		 When recording, the icon appears.
9

Alarm

 When an alarm of Motion Detection was triggered, the icon appears.
10

Alarm

 Except for the kinds of alarms above, when other alarms were triggered, the icon appears.
11 /

Stop/Play

 Stop/Play live view.
12

Snapshot

 Click to capture the current image and save to the configured path. The default path is: C:VMS\+-1\ IMAGE-MANUAL.
13 /

Start/Stop Recording

 Click to Start Recording video and save to the configured path. The default path is C:VMS\+-1\MS_Record. Click again to Stop Recording.
14

Digital Zoom

 When enabled, you can zoom in a specific area of video image with your mouse wheel.
15

Manual Output

Manually trigger Camera Alarm Output.

16

Window Size

 Click to display images at a window size.
17

Full Screen

 Click to display images at full-screen.
Zoom: Adjust the Zoom length of the lens.
Note: Only work when your camera is equipped with motorized lens.
Focus-/Focus+: Adjust focus of the lens.
Note: Only work when your camera is equipped with motorized lens.
Lens Initialization, Auxiliary Focus and Auto Iris.
Note:
  • The Auto Iris is turned on by default when your camera is equipped with auto focus lens.
  • The Auto Iris support turn on/off when your camera is equipped with P-Iris.
Brightness: Adjust the Brightness of the scene.
Contrast: Adjust the color and light contrast.
Saturation: Adjust the Saturation of the image. Higher Saturation makes colors appear more "pure" while lower one appears more “wash-out”.
Sharpness: Adjust the Sharpness of image. Higher Sharpness sharps the pixel boundary and makes the image looks “more clear”.
2D DNR/3D DNR: Adjust the noise reduction level.
Default: Restore brightness, contrast and saturation to default settings.
