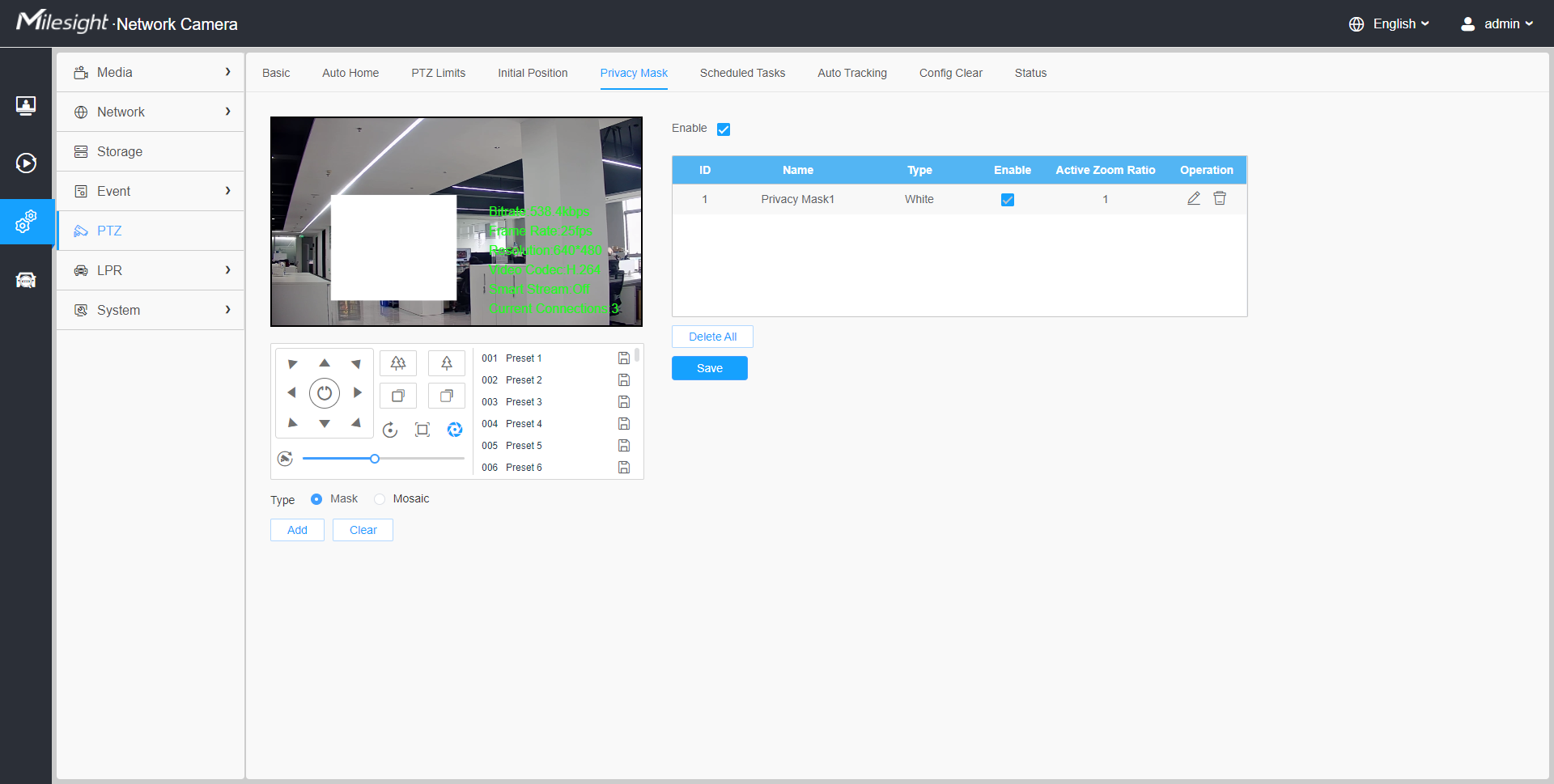

Privacy Mask
Privacy mask enables to cover certain areas on the live video to prevent certain spots in the surveillance area from being viewed and recorded. The mask area does not move as the lens moves.
You can select the color type and mosaic type to use for the cover certain areas on the live video. The mosaic type can maintain the continuity of the picture and improve the visual effect. Up to 28 mask areas are supported, which includes 24 mask areas and 4 mosaic areas.
| Parameters | Function Introduction | |
|---|---|---|
| Enable | Check the check box to enable the Privacy Mask function. | |
|
Type |
Select the type to use for the privacy areas, there are two types available: Mask and Mosaic. |
|
 |
Drew an privacy area on the live video as needed. | |
 |
Clear the area you drew on the live video. |
|
|
Operation |
 / |
Enable/disable the selected ROI areas. |
 |
Change the color of Mask area, there are eight colors available: White, Black, Blue, Yellow, Green, Brown, Red and Violet |
|
 |
Delete the privacy mask area |
|
