Playback
Click to

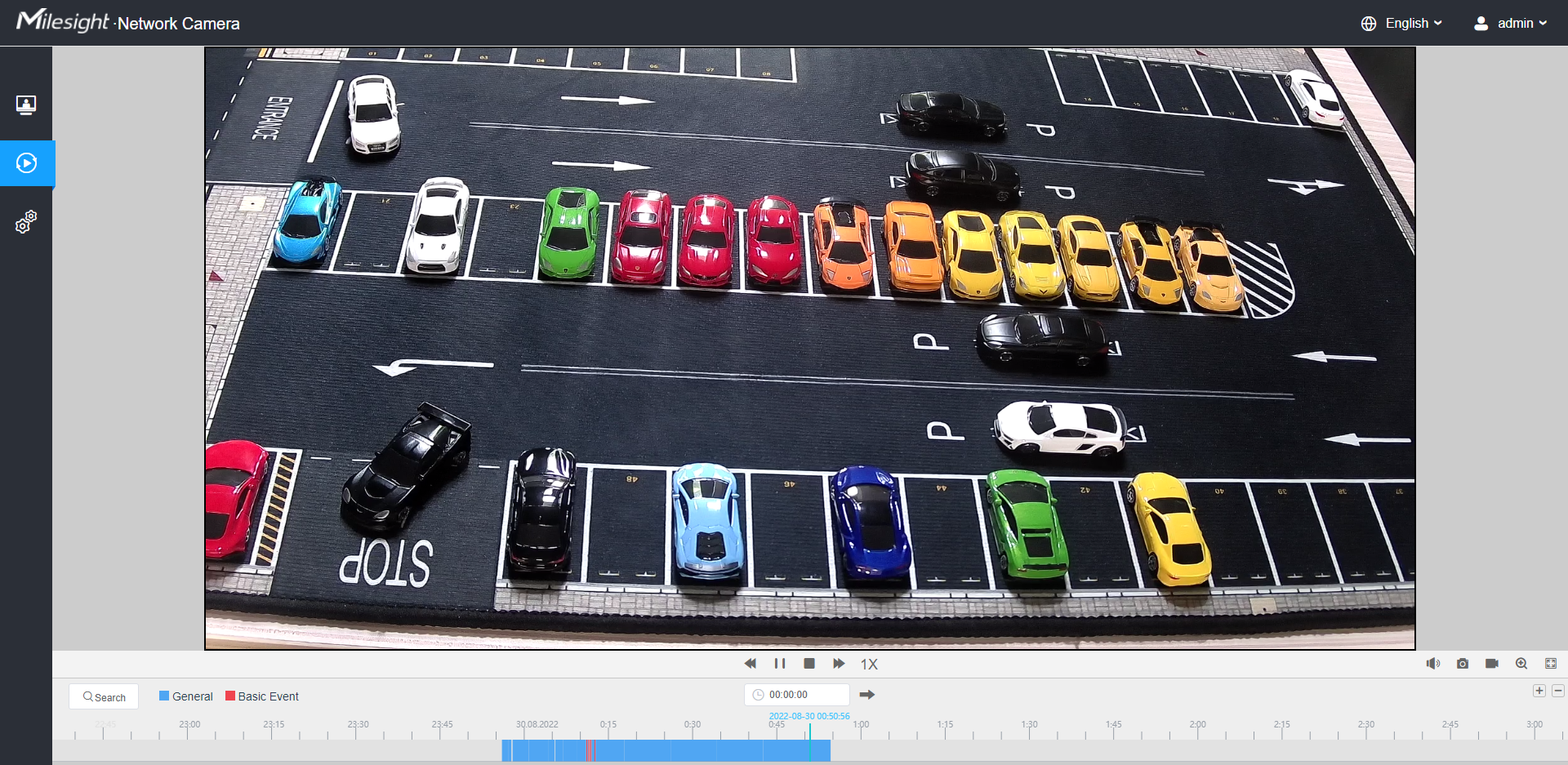

enter playback interface. In this part, you can search and playback the recorded video
files stored in SD cards or NAS. The Playback interface is as below:
![](../image/outdoor-parking-management/playback/playback.png)

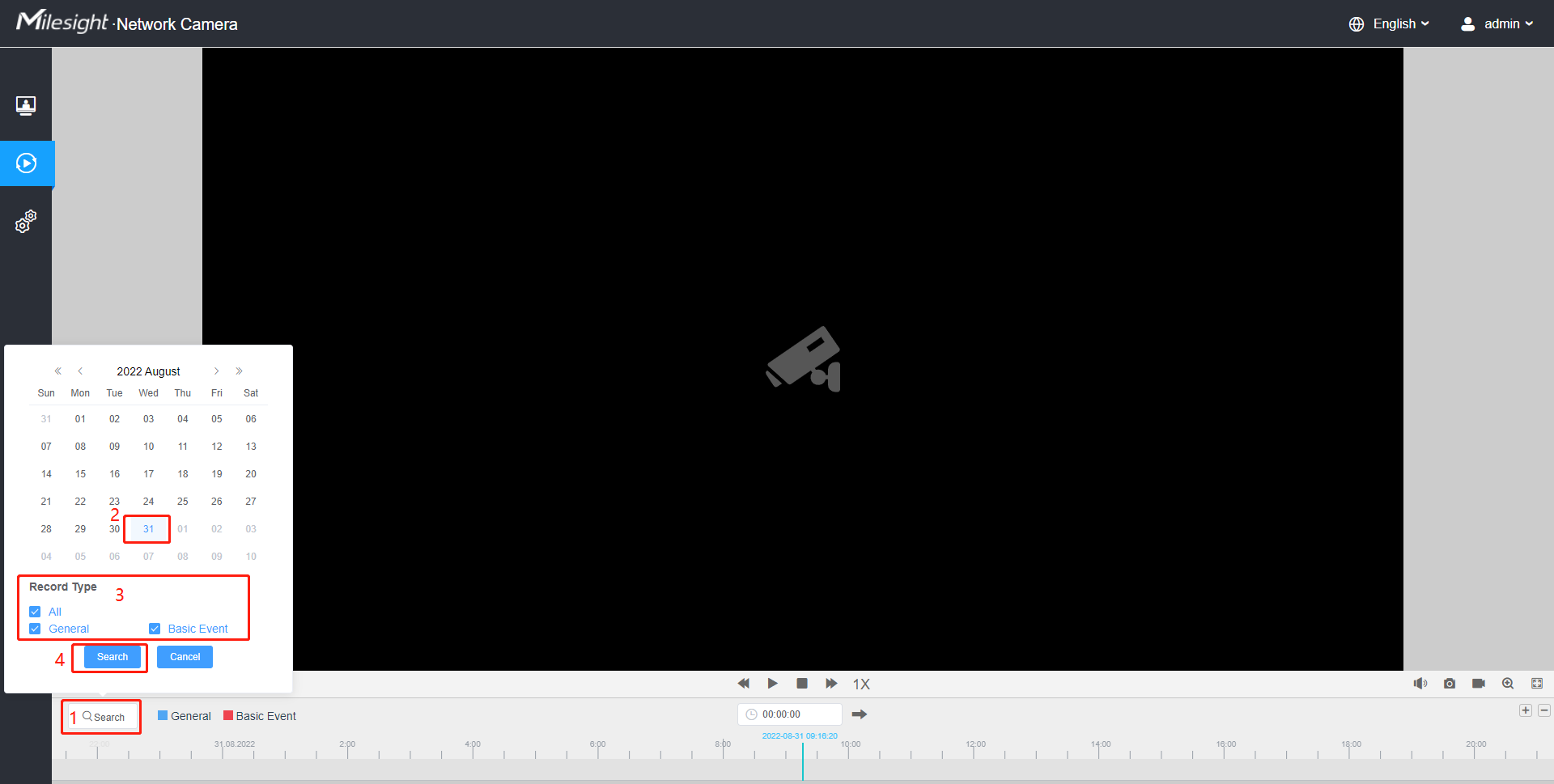

Step1: Click the “Search” botton, choose the data and record type when the window pops up.
![](../image/outdoor-parking-management/playback/playback1.png)
![](../icon/playback/jump.png)
![](../icon/playback/playback-time.png)
![](../icon/playback/zoom-in-out.png)

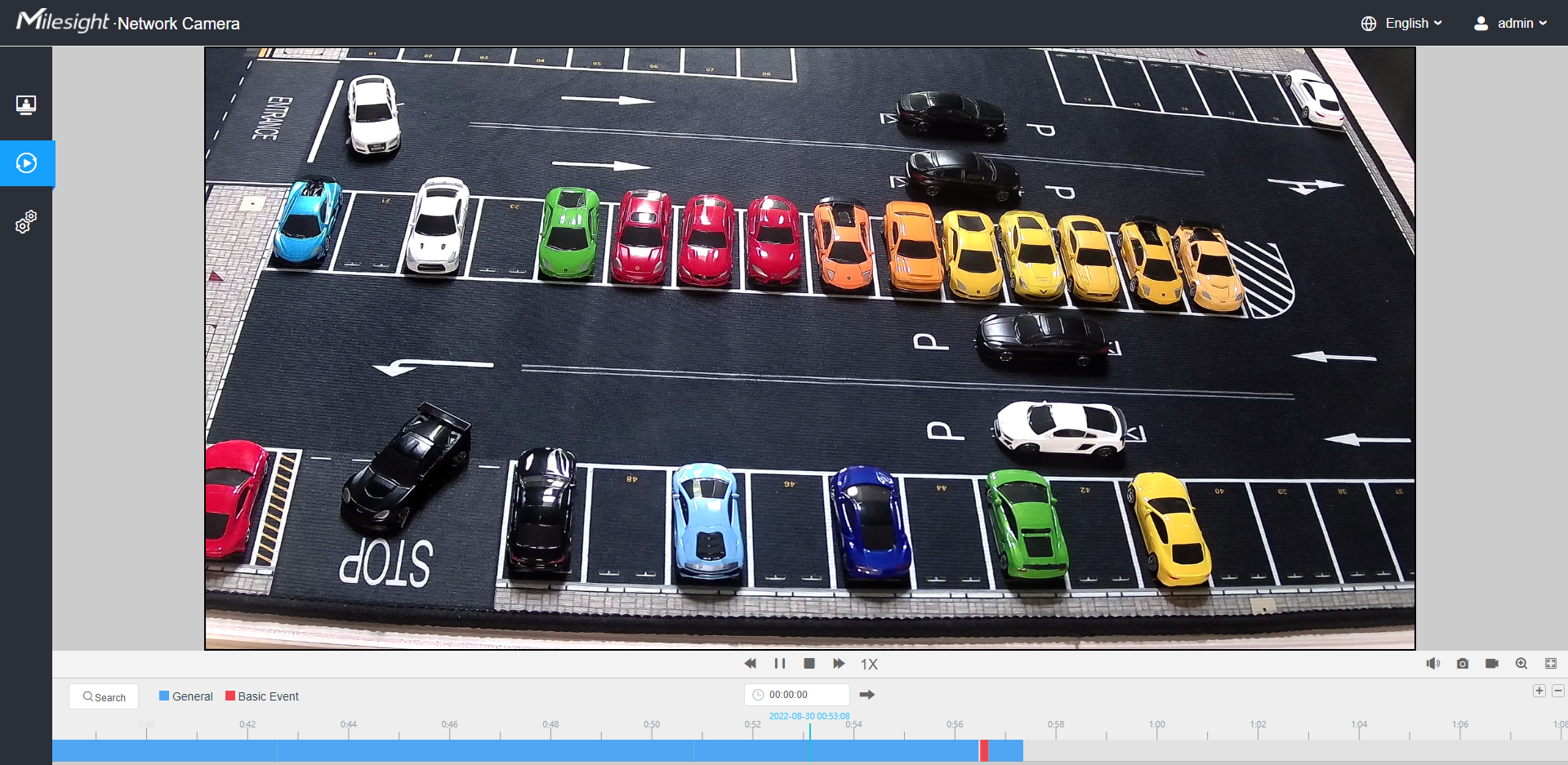

Step3: Click to
play the video files found on this date. The toolbar on the button of playback interface
can be used to control playing progress.
![](../image/outdoor-parking-management/playback/play.png)
No. | Parameter | Description |
---|---|---|
![]() |
|
Search the recorded videos by record type ( All/General/Basic Event). The timeline will show different colors according to selected record type as below: |
1 | ![]() ![]() ![]() Speed Down/Speed Up/Speed |
Adjust the speed of video playback. Speed Down: Includes 0.5X and 0.25X for Play. Speed Up: Includes 2X and 4X for Play. Speed: The default playback speed is 1X |
2 | ![]() ![]() Play/Pause |
Play/Pause the video. |
3 | ![]() Stop |
Stop the video. |
4 | ![]() Search Time |
Select the time that want to locate. |
5 | ![]() Jump |
Go To. |
No. | Parameter | Description |
---|---|---|
1 | ![]() Mute |
Click to enable the audio. |
2 | ![]() Snapshot |
Click to take a snapshot. |
3 | ![]() ![]() Start/Stop recording |
Click to start/stop recording. |
4 | ![]() Digital Zoom |
Click to zoom on/off . |
5 | ![]() Full Screen |
Full Screen. |
6 | ![]() Time Expand/Narrow |
Time narrow/expand. |
