3.4.2 Event Backup

Support to search out and back up picture and video according to event type. The event type includes Motion Detection, Alarm Input, VCA and Smart Analysis.

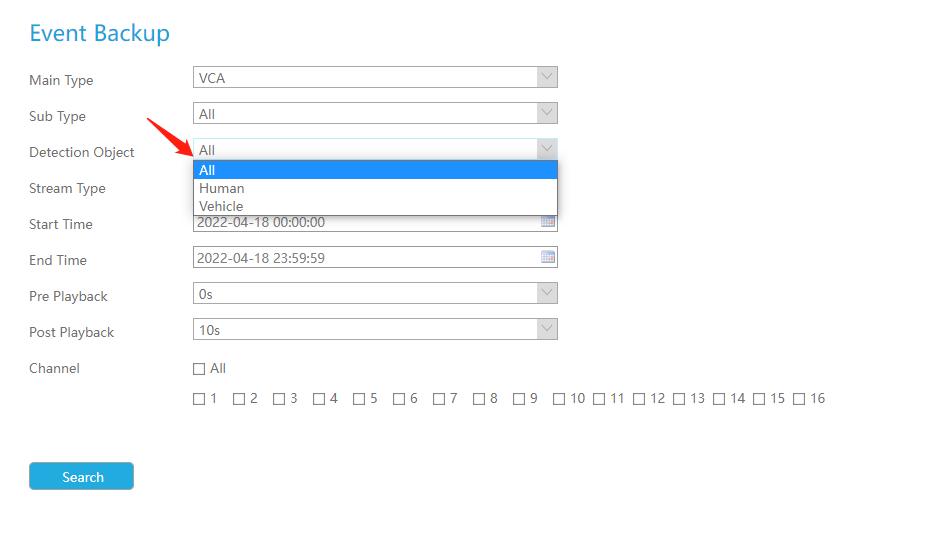

In particular, the Detection Object option is available in the Event Backup interface only if the Main Type is VCA and the Sub Type is one of several VCA events. You can search and back up the results that meet the corresponding conditions according to the selected Detection Object. The Detection Object has three options: All, Human and Vehicle.

The VCA events which support the human/vehicle detection object function are:

  • Region Entrance
  • Region Exiting
  • Advanced Motion Detection
  • Line Crossing
  • Loitering

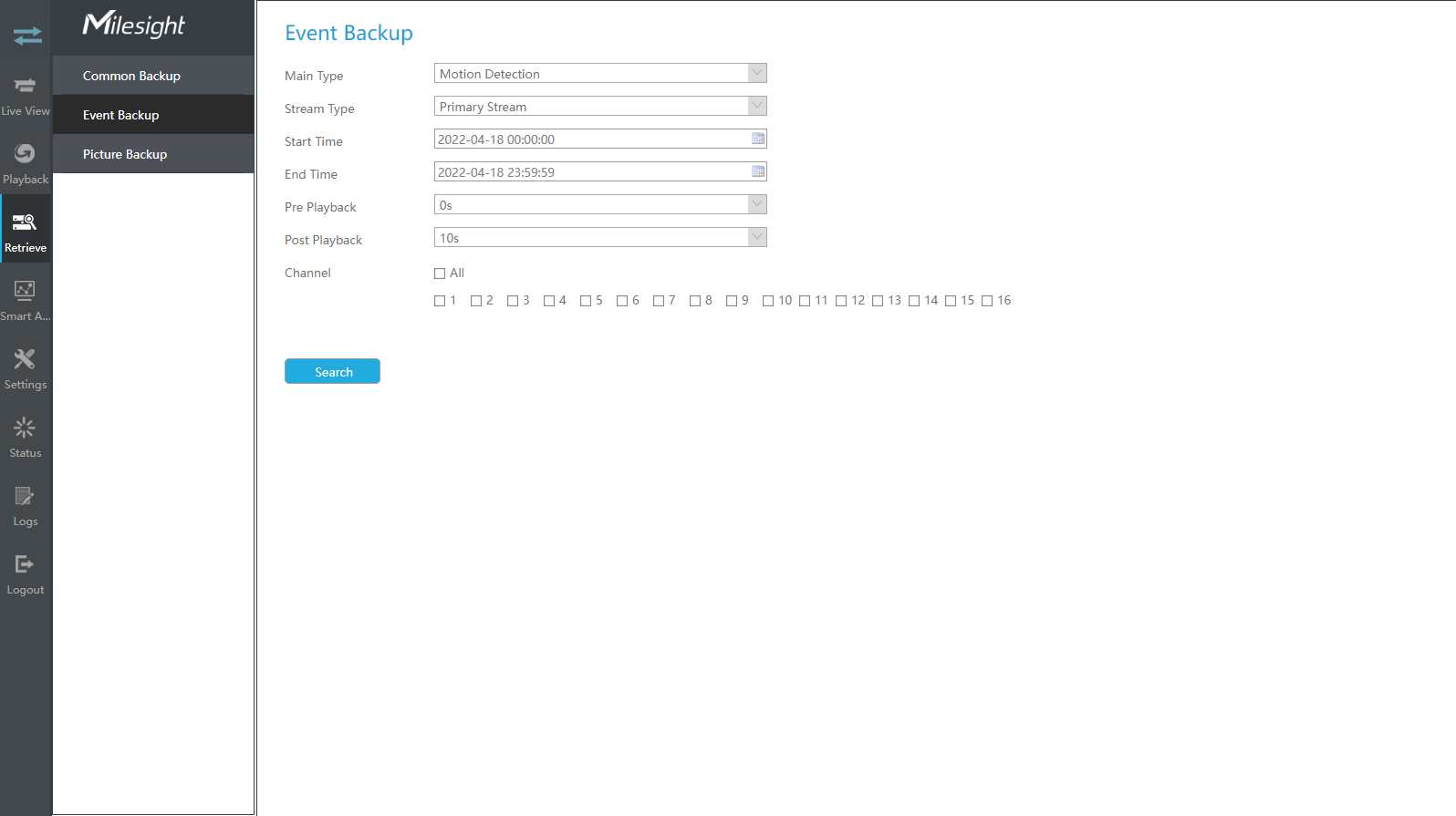

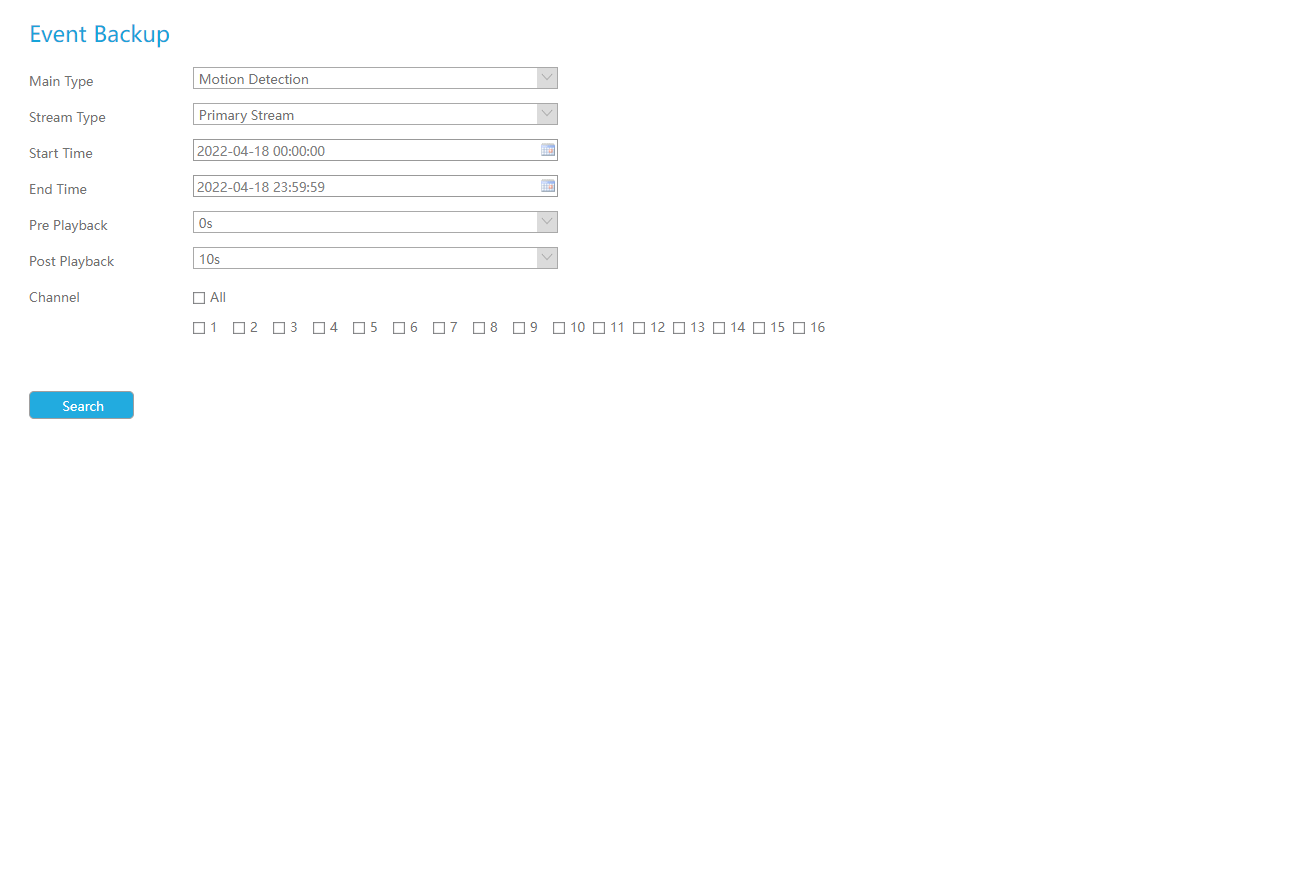

Step 1: Set the search condition and click "Search" button to search video.

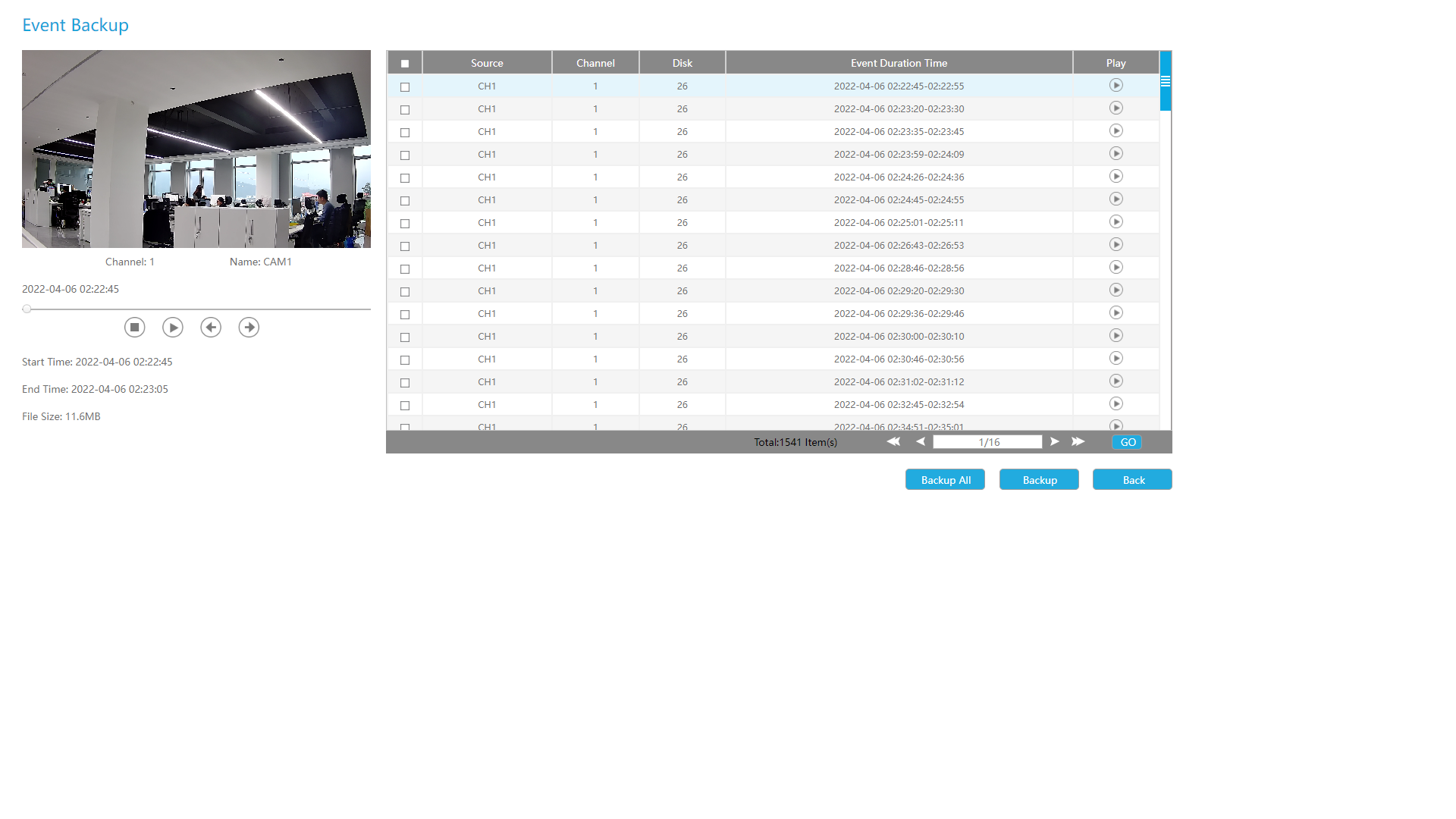

The search result can be shown as a list.



Step 2: Select the file you want to back up and click "Backup". Also, you can click"Backup All" to backup all recorded videos.

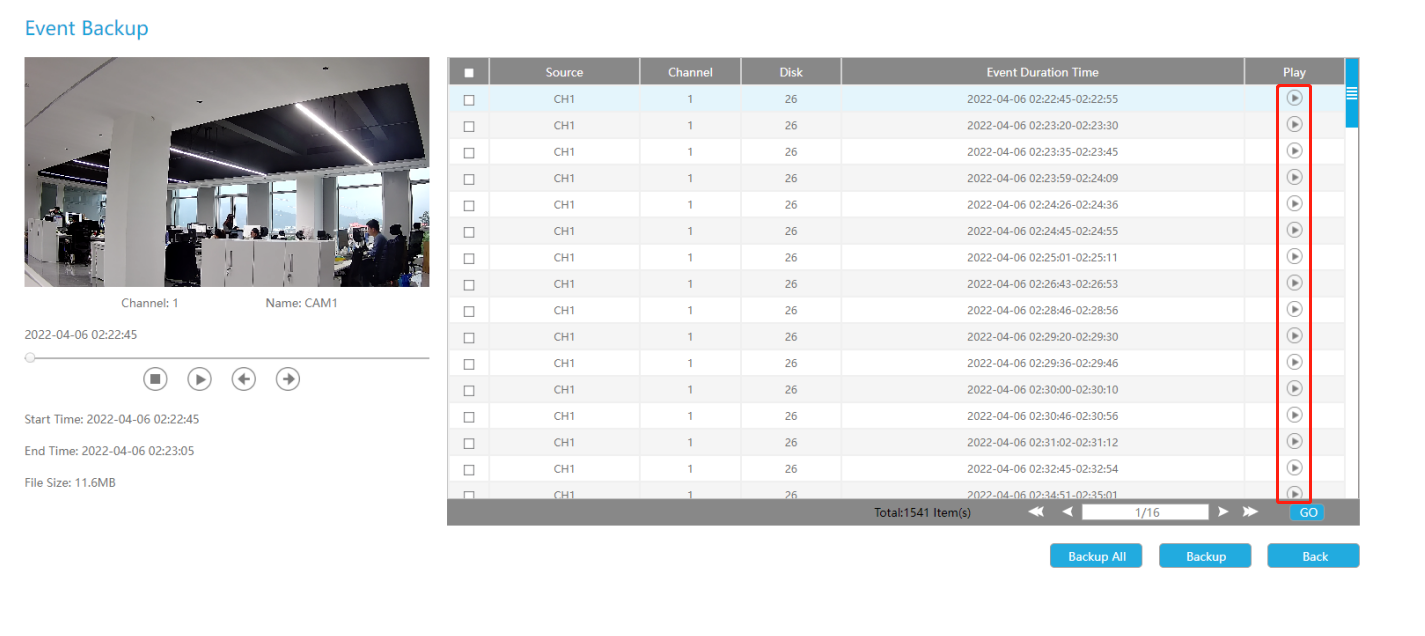

In Event Backup interface, you can click to play the video.

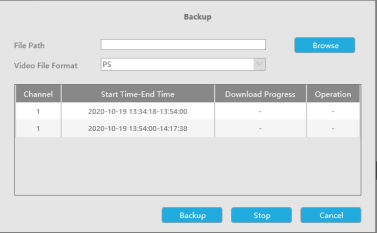

Step 3: Select the format to be exported, which includes MP4, AVI and PS format and then click "Backup" to export selected files.
