Heat Map

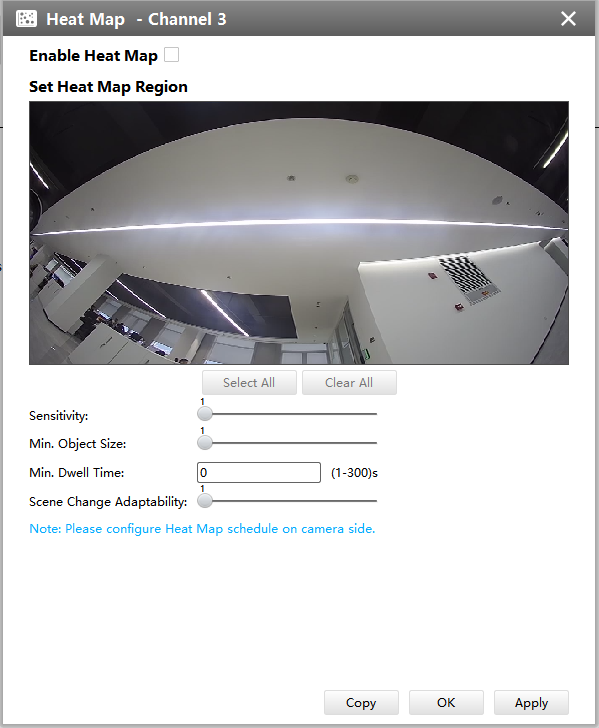

Milesight CMS supports to enable Heat Map and make some configurations for panoramic cameras.

The meanings of the items on Heat Map can be referred to the table below:

Table 1. Description of the buttons
Parameters	Function Introduction
Enable Heat Map	Check the checkbox to enable the Heat Map function
Set Heat Map Region	Draw the heat map area
Select All	Select the current drawing area as Heat Map Region
Clear All	Clear all areas you drew before
Sensitivity	Level 1~10 are available, and the default level is 5. The higher the sensitivity, the easier it is for moving objects to be recorded in the results
Min. Object Size	Set the minimum object size from 1 to 100, and the default value is 10. Objects smaller than this value will not be recorded in the result
Min. Dwell Time	Set the minimum dwell time from 1 to 300, and the default value is 30. If the object stays in the area longer than the set "Minimum Dwell Time", it will not be recorded in the result
Scene Change Adaptability	Level 1~10 are available, and the default level is 5. Scene Change Adaptability indicates the camera's adaptability to scene changes, which can increase the accuracy of detection. The camera better adapts to faster changing scenes if the value is higher

Note: If you choose other display modes of fisheye under Multi-channel mode except display mode with O view, then there will be a pop-up prompt window as shown below when you click the icon button.
