List Management

Add the license plates to this interface as Black or White type (Black/White List), and then you can set the alarm action for these license plates in the corresponding black list mode or white list mode interface. When these license plates are detected, the camera will respond according to your settings.

When adding the license plates, you can also define the ID card number for the license plate, when the camera identifies these license plates and recognizes the attached ID card number, it will send the ID card number to your parking system through the Wiegand protocol, and then your system can respond based on the received information, such as access control.

Note: Please make sure you have correctly connected the Wiegand interface to the camera and enabled it, for more information please refer to: Wiegand.


Table 1. Description of the buttons

Parameters

Function Introduction

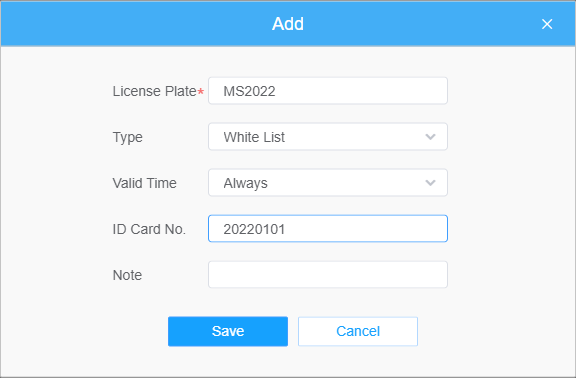

Add License Plate Select the license plate type as black or white, enter the ID Card number and license plate, click the “Add” button, the license plate will be added successfully.


Batch Upload

You can add a csv form with the license plate you want to add, click the "Browse" button to import the form to this interface, click the "Upload" button, the license plates will be added successfully.

Note: You can first download the template as a reference in this interface.
List Search Select Plate Type or directly enter the license plate number, click the “Search” button, the corresponding license plate will be displayed in the list below.
Export List Click the "Export List" button to export the license plate in the current list to a csv form locally.
Delete List Click the "Delete List" button to delete all the license plate in the current list.

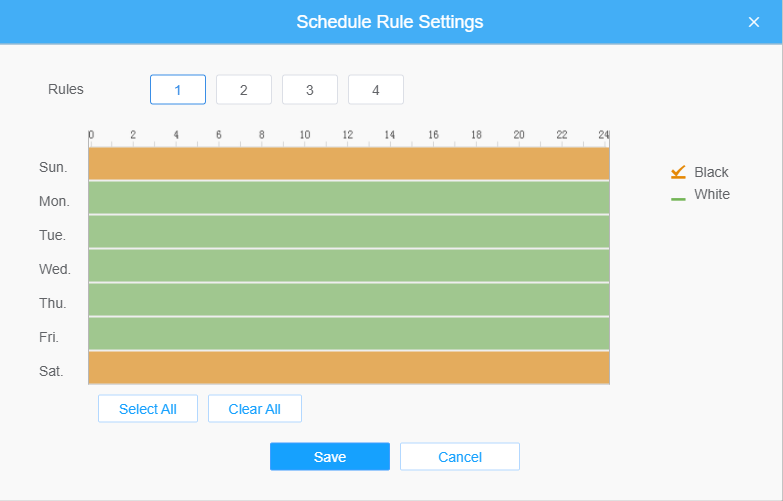

Schedule Rules

Click the “Edit” button to customize a rule.

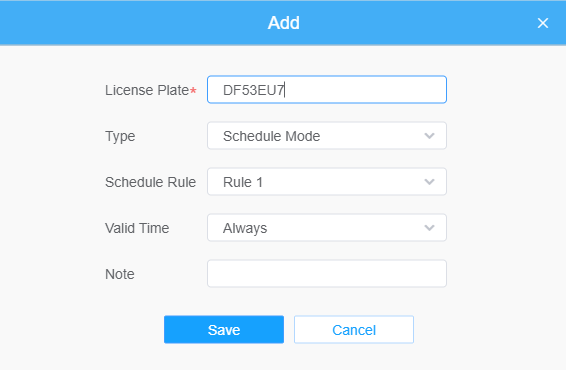

And then set the license plate to Schedule Mode and choose a custom schedule rule that can configure the license plate as Black List or White List at different times.

Note: Support setting up to 4 Schedule Rules for Schedule Mode.
Note: It supports adding 1000 Black List and White List.
