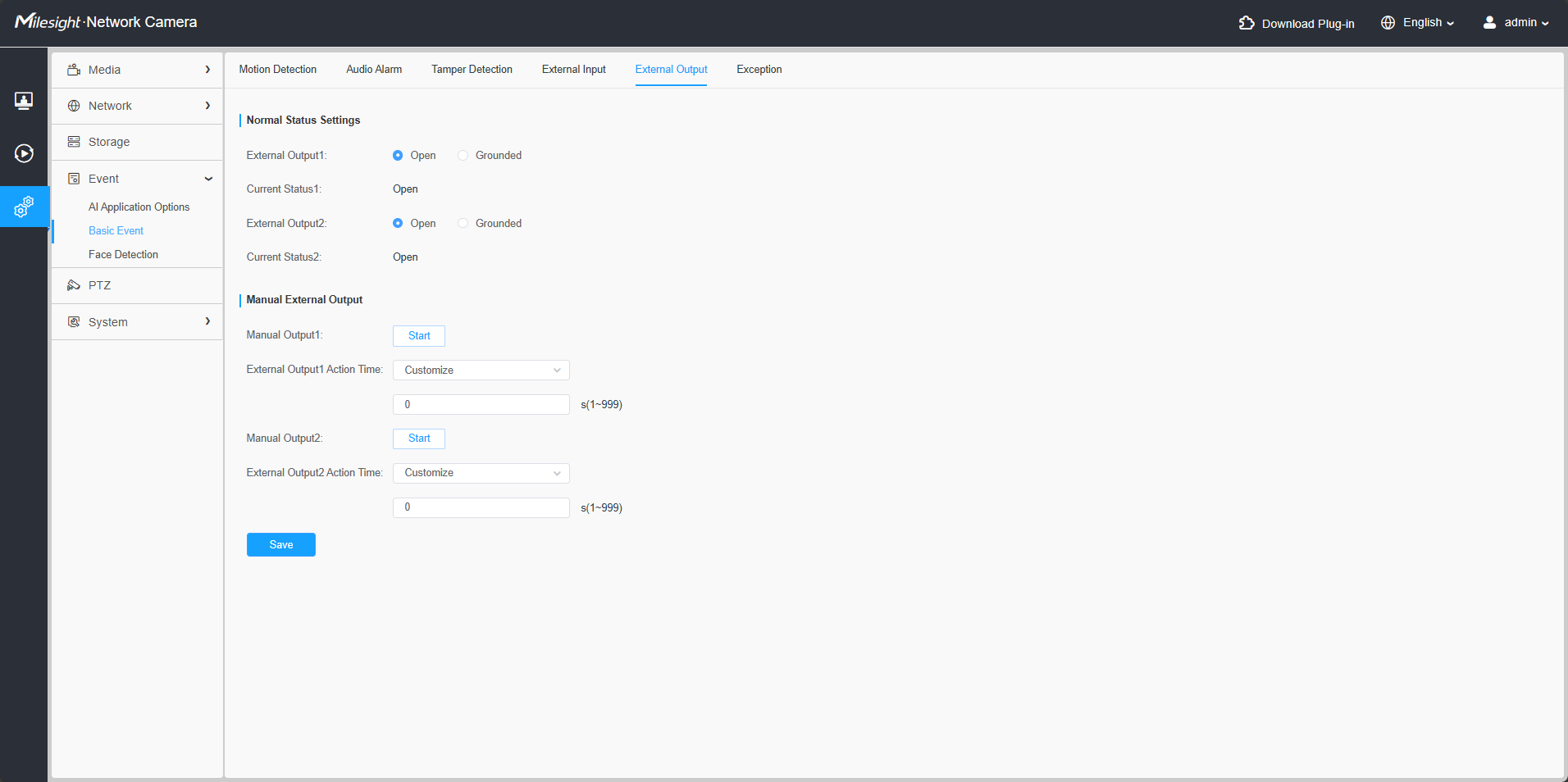

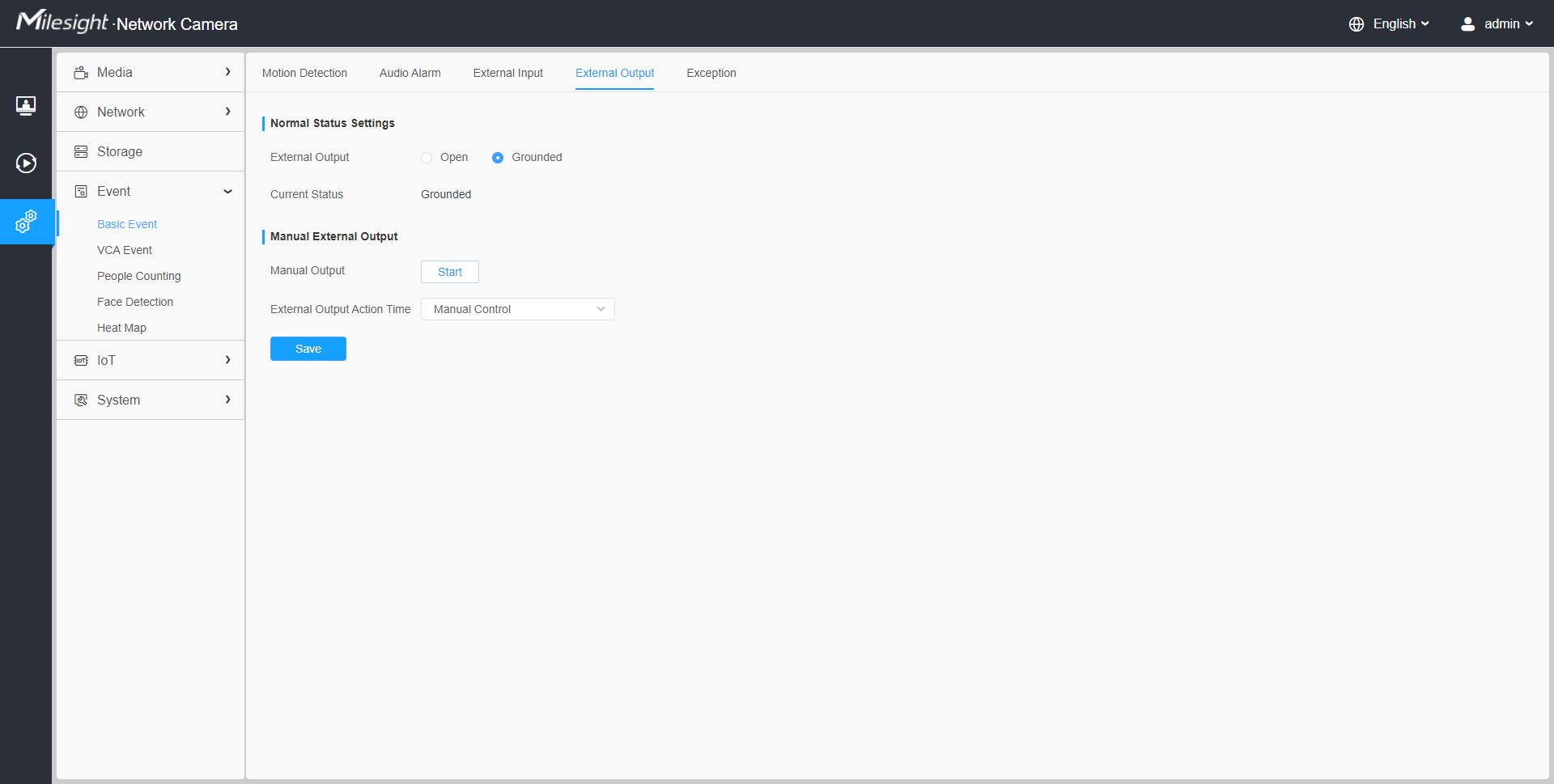

8.4.1.4 External Output



[Normal Status Settings]

Please set the Normal Status firstly, when the Current Status is different with Normal Status, it will lead to the alarm.

[Manual External Output]

You can set the manual external output.

Table 1. Description of the buttons
Parameters Function Introduction
Manual Output Click to Start/Stop manual external output.
External Output Action Time Manual Control/Customize/10 s/1 min./5 min./10 min. are available.
