8.6.1.2 Advanced

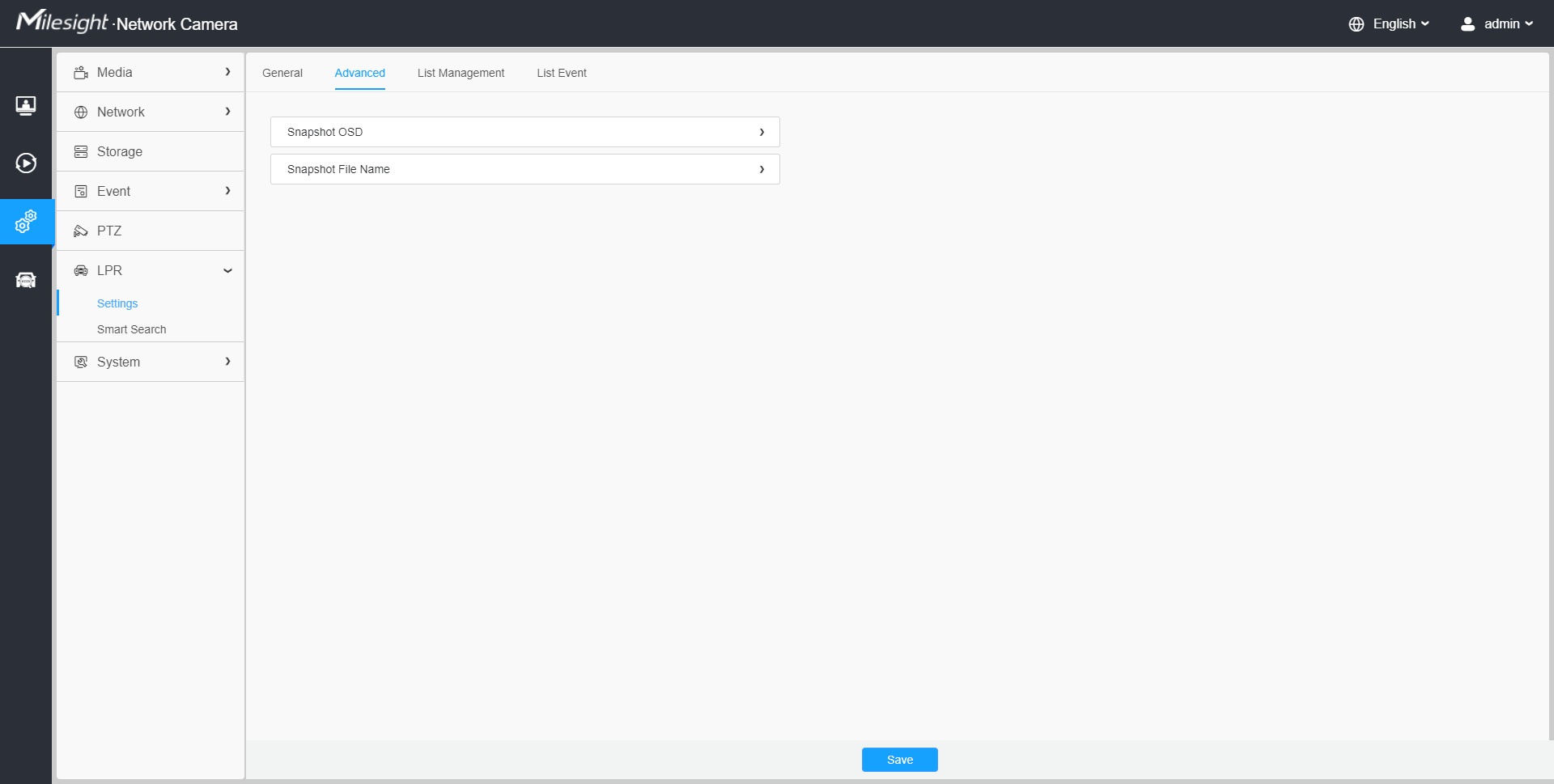

In the interface, you can set display information on snapshot of license plate recognition, and also customize the file name of snapshots which are uploaded via FTP or Email or stored on local LPR Picture File Path.

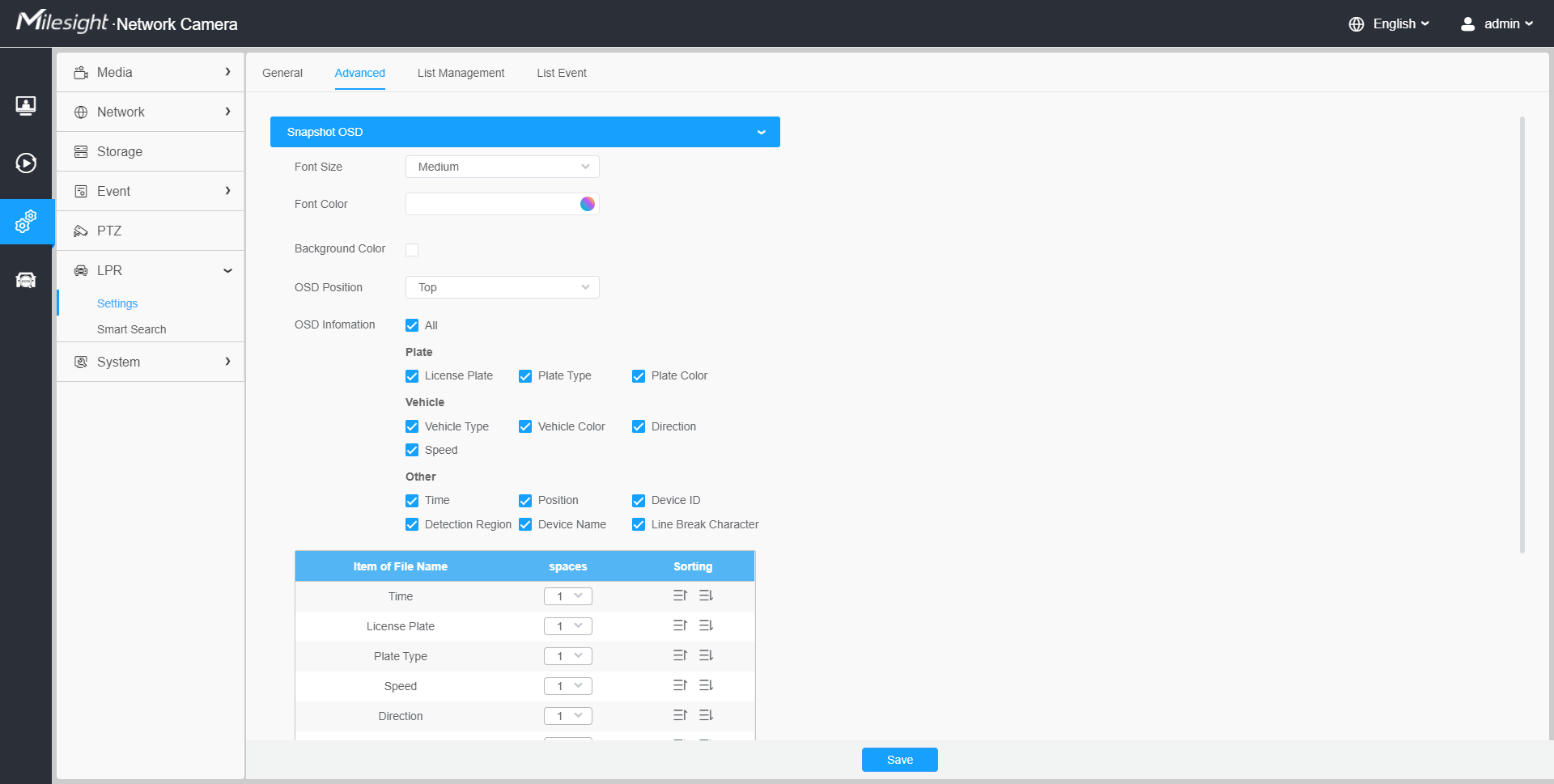

[Snapshot OSD]



Table 1. Description of the buttons

Parameters

Function Introduction

Font Size

Small/Medium/Large are available for OSD information.

Note: Snapshot OSD font size and Image OSD font size are corresponded.

Font Color

Enable to set different colors for OSD information.

Note: Snapshot OSD font color and Image OSD font color are corresponded.

Background Color

Check the checkbox to select background color of snapshot OSD information.

Note: Background color cannot be the same with font color.

OSD Position

Check the checkbox to show OSD information position.

OSD Information

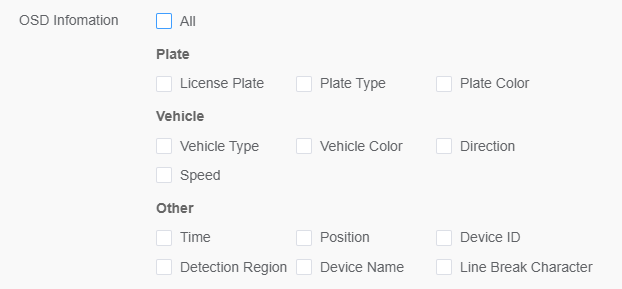

Customize the OSD content. You can set OSD Information as shown below:

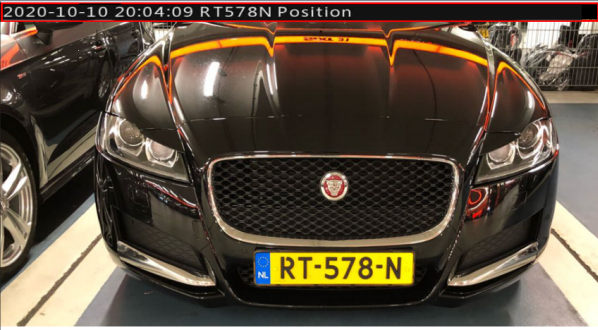

When license plate is recognized and the alarm is triggered, the snapshot of license plate recognition will show as below:

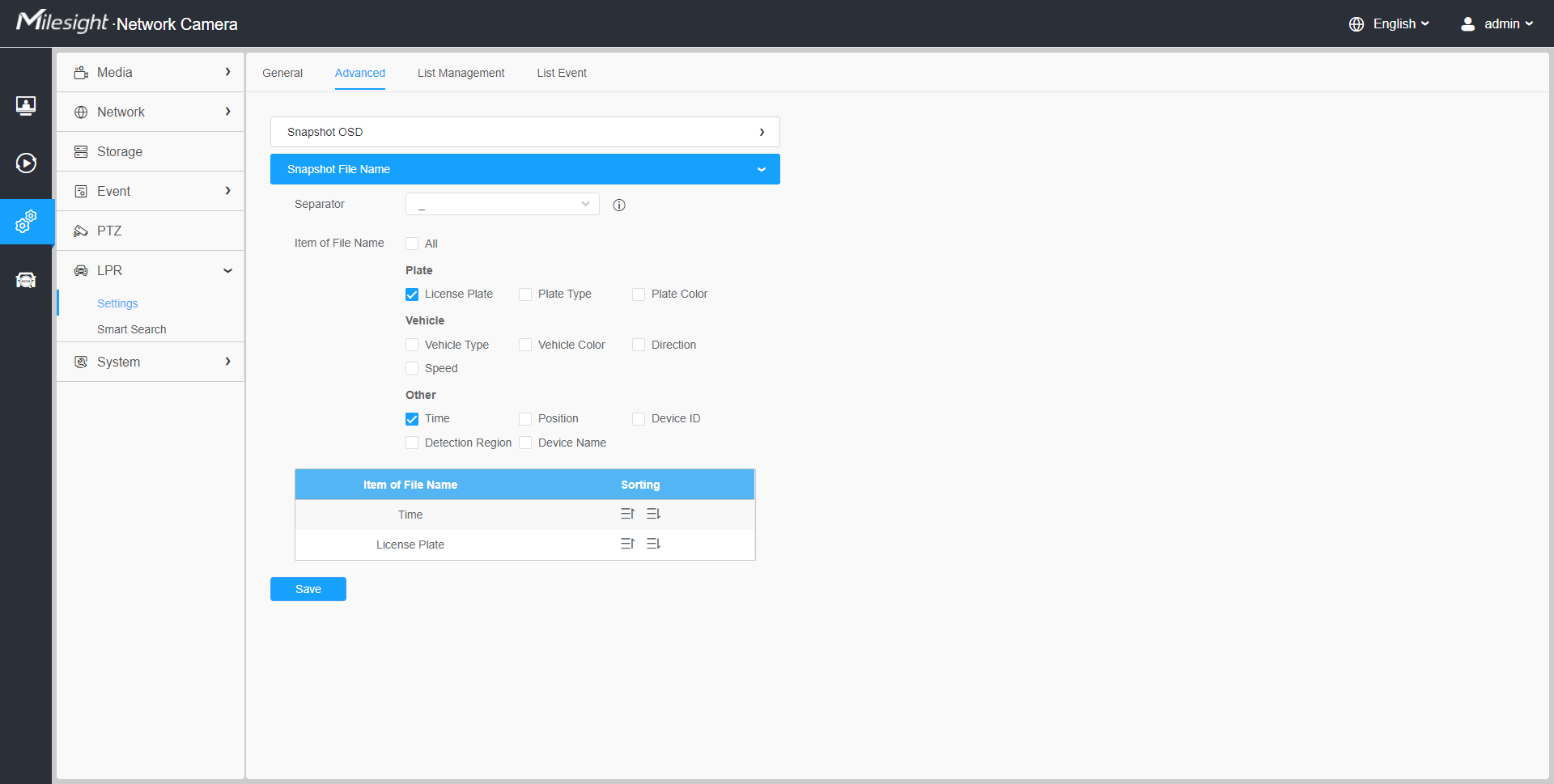

[Snapshot File Name]



Table 2. Description of the buttons

Parameters

Function Introduction

Separator

“-”, “_” and Space are available for File Name Separator format.

The default separator is “-”.

Item of File Name

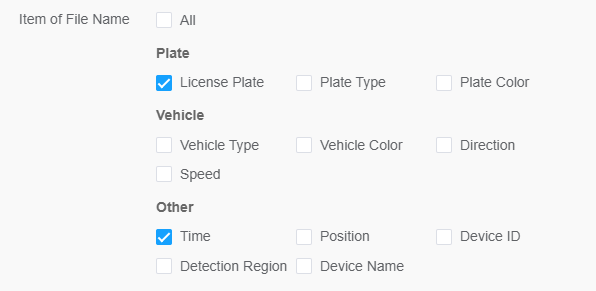

You can customize the snapshot file name according to items chosen.

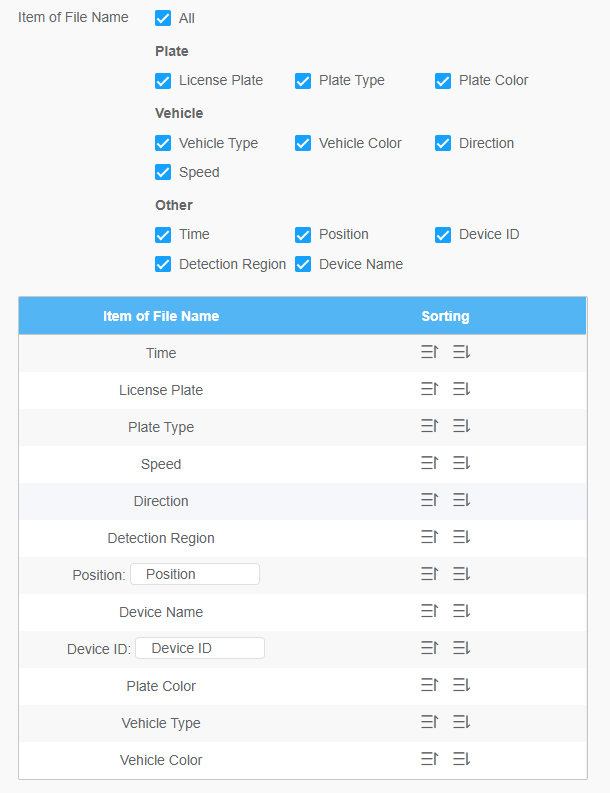

Each time when an item is checked, the list will add the item row, including the item name and sorting operation. You can click and button to sort these items, and choose separator to connect these items name. Also, the content of Position and Device ID items can be customized. When you check all items, the function interface will show as below:



Note: You need to check at least one item.

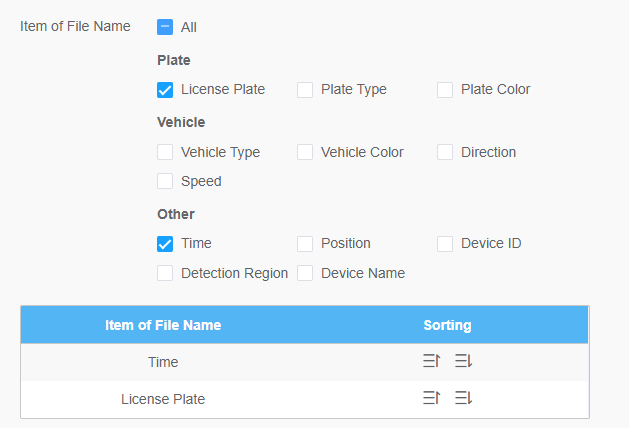

For example, you can choose items, separator and items sorting as below:



Once license plate is recognized, and the snapshot will be uploaded via FTP or Email or stored on your local LPR Picture File Path. Then, You can see the snapshot file name which you customize as shown below:

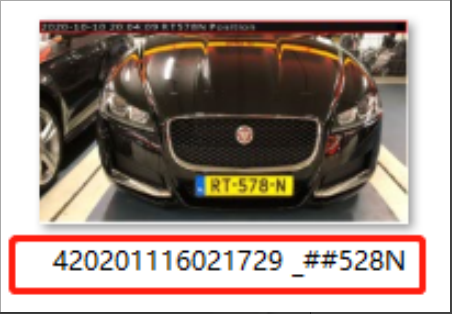

Full-snapshot Recognized successfully

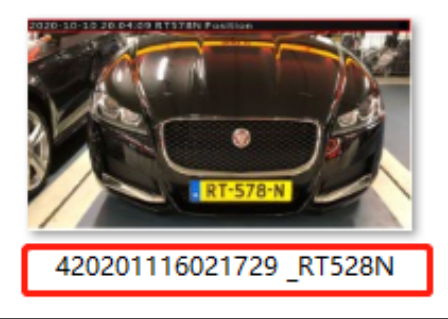

Full-snapshot Recognized failed

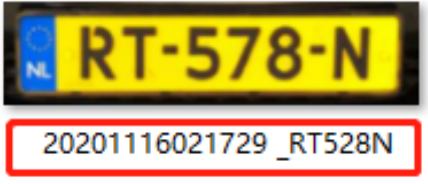

License plate snapshot Recognized successfully

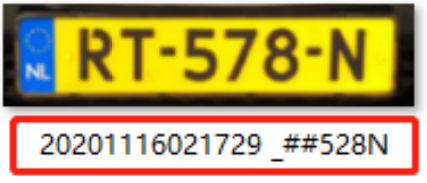

License plate snapshot Recognized failed



Note:
  • If the item checked is not recognized successfully, then the item will be displayed with the specific symbol “#”.
  • The file name of full-snapshot will be preceded by a number of 4.
