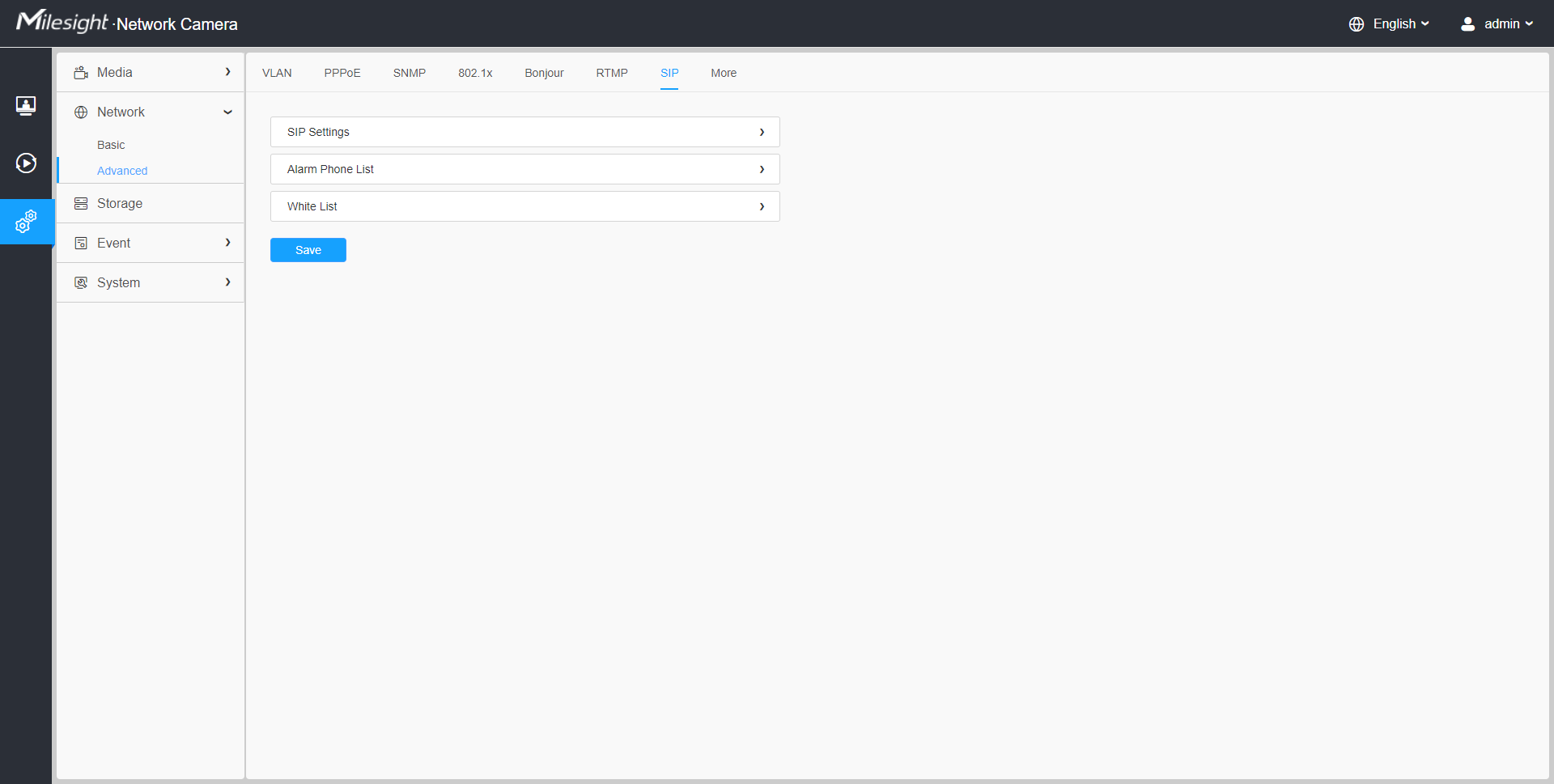

8.2.2.7 SIP

The Session Initiation Protocol(SIP) is a signaling communications protocol, widely used for controlling multimedia communication sessions such as voice and video calls over Internet Protocol (IP) networks. This page allows user to configure SIP related parameters. Milesight can be configured as SIP endpoint to call out when alarm triggered; or allow permitted number to call in to check the video if the video IP phone is used.

Note: For more details about how to use SIP, please refer to https://milesight.freshdesk.com/a/solutions/articles/69000643391.


To use this function, the settings in SIP page must be configured properly. There are two ways to get video through SIP, one is to dial the IP address directly, the other is account registration mode. the details are as follows:

Method 1: IP Direct mode

Dial on the camera’s IP address directly through SIP phone, so you can see the video.

Note: SIP phone and the camera should in the same network segment.
Method2: Account registration mode
  • Before using the SIP, you need to register an account for the camera from the SIP server;
  • Register another user account for the SIP device from the same SIP server;
  • Call the camera User ID from the SIP device, you will get the video on the SIP device.

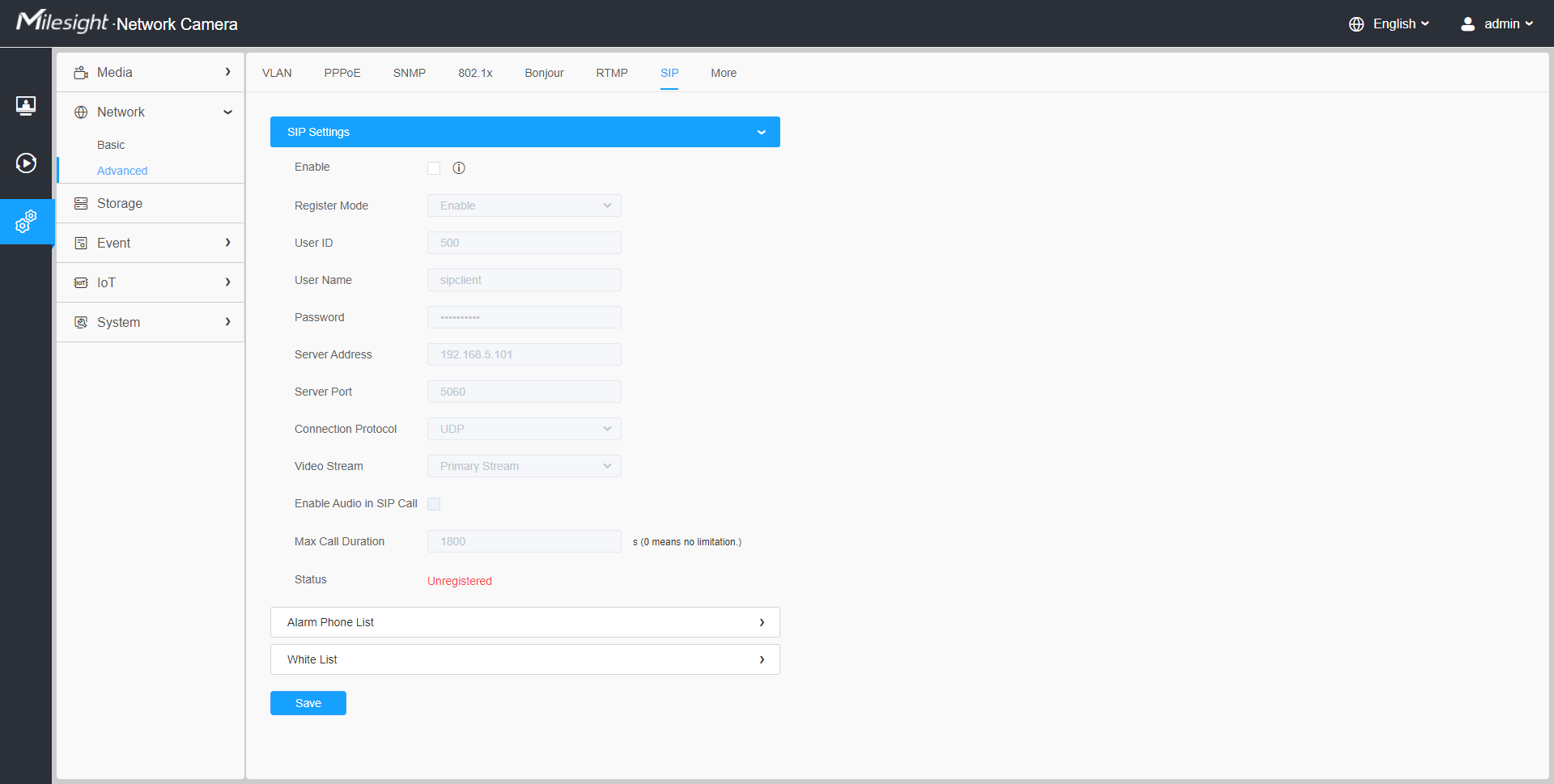

[SIP Settings]



Table 1. Description of the buttons
Parameters Function Introduction

Enable

Start or stop using SIP.

Note: SIP supports Direct IP call.

Register Mode

Choose to use Enable mode or Disable mode. Enable mode means to use SIP with register account. Disable mode refers to use SIP without register account, just use the IP address to call.

User ID

SIP ID.

User Name

SIP account name.

Password

SIP account password.

Server Address

Server IP address.

Server Port

Server port.

Connection Protocol

UDP/TCP.

Video Stream

Choose the video stream.

Enable Audio in SIP Call Enable/disable audio in SIP call.

Max Call Duration

The max call duration when use SIP.

Status SIP registration status. Display “Unregistered” or “Registered” .

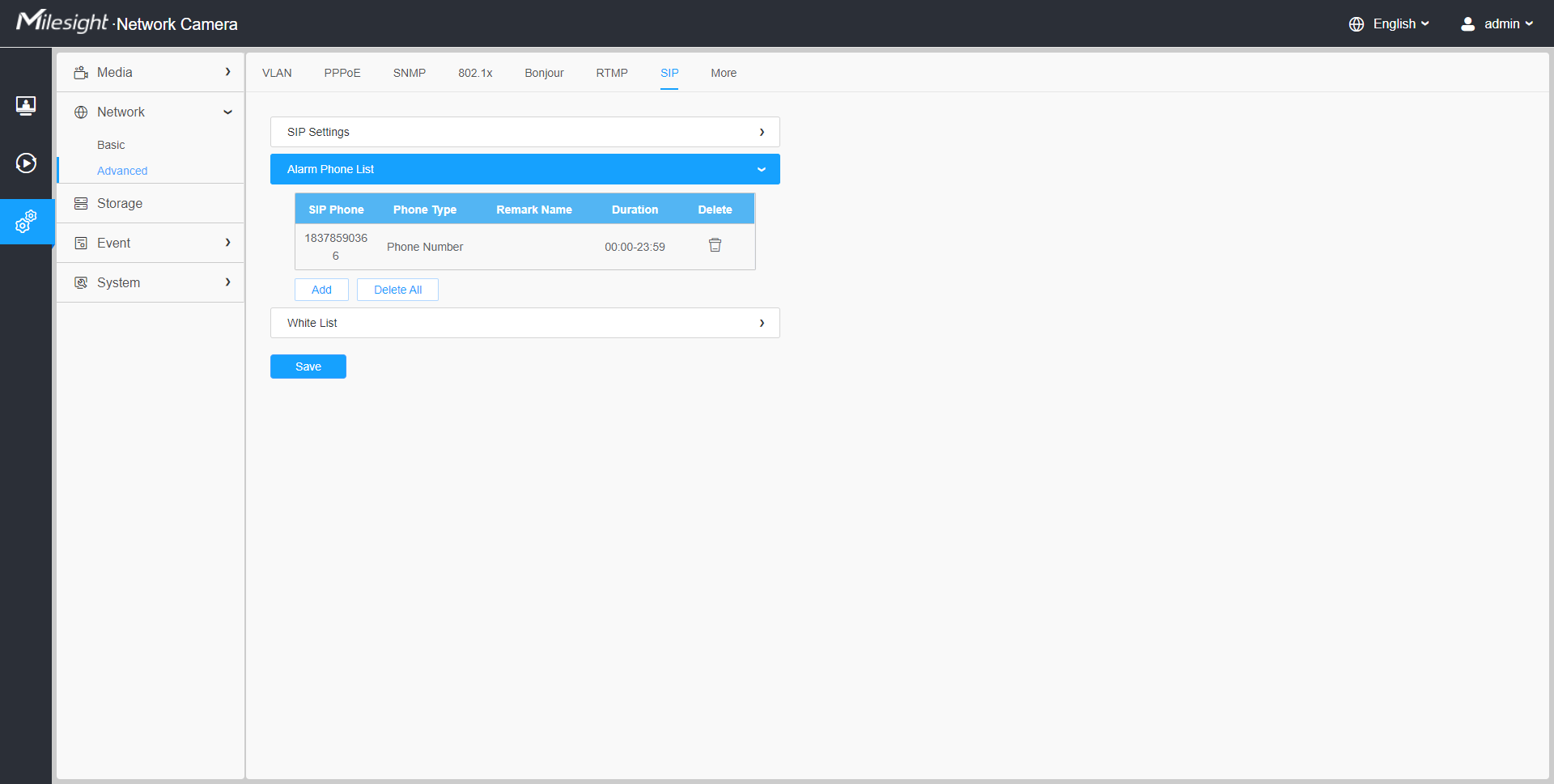

[Alarm Phone List]



Table 2. Description of the buttons
Parameters Function Introduction
Add alarm phone to the camera.

Phone Type: Phone Number(Call by phone number) & Direct IP Call(Check to accept peer to peer IP call).

To Phone Number/IP Address: Call by phone number or IP address.

Remark Name: Display name.

Duration: The time schedule to use SIP.

Delete the selected alarm phone.
Delete all added alarm phone.

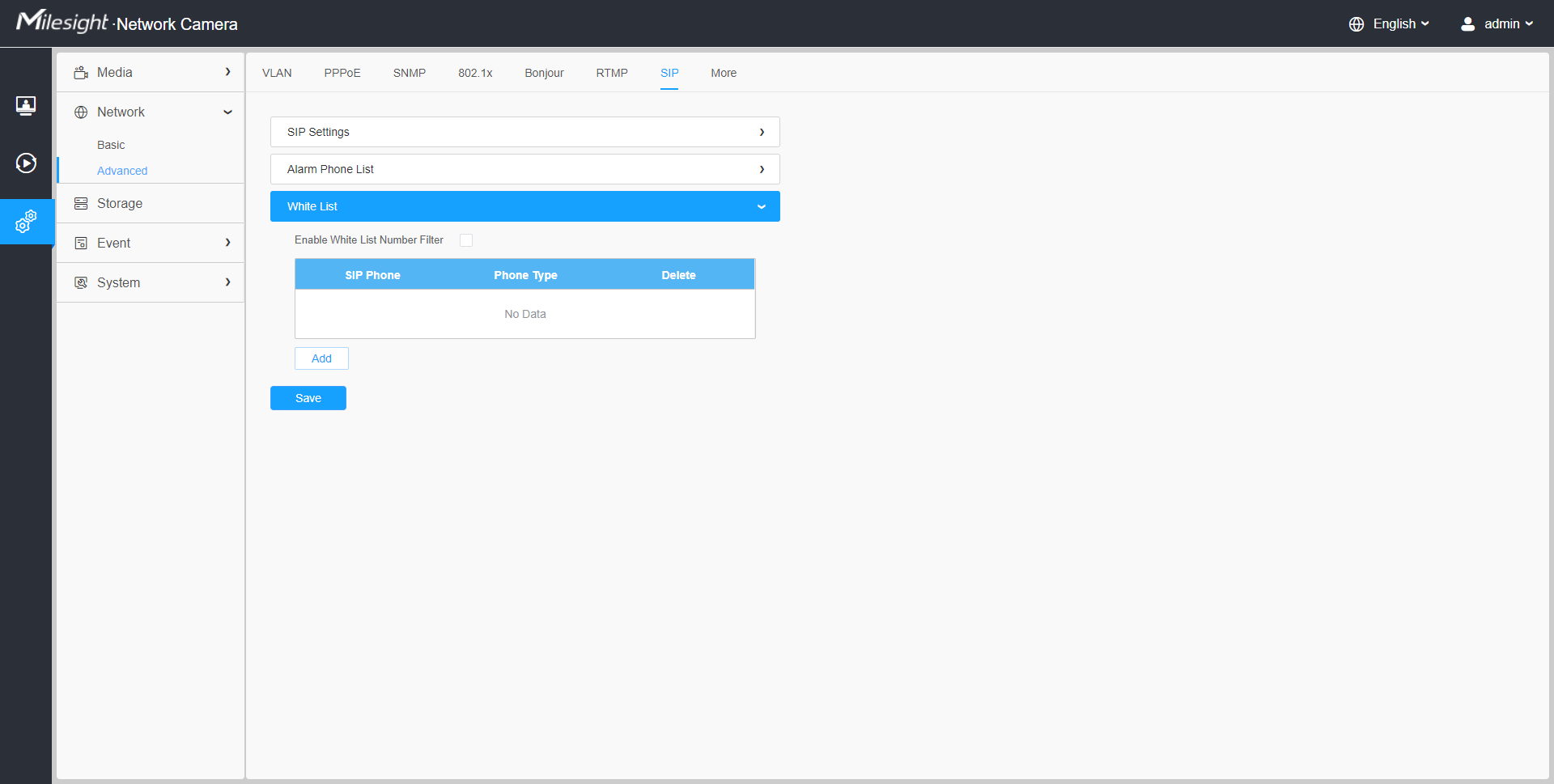

[White List]



Table 3. Description of the buttons
Parameters Function Introduction

Enable White List Number Filter

When enabled, only the designated phone number or IP address can visit

Phone Type: Phone Number(Call by phone number) & Direct IP Call.

Phone Number/IP Address: Including the phone number or IP address on the white list.
