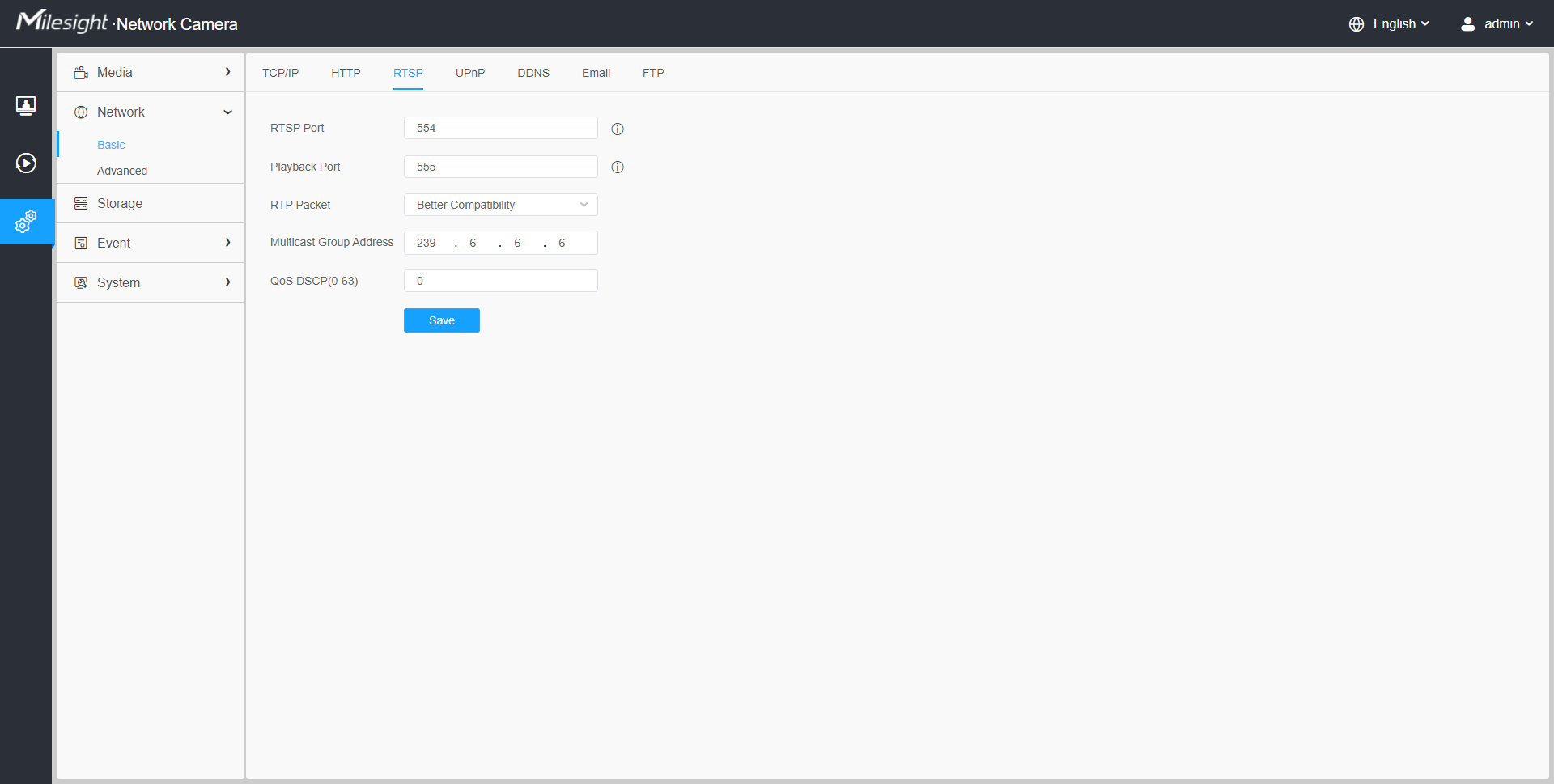

8.2.1.3 RTSP



Table 1. Description of the buttons
Parameters Function Introduction
RTSP Port

The port of RTSP, the default is 554.

Playback Port

Playback Port The port of playback, the default is 555.

Note: Port 0 means closing playback function.
RTP Packet

There are Better Compatibility and Better Performance two options, if your camera’s image mess up, please switch this option.
Multicast Group Address

Support multicast function.
QoS DSCP

The valid value range of the DSCP is 0-63.
Save the configuration.
Table 2. RTSP URL are as below:
Stream URL
Primary Stream rtsp://IP:RTSP Port/main
Secondary Stream rtsp://IP:RTSP Port/sub
Channel 01 rtsp://IP:RTSP Port/main
Channel 02 rtsp://IP:RTSP Port/sub
Channel 03 rtsp://IP:RTSP Port/third
Channel 04 rtsp://IP:RTSP Port/fourth
Channel 05 rtsp://IP:RTSP Port/fifth
Note:
  • The RTSP URL for Primary Stream and Secondary Stream of fisheye camera is optional when transfer mode is bundle-stream mode.
  • The RTSP URL for Channel 01/02/03/04/05 of fisheye camera is optional when transfer mode is multi-channel mode
  • DSCP refers to the Differentiated Service Code Point; and the DSCP value is used in the IP header to indicate the priority of the data.
  • A reboot is required for the settings to take effect.
