8.4.1.1 Motion Detection

Note: For more details about how to set motion detection, please refer to https://milesight.freshdesk.com/a/solutions/articles/69000643423.

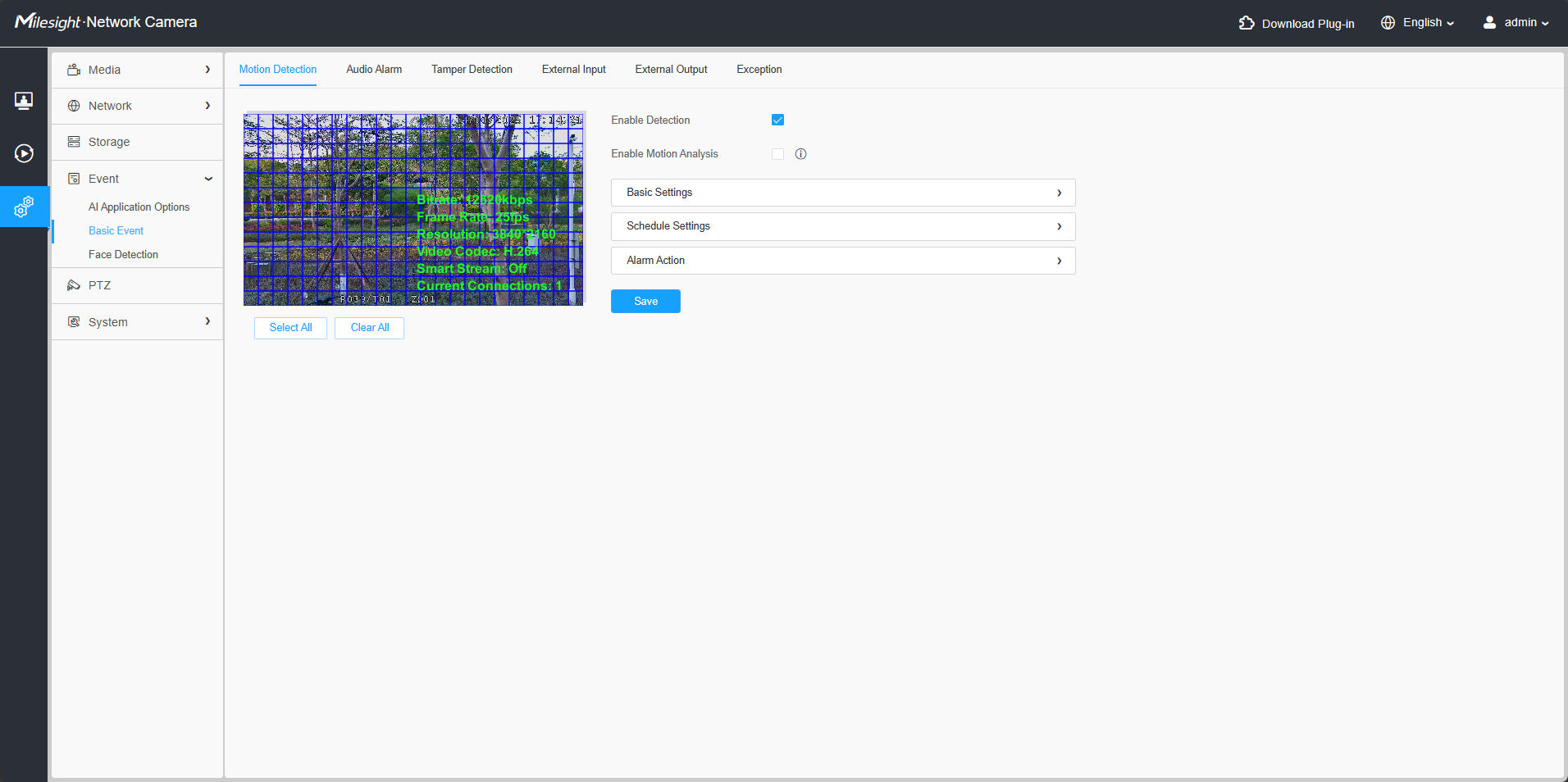

Settings steps are shown as follows:

Step1: Check the check box to enable the motion detection.

Step2: Check the check box to enable the motion analysis.

Step3: Select the detection mode;

Step4: Set motion region;

Table 1. Description of the buttons
Parameters	Function Introduction
Enable Detection	Check the checkbox to enable Motion Detection function.

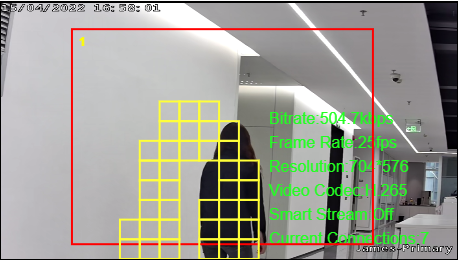

Enable Motion Analysis	When Motion Analysis is enabled, the moving region will turn yellow so that the user can know exactly where the motion occurred. Note: Only support when HTTP is selected in Live View.
	Click the button, the motion in the area will be detected.
	Click the button, the area drawn before will be removed.
	Save the configuration.

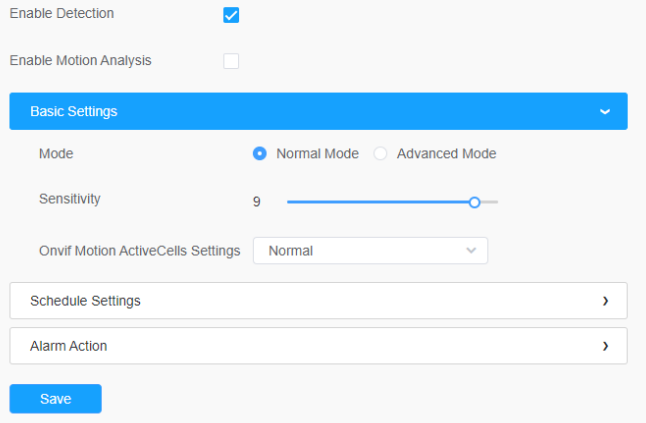

[Basic Settings]

Table 2. Description of the buttons
Parameters	Function Introduction
Detection Mode	Normal Mode and Advanced Mode are available for the option. When Advanced Mode is selected, users can configure up to 4 detection regions and sensitivity for each detection region.
Sensitivity	Sensitivity level, 1~10
Onvif Motion ActiveCells Settings	Normal and Compatible are available for the option. If the setting of motion region of the third-party software is different from ours, please set this option to Compatible

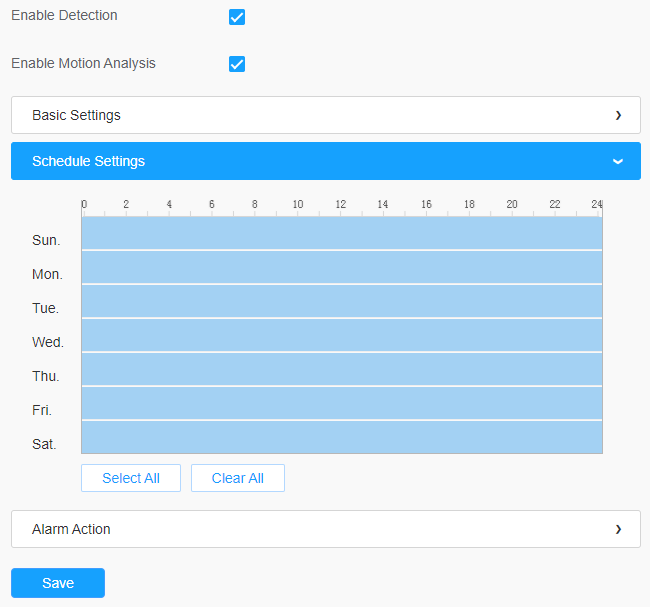

[Schedule Settings]

Step5: Set motion detection schedule.

Table 3. Description of the buttons
Parameters	Function Introduction
	Copy the schedule area to another date. The "All" button is handy to copy today’s schedule to all days.
	Select all schedule.
	Clear all schedule.

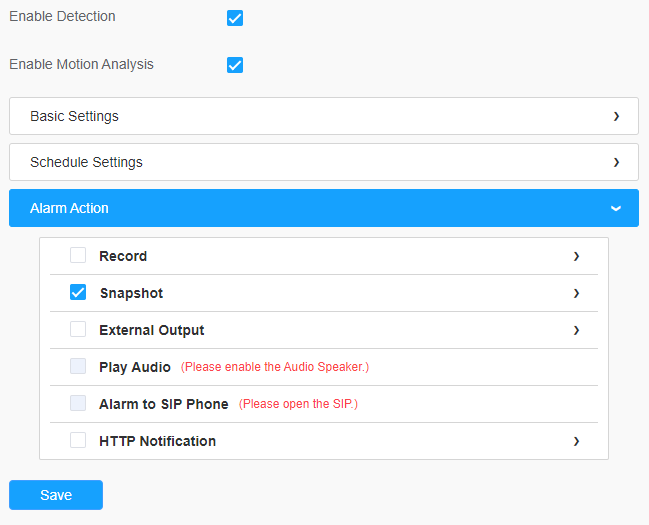

[Alarm Action]

Step6: Set alarm action;

Table 4. Description of the buttons
Parameters	Function Introduction
Record	Duration: Selected the duration time of alarm. 5s/10s/15s/20s/25s/30s are available. Linkage: Save alarm recording files into SD Card or NAS or Upload the recording files via FTP.
Snapshot	Number: The number of snapshot, 1~5 are available. Interval: This cannot be edited unless you choose more than 1 to Snapshot. Linkage: Save alarm recording files into SD Card or NAS, Upload the recording files via FTP and send alarm email.
External Output	If the camera equips with External Output, you can enable the action after configuring the trigger duration. Action Time: Customize/10 seconds/30 seconds/1 minute/5 minutes/Constant are available.
Play Audio	Auto/10 seconds/30 seconds/1 minute/5 minutes/10 minutes are available. Note: Please enable the Audio Speaker.
Alarm to SIP Phone	Support to call the SIP phone after enable the SIP function.
HTTP Notification	Support to pop up the alarm news to specified HTTP URL. Note: Three HTTP notifications at most can be added to the same event. HTTP Notification supports Basic & Digest authentication
White LED	When the alarm triggered, White LED will turn on to warn the detected objects. Note: Only for PTZ Bullet.
PTZ Motion	When the motion alarm triggered, PTZ Motion allows the camera move the lens to the motion triggered position and zoom in. Note: Only for PTZ series.
Call Preset/ Call Patrol/Call Pattern (Only for External Input)	When the motion alarm triggered, the specified preset/patrol/pattern can be called. Note: Only for PTZ series.
