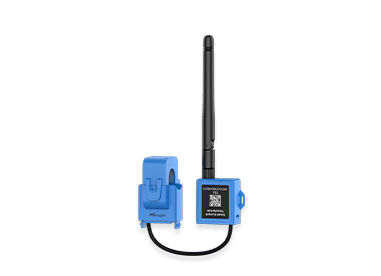

Smart Current Transformer
Empowering Efficient Energy Management
CT305/CT310
- Self-Powered Operation
- Superior Accuracy with Up to 3.3kHz Frequency
- Real-time Accumulated Ampere Hour Calculation
- Non-invasive Installation
- Irregular Current/Temperature Status Alert
- Innovative One-to-Three Design
- LoRaWAN® Wireless Deployment
- FEATURES
- MODELS
- DOWNLOAD
- Home
- IoT LoRaWAN® Series
- CT305/CT310
Multi-Range Current Capacity
*Other measuring ranges can be quickly customized.
CT305
CT305 With 500A Current Capacity
CT310
CT310 With 1000A Current Capacity
Multi-Target Current
Measurement
With a one-to-three design, the current transformer can be

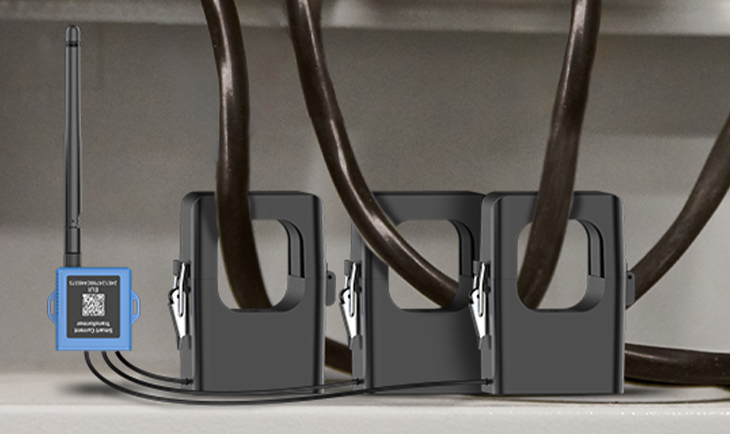

applied to measuring up to three different objects' electricity.

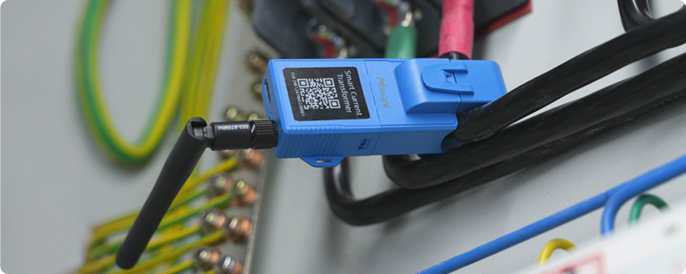

Non-Invasive Installation

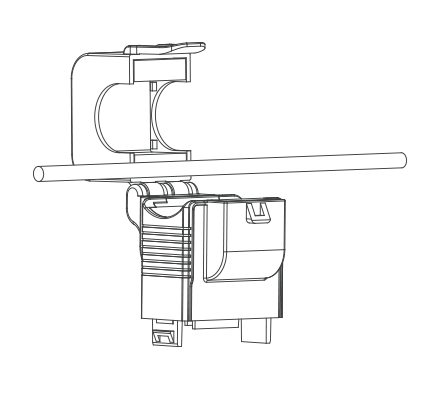

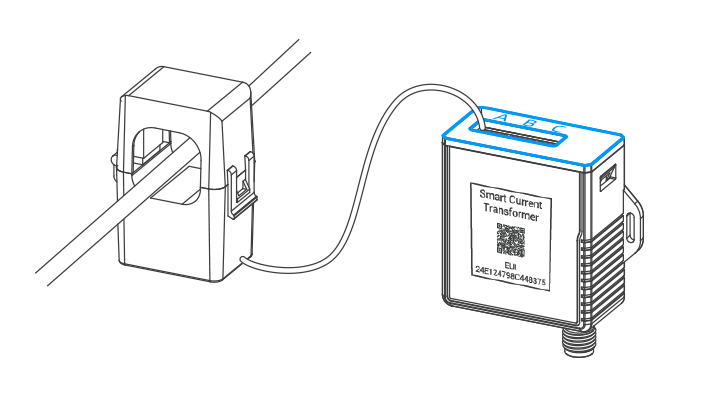

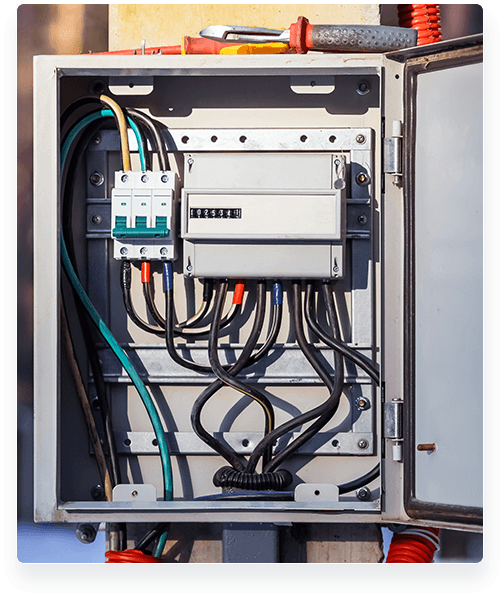

The user-friendly current clamp probe is designed for non-invasive and quick installation, eliminating the risk of circuit damage or power interruptions.
Self-Powered:
No Batteries, No Limits
The CT3xx is designed to derive power directly from the measured circuit, eliminating the constraints of batteries while ensuring seamless operation
Superior Accuracy
Outperform other competitors on the market, CT3xx boasts an impressive high sampling frequency of up to 3.3kHz, guaranteeing unparalleled accuracy and detail.
Efficient Energy Tracking
At One-Second Interval

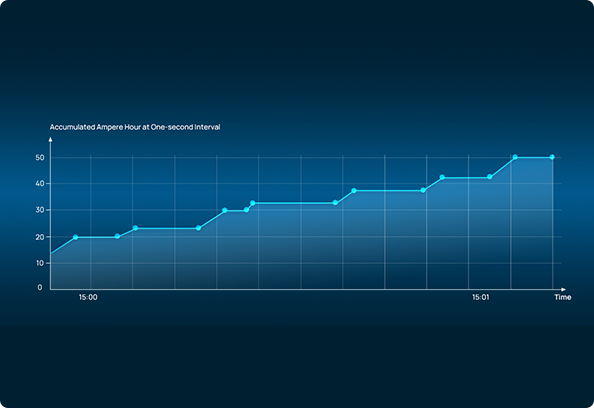

Calculate accumulated ampere hour in real-time at a one-second interval. This enables precise current consumption monitoring
and analysis, achieving goals such as energy conservation and reduced operational costs.
Irregular Status Alert

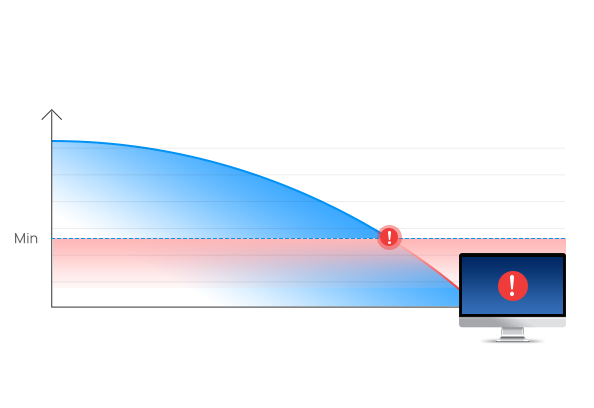

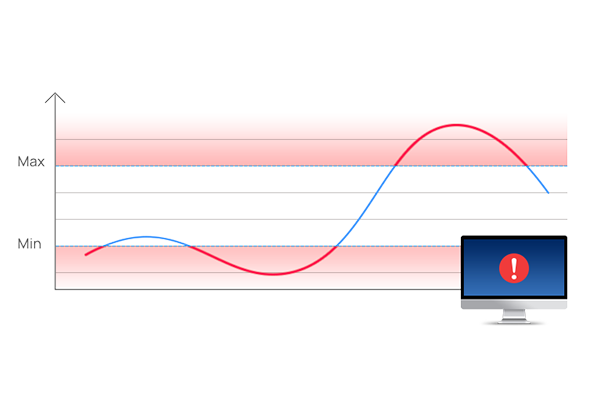

Current Threshold Alert

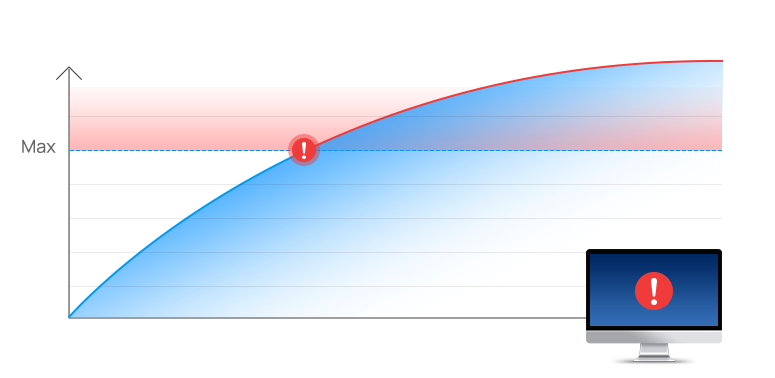

Set minimum and maximum current thresholds, and receive instant alarms upon threshold triggers for swift action.

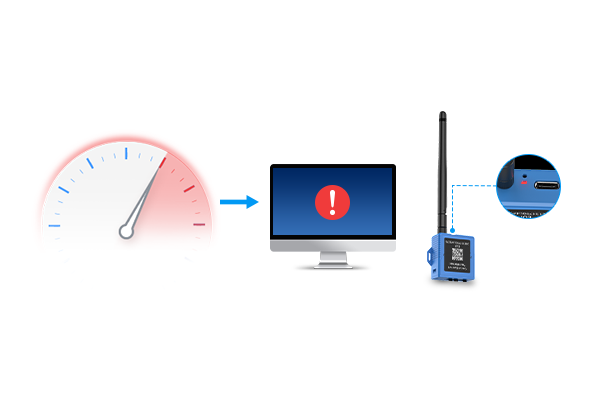

Over-Current Alert

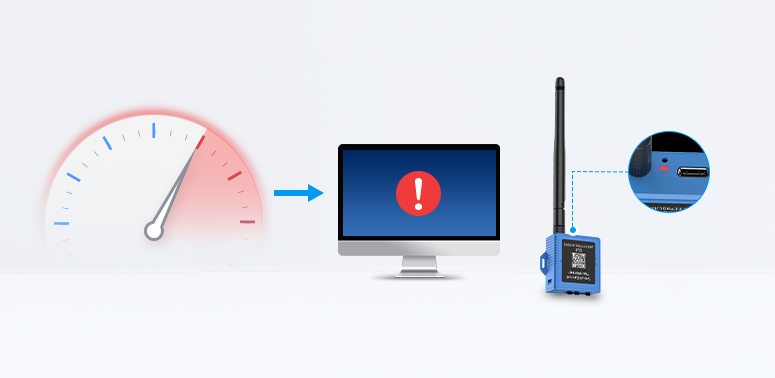

Receive instant alerts when the actual current exceeds the rated limit, accompanied by a smart LED indicator flashing every 2 seconds for swift visual confirmation of the alarm status.

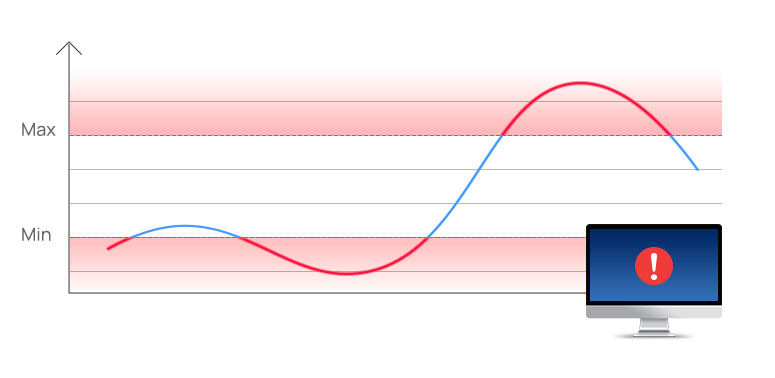

Temperature Threshold Alert

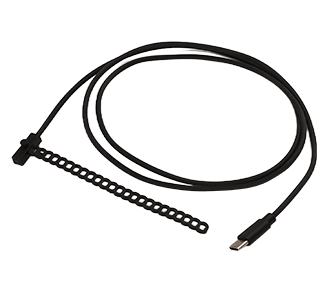

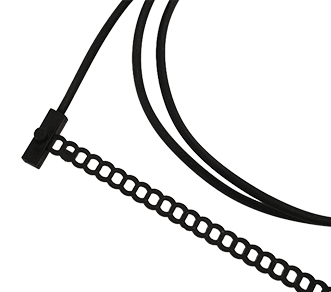

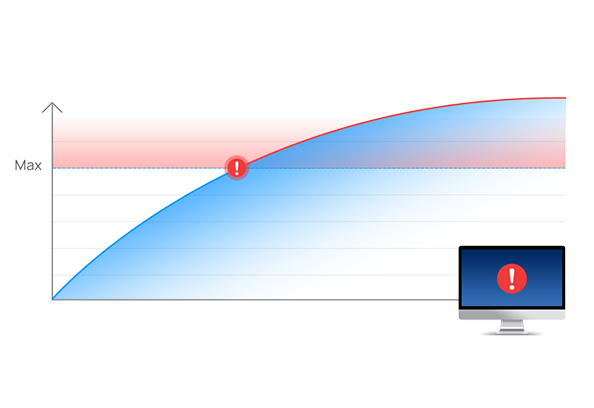

An external wire temperature sensor is available, triggering alerts when the wire temperature reaches a set threshold.

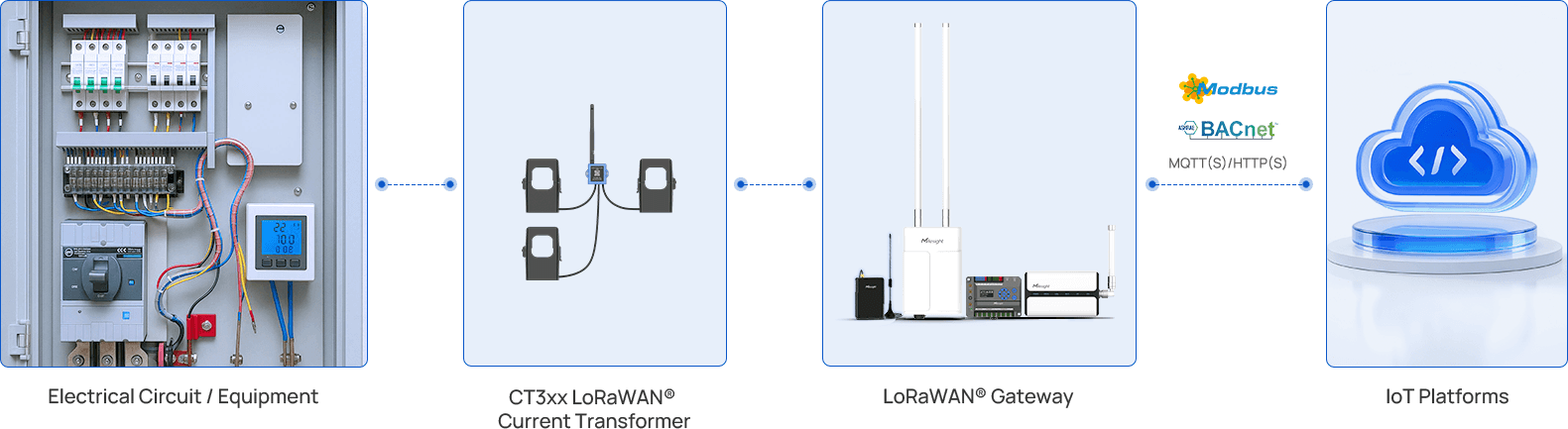

Simple Cable-Free
Deployment

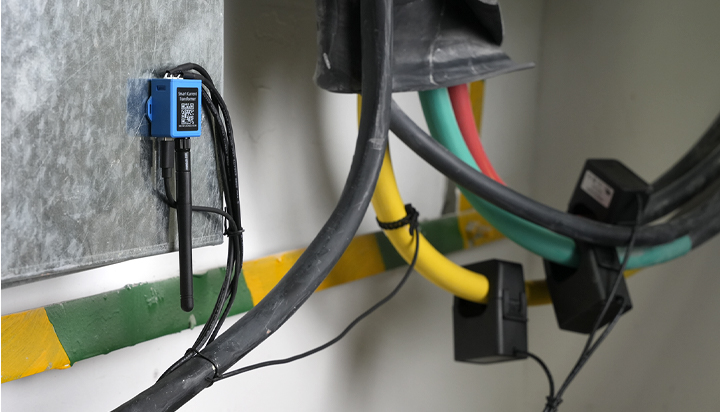

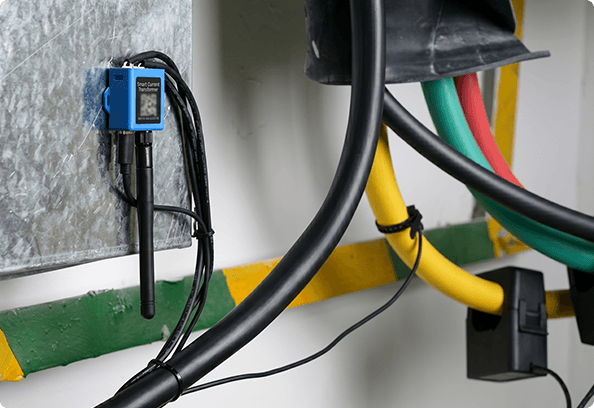

- Cable-Free Deployment
- Efficient LoRaWAN® Transmission
- Multiple Antenna Types
Say goodbye to the hassle of wires. This simplifies the installation process, reduces labor costs, and allows for more flexible placement.

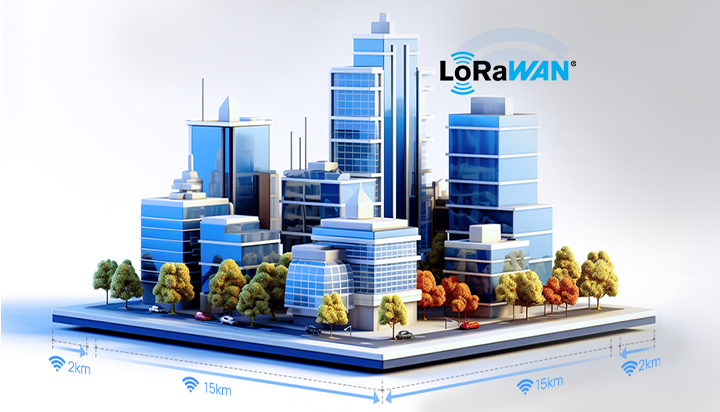

By utilizing the global IoT standards of LoRaWAN®, the CT3xx enables seamless communication from electrical distribution panels across multiple stories of commercial and industrial buildings. It ensures uninterrupted wireless transmission which is also featuring strong stability, penetrability, and compatibility.

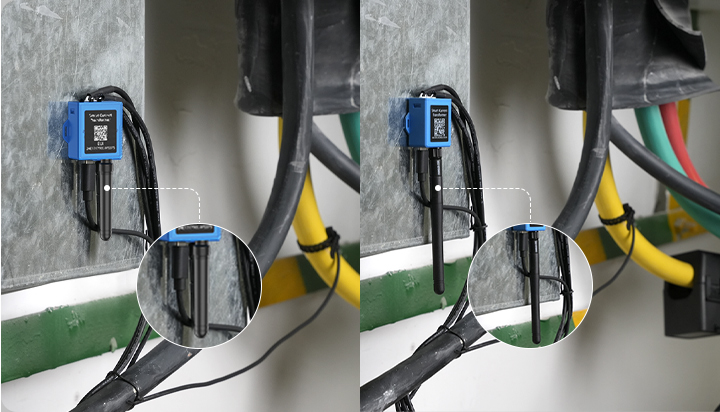

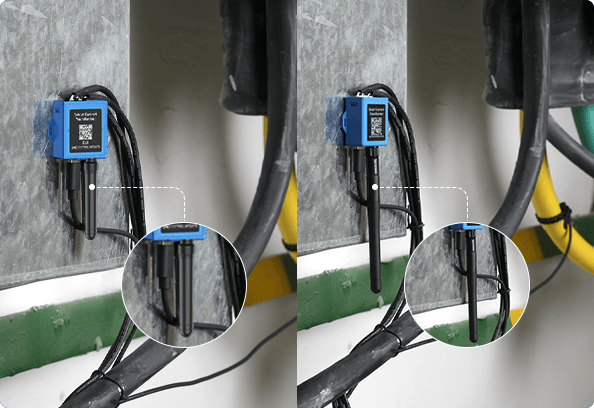

CT3xx is equipped with a high-gain antenna, ensuring stable signal transmission. And the magnetic antenna is also offered as an optional choice to meed your specific needs.
Typical Application

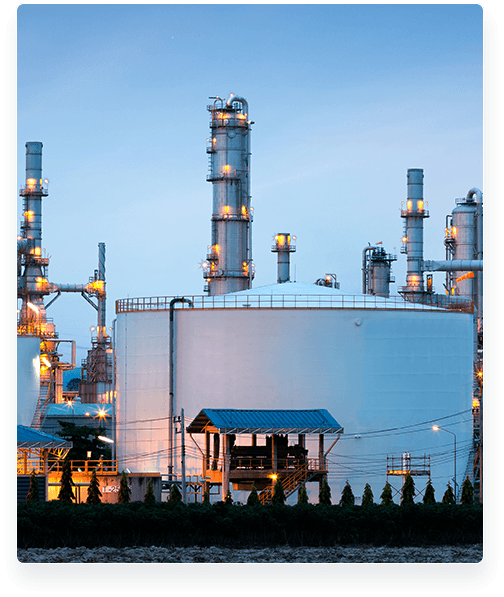

Factory
Hospital
Office Building
Commercial Building
Simple Installation
Specifications
- CT305
- CT310
| Electrical Measurement | |
|---|---|
| Detection Parameter | RMS Current |
| Sampling Frequency | 3.3 kHz |
| Working Frequency | 50~60 Hz |
| Rated Primary Current | 500 Arms |
| Rated Secondary Current | 150mA |
| Start Current | 30 Arms |
| Accuracy | ±1 % |
| Resolution | 1 mA |
| Temperature Sensor | Sensor type: 1 × NTC Sensor Measuring range: -20°C ~ 100°C Measuring accuracy: ±1 % |
| Wireless Transmission | |
| Protocol | LoRaWAN® |
| Antenna Connector | 1 × 50 Ω SMA Connector (Center PIN: SMA Female) |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16 dBm (868 MHz)/20 dBm (915 MHz)/19 dBm (470 MHz) |
| Sensitivity | -137dBm |
| Mode | OTAA/ABP Class A |
| Others | |
| Button | 1 × Reboot Button |
| LED Indicator | 1 × Status/Alarm Indicator |
| Port | 1 × USB Type-C for Power Supply, Console or Cable Temperature Sensor Connection |
| Configuration | USB Type-C or Downlink |
| Physical Characteristics | |
| Power Supply | Induced current power supply |
| Insulation Voltage | 3kVac(r.m.s)(1mA/1min) |
| Color/ Material | Blue, PBT+PC (UL94 V0) |
| Cable Length | 1m |
| Operating Temperature | Transceiver: -20°C~70°C (-4°F~158°F) CT Clamp: -40°C~55°C (-40°F~131°F) |
| Storage Temperature | Transceiver: -25°C~80°C (-13°F~176°F) CT Clamp: -40°C~55°C (-40°F~131°F) |
| Relative Humidity | ≤ 95% (Non-condensing) |
| Ingress Protection | IP30 |
| Dimensions | Transceiver: 38 × 39.7 × 16 mm (1.5 × 1.56 × 0.63 in) CT Clamp: 65.52 × 90 × 43 mm (2.58 × 3.54 × 1.69 in) Wire Hole: Ф 36.6 mm (Ф 1.44 in) |
| Weight | Transceiver: 13.05 g Per CT Clamp: 276.75 g |
| Installation | Transceiver: Cable-tie Mounting (under integrated mode) CT Clamp: Suspended on the Testing Conductor |
| Electrical Measurement | |
|---|---|
| Detection Parameter | RMS Current |
| Sampling Frequency | 3.3 kHz |
| Working Frequency | 50~60 Hz |
| Rated Primary Current | 1000 Arms |
| Rated Secondary Current | 150mA |
| Start Current | 30 Arms |
| Accuracy | ±1 % |
| Resolution | 1 mA |
| Temperature Sensor | Sensor type: 1 × NTC Sensor Measuring range: -20°C ~ 100°C Measuring accuracy: ±1 % |
| Wireless Transmission | |
| Protocol | LoRaWAN® |
| Antenna Connector | 1 × 50 Ω SMA Connector (Center PIN: SMA Female) |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16 dBm (868 MHz)/20 dBm (915 MHz)/19 dBm (470 MHz) |
| Sensitivity | -137dBm |
| Mode | OTAA/ABP Class A |
| Others | |
| Button | 1 × Reboot Button |
| LED Indicator | 1 × Status/Alarm Indicator |
| Port | 1 × USB Type-C for Power Supply, Console or Cable Temperature Sensor Connection |
| Configuration | USB Type-C or Downlink |
| Physical Characteristics | |
| Power Supply | Induced current power supply |
| Insulation Voltage | 3kVac(r.m.s)(1mA/1min) |
| Color/ Material | Blue, PBT+PC (UL94 V0) |
| Cable Length | 1m |
| Operating Temperature | Transceiver: -20°C~70°C (-4°F~158°F) CT Clamp: -40°C~55°C (-40°F~131°F) |
| Storage Temperature | Transceiver: -25°C~80°C (-13°F~176°F) CT Clamp: -40°C~55°C (-40°F~131°F) |
| Relative Humidity | ≤ 95% (Non-condensing) |
| Ingress Protection | IP30 |
| Dimensions | Transceiver: 38 × 39.7 × 16 mm (1.5 × 1.56 × 0.63 in) CT Clamp: 97.9 × 119 × 60mm (3.85 × 4.69 × 2.36 in) Wire Hole: Ф 51 mm (Ф 2.01 in) |
| Weight | Transceiver: 13.05 g Per CT Clamp: 855.55 g |
| Installation | Transceiver: Cable-tie Mounting (under integrated mode) CT Clamp: Suspended on the Testing Conductor |
