4K H.265 PoE NVR 5000 Series
True Plug & Play with 8/16 PoE Ports
Stunning Reliability, Perfect for Your Project
- PoE Plug & Play
- 8/16-CH Network Video Input
- 2*10TB Storage & NAS
- 4K Decoding Capabilities
- AI Video Analytics
- ANPR Management
- POS Integration
- ANR
AI VCA Management
Defined as the central management site to manage intelligent VCA, People Counting, it supports alarm and statistic to deliver prompt insight, helping improve video surveillance efficiency.
Enterprise ANPR Management
Seamlessly integrated with ANPR camera, the NVR manages massive traffic data and excels in diverse traffic management scenarios. It serves as a centralized site, providing real-time license plate previews, intelligent analysis, and comprehensive settings for enhanced functionality and control.
POS Integration
The combination of retail transaction data with surveillance videos makes it easy to check goods settlement, miscalculation and missing calculation, which is helpful to boost customer service and in-store competitive advantage.
Dual Stream Recording
Supporting Primary Stream and Secondary Stream recording simultaneously, Dual Stream Recording makes it possible for you to freely choose the desired streaming based on the bandwidth available.
UHD Video Display
Equipped with solid 4K decoding and display capabilities, Milesight 4K H.265 PoE NVR 5000 Series can synchronously decode up to 3-CH 4K UHD and 12-CH 1080P with the finest details to guarantee real-time video monitoring
HTML5 H.265 Streaming
The preview of the multi-channel videos via all major browsers without downloading extra plug-in is realized when Video Codec is set to H.265, making it easy for users to access the NVRs.
Flexible Storage Options
Flexible storage options including 2*10TB HDD and NAS offer you unparalleled versatility to address the needs for versatile storage and meet the diverse storage needs of projects of any scale.
Plug and Play
Milesight PoE NVR Series offers a true plug-and-play with the built-in independent PoE switches, where cameras can be easily connected without a lot of network infrastructure work, ensuring you to begin the efficient monitoring in no time.
ANR
ANR can store video data on the camera storage card when network between IPC and NVR is disconnected and retransfer the recorded video to NVR after network recovers.

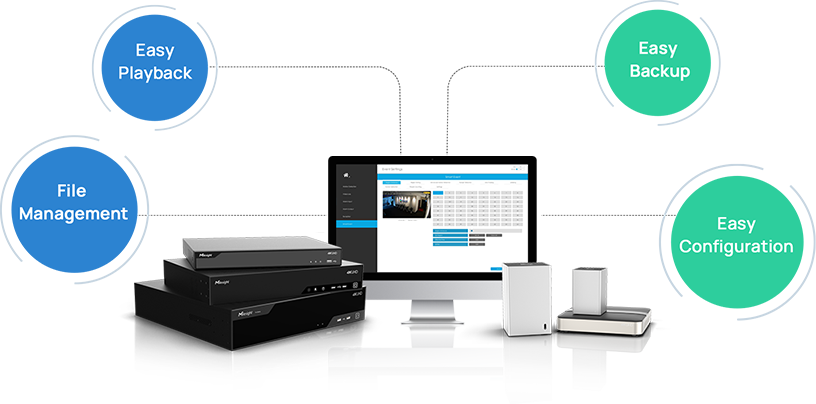

Easy-to-use Design
Featuring a range of functions including Easy Playback, Easy Backup, File Management and Easy Configuration, Milesight's NVR is made to lower the learning costs no matter for a newcomer or trained expert.
Versatile Interfaces
Milesight 4K H.265 PoE NVR 5000 Series comes with a whole array of ports such as an HDMI port, a VGA port, a USB port, 8/16 PoE ports, Alarm I/O, Audio I/O and a LAN port. The full set of interfaces provides all necessary features for effective surveillance.
Success Stories
Specifications
Non-NDAA
- MS-N5008-UPC
NDAA
- MS-N5008-PE
- MS-N5016-PE
- MS-N5016-NPE
| Input | |
|---|---|
| Network Video Input | 8-CH |
| Bandwidth Requirement | 80Mbps (Incoming)80Mbps (Outgoing) |
| Output | |
| HDMI Output | 1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output) |
| VGA Output | 1-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. |
| Dual Stream | Support |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF |
| Synchronous Playback | 1*(30fps @8MP), 1*(30fps@6MP), 1*(30fps@5MP), 2*(30fps @4MP), 2*(30fps @3MP), 4*(30fps @1080P), 8*(30fps @720P) |
| Format | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264 |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Storage | |
| SATA | 2*SATA HDD (3.5”) |
| Capacity | Up to 10TB capacity for each HDD |
| Record | |
| Recording Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Playback Type | General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback |
| Backup | Video backup, Image Backup |
| Network | |
| Network Protocols | IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS |
| Interface | |
| Network Interface | 1*RJ45 10/100/1000Mbps |
| USB Interface | 2*USB 2.0 |
| Audio Input/Output | 1*RCA/1*RCA |
| Alarm Input/Output | 4-CH/1-CH |
| PoE Interface | |
| Interface | 8*RJ45 10/100Mbps |
| Power Output | ≤120W |
| Supported Standard | IEEE 802.3af/at |
| General | |
| Compatibility | ONVIF, API |
| Advanced Function | ANR |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed |
| Keyboard Control | Milesight Keyboard(MS-K01) |
| Power Supply | AC 100V∼240V 50Hz∼60Hz |
| Consumption | ≤9W(Without HDD, without enabling PoE) |
| Working Conditions | Temperature: -10℃∼+55℃ / Humidity: 10%∼90% |
| Dimensions | 380mm(W)X317.6mm(D)X51.8mm(H), Rack Mountable Chassis(1.0U Standard) |
| Weight | 2.6Kg |
| Warranty | 3/5 Years |
* Naming Convention
U - 4K
P - PoE Supported
C/T/E - H.265 Compression
| Input | |
|---|---|
| Network Video Input | 8-CH |
| Bandwidth Requirement | 80Mbps (Incoming)50Mbps (Outgoing) |
| Output | |
| HDMI Output | 1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI Supports Audio Output |
| VGA Output | 1-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Dual Stream | Support |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/D1/VGA/CIF/QCIF |
| Synchronous Playback | 1*(30fps @8MP), 2*(30fps @6MP), 2*(30fps @5MP), 3*(30fps @4MP),4*(30fps @3MP),6*(30fps @1080P), 8*(30fps @720P) |
| Format | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264 |
| Audio Format | G.711/AAC/G.722/G.726 |
| Storage | |
| SATA | 2*SATA HDD (3.5”) |
| Capacity | Up to 10TB capacity for each HDD |
| Record | |
| Recording Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Snapshot Type | N/A |
| Playback Type | General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback |
| Backup | Video backup, Image Backup |
| Network | |
| Network Protocols | IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS |
| Interface | |
| Network Interface | 1*RJ45 10/100/1000Mbps |
| USB Interface | 2*USB 2.0 |
| Audio Input/Output | 1*RCA/1*RCA |
| Alarm Input/Output | 4-CH/1-CH |
| PoE Interface | |
| Interface | 8*RJ45 10/100Mbps |
| Power Output | ≤200W |
| Supported Standard | IEEE 802.3af/at |
| General | |
| Compatibility | ONVIF, API |
| Advanced Function | ANR |
| ANPR | Support |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting |
| Keyboard Control | Milesight Keyboard(MS-K01) |
| Power Supply | AC 100V∼240V 50Hz∼60Hz |
| Consumption | ≤9W(Without HDD, without enabling PoE) |
| Working Conditions | Temperature: -10℃∼+55℃ / Humidity: 10%∼90% |
| Dimensions | 380mm(W)X317.6mm(D)X51.8mm(H), Rack Mountable Chassis(1.0U Standard) |
| Weight | 2.6Kg |
| Warranty | 3/5 Years |
* Naming Convention
U - 4K
P - PoE Supported
C/T/E - H.265 Compression
| Input | |
|---|---|
| Network Video Input | 16-CH |
| Bandwidth Requirement | 80Mbps (Incoming)50Mbps (Outgoing) |
| Output | |
| HDMI Output | 1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output) |
| VGA Output | 1-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. |
| Dual Stream | Support |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF |
| Synchronous Playback | 1*(30fps @8MP), 2*(30fps @6MP), 2*(30fps @5MP), 3*(30fps @4MP), 4*(30fps @3MP), 6*(30fps @1080P), 12*(30fps @720P) |
| Format | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264 |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Storage | |
| SATA | 2*SATA HDD (3.5”) |
| Capacity | Up to 10TB capacity for each HDD |
| Record | |
| Recording Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Snapshot Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Playback Type | General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback |
| Backup | Video backup, Image Backup |
| Network | |
| Network Protocols | IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS |
| Interface | |
| Network Interface | 1*RJ45 10/100/1000Mbps |
| USB Interface | 2*USB 2.0 |
| Audio Input/Output | 1*RCA/1*RCA |
| Alarm Input/Output | 4-CH/1-CH |
| PoE Interface | |
| Interface | 16*RJ45 10/100Mbps |
| Power Output | ≤200W |
| Supported Standard | IEEE 802.3af/at |
| General | |
| Compatibility | ONVIF, API |
| Advanced Function | ANR |
| ANPR | Support |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed |
| Keyboard Control | Milesight Keyboard(MS-K01) |
| Power Supply | AC 100V∼240V 50Hz∼60Hz |
| Consumption | ≤8.5W(Without HDD, without enabling PoE) |
| Working Conditions | Temperature: -10℃∼+55℃ / Humidity: 10%∼90% |
| Dimensions | 380mm(W)X317.6mm(D)X51.8mm(H), Rack Mountable Chassis(1.0U Standard) |
| Weight | 2.7Kg |
| Warranty | 3/5 Years |
* Naming Convention
U - 4K
P - PoE Supported
C/T/E - H.265 Compression
| Input | |
|---|---|
| Network Video Input | 16-CH |
| Bandwidth Requirement | 160Mbps (Incoming), 160Mbps (Outgoing) |
| Output | |
| HDMI Output | 1-CH, Resolution: 3840x2160/30 Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI Supports Audio Output |
| VGA Output | 1-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Dual Stream | Support |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF |
| Synchronous Playback | 3*(30fps @8MP), 4*(30fps @6MP),4*(30fps @5MP), 5*(30fps @4MP),8*(30fps @3MP), 12*(30fps @1080P),16*(30fps @720P),16*(30fps @D1) |
| Format | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264 |
| Audio Format | G.711/AAC/G.722/G.726 |
| Sample Rate | 8KHz/16KHz |
| Storage | |
| SATA | 2*SATA HDD (3.5”) |
| Capacity | Up to 10TB capacity for each HDD |
| Record | |
| Recording Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Snapshot Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Playback Type | General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback |
| Backup | Video backup, Image Backup |
| Network | |
| Network Protocols | IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS |
| Interface | |
| Network Interface | 1*RJ45 10/100/1000Mbps |
| USB Interface | 2*USB 2.0 |
| Audio Input/Output | 1*RCA/1*RCA |
| Alarm Input/Output | 4-CH/1-CH |
| PoE Interface | |
| Interface | 16*RJ45 10/100Mbps |
| Power Output | ≤200W |
| Supported Standard | IEEE 802.3af/at |
| General | |
| Compatibility | ONVIF, API |
| Advanced Function | ANR |
| ANPR | Support |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting |
| Keyboard Control | Milesight Keyboard(MS-K01) |
| Power Supply | AC 100V∼240V 50Hz∼60Hz |
| Consumption | ≤8.5W(Without HDD, without enabling PoE) |
| Working Conditions | Temperature: -10℃∼+55℃ / Humidity: 10%∼90% |
| Dimensions | 380mm(W)X317.6mm(D)X51.8mm(H), Rack Mountable Chassis(1.0U Standard) |
| Weight | 2.7Kg |
| Warranty | 3/5 Years |
* Naming Convention
U - 4K
P - PoE Supported
C/T/E - H.265 Compression
