Attributes Event

This function can trigger alarms by corresponding attributes of the vehicle and plate or by No-plate Vehicle, which can be of great help in urban management, such as detecting whether there is a vehicle illegally occupying the bus lane, or detecting whether there is a truck entering the city road during the day, etc., to meet a variety of uses.



Settings steps are shown as follows:

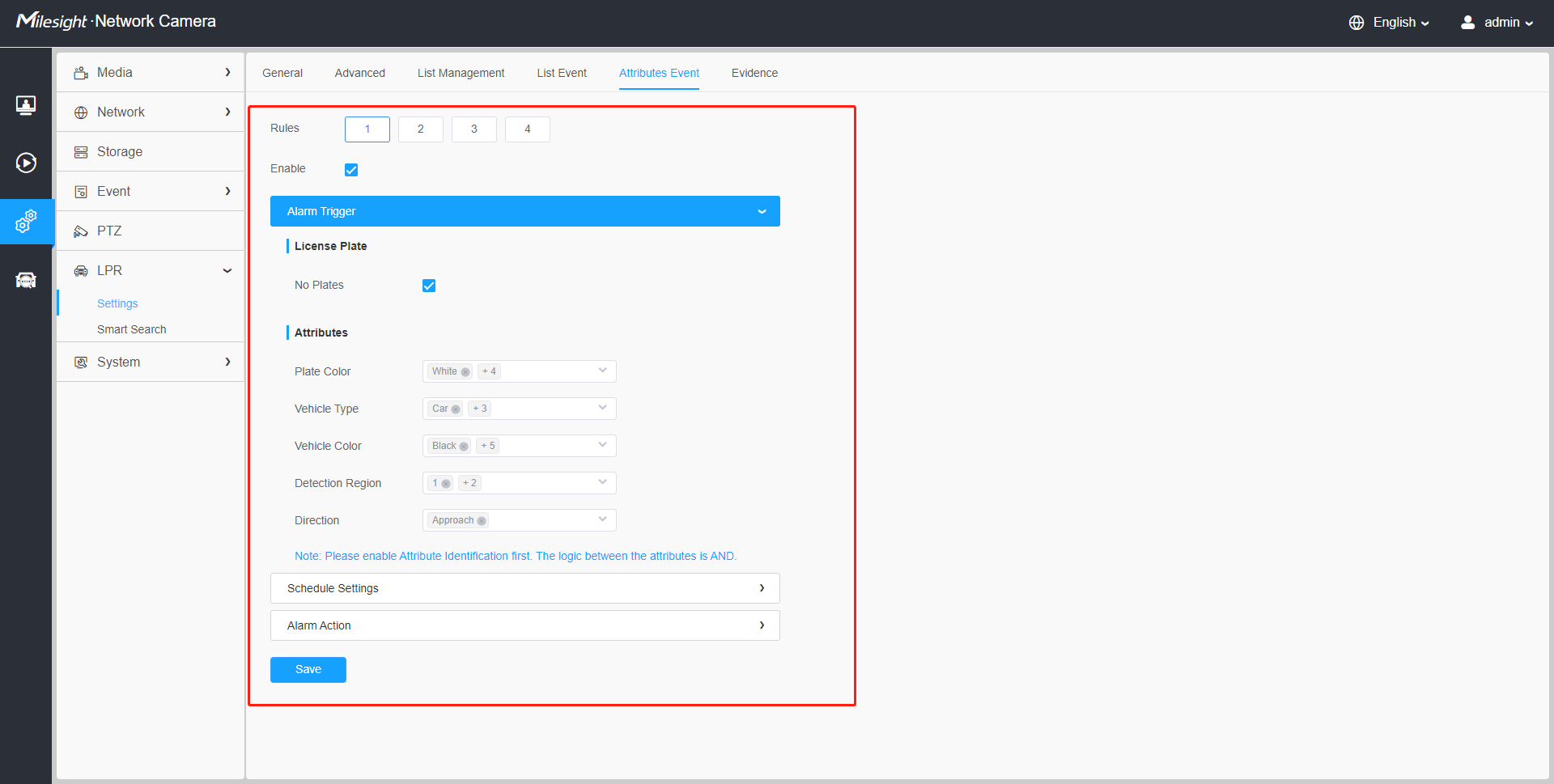

Step1: Select an event rule and enable it.

Note: Up to 4 attribute event rules can be set.

Step2: Set the Alarm Trigger as No-plate detection or other attributes.

Note:
  • Please enable Attribute Identification first.

  • The logic between No plates and Attributes is OR. For example, if I check both No Plates and Attributes, whether "No plates" or other attributes are recognized, the alarm event will be triggered.

  • The logic between the attributes is AND. For example, if I check multiple vehicle attributes, the alarm action will only be triggered when the vehicle meets these attributes at the same time.

Step3: Set the schedule.



Table 1.
Parameters Function Introduction


Copy the schedule area to another date.
Select all schedule.
Clear all schedule.

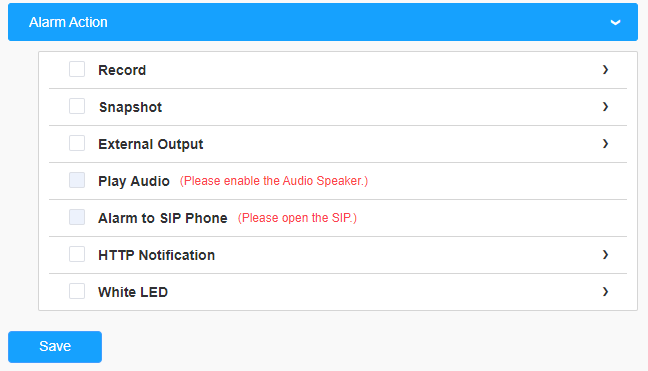

Step4: Set the alarm actions.



Table 2.
Parameters Function Introduction
Record Duration: Selected the duration time of alarm. 5s/10s/15s/20s/25s/30s are available.

Linkage: Save alarm recording files into SD Card or NAS or Upload the recording files via FTP.

Snapshot Number: The number of snapshot, 1~5 are available.

Interval: This cannot be edited unless you choose more than 1 to Snapshot.

Linkage: Save alarm recording files into SD Card or NAS, upload the recording files via FTP and send alarm email.

External Output If the camera equips with External Output, you can enable the action after configuring the trigger duration.
Play Audio

Auto/10 seconds/30 seconds/1 minute/5 minutes/10 minutes are available.

Note: Please enable the Audio Speaker.
Alarm to SIP Phone Support to call the SIP phone after enable the SIP function.
HTTP Notification

Support to pop up the alarm news to specified HTTP URL.

Note:
  • Three HTTP notifications at most can be added to the same event.
  • HTTP Notification supports Basic & Digest authentication
White LED When the alarm triggered, White LED will turn on to warning the detected objects (Only for PTZ Bullet).
