8.4.4.1 General



Settings steps are as shown below:

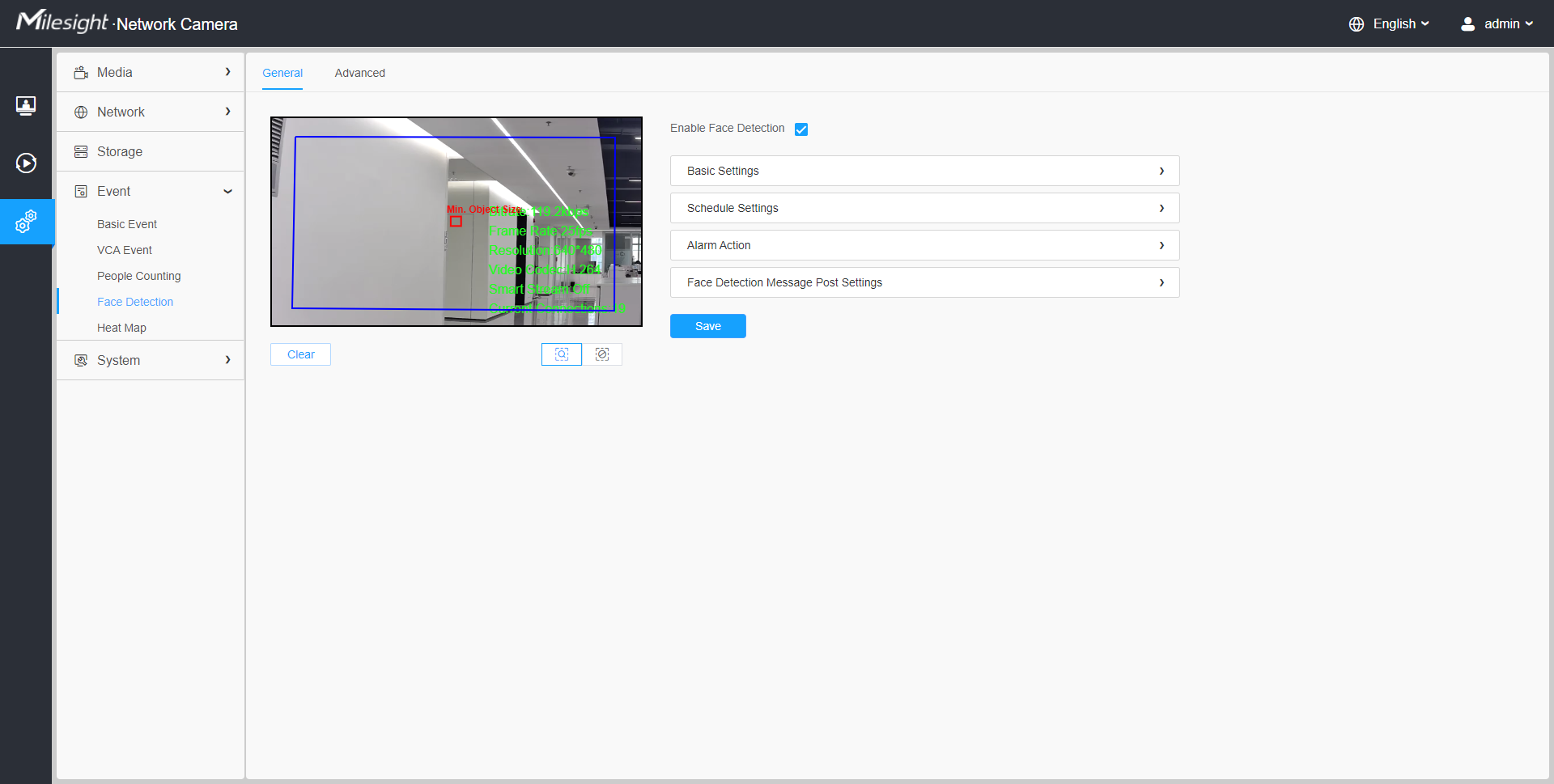

Step1: Enable Face Detection;

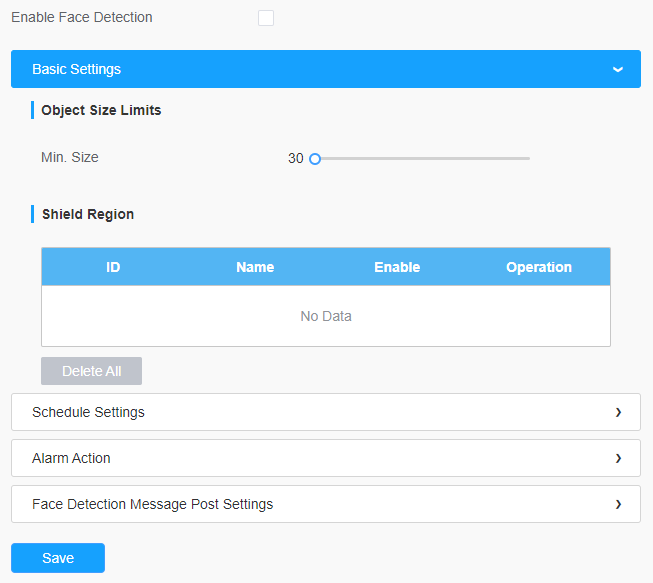

[Basic Settings]

Step2: Set Min. Object Size;

Step3: Set detection region, you can drag the detection region to adjust the size. Only faces in this region will be detected;

Step4: Set Shield Region to make faces in the some places of detection region be not detected. The faces can be set to be not detected in some places of detection region via setting the Shield Region. You can draw a Shield Region in the preview interface firstly, then click Add button. There are at most four Shield Region drawn available;



[Schedule Settings]

Step5: Set detection schedule.

Note: This part is the same as the regular schedule settings. You can refer to 8.4.2.1 Region Entrance.

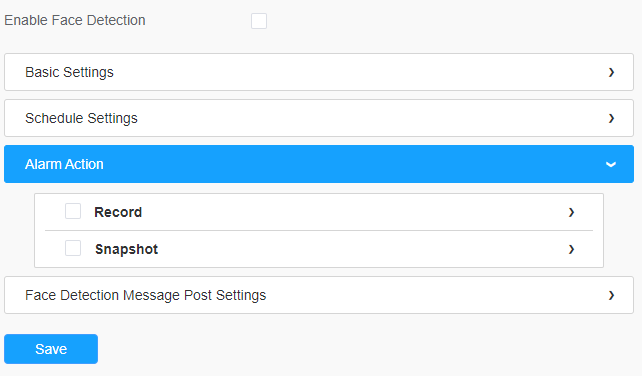

[Alarm Action]

Step6: Set alarm action.



Table 1. Description of the buttons
Parameters Function Introduction
Record Duration: Select the duration time of alarm. 5s/10s/15s/20s/25s/30s are available.

Linkage: Save alarm recording files into SD Card or NAS or Upload the recording files via FTP.
Snapshot Number: The number of snapshot, 1~5 are available.

Interval: This cannot be edited unless you choose more than 1 to Snapshot.

Linkage: Save alarm recording files into SD Card or NAS, Upload the recording files via FTP and send alarm email.

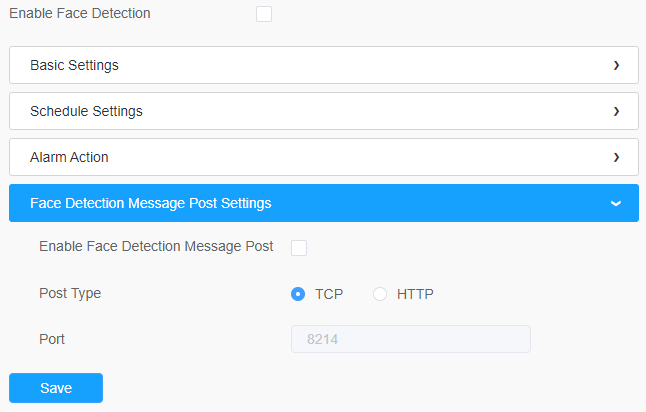

[Face Detection Message Post Settings]

Step6: Enable face detection Messagr post.



Table 2. Description of the buttons
Parameters Function Introduction
Enable Face Detection Message Post Check the check box to enable Face Detection Message Post. It will push information to some third-party devices or compatible software. Information can be pushed by TCP or HTTP.
Port Type Information can be pushed by TCP or HTTP.
