8.3.3.3 Statistics Report

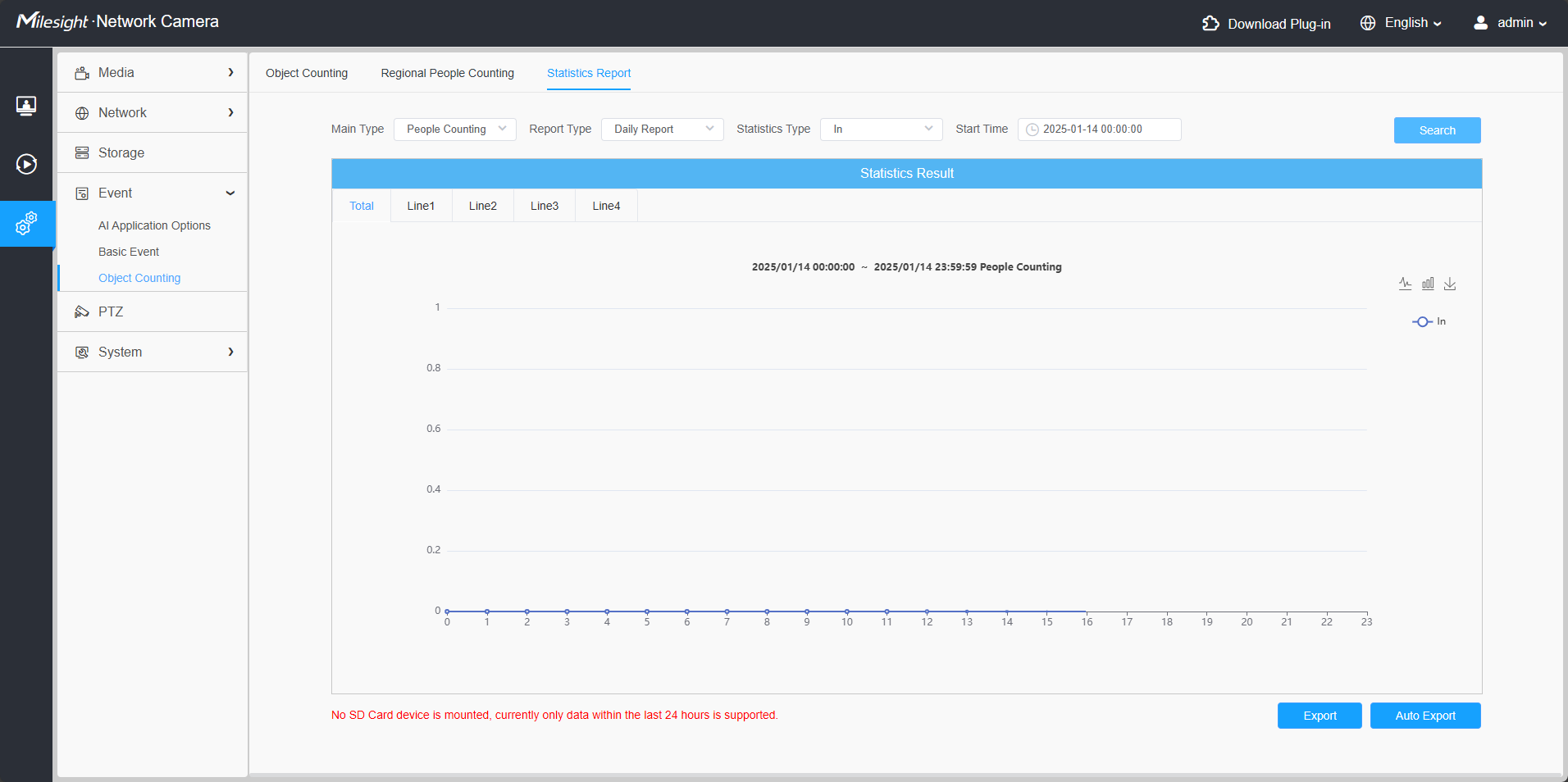

The results during the enabling period will be displayed on “Statistics Report” interface.

Step 1: Select Main Type;

Step2: Select Report Type including Daily Report, Weekly Report, Monthly Report and Annual Report;

Step3: For people counting, select Statistics Type including In, Out and Sum. For regional people counting, select Length of Stay including All, More Then and Less Then and set the time of more then/less then.

Note: For regional people counting, check the check box to search the report of regions as needed.

Step4: Select Start Time, then click "Search" button, the camera will automatically count the data for the day/ week/ month/ year (based on the report type selected by the user) from the start time and generate the corresponding report.

Step5: Moreover, you can also click "Line Chart" or "Bar Chart" to switch display mode of Statistics Report as shown below.

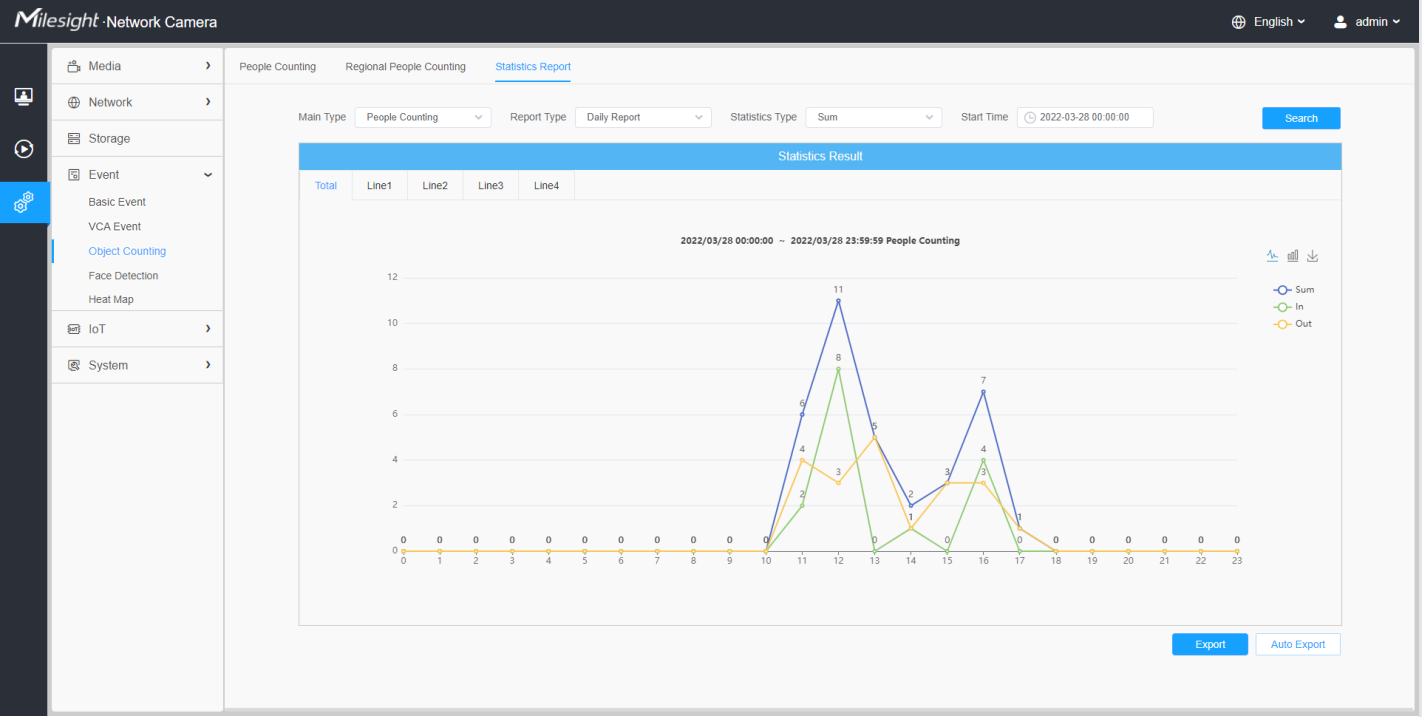

People Counting-Statistics Report (Line Chart)

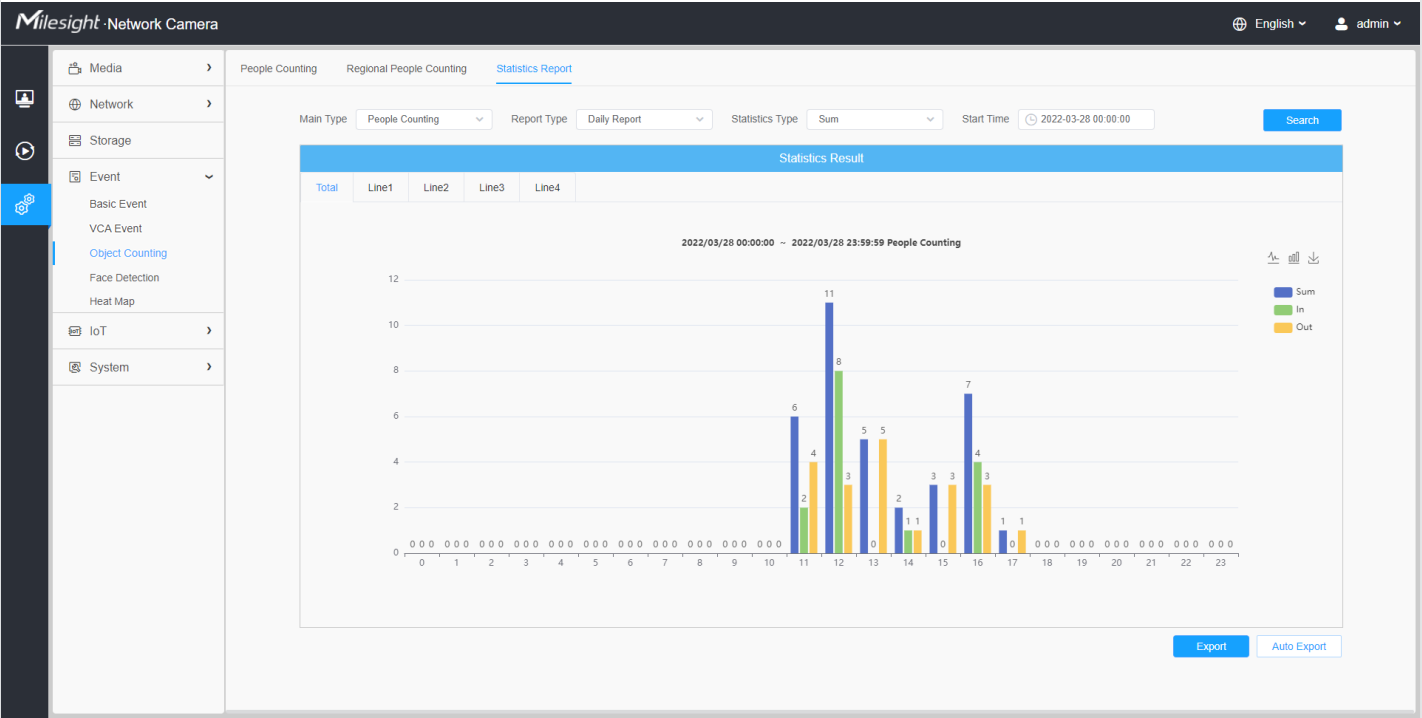

People Counting-Statistics Report (Bar Chart)

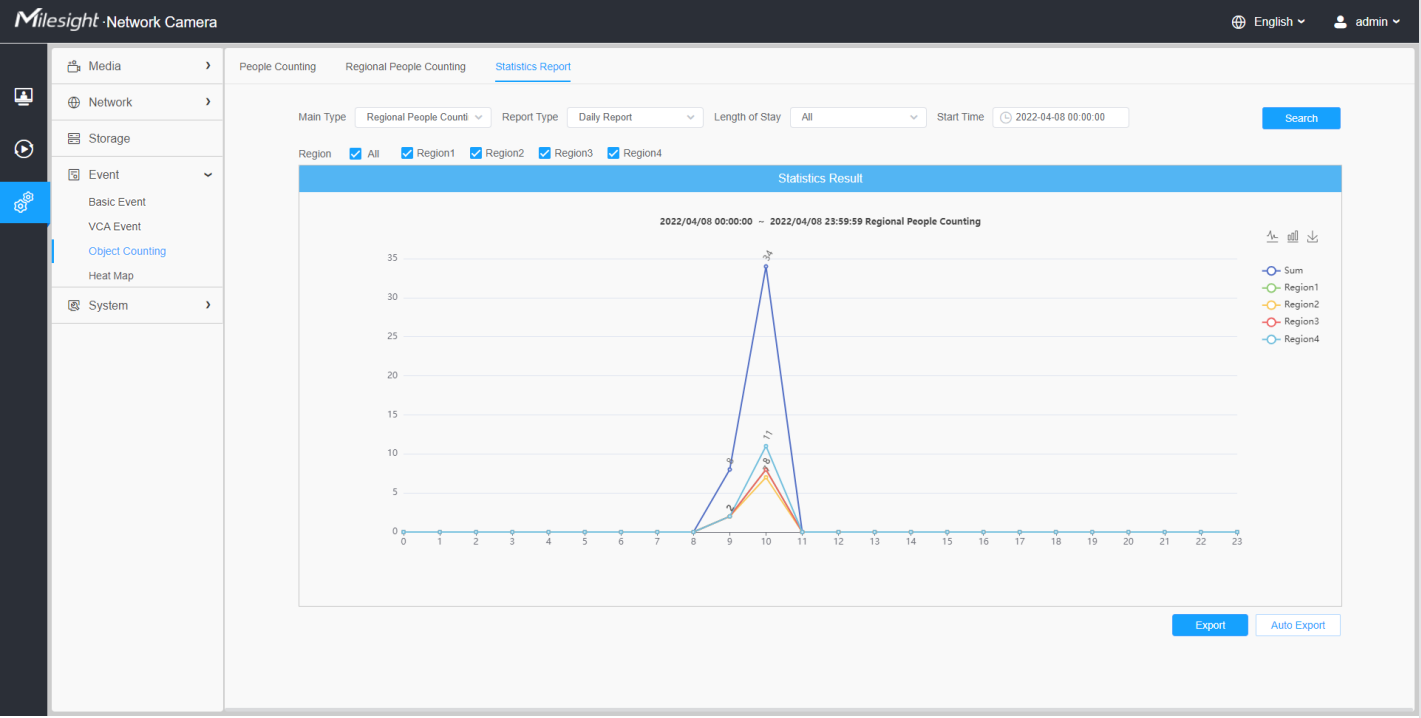

Regional People Counting-Statistics Report (Line Chart)

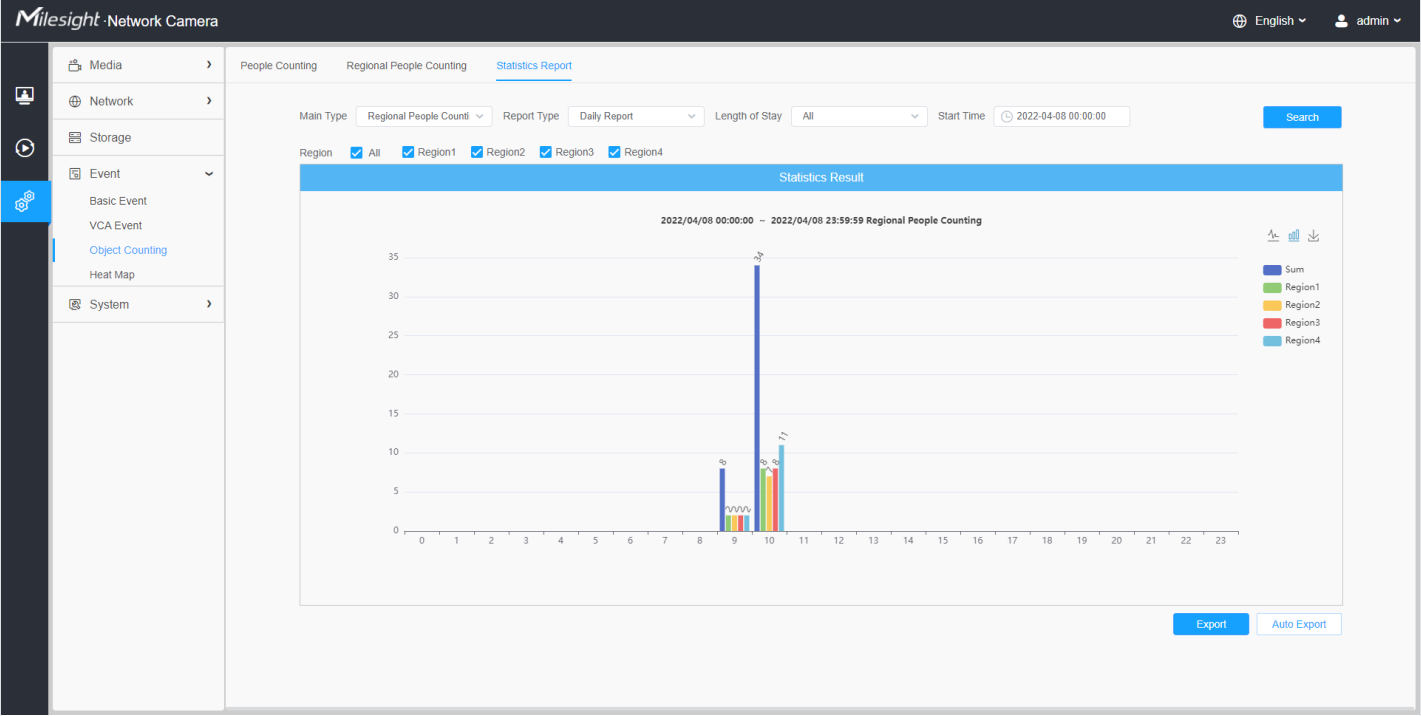

Regional People Counting-Statistics Report (Bar Chart)

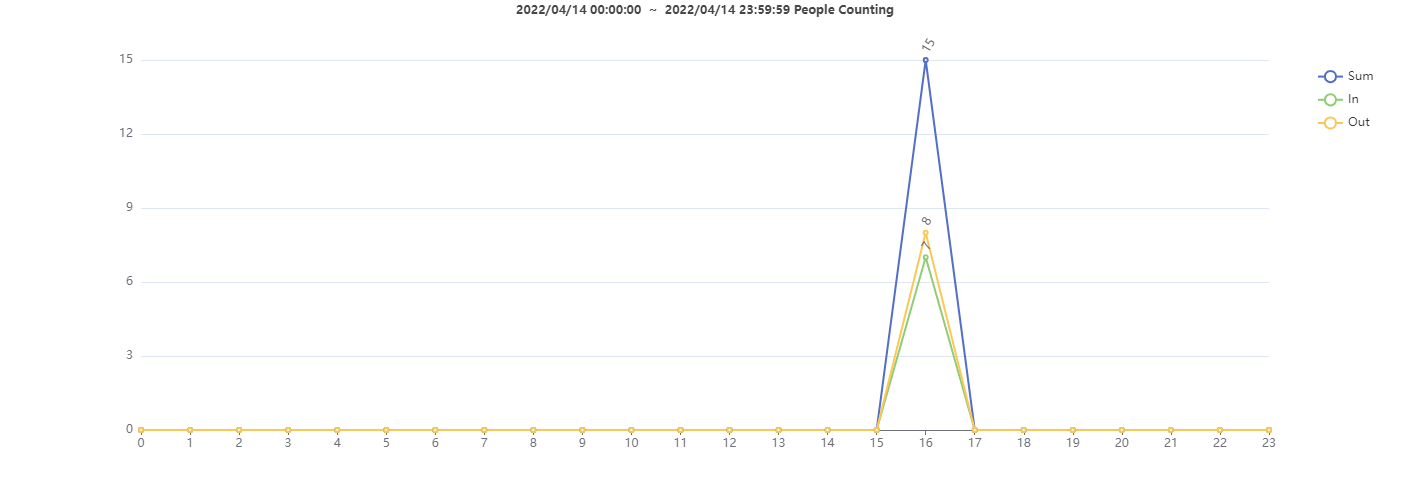

Step6: Click "Download" button to download the screenshot of the statistical report chart.

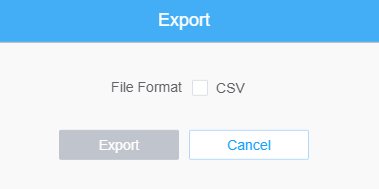

Step7: Click "Export" button to pop up the Export window as shown below, and you can choose File Format to export the report to local. For people counting Statistics Report, you can check the check box to export the report of different lines as needed.

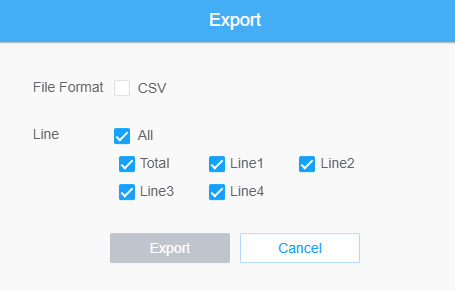

People Counting-Export

Regional People Counting-Export

Step8: Click "Auto Export" button to pop up the Statistics Report Settings as shown below.

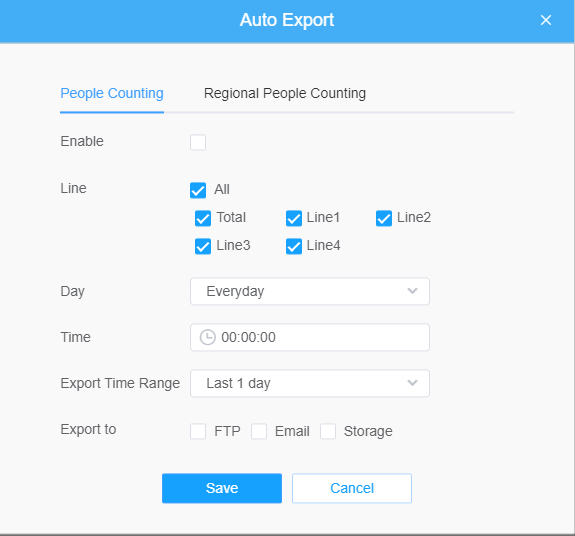

People Counting-Auto Export

Check the check box to enable the auto export of people counting, then select the lines as needed.
Set Day. User can choose Everyday to export daily reports, while choosing others to export reports on a specific day of the week;

Set Time. User can choose the time of day to export the Statistics Report automatically, click the calendar icon to pop up the following Quick Selection;

Set Export Time Range;

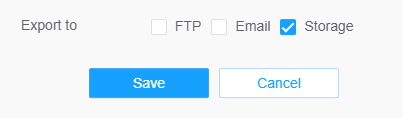

Set the destination path of the automatically exported report. The report can be exported to FTP/Email/Storage automatically as the form of an Excel spreadsheet according to the day, time and export time range you set. Then click “Save”.

Note: If the current Statistics Report is generated, it will be saved as a csv form.

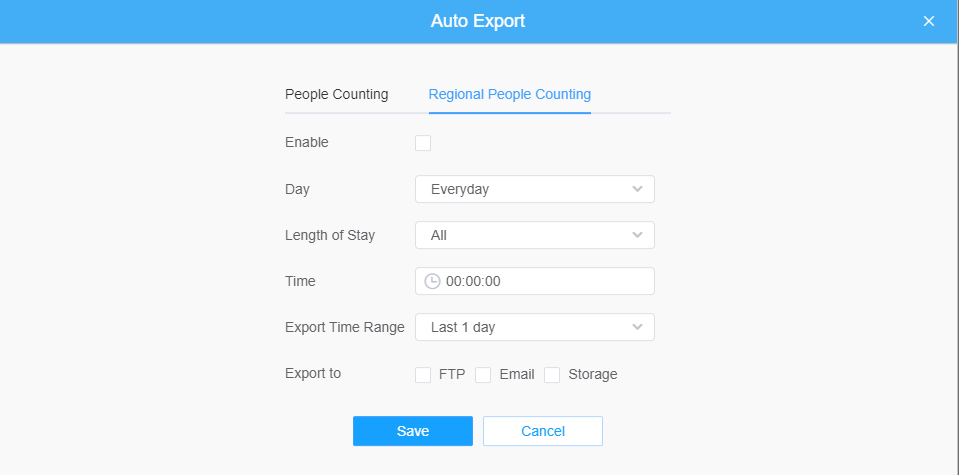

Regional People Counting-Auto Export

Check the check box to enable the auto export of regional people counting.

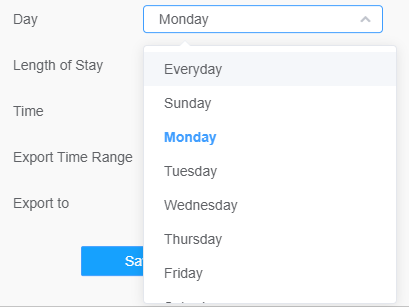

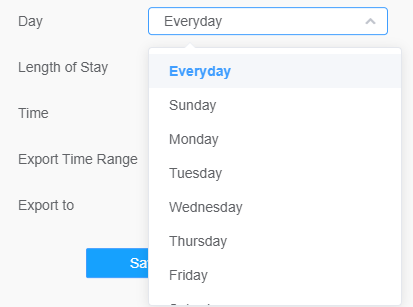

Set Day. User can choose Everyday to export daily reports, while choosing others to export reports on a specific day of the week;

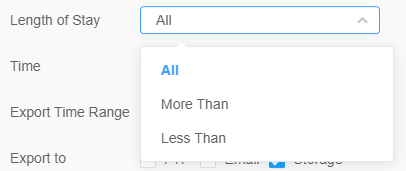

Set Length of Stay.

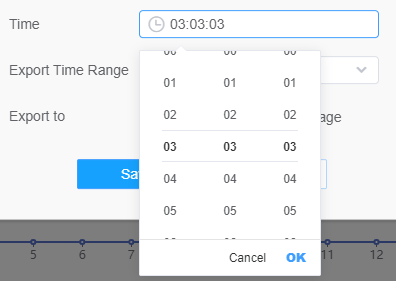

Set Time. User can choose the time of day to export the Statistics Report automatically, click the calendar icon to pop up the following Quick Selection;

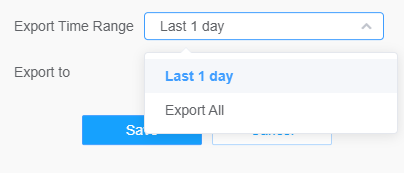

Set Export Time Range;

Set the destination path of the automatically exported report. The report can be exported to FTP/Email/Storage automatically as the form of an Excel spreadsheet according to the day, time and export time range you set. Then click “Save”.

Note: If the current Statistics Report is generated, it will be saved as a csv form.

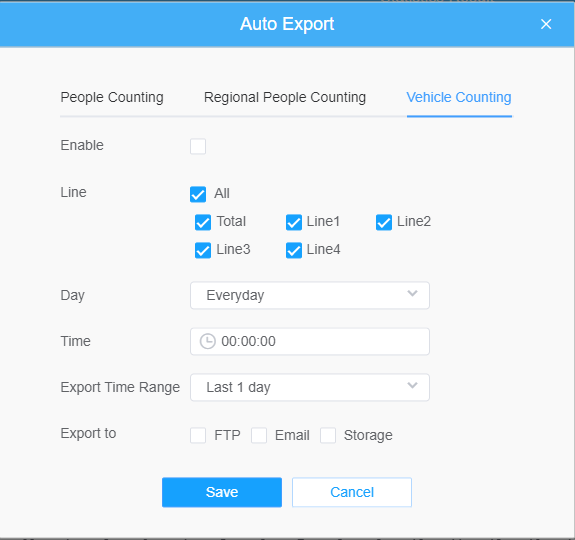

Check the check box to enable the auto export of people counting, then select the lines as needed.
Set Day. User can choose Everyday to export daily reports, while choosing others to export reports on a specific day of the week;

Set Time. User can choose the time of day to export the Statistics Report automatically, click the calendar icon to pop up the following Quick Selection;

Set Export Time Range;

Set the destination path of the automatically exported report. The report can be exported to FTP/Email/Storage automatically as the form of an Excel spreadsheet according to the day, time and export time range you set. Then click “Save”.

Note: If the current Statistics Report is generated, it will be saved as a csv form.
