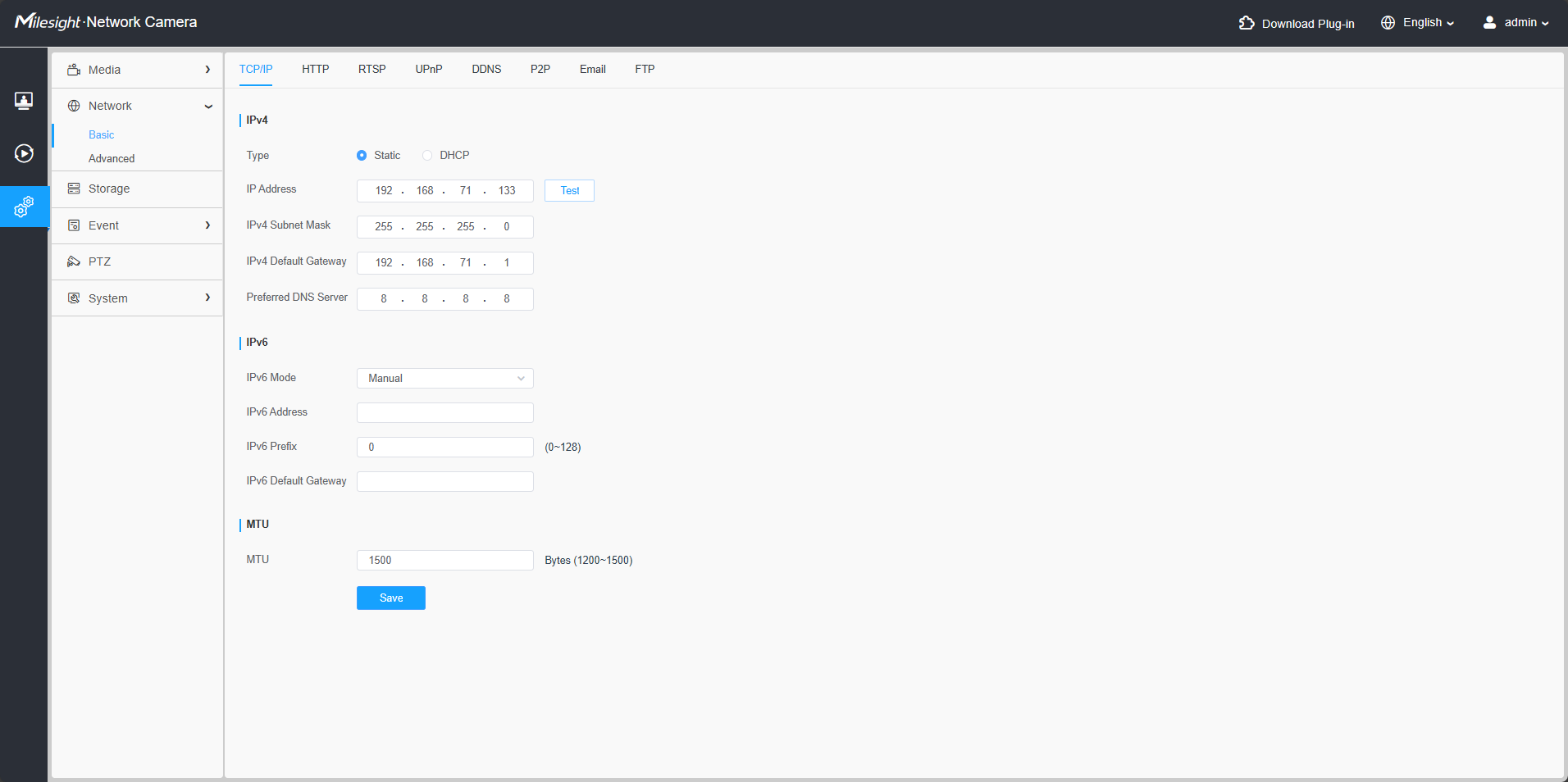

8.2.1.1 TCP/IP
|
Parameters |
Function Introduction |
|---|---|
|
IPv4 |
Type: Static Type and DHCP Type are optional for user to get IPv4 address automatically or use fixed IP address. IPv4 Address: An address that used to identify a network camera on the network. Note: The Test button is used to test if the IP is
conflicting.
IPv4 Subnet Mask: It is used to identify the subnet where the network camera is located. IPv4 Default Gateway: The default router address. Preferred DNS Server: The DNS Server translates the domain name to IP address. |
| IPv6 |
IPv6 Mode: Choose different modes for IPv6: Manual/Route Advertisement/ DHCPv6 IPv6 Address: IPv6 Address used to identify a network camera on the network IPv6 Prefix: Define the prefix length of IPv6 address IPv6 Default Gateway: The default router IPv6 address |
| MTU | Maximum Transmission Unit. The default value is 1500. You can customize the value from 1200 to 1500 as needed. |
 |
Save the configuration. |
