8.2.1.4 UPnP
Universal Plug and Play (UPnP) is a networking architecture that provides compatibility among networking equipment, software and other hardware devices. The UPnP protocol allows devices to connect seamlessly and to simplify the implementation of networks in the home and corporate environments. With the function enabled, you don’t need to configure the port mapping for each port, and the camera is connected to the Wide Area Network via the router.

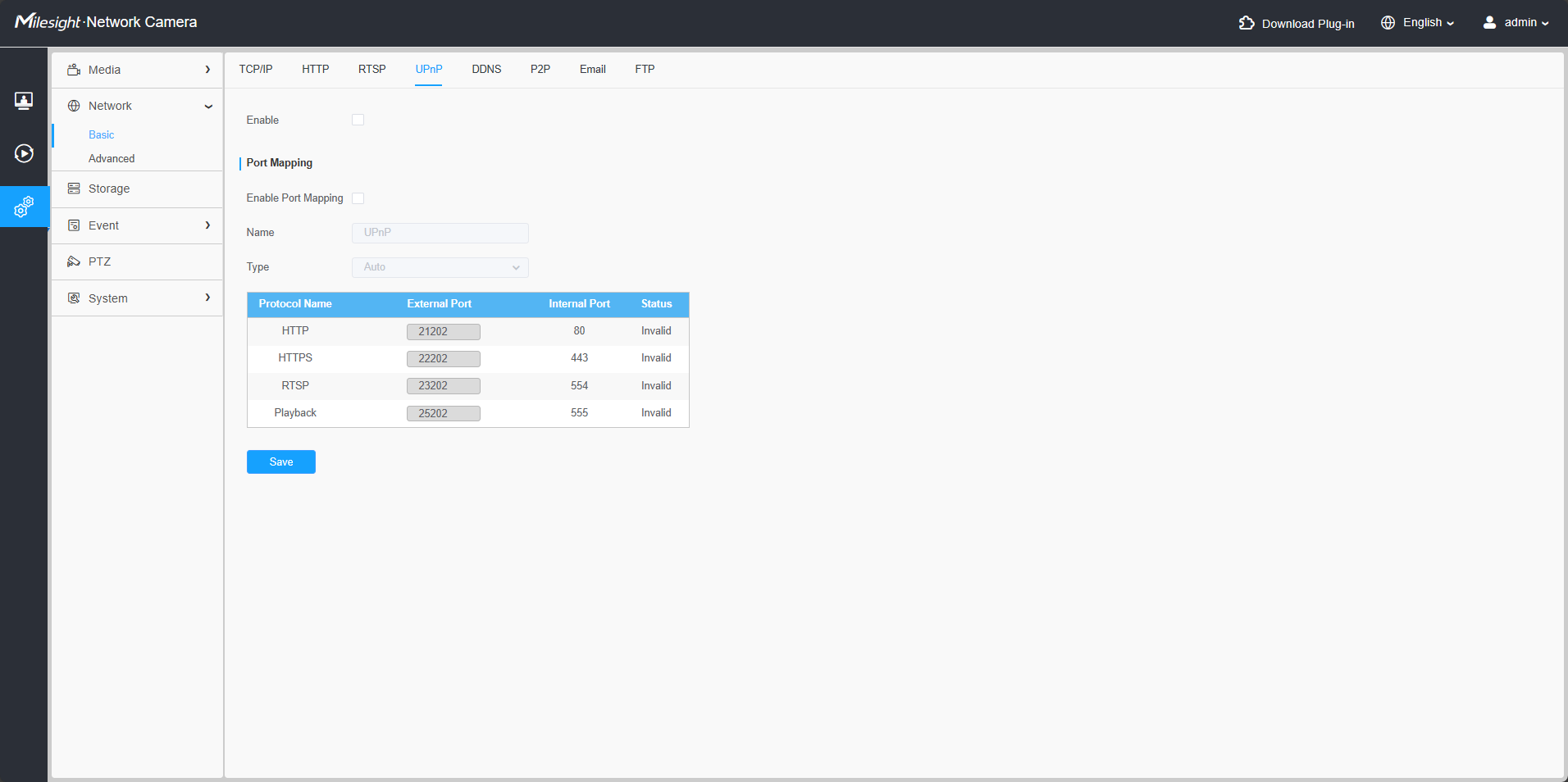

| Parameters | Function Introduction |
|---|---|
| Enable |
Check the checkbox to enable the UPnP function. |
| Enable Port Mapping |
Check the checkbox to enable the Port Mapping |
| Name |
The name of the device detected online can be edited |
| Type |
Auto: Automatically obtain the corresponding HTTP and RTSP port, without any settings Manual: Need to manually set the appropriate HTTP port and RTSP Port. When choose Manual, you can customize the value of the port number by yourself |
 |
Save the configuration. |
