3.2.1 Camera List

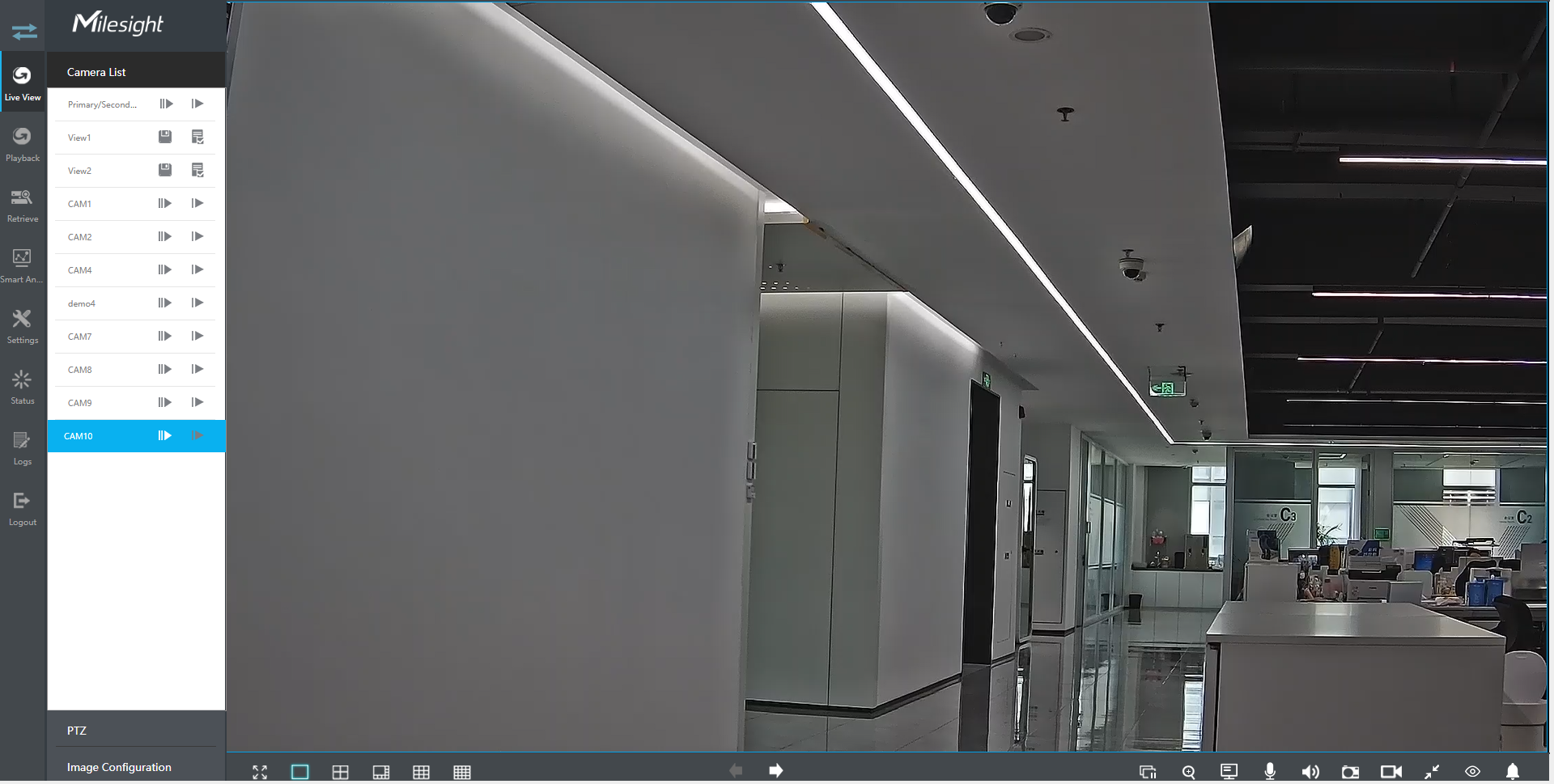

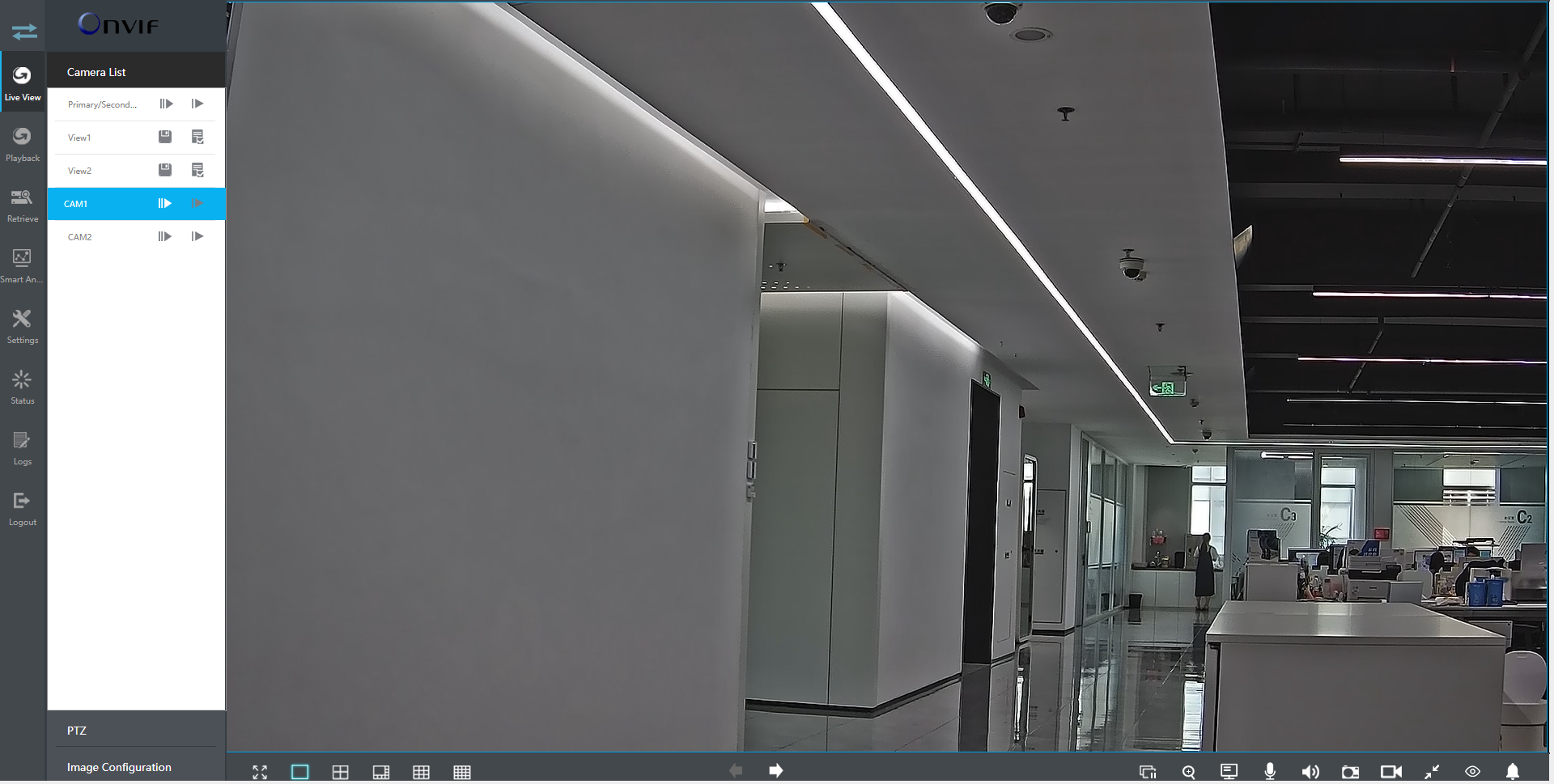

List and play added cameras on Camera List page.

Select one window one camera to play. Or click to get all cameras’ live video.





Icons’ descriptions of Live View

Table 1. Description of the buttons

Icons

Descriptions

Icons

 Descriptions

Play Primary Stream

Play Secondary Stream

Save View

Play default view

Full screen

1 screen mode

4 screens mode

8 screens mode

9 screens mode

16 screens mode

Previous page

Next page

Stop all live view

Start all live view

Digital Zoom

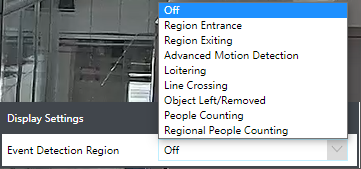

Display Settings of Event Detection Region

Two-way Audio

Audio on

Audio off

Snapshot

Snapshot

Record

Original Image

Resize Image

Fisheye Client-side Dewarping

 Camera Alarm Output

Fisheye Client-side Dewarping

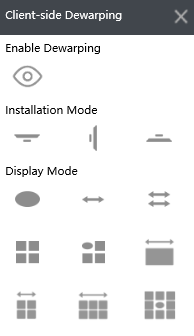

Click to enable Client-side Dewarping on the panel that pops up when the selected channel plays successfully. Users can dewarp the original Fisheye view into various modes in the live view interface on demand, including Installation Mode and Display Mode. There are 3 options for Installation Mode: Ceiling, Wall and Flat. And there are 9 options for Display Mode: 1O, 1P, 2P, 4R, 1O3R, 1P1R, 1P4R, 1P6R, and 1O8R.



Note: Make sure your NVR model is MS-NNRXXXX-U(P)H.

Two-way Audio

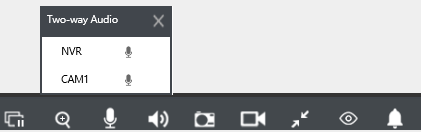

Click to enable Two-way Audio. You can select to talk with camera or NVR.



Note:
  1. For NVR that does not support the Audio I/O interface, it only supports to talk with camera through Web page.
  2. The Two-way Audio only supports one channel talking at one time.
  3. Two-way Audio and Audio function can not be used together, including Audio of Playback, but if you are using Two-way Audio on one web page, you can use Audio on another page.
  4. The audio interface of NVR can only be used alone. When other devices are talking to NVR, it would indicate that the device is busy if you enable Audio or Two-way Audio of other channels at the same time.

And there are multiple icons on each channel displayed in live view, indicating video loss and alarm status of the channel.

Table 2. Description of the buttons
Icons

Descriptions

It indicates video loss

It indicates motion detection alarm

It indicates VCA alarm
