3.2 Live View

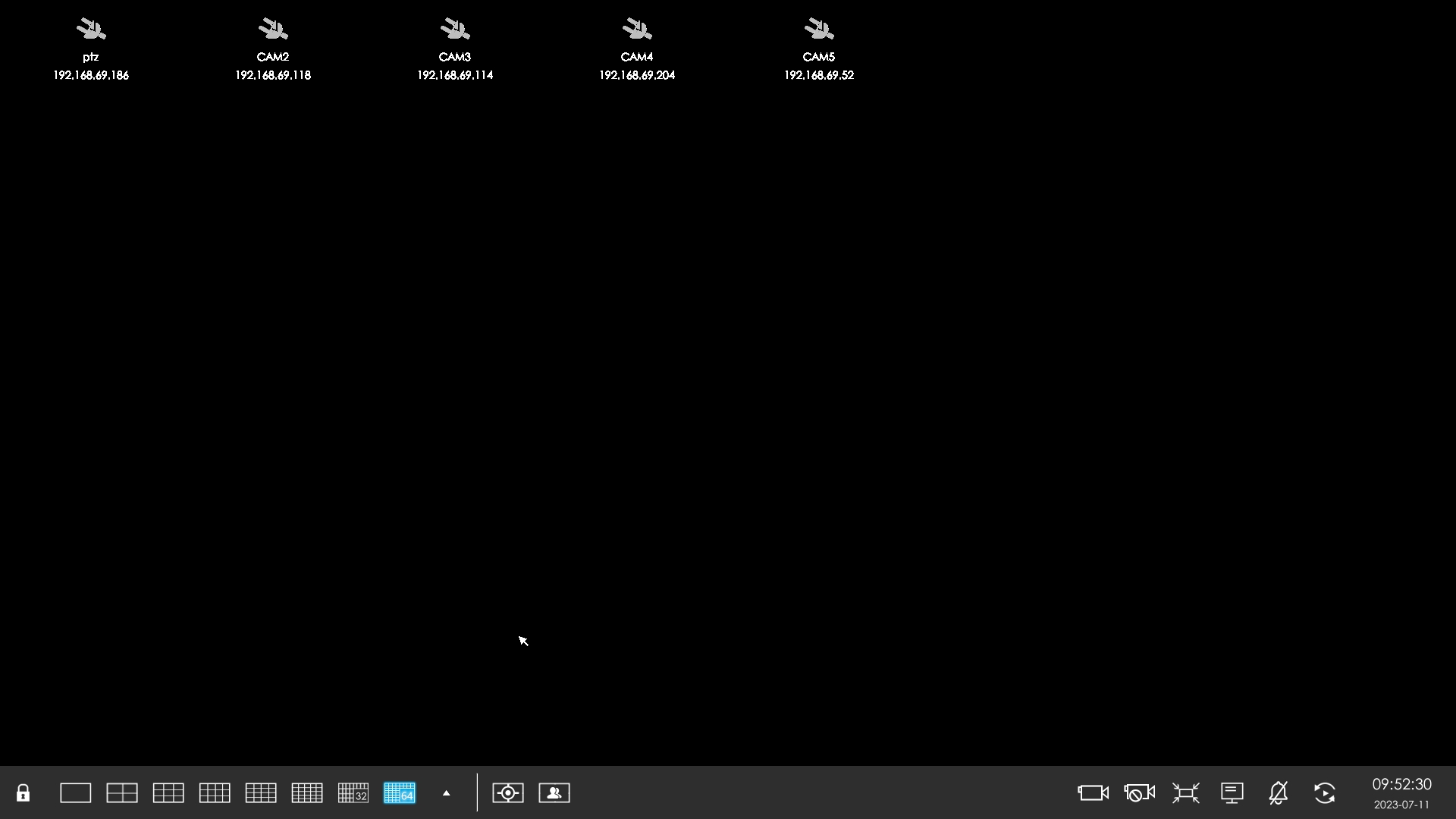

Main Menu and Tool Bar can pop up and hide automatically at the right side or bottom of the interface.

Note: Tool Bar won’t be hidden if there is event notification.


Table 1.

Icons

Descriptions

Icons

Descriptions

Lock/Unlock the tool bar

One screen layout

4 screen layout

8 screens layout

1+7 screens layout

9 screens layout

12 screen layout

1+11 screens layout

2+10 screens layout

16 screen layout

64 screen layout

Custom layout

Target Mode

Occupancy Mode

Start all channels recording

(for all displaying channels)

Stop all channels recording

(for all displaying channels)

Adjust image in proportion

(for all displaying channels)

Sequence

Display settings (for all displaying channels, including Play Mode, Color, on/off of Stream Info, Channel Name, Channel Name Font Size, Borderline, Page Info , Time Info and Event Detection Region.)

Note:
  1. Support displaying Event Detection Region and the detection frame to track the target when the channel is full screen on Live View interface.
  2. Make sure your camera model is MS-CNRXXXX-XXC, and the camera’s version should be 4X.7.0.77 or above.

The Do Not Disturb function only turns off the notification of the Alarm Actions (for all displaying channels)

Note: Do Not Disturb function is not valid for changing corresponding settings.

Time information, which can be set to display consistently or synchronize with the Toolbar in Display Settings.

Note: Make sure the NVR’s model is MS-N8064-UH for the 64 screen layout function.
