3.2.1 Target Mode

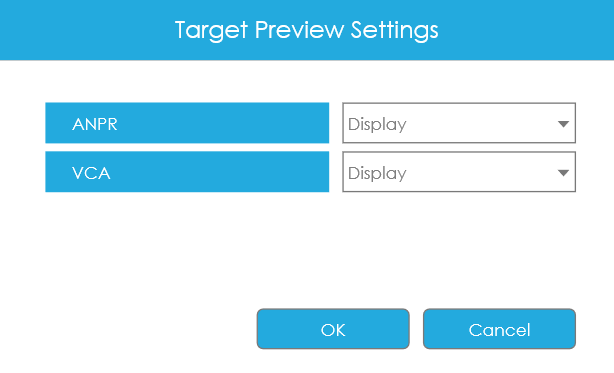

After entering Target Mode, you can choose to display or hide relevant detection results of ANPR and VCA events in the Target Preview Settings interface.



Note:
  1. Make sure your camera’s version is 4X.7.0.77 or above so that the corresponding results for camera can be displayed in the Target Mode on the NVR side.
  2. Make sure your camera model is MS-CNRXXXX-XXC, which supports the human/vehicle detection object configuration.

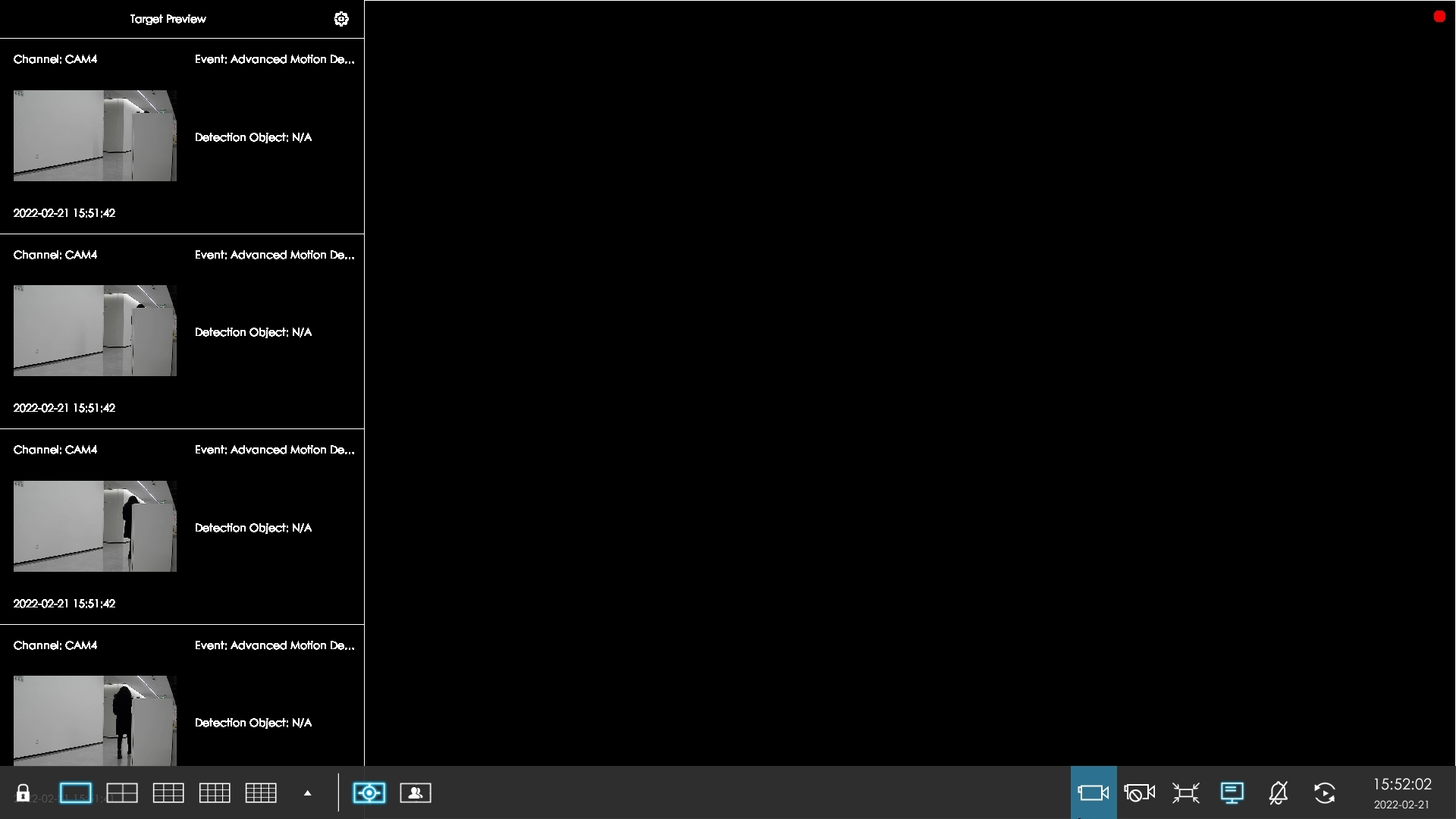

If you choose to display relevant detection results of VCA events, the real-time information including Snapshot, Channel Name, Event, Detection Object and Detected Time will be shown on the left of the interface once being detected. There are three detection results according to the detection object: Human, Vehicle and N/A.

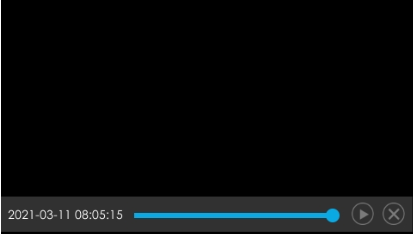

You can click the corresponding record to check the latest X seconds (10s~20s) video.

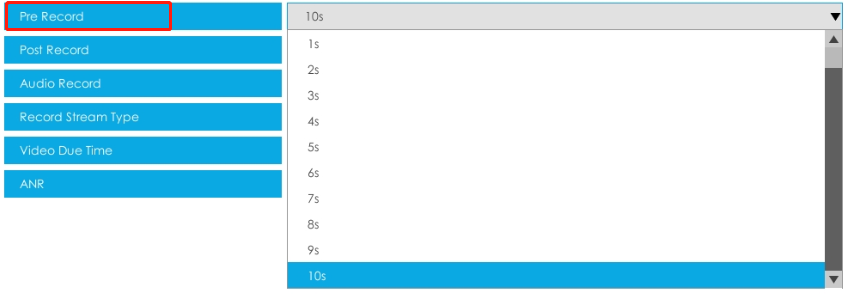

  • X = 10 + Pre Record Time. You can set Pre Record Time in Storage -> Video Record -> Record Settings interface.


  • Ensure that there is available HDD on NVR and correct record settings is made, so that you can check the record on live view.

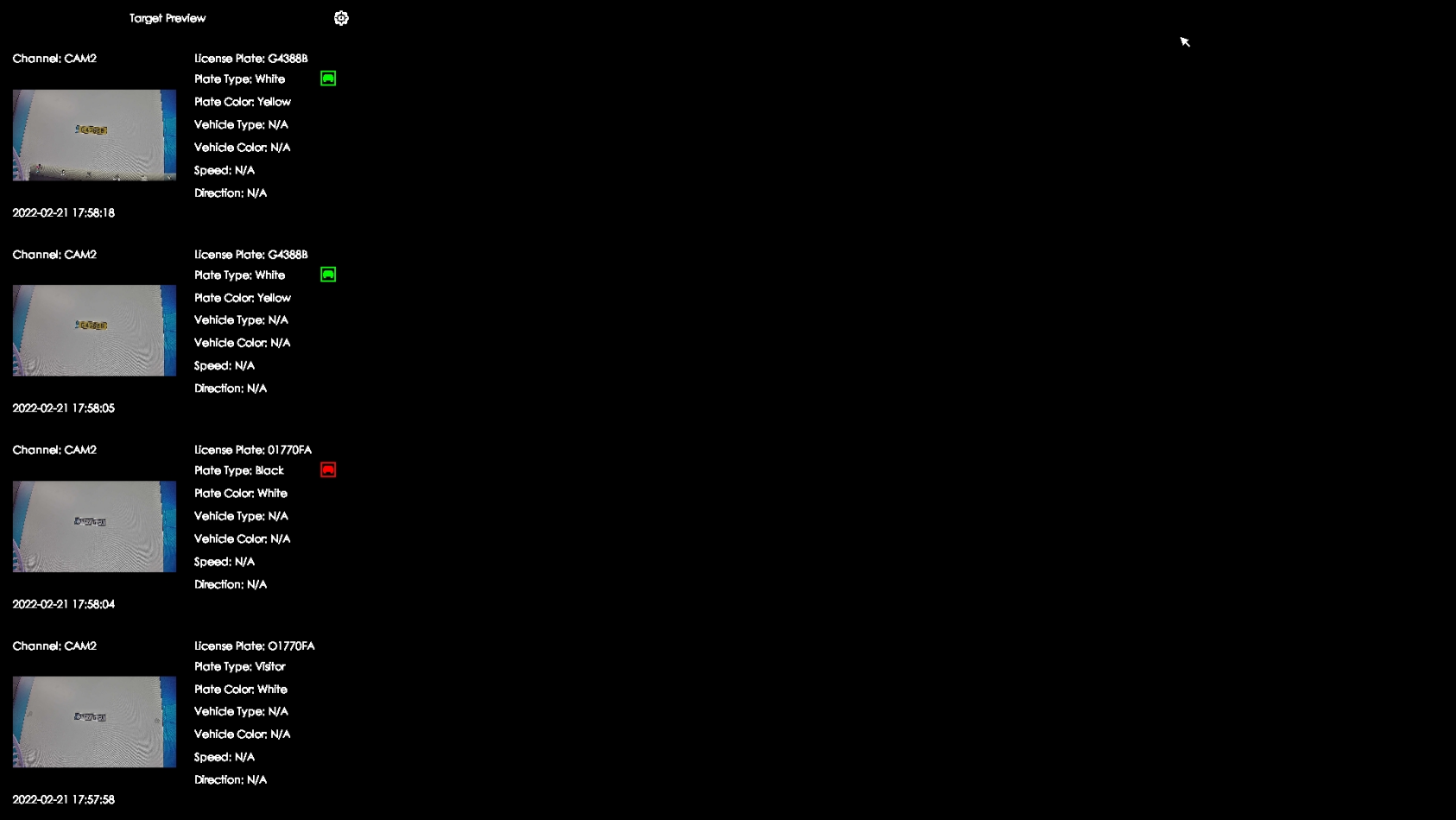

If you choose to display relevant detection results of ANPR, the real-time license plate information including Plate Snapshot, Channel Name, License Plate Number, Detected Time and Plate Type will be shown on the left of the interface once it get detected. There are two license types:

Table 1.

Icons

Descriptions

Icons

Descriptions

License from Black List

License form White List

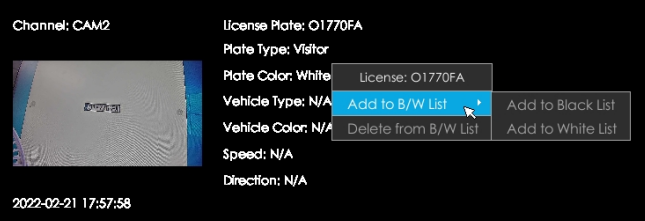

No plate type will be shown if the license plate does not exist in Black/White list. However, you can right click the license plate information to quick add it to Black/White list or delete it from Black/White list.

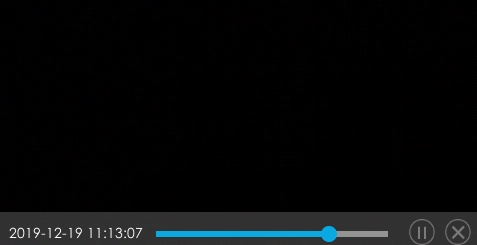

Besides, you can click the license plate information to check the latest X seconds (10s~20s) video.



  • X = 10 + Pre Record Time. You can set Pre Record Time in Storage -> Video Record -> Record Settings interface.



  • Ensure that there is available HDD on NVR and correct record settings is made, so that you can check the record on live view.
  • Ensure that NVR can get the license plate information. Please set TCP which is the default mode as Post Type. It can be set in Camera web page -> Settings -> LPR -> General Settings interface.
