3.2.2 Occupancy Mode

After entering Occupancy Mode, a professional-level Occupancy Live Viewinterface pops up on the screen with full screen coverage. The real-time count results of all cameras within the set group, including the number of people entering, leaving and staying, as well as the traffic light status indicating whether the current number of people staying reaches the set maximum number of people staying, will be displayed in this interface.

Available: Display the value of the remaining number of people staying in real time, and the minimum value is 0. (Available value = Max. Stay - Stays, Max. Stay is set in the Smart Analysis -> Analysis Settings -> People Counting interface)

Stays/In/Out: Display the number of people staying, entering and leaving in real time. (Stays value = In value - Out value, the minimum number of people staying is 0)

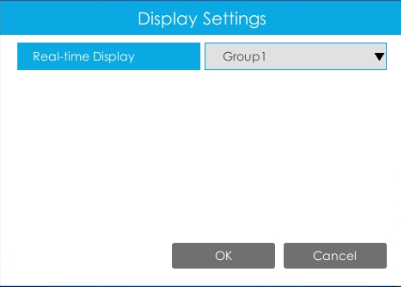

Display Settings: Click to select which Group of data to display in real time.

There are two traffic light states:

Table 1.
Item	Descriptions

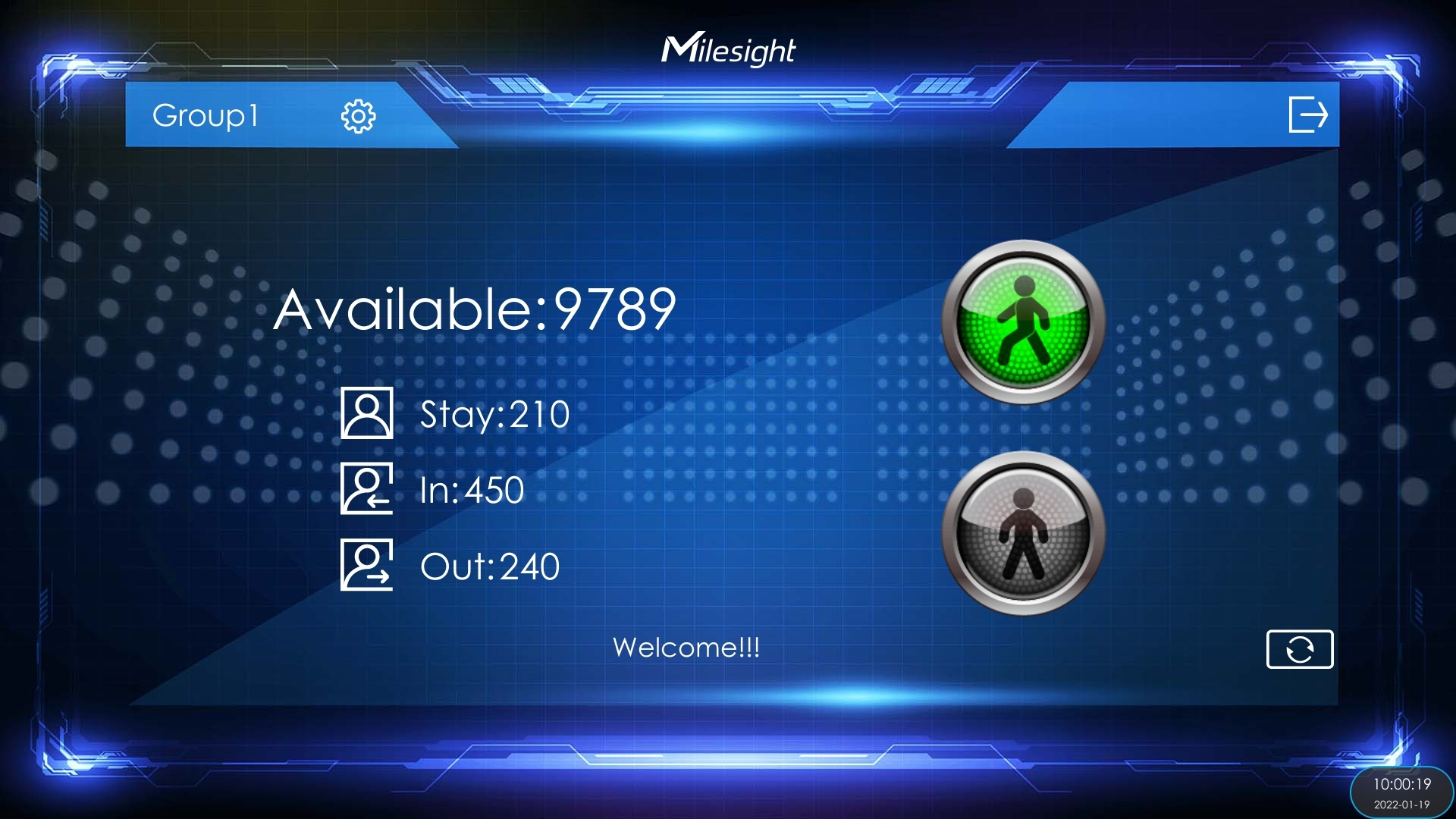

Green Light	The current number of people staying doesn’t reach the set maximum number of people staying. And below display Reminders of Green Light, Reminders of Green Light is set in the Smart Analysis -> Analysis Settings -> People Counting interface.

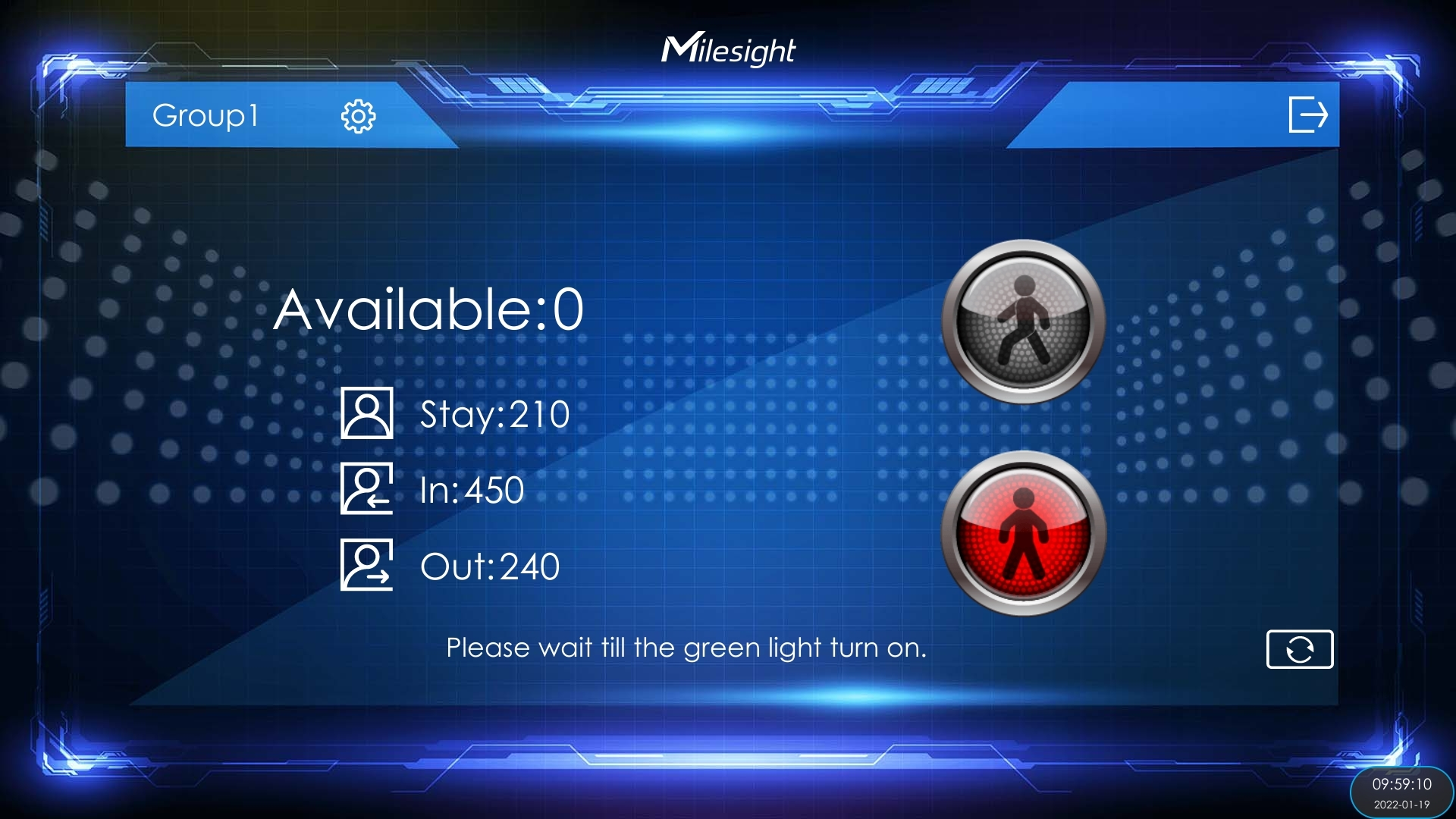

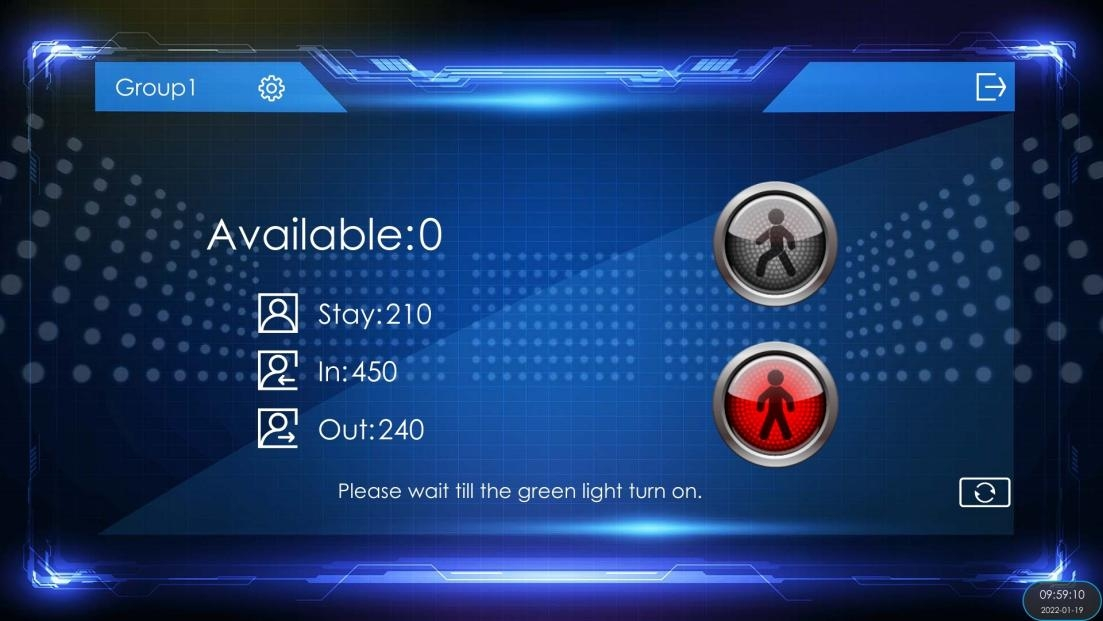

Red Light	The current number of people staying reaches the set maximum number of people staying. And below display Reminders of Red Light, Reminders of Red Light is set in the Smart Analysis -> Analysis Settings -> People Counting interface.
Reset	Reset the Group counting data in the Occupancy Live View interface.
Exit	Click to exit the Occupancy Live View interface.

There are multiple icons on each channel displayed in live view, indicating different status of the channel.

Table 2.
Icon	Descriptions
	It indicates video loss
	It indicates motion detection alarm
	It indicates that the current channel is recording.
	It indicates exception alarm
	It indicates VCA alarm

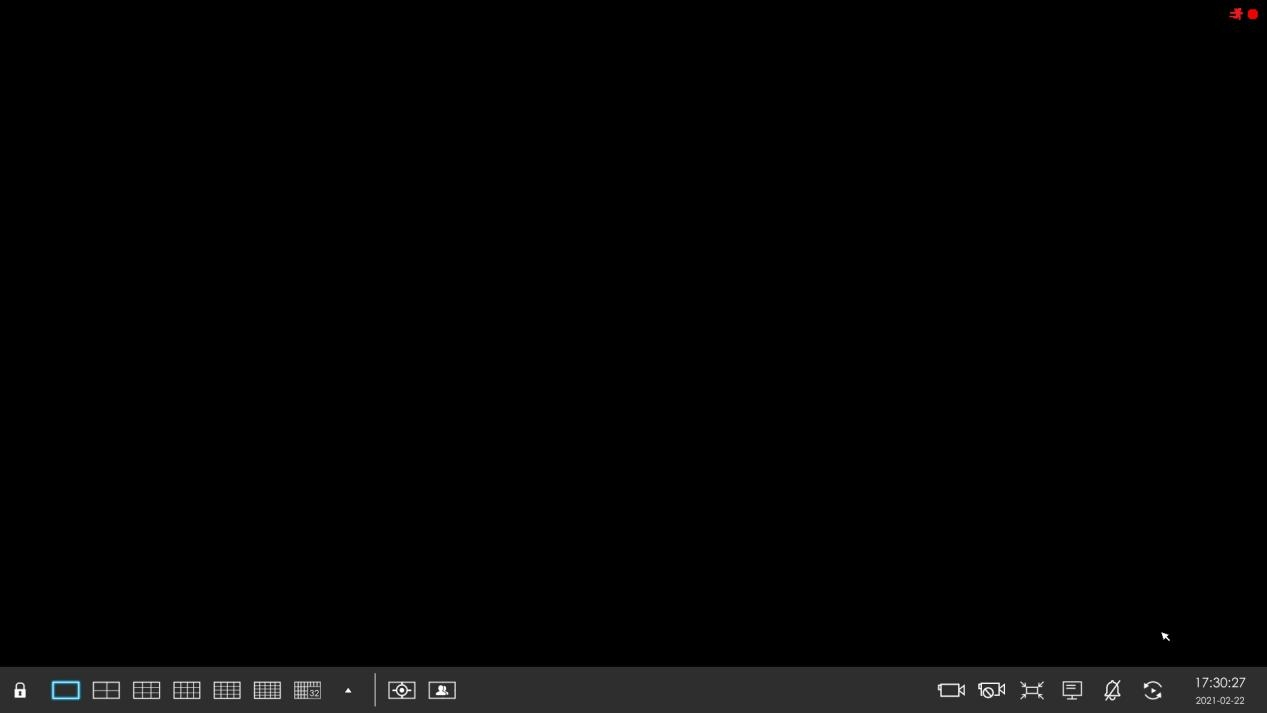

Right click in the Live View and the quick operation menu pops up.

Table 3.
Item	Descriptions
Menu	Display Main Menu
Single Screen	The selected channel will be full screen. You could go back to previous screen layout by double clicking the channel
Sub Screen Ctrl	Switch to sub screen to operate (Only for Pro NVR 7000 Series, PoE NVR 7000 Series and Pro NVR 8000 Series)
Multi Screen	Switch to multiple screen layouts
Preview Mode	Regular Mode, Target Mode and Occupancy Mode are available
Display Info	Show channel information, including Camera Number, Bit Rate, Frame Rate and Frame Size
Previous Screen	Switch to previous screen
Next Screen	Switch to next screen
Logout	Log out current user account

The functions and channel status on the sub screen are the same as that on the main screen of both NVR 7000 Series and NVR 8000 Series.

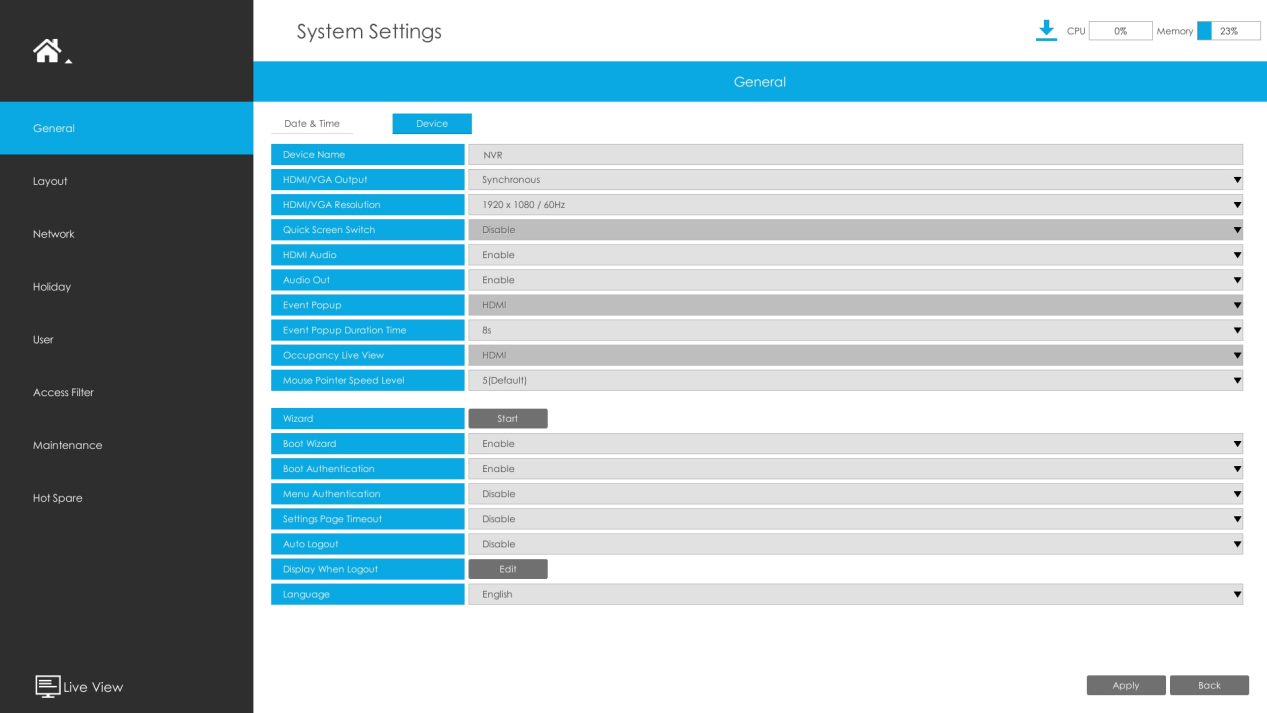

For the Sub Screen Ctrl function of Pro/PoE NVR 7000 Series, you can choose whether these two outputs are independent or synchronous. And if you change the option, the modification will take effect after rebooting.

Quick Operation for single channel

In live view interface, left click the channel, the quick menu will appear.

Table 4.
Icons	Descriptions	Icons	Descriptions
	Manually record		Image Configure
	PTZ control		Original/Resize the image
	Audio on/off		Two-way Audio
	Digital zoom		Snapshot manually
	Instant Playback		Fisheye Mode
	Close menu

Note: You can right-click to exit the instant playback.
