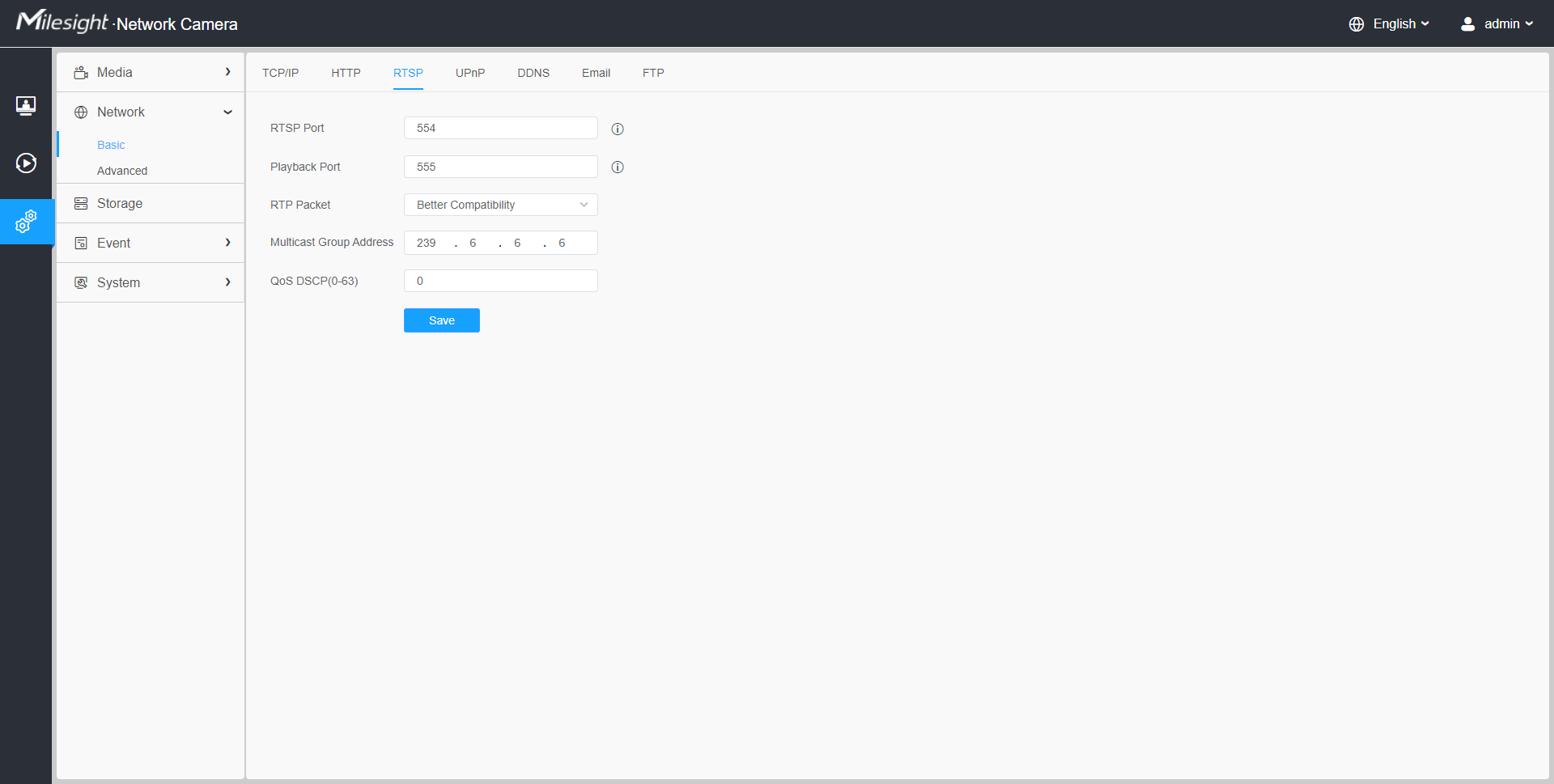

8.2.1.3 RTSP



Table 1. Description of the buttons
Parameters Function Introduction
RTSP Port

The port of RTSP, the default is 554.

Playback Port

Playback Port The port of playback, the default is 555.

Note: Port 0 means closing playback function.
RTP Packet

There are Better Compatibility and Better Performance two options, if your camera’s image mess up, please switch this option.

Multicast Group Address

Support multicast function.

QoS DSCP

The valid value range of the DSCP is 0-63.

Save the configuration.
Table 2. RTSP URL are as below:
Stream URL
Primary Stream rtsp://IP:RTSP Port/main
Secondary Stream rtsp://IP:RTSP Port/sub
Tertiary Stream rtsp://IP:RTSP Port/third
Note:
  • DSCP refers to the Differentiated Service Code Point; and the DSCP value is used in the IP header to indicate the priority of the data.
  • A reboot is required for the settings to take effect.
