8.4.2.7 Loitering

When objects are loitering in a defined area for a specific period of time, it would trigger an alarm.

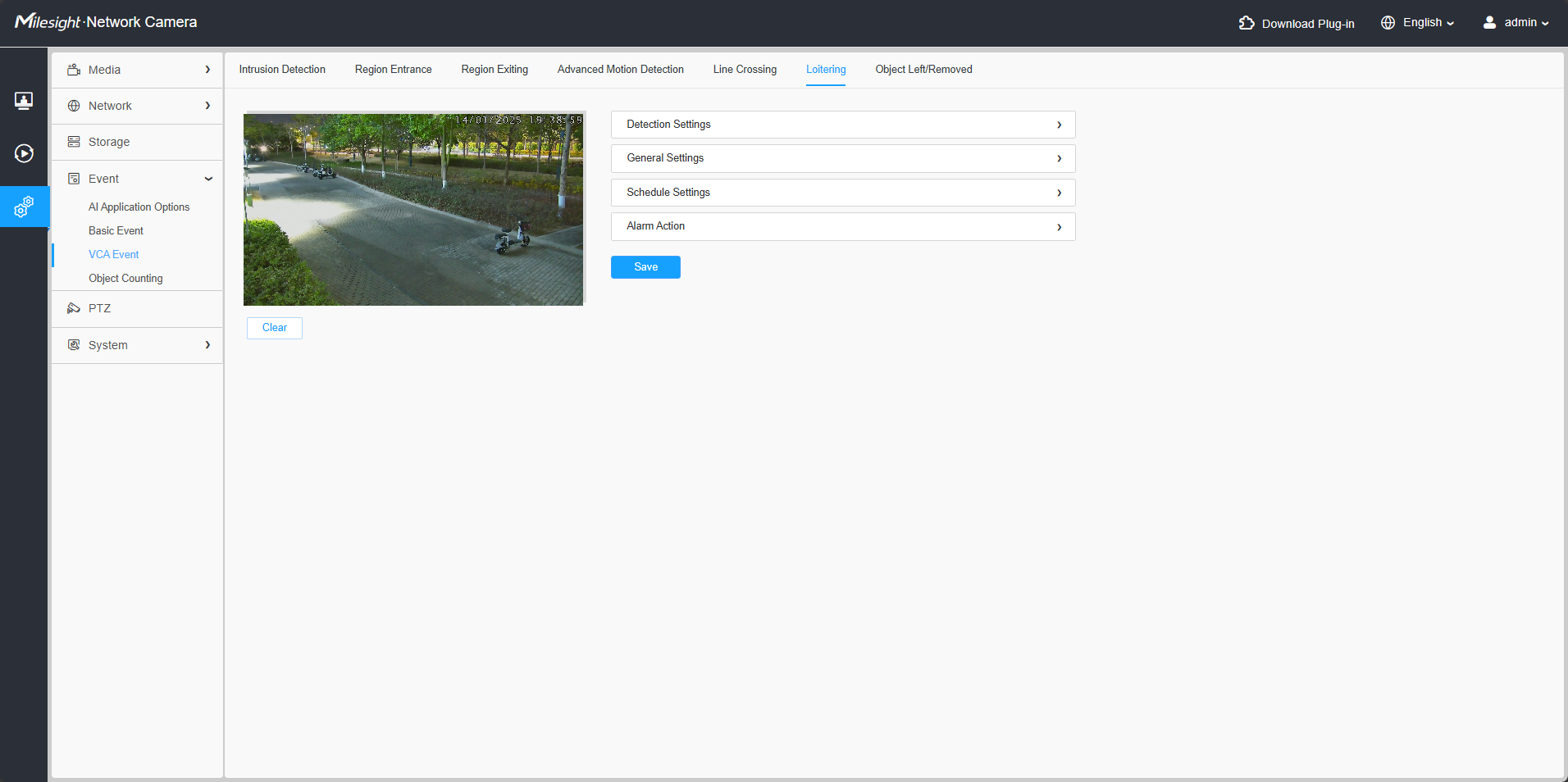

Settings steps are shown as follows:

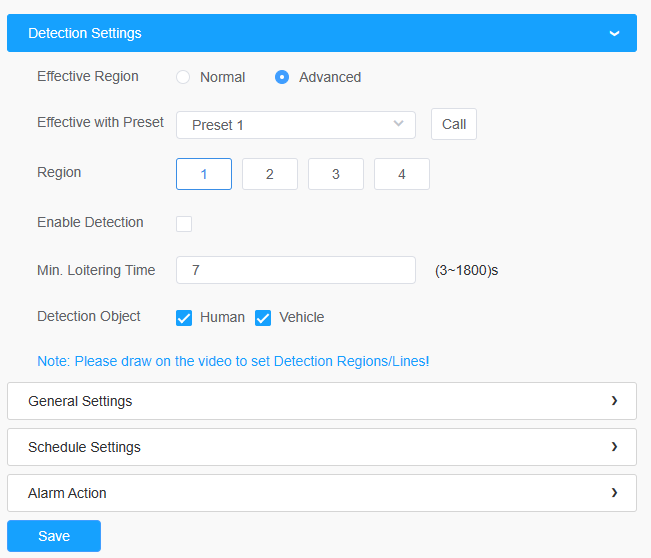

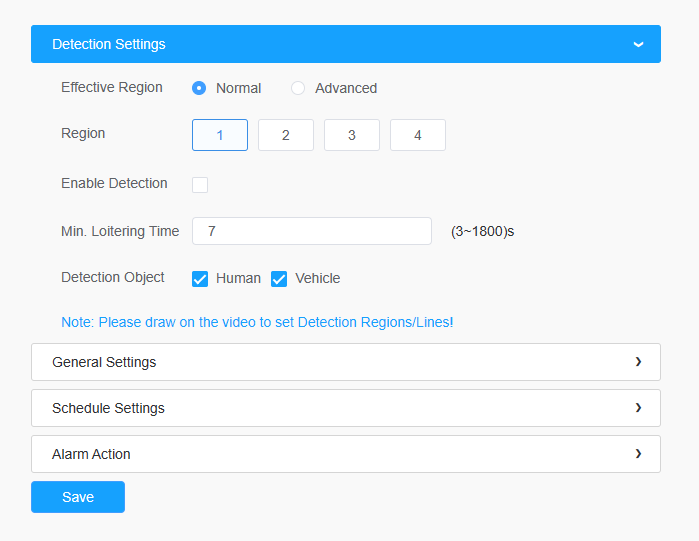

[Detection Settings]

Note: General Settings will take effect in all detection regions/lines!

Step1: Select detection region and enable loitering detection;

Step2: Set Min. Loitering Time. After setting minimum loitering time from 3s to 1800s, any objects loitering in the selected area over the minimum loitering time will trigger the alarm;

Step3: Choose detection object. Check Human or Vehicle attribute, and the camera will alarm once detecting people or vehicle and triggering related events.

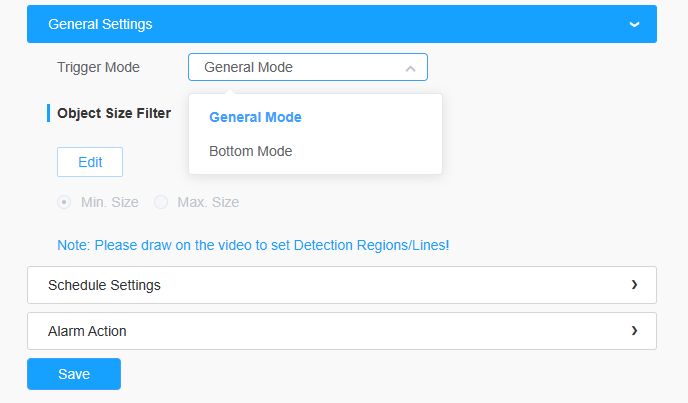

[General Settings]

Step4: Set object size limits;



Table 1. Description of the buttons
Parameters Function Introduction
Trigger Mode Set the desired mode of the trigger logic including General Mode and Bottom Mode.

General Mode: The alarm is triggered when the object's body roughly enters the detection area.

Bottom Mode: the alarm will be triggered as soon as the bottom of the object enters the detection area. Suitable for scenarios that require sensitivity to intrusion status/bottom detection preference.
Min. Size

Draw the screen to set the minimum size of the detected object. When the object is smaller than this size, it will not be detected. The default minimum size is 3*3.
Max. Size

Draw the screen to set the maximum size of the detected object. When the object is larger than this size, it will not be detected. The default maximum size is 320*240.

[Schedule Settings]

Step4: Set detection schedule;

Note: This part is the same as the regular schedule settings. You can refer to 8.4.2.2 Region Entrance.

[Alarm Action]

Step5: Set alarm action;

Note:
  • This part is the same as the regular alarm settings. You can refer to 8.4.2.1 Intrusion Detection.
  • If you enable External Output and choose Constant External Output Action Time, when objects loiter in the selected regions, External Output Action alarm time will be always constant till the alarm is released.

Step5: Set alarm settings. If you enable External Output and choose Constant External Output Action Time, when objects loiter in the selected regions, External Output Action alarm time will be always constant till the alarm is released.
