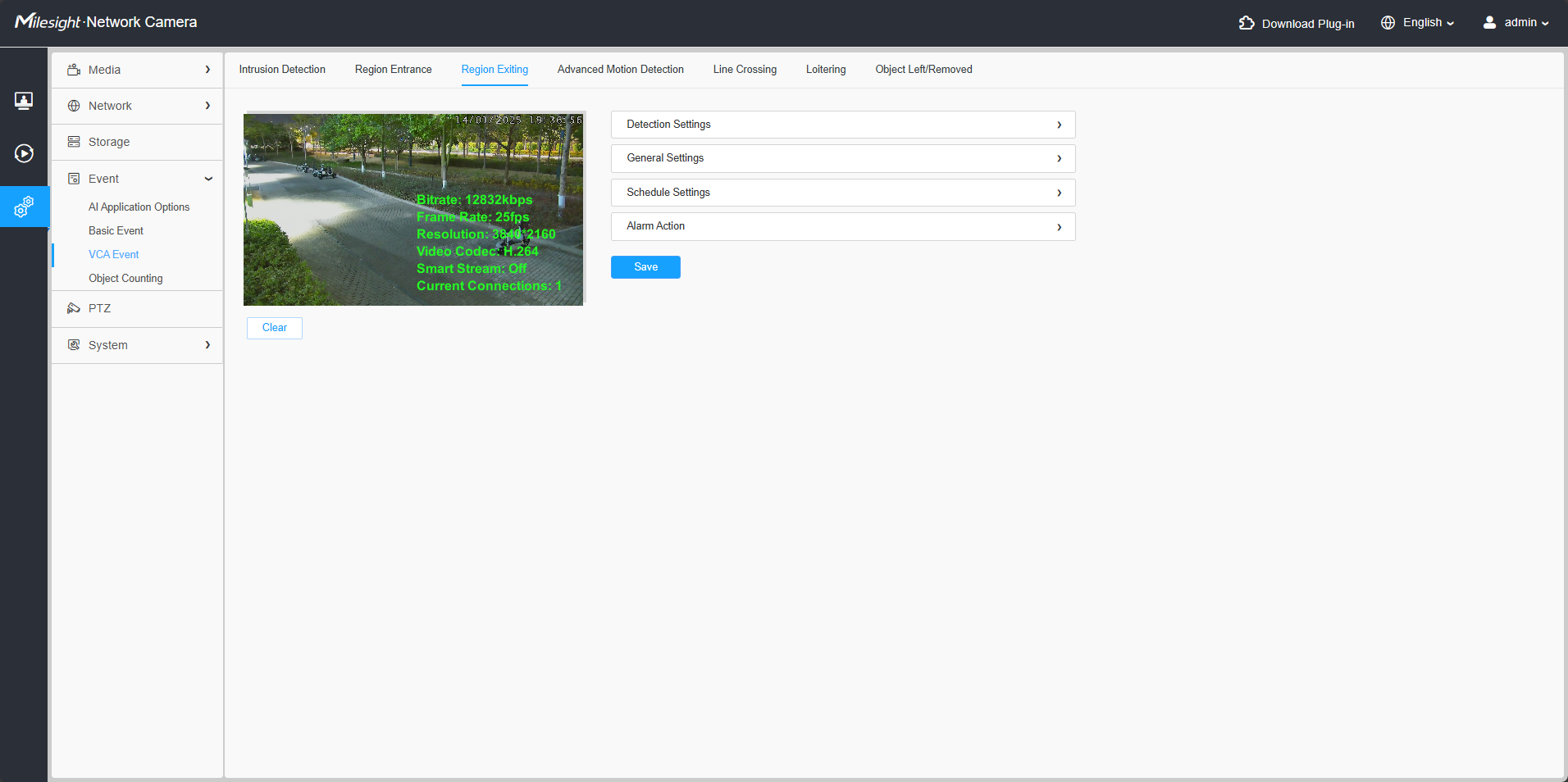

8.4.2.3 Region Exiting
Settings steps are shown as follows:
[Detection Settings]

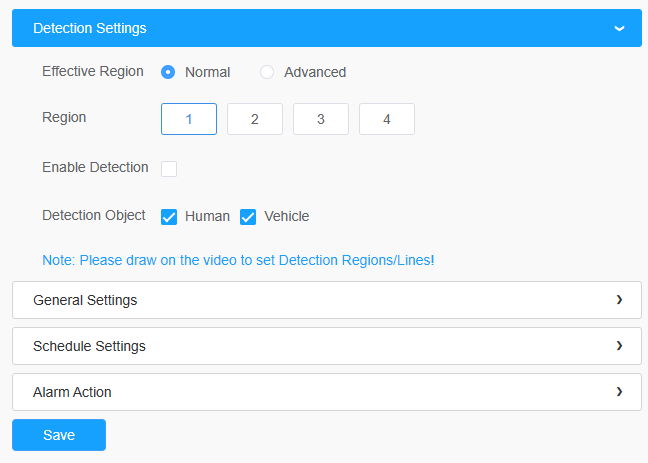

Step1: Selected effective region including Normal and Advanced;
Normal mode is effective for all detection areas;

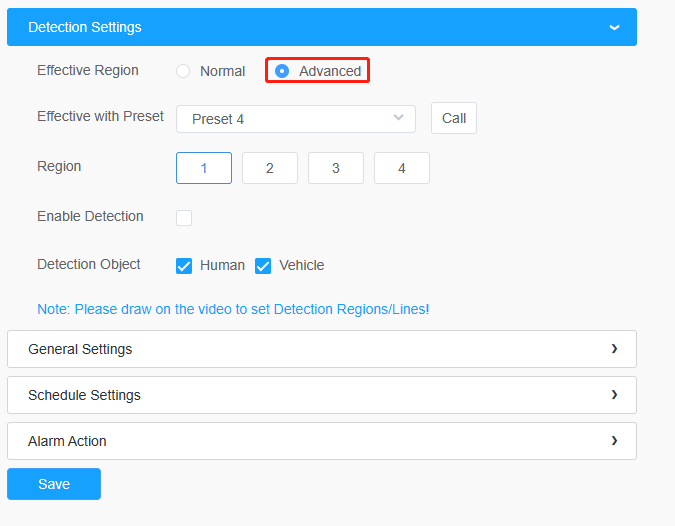

Advanced methods will work in specific fields of view and require setting a preset.
Step2: Selected detection region and enable region exiting detection;
Step3: Choose detection object. Check Human or Vehicle attribute, and the camera will alarm once detecting people or vehicle and triggering related events.
[General Settings]
Step4: Set detecting sensitivity and object size limits;
| Parameters | Function Introduction |
|---|---|
| Sensitivity | Level 1~10 are available, the default level is 5. The higher the sensitivity, the easier it is for moving objects to be recorded in the results. |
|
Trigger Mode |
Set the desired mode of the trigger logic including General Mode and Bottom Mode. General Mode: The alarm is triggered when the object's body roughly enters the detection area. Bottom Mode: the alarm will be triggered as soon as the bottom of the object enters the detection area. Suitable for scenarios that require sensitivity to intrusion status/bottom detection preference. |
| Min. Size |
Draw the screen to set the minimum size of the detected object. When the object is smaller than this size, it will not be detected. The default minimum size is 3*3. |
| Max. Size |
Draw the screen to set the maximum size of the detected object. When the object is larger than this size, it will not be detected. The default maximum size is 320*240. |
[Schedule Settings]
Step5: Set detection schedule;
[Alarm Action]
Step6: Set alarm action;
