3.5.1.1 ANPR

You can Search and Backup ANPR logs.

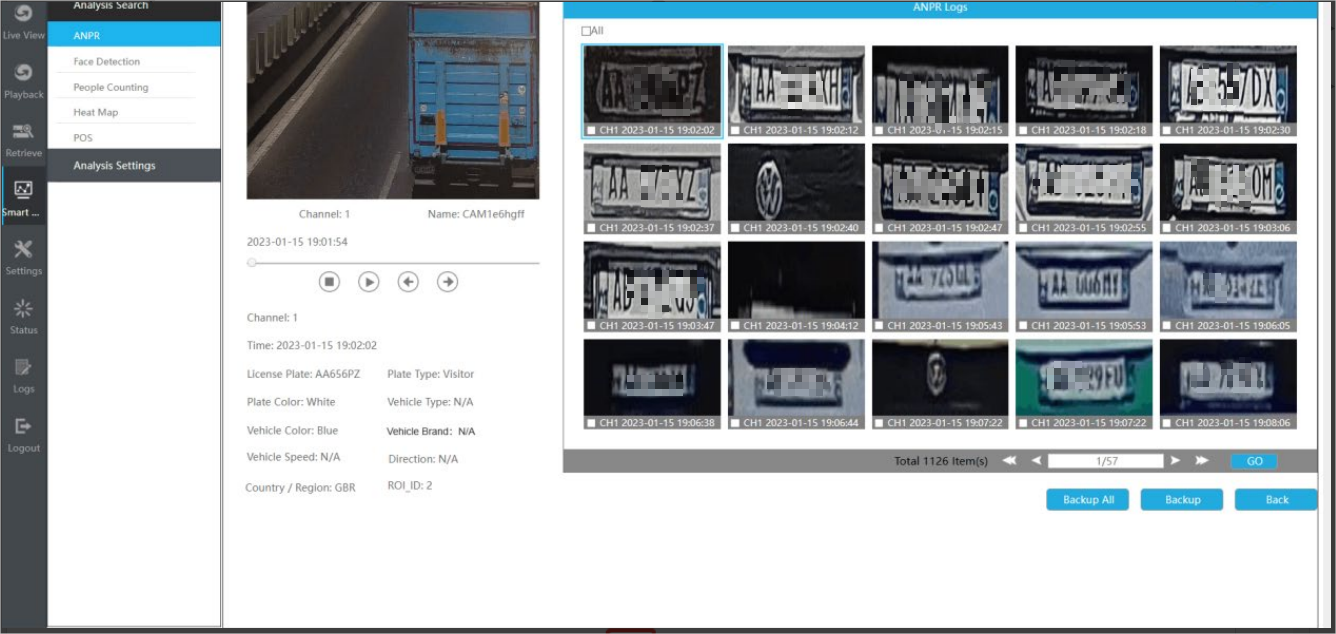

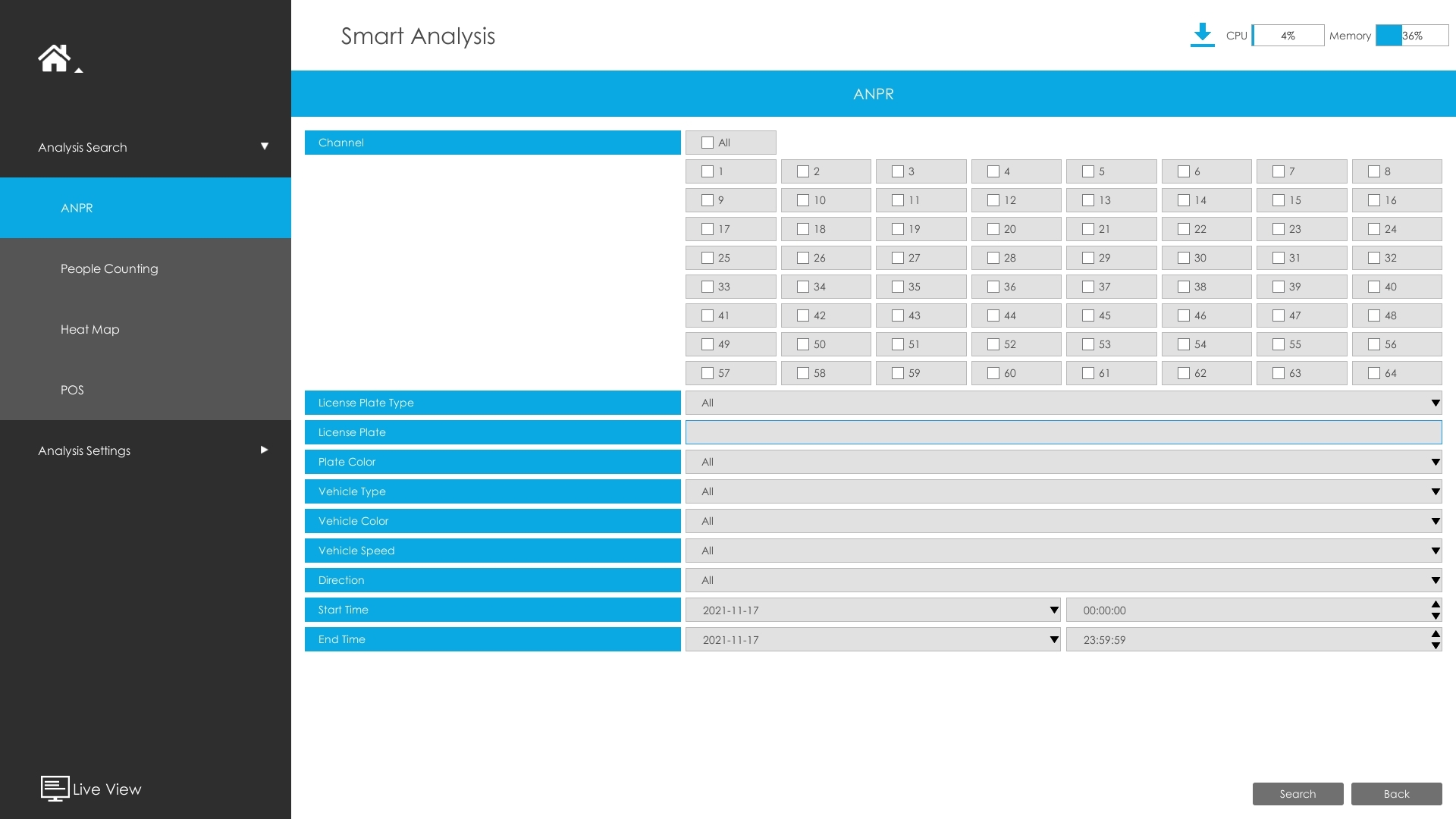

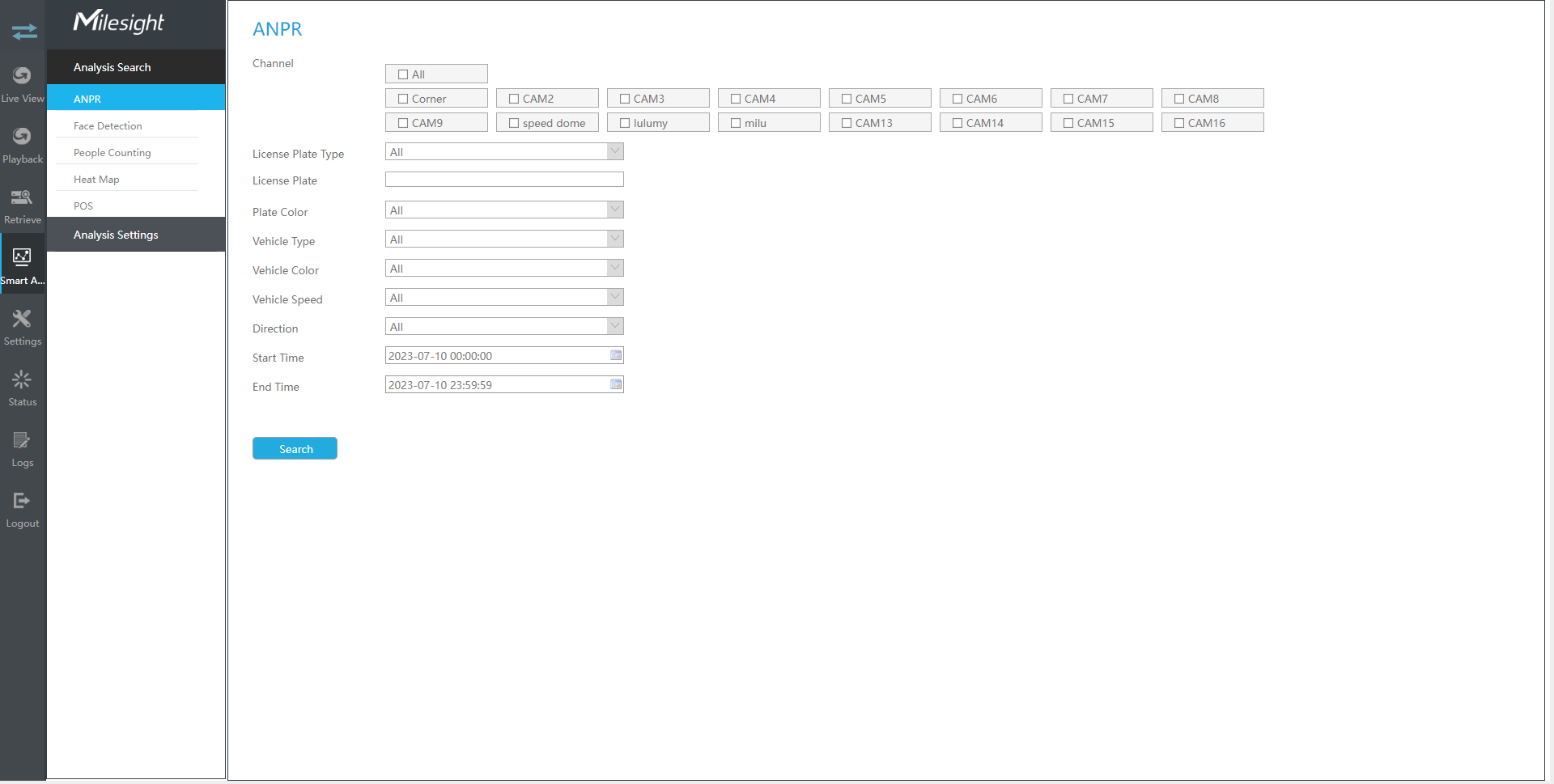

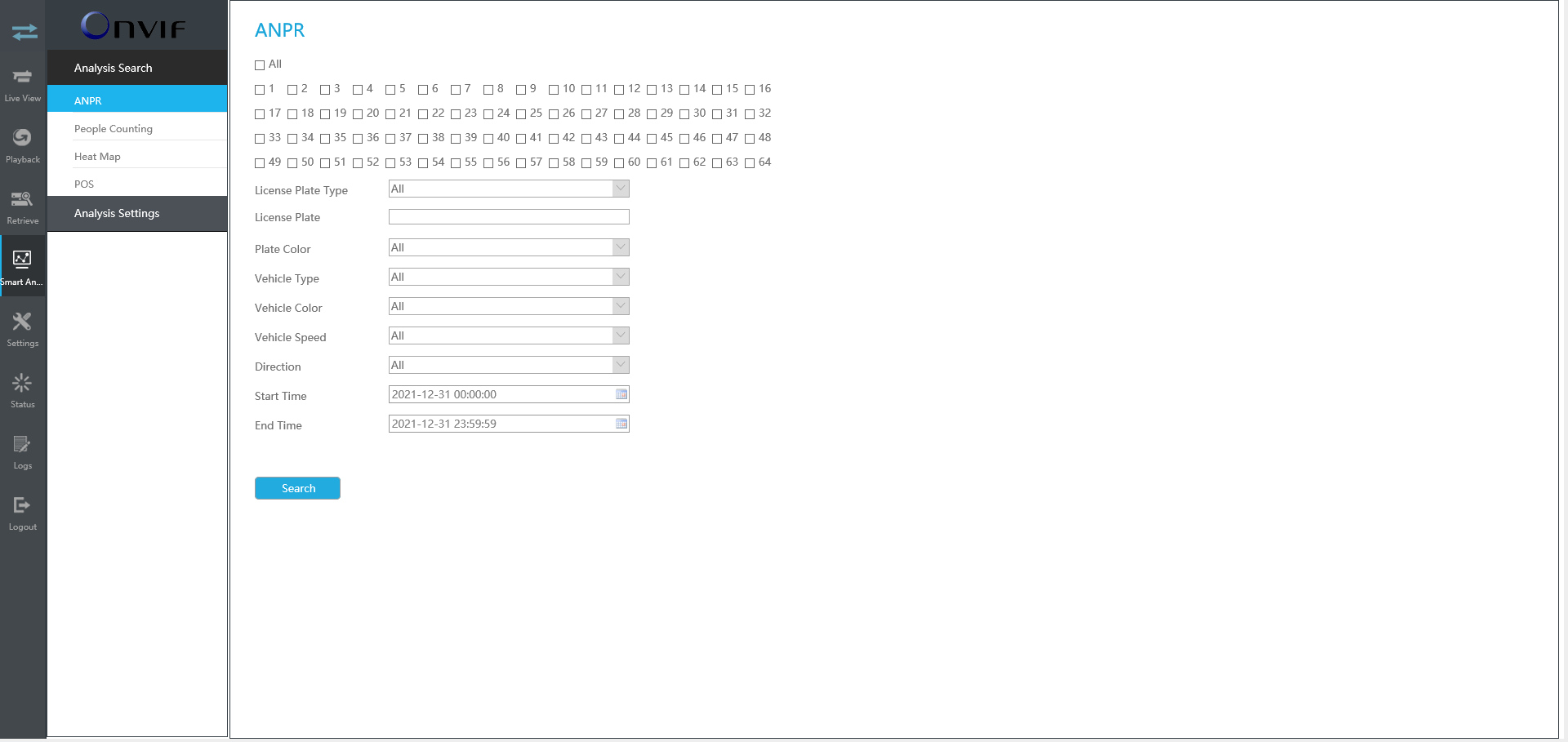

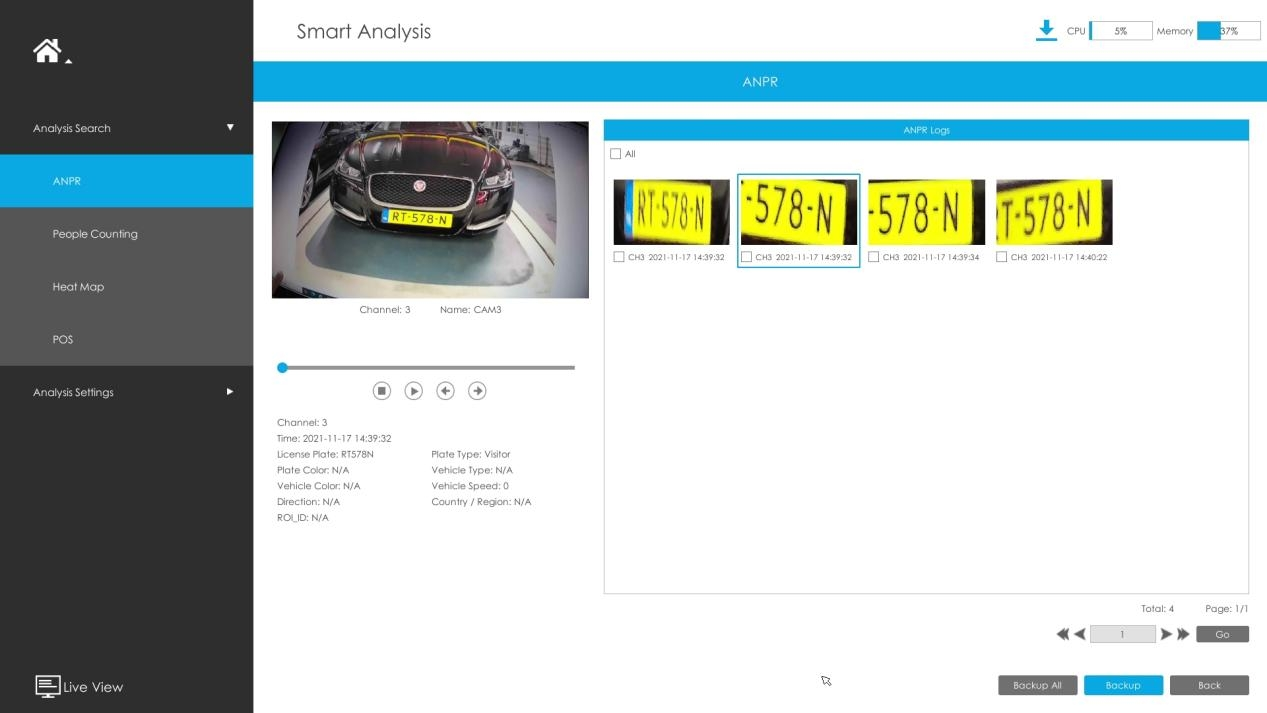

Input corresponded information and click search button to search and you will get a whole ANPR logs list. License plate snapshot will be shown on the logs list while the complete image video and license plate information will be shown on the left of the page. The License Plate Type option is convenient for users to quickly filter the black list, white list and visitor according to the license plate types. Users can also filter ANPR results by Plate Color, Vehicle Type, Vehicle Color, Vehicle Brands,Vehicle Speed and Direction.

Note:
  1. Ensure that your NVR model is MS-NNRXXXX-XXT or MS-NNRXXXX-XXH.

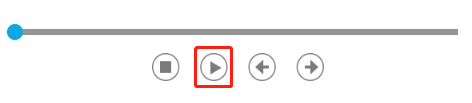

You can click to play the video.



There are two methods to backup ANPR logs.

  • Backup license plates you want.

Step1: Tick license plates you want to backup and click backup button .

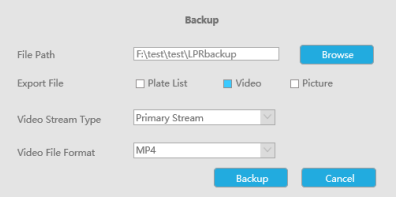

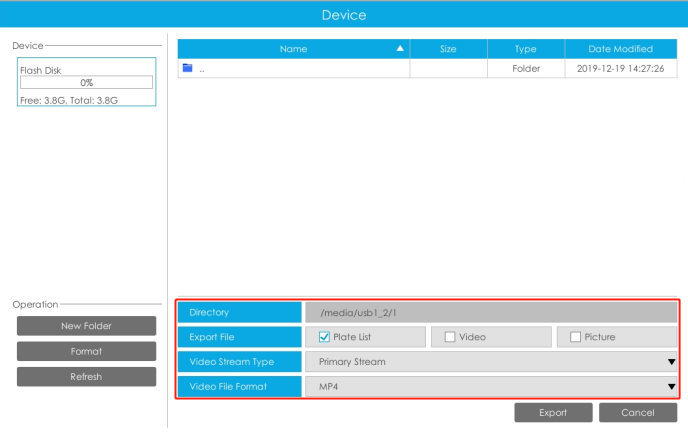

Step2: Select the export file type, video stream type and video file format, then click export button.





  • Backup all.

Step1: Click backup all button.

Step2: Select the export file type, video stream type and video file format, then click export button.

Then you will get corresponding file as selected export file type.
