3.8.4.2 Camera Alarm Output

MilesightThe NVRs support the upgrade of Milesightthe Cameras.

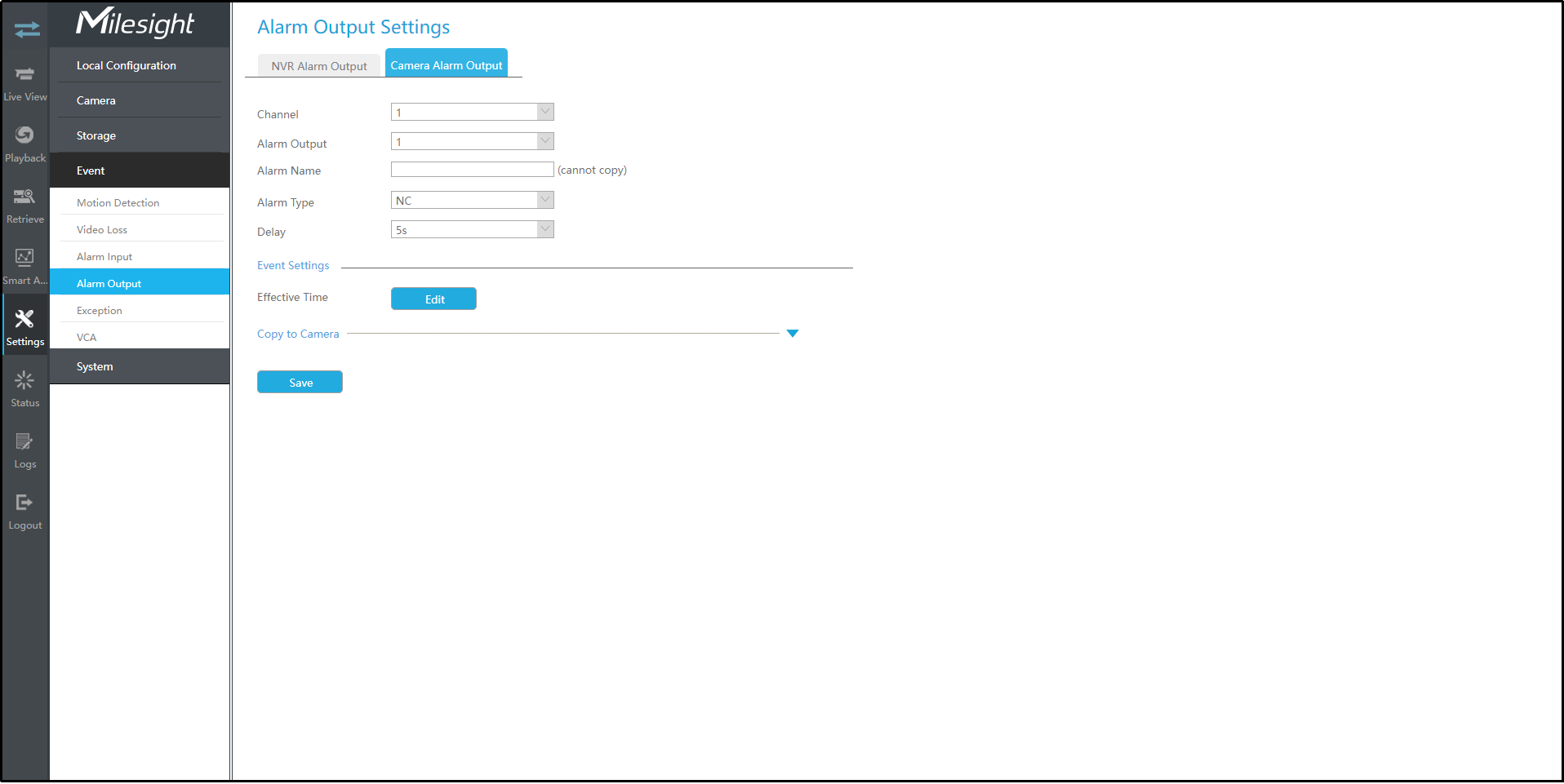

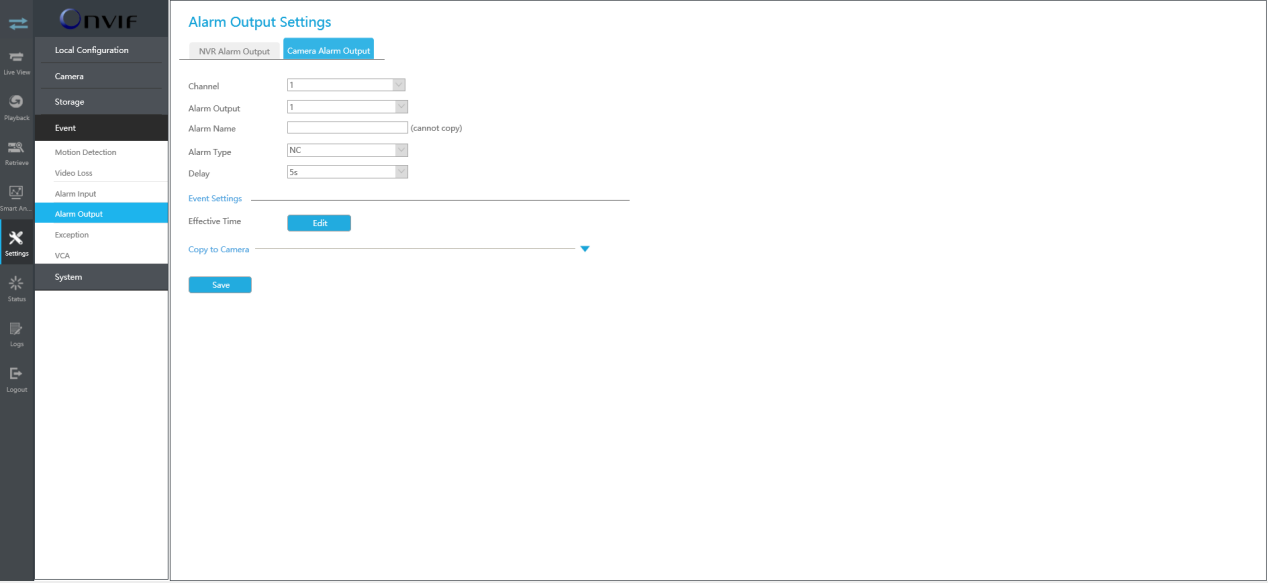

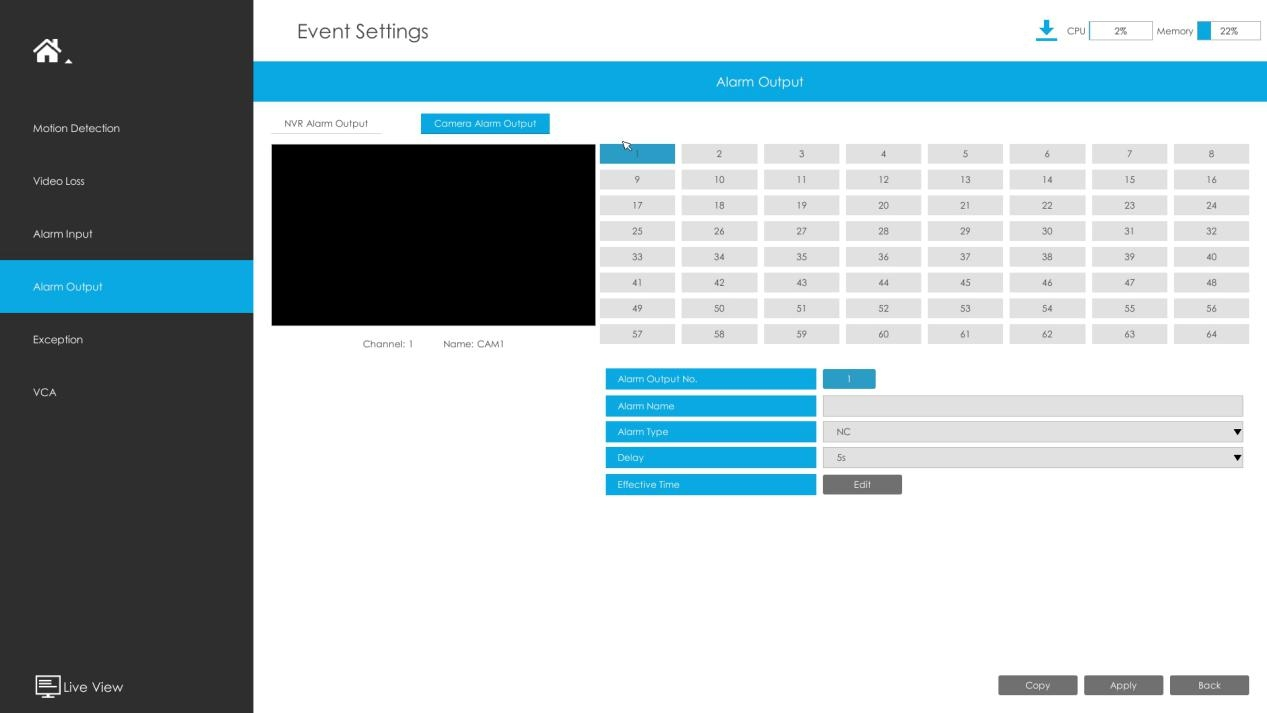

Step 1. Set Alarm output channel, Alarm Name, Alarm Type and Record Channels.







Alarm Output No.: The alarm output number of the corresponding channel which has input signal.

Alarm Name: Set a name for the alarm.

Alarm Type: Choose NO or NC alarm type for the alarm.

Delay: The output time for alarm. If the output alarm lasts too long, you can select the Manually Clear to stop it.

Step 2. Set effective time for alarm output by clicking corresponding "Edit".

The user can set effective schedule as following two ways:

  1. Select the operation type: Alarm Output or Erase. Then drag a square on the time table for time setting. It will be more convenient by clicking “Select All” or “Clear All” to set or clear all time settings.
  2. Click “Edit” to edit record effective time manually.

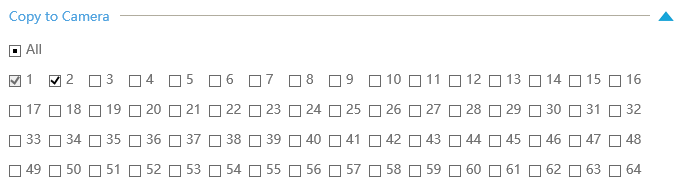

Step 3: Copy alarm output settings to other output interface by clicking “Copy”.
