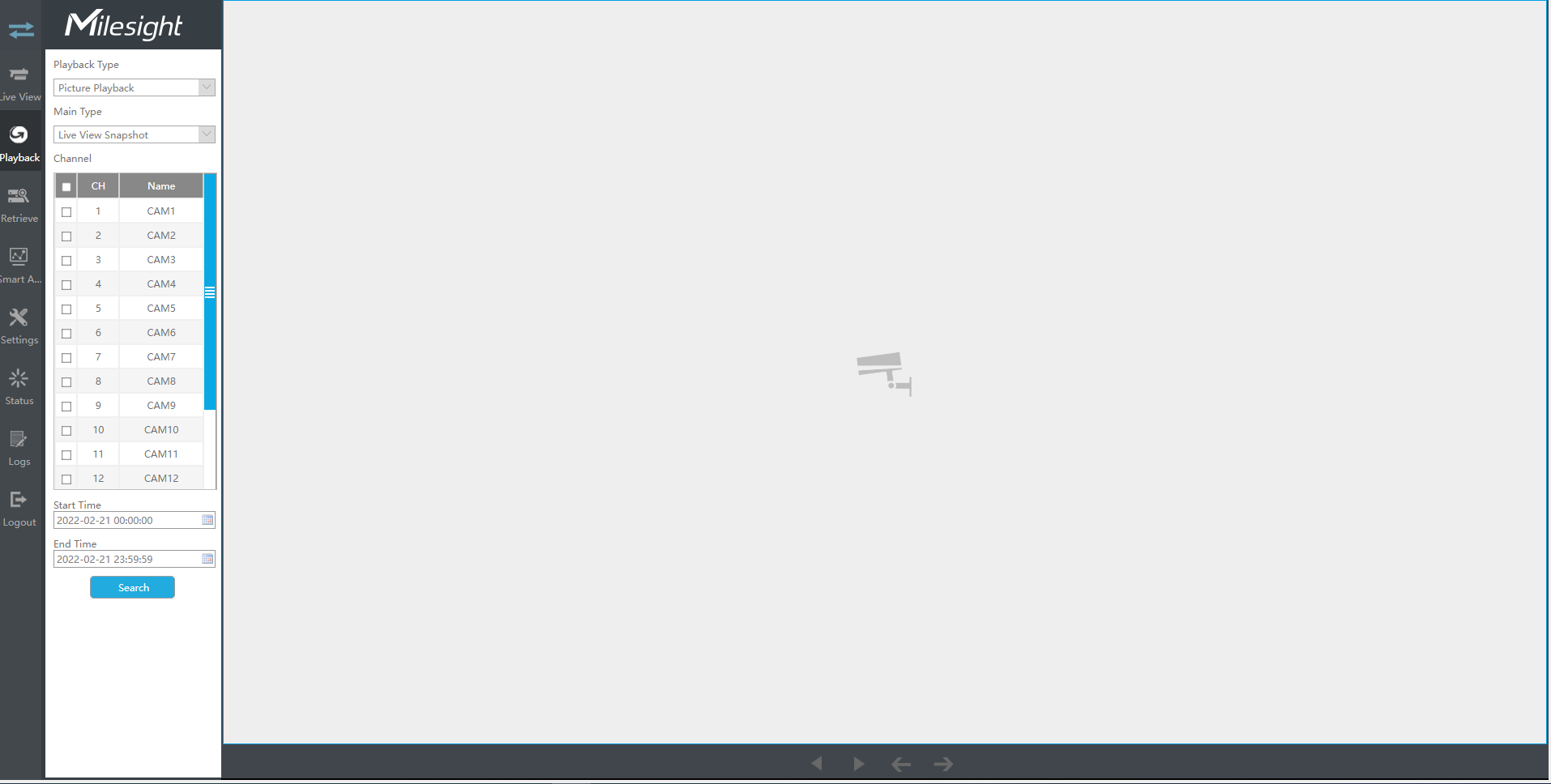

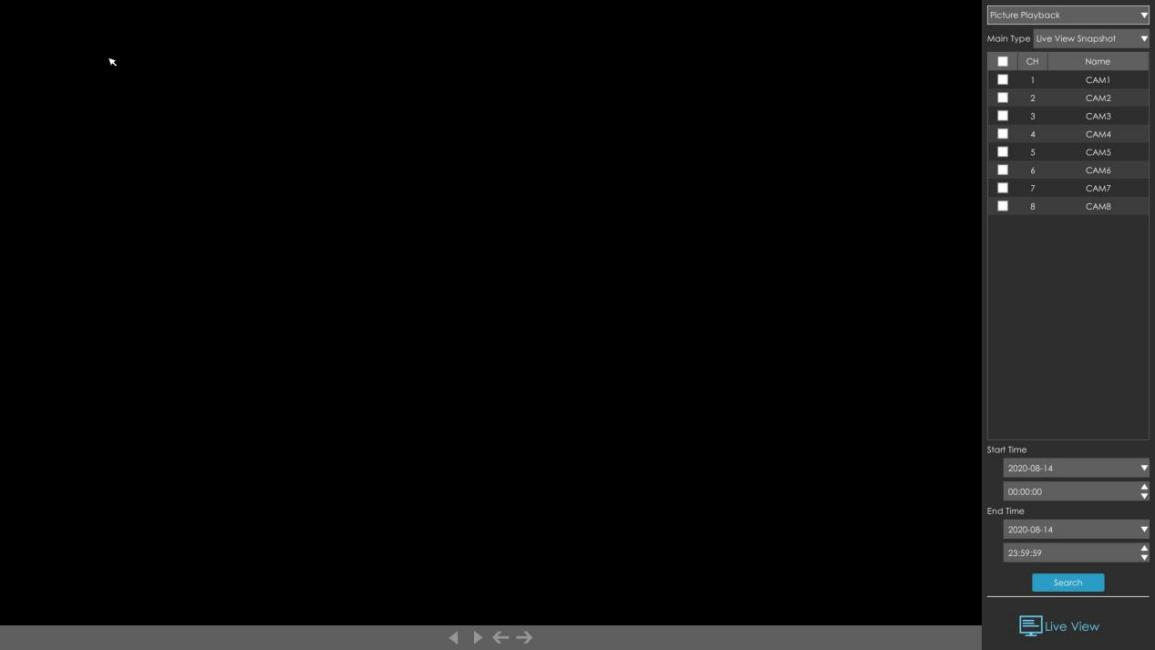

3.3.5 Picture Playback







Step 1. Select Picture Playback as playback type.





Step 2. Select channel.



Step 3. Select Snapshot type, including Live View Snapshot, Playback Snapshot, Continuous Playback and Event Playback.





Live View Snapshot and Playback Snapshot refer to the picture file manually captured in Live View and Playback page.

Continuous Snapshot requires you to set continuous snapshot schedule in Storage-> Snapshot->Snapshot Schedule interface.

Event Snapshot includes Motion Detection, Alarm Input, VCA and Smart Analysis. Select corresponding event and click Search to get event snapshot files.





Step 4: Select Start Time and End Time.





Step 5: It would list all snapshot after clicking "Search".

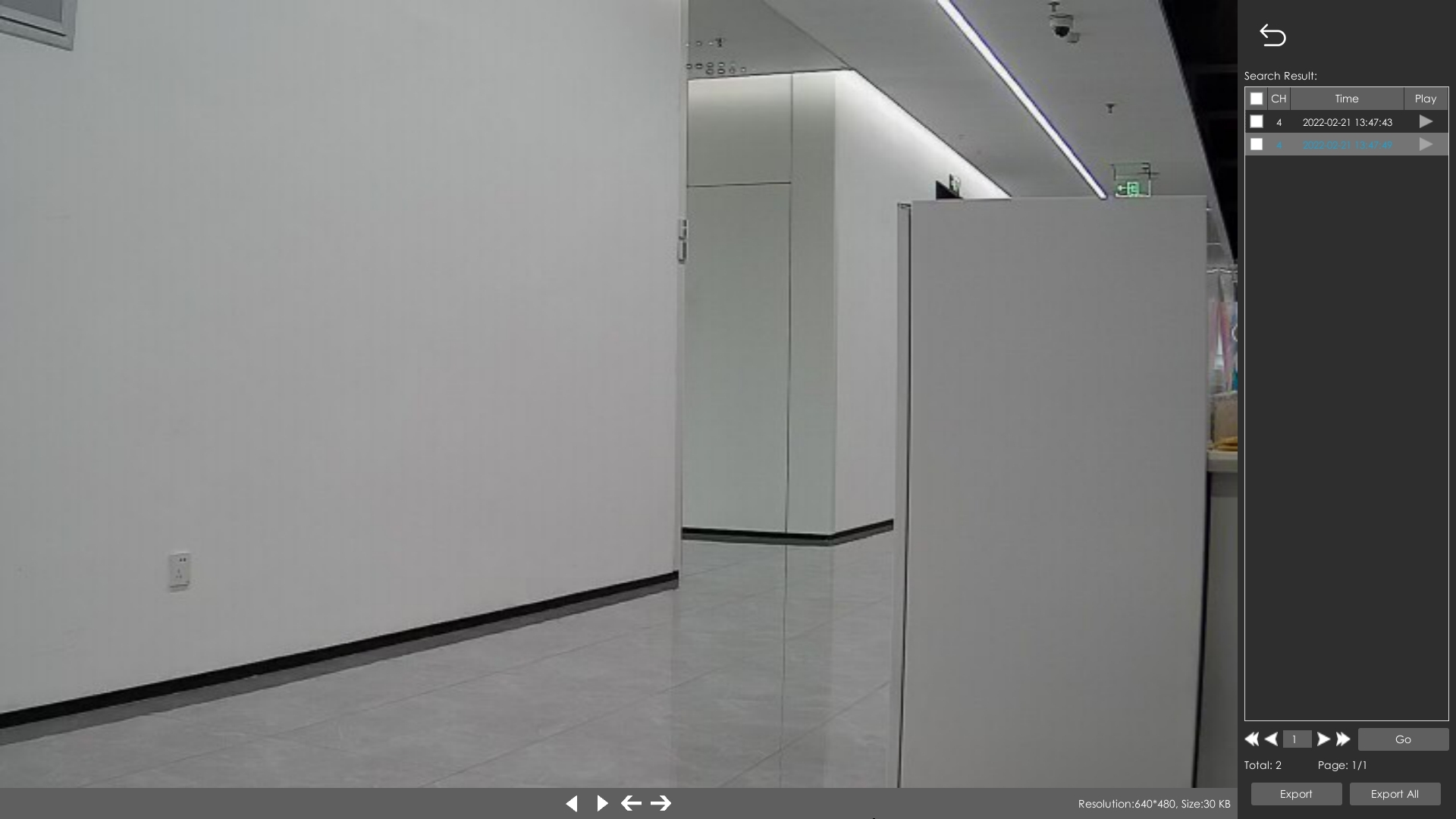

Click to play the selected picture,or click to auto play pictures.

  • You can export picture by clicking or .

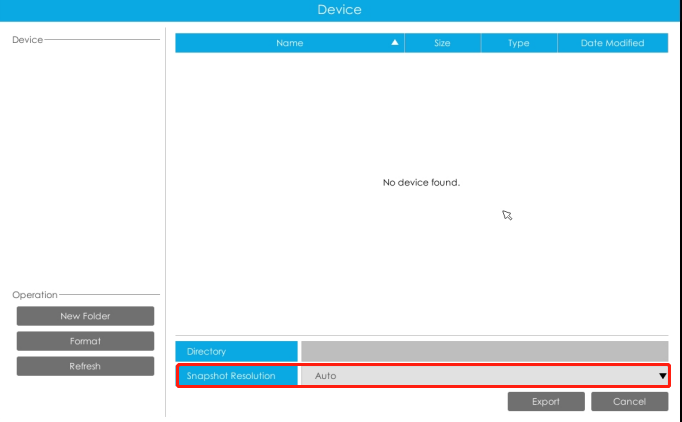

  • Select Dictionary and Snapshot Resolution to be exported. The Snapshot Resolution includes Auto, 704*576, 640*360, and the default option is Auto.

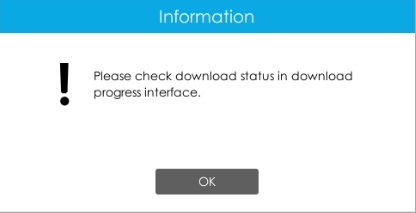

An information pop up to prompt you to check download status in Download Progress panel when you click .

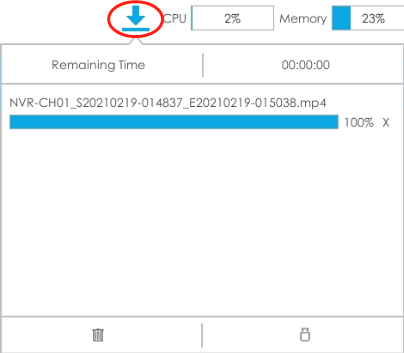

You can view the file download process in the Download Process panel, including the remaining time required for all files to be downloaded. Clickto delete all download records in the panel. Clickto view the device status and perform the following operations: New Folder, Format and Refresh.



Note:
  1. Download file can not exceed 100,000 at a time.
  2. Only one file can be downloaded at a time, and files are downloaded in the order.
Table 1.
Icons

Descriptions

 Icons

Descriptions

Play backward

Play

Previous picture

Next picture

Back to search interface
