3.5.2.4 Heat Map

MilesightThe NVRs support the configuration of the Heat Map function of MilesightThe cameras on NVR directly and you can search and export the results of Heat Map in Smart Analysis.

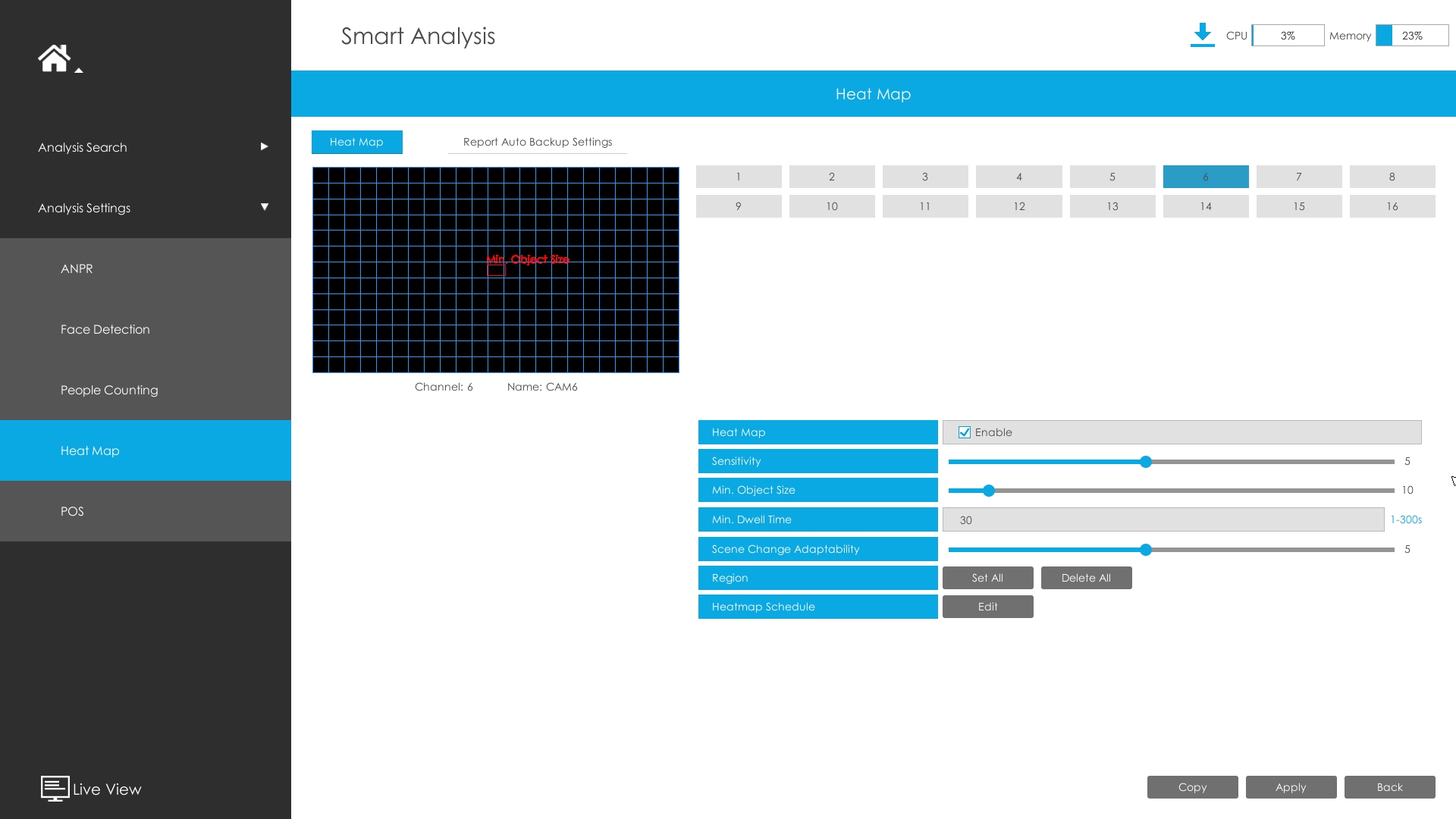

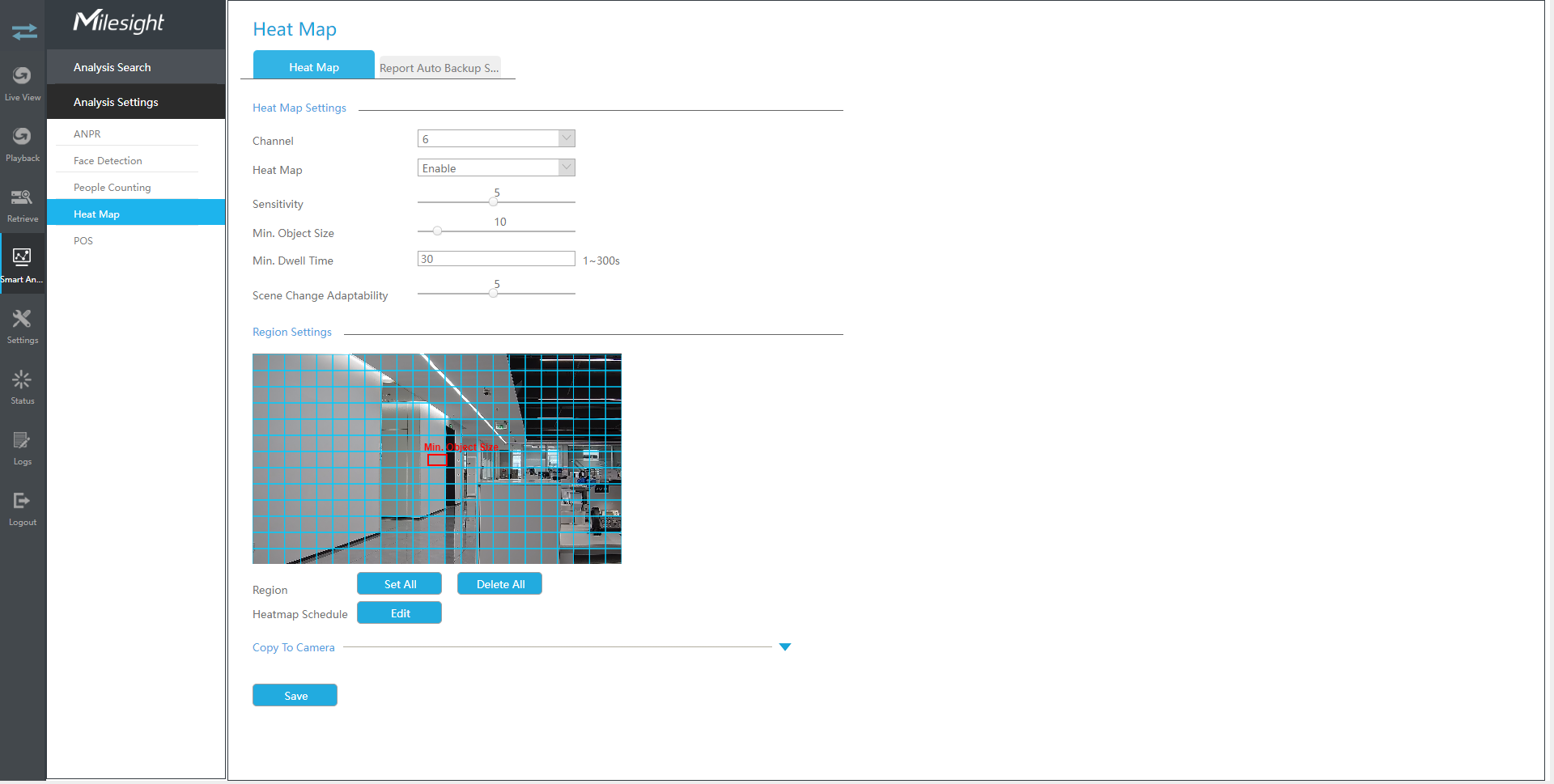

Heat Map







Sensitivity: Level 1~10 are available, the default level is 5. The higher the sensitivity, the easier the moving subjects to be recorded in the result.

Min. Object Size: Set the minimum object size from 1 to 100, the default value is 10. Objects smaller than this value will not be recorded in the result.

Min. Dwell Time: Set the minimum dwell time from 1 to 300, the default value is 30. If the object stays in the area longer than the set "Minimum Dwell Time", it will not be recorded in the result.

Scene Change Adaptability: Level 1~10 are available, the default level is 5. Scene Change Adaptability indicates the camera's adaptability to scene changes, which can increase the accuracy of detection. The camera adapts better to faster changing scenes if the value is higher.

Heat Map Region: Draw the screen to set the detection area. You can click “Set All” button to select all areas, or "Clear All" button to remove the current drawn area.

Heatmap Schedule: Set Heat Map schedule by clicking "Edit" button..

Note:
  1. Ensure that your camera’s version is 4X.7.0.74 or above.
  2. Please configure Heat Map schedule on camera side.
  3. The Heat Map function only works on the following cameras:

Fisheye: Ensure that the dewarping mode is 1O and the dewarping rule is On-board Dewarping.

Panoramic Mini Bullet: Ensure to turn on the Lens Distort Correct function.

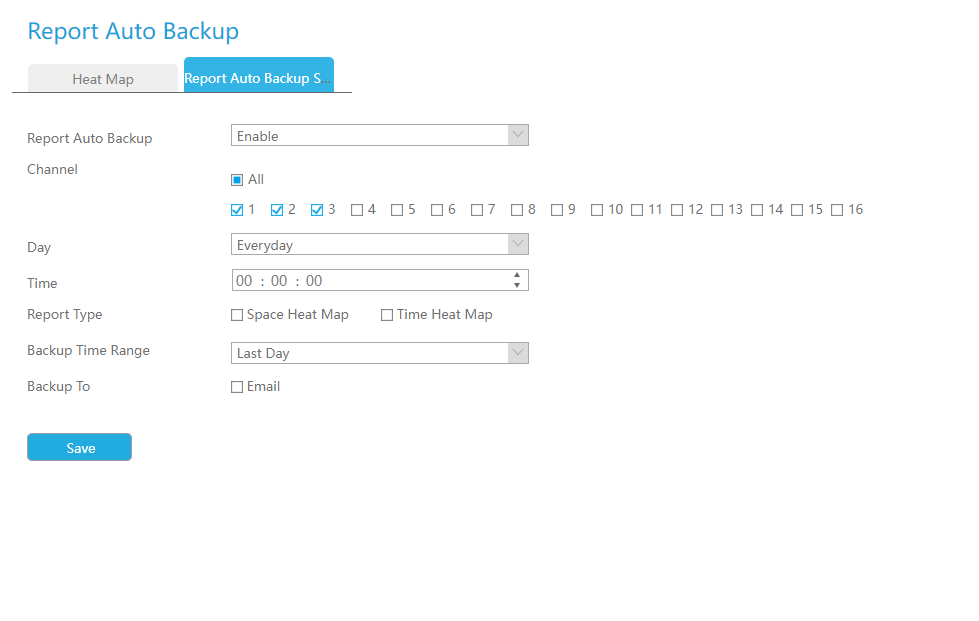

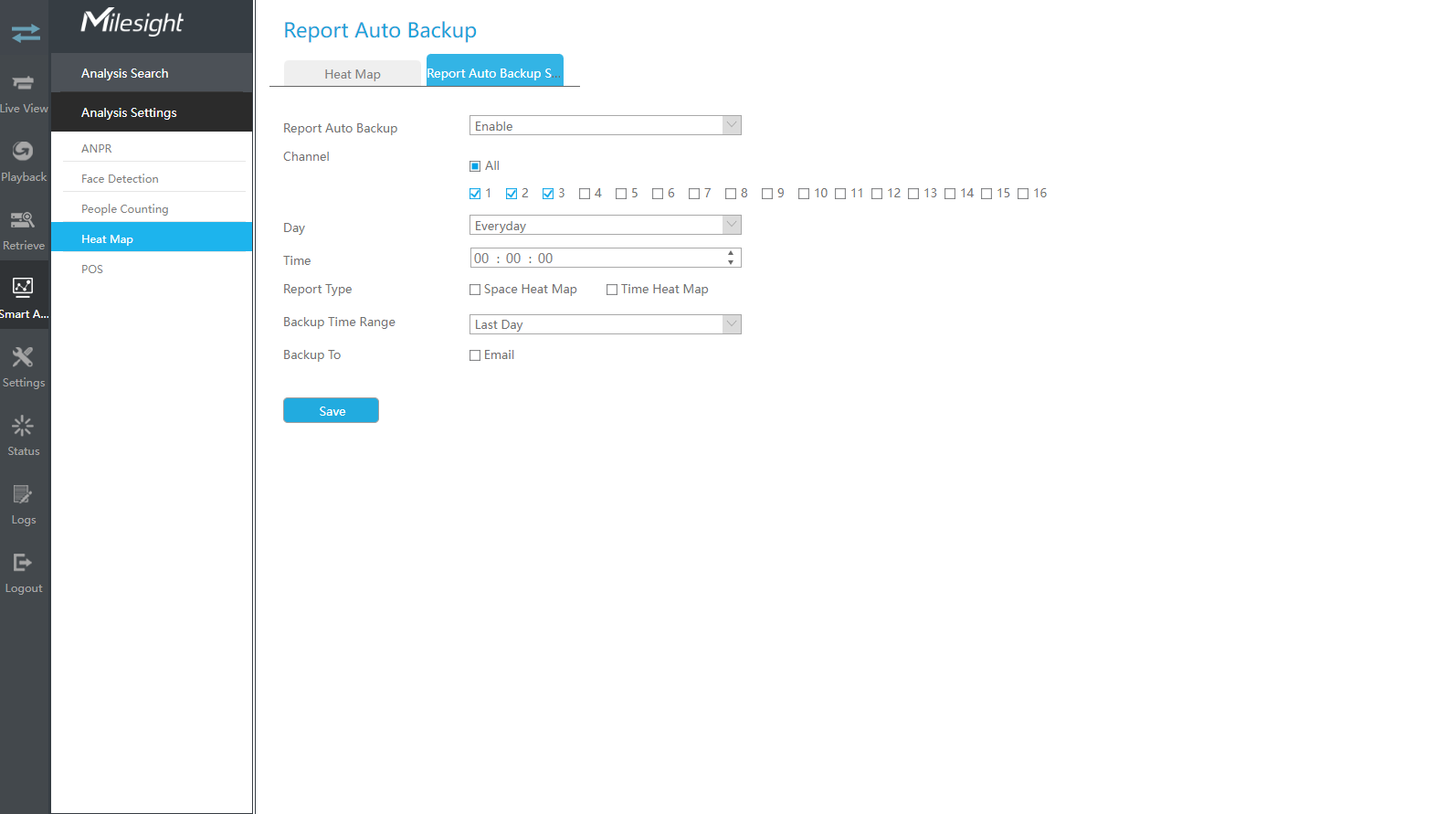

Report Auto Backup Settings

Here users can configure Auto Backup of Heat Map reports. Then you can periodically export .CSV reports of the last day, last week, or all to the external device or Email.





Step 1: Enable Report Auto Backup, and then select the channels.

Step 2: Set the day and the time.





Step 3: Select Report Type including Space Heat Map and Time Heat Map.

Step 4: Select Backup Time Range including Last Day and Export All.

Step 5: Users can export the reports to the external device or Email.
