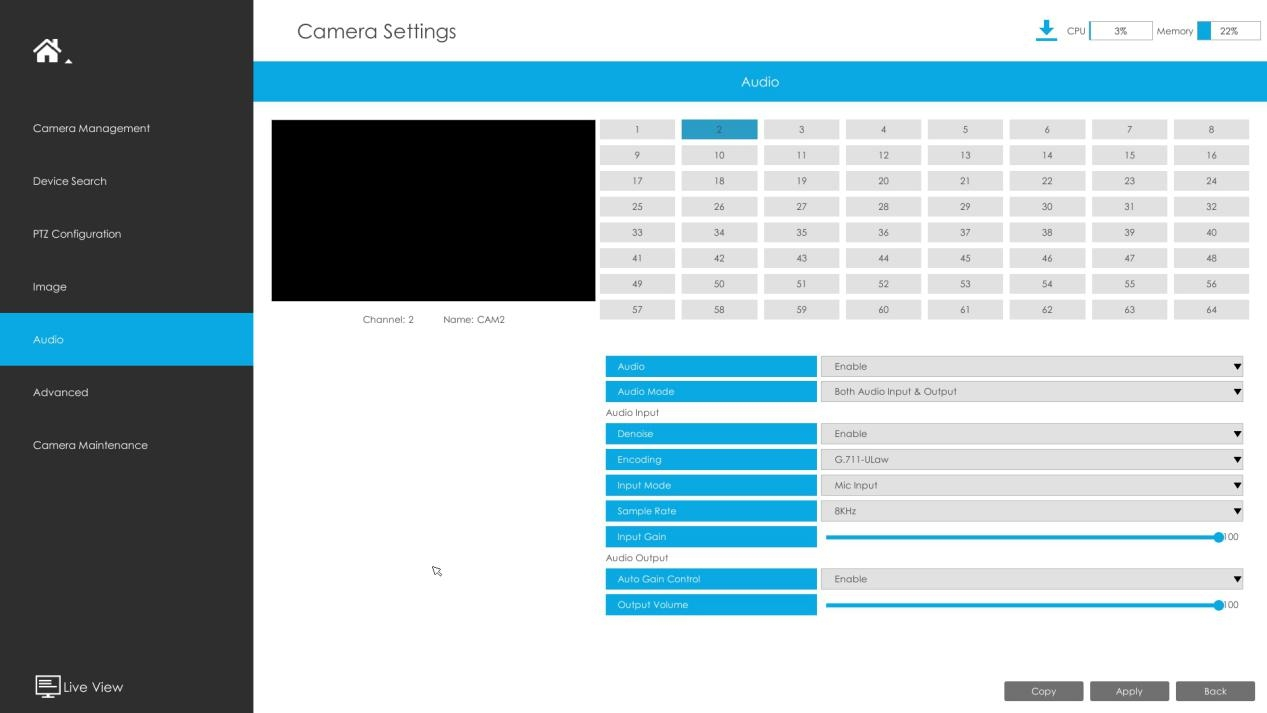

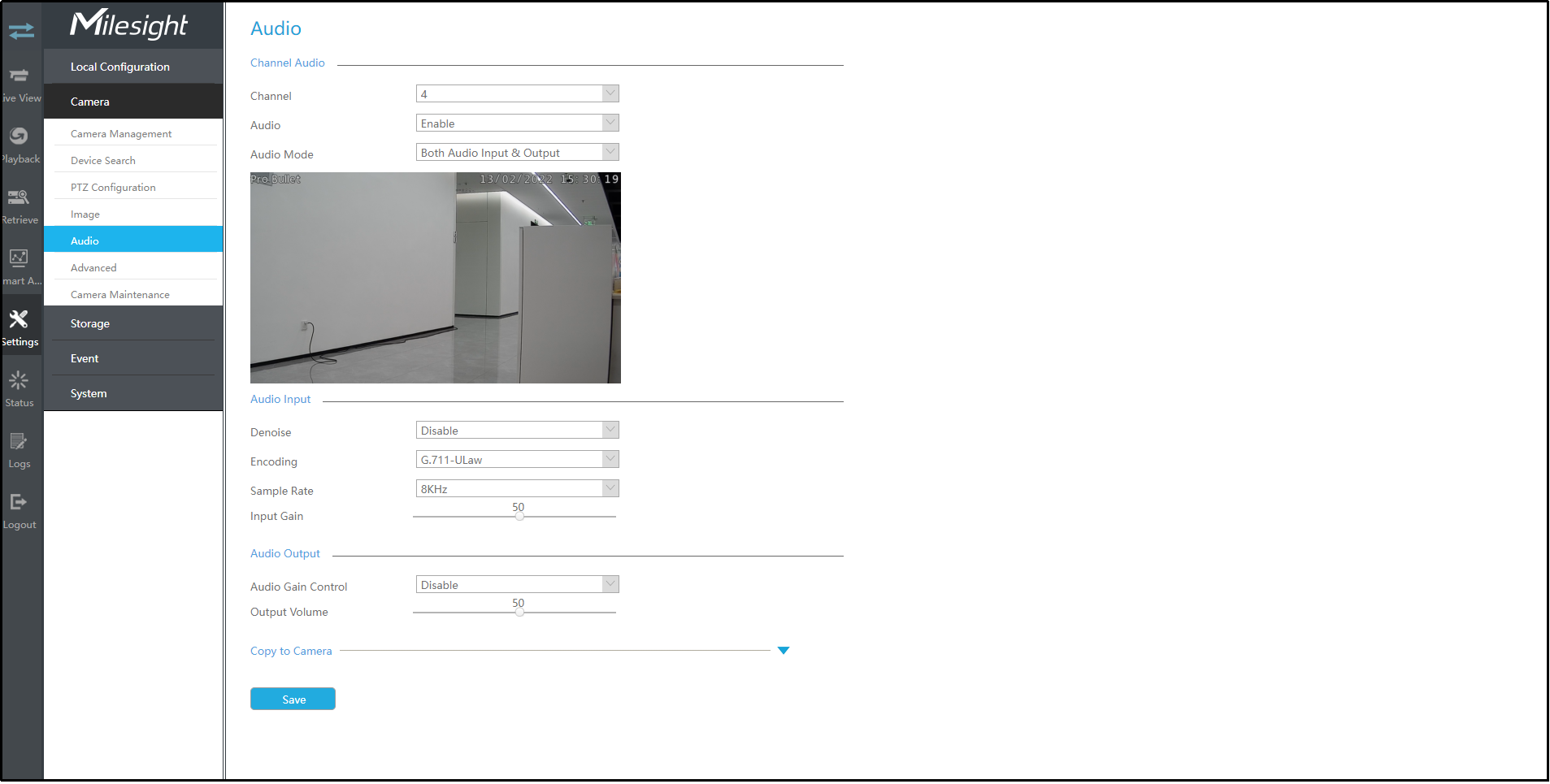

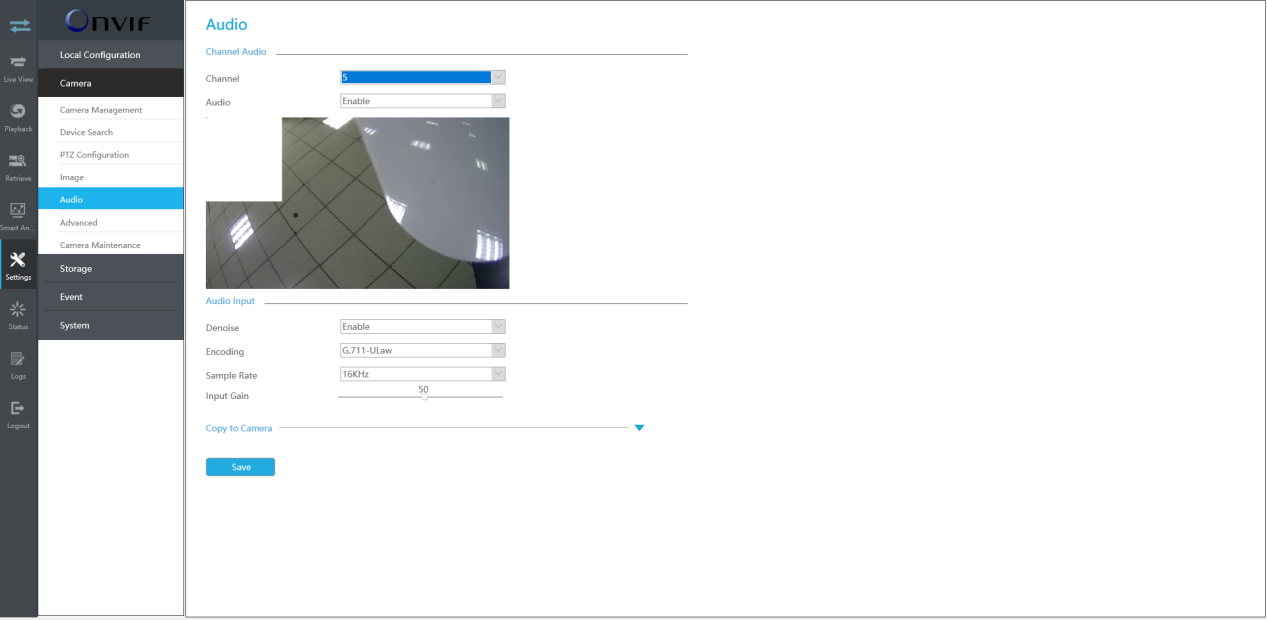

3.6.5 Audio
This audio function allows to configure the audio interface parameters for camera.
Enable Audio: Check on the check box to enable audio feature.
Denoise: Set it as On/Off. When you set the function on, the noise detected can be filtered.
Encoding: G.711-ULaw, G.711-ALaw, AAC LC, G.722 and G.726 are available.
Sample Rate:8KHz, 16KHz, 32KHz, 44.1KHz, and 48KHz are available.
Audio Bit Rate: The function is available only for AAC LC, and supports up to 256kbps.
Input Gain: Input audio gain level, which is 0-100.
Auto Gain Control: This function is only for H.265 series, improve the quality of audio.
Output Volume: Adjust volume of output.
Note: Make sure you camera version is xx.7.0.76 or above.
