3.6.4.1 Display

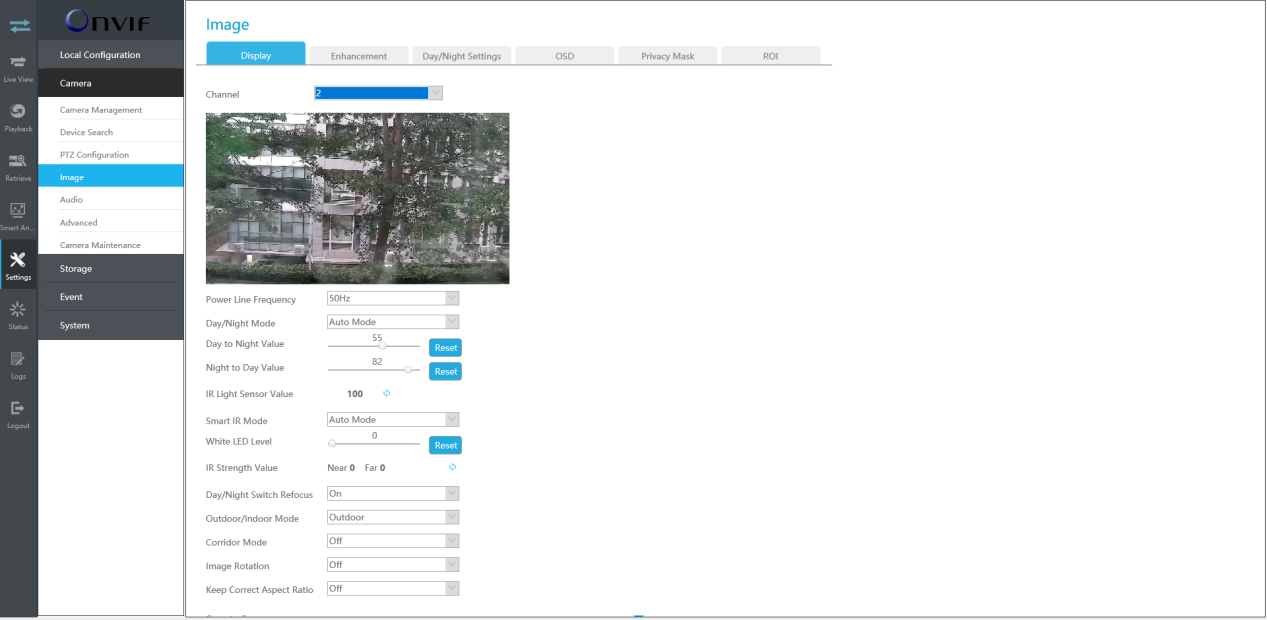

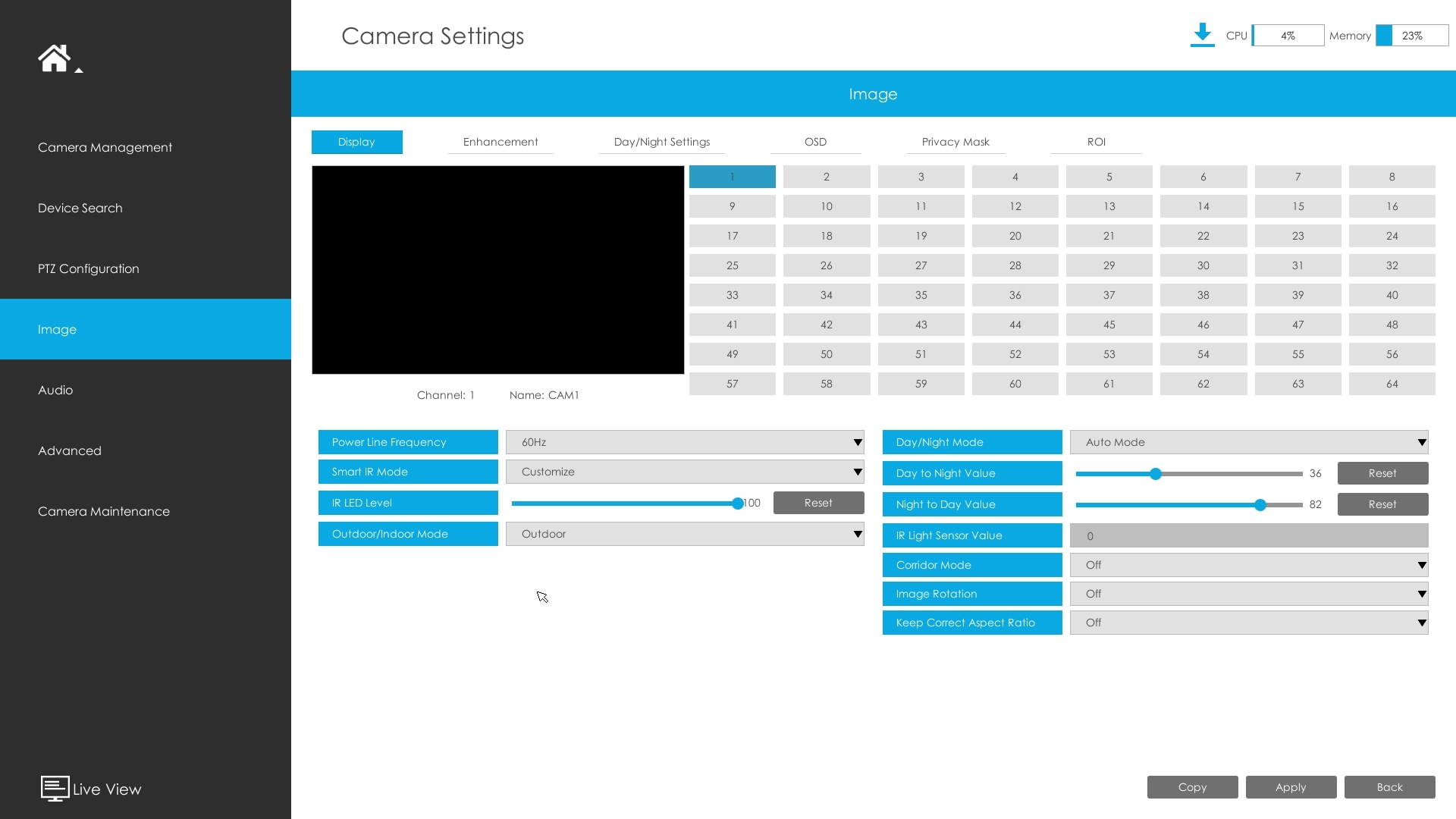

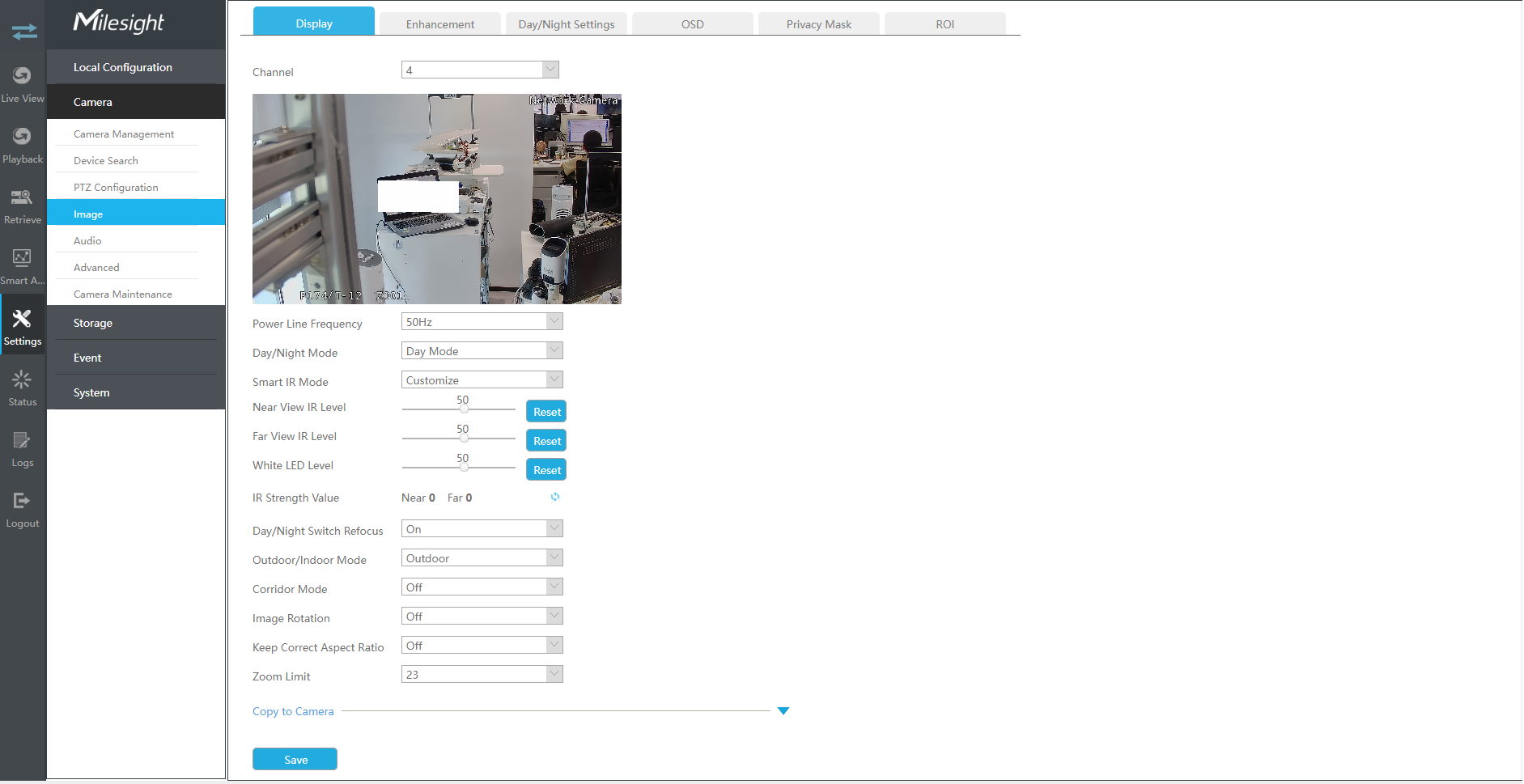

Step1. Select channel.

Step2. Set the configuration.

Power Line Frequency: 50Hz and 60Hz are available.

Day/Night Mode:Set the Day/Night mode for the channel.

White LED Light Control:There are four options available, you can select one to meet your need.

Auto mode: Automatically turn on/off LED lights with the change of day and night. You can adjust the sensitivity and delay time in this mode.

Always On: Keep LED lights on.

Off: Turn off LED lights.

Customize: You can set the time for turning on and off the LED lights.



Note: Make sure the camera’s model is MS-Cxx64-(R)UPD and version is 5x.7.0.77 or above

Smart IR Mode: With the combination of the High Beam and Low Beam, The IR LEDs technology has been upgraded to provide better image clarity and quality regardless of the object distance. Also, the Low Beam and High Beam's brightness can be adjusted manually or automatically on the basis of the Zoom ratio. Moreover, with the IR anti-reflection panel, the infrared light transmittance is highly increased. Support to set the strength of the IR to Auto Mode or Customize to achieve the best effect.

Near view IR level: Adjust the light strength of Low-Beams LED light level from 0 to 100.

Far view IR level: Adjust the light strength of High-Beams LED light level from 0 to 100.

White LED Level: Adjust the White LED level from 0 to 100.

IR Strength Value: The current value of Low-Beams LED and High-Beams LED light value.

IR LED Level: Adjust the IR LED level from 0 to 100.

Day/Night Switch Refocus: With this option enabled, the camera will refocus when switching between day mode and night mode.

Outdoor/Indoor Mode: Set Outdoor/Indoor mode for the channel.

Day to Night Sensitivity: Set the Sensitivity to trigger Night Mode.

Night to Day Sensitivity: Set the Sensitivity to trigger Day Mode.

Day to Night Value: Set the Minimum illumination intensity to trigger Night Mode.

Night to Day Value: Set the Maximum illumination intensity to trigger Day Mode.

IR Light Sensor Value: Shows the current value of IR light sensor.

Corridor Mode: Set corridor mode.

Image Rotation: Set image rotation.

Smoked Dome Cover: This function is only for Pro Dome. If Pro Dome is equipped with a Smoked Dome Cover, enable this function to display a normal image.

Local Display Video: Select NTSC or PAL for local display.

Keep Correct Aspect Ratio:With this option enabled, the camera will prevent the image from distortion when resolution ratio is changed.

Zoom Limit: Set the Zoom Limit.

Note:
  1. Smoked Dome Cover is only supported for Pro Dome and PTZ Dome cameras.
  2. Smart IR Mode and IR LED Level are supported for cameras with IR LEDs.
  3. White LED Level is only supported for PTZ Bullet cameras.
  4. Day to Night Sensitivity and Night to Day Sensitivity under Auto Mode are only available under Auto Mode when camera are 180° Panoramic Bullet and Mini Bullet whose firmware version is 4X.7.0.74 or above.
  5. White LED Light Control is only supported for MS-Cxx64-(R)UPD(camera version is 5x.7.0.77 or above).
  6. Zoom Limit is only supported for the PTZ Network Camera with optical zoom of 20X or above.

Step 3. Copy the image settings to other channels by clicking"Copy" "Copy to Camera"on the bottom of the windows.

Step 4. Select "Apply""Save" to save the settings.
