3.7.3 Disk Management

You can check Disk status, add Network Disk and set Recycle Mode here.

HDD Mangement

Diak Mangement

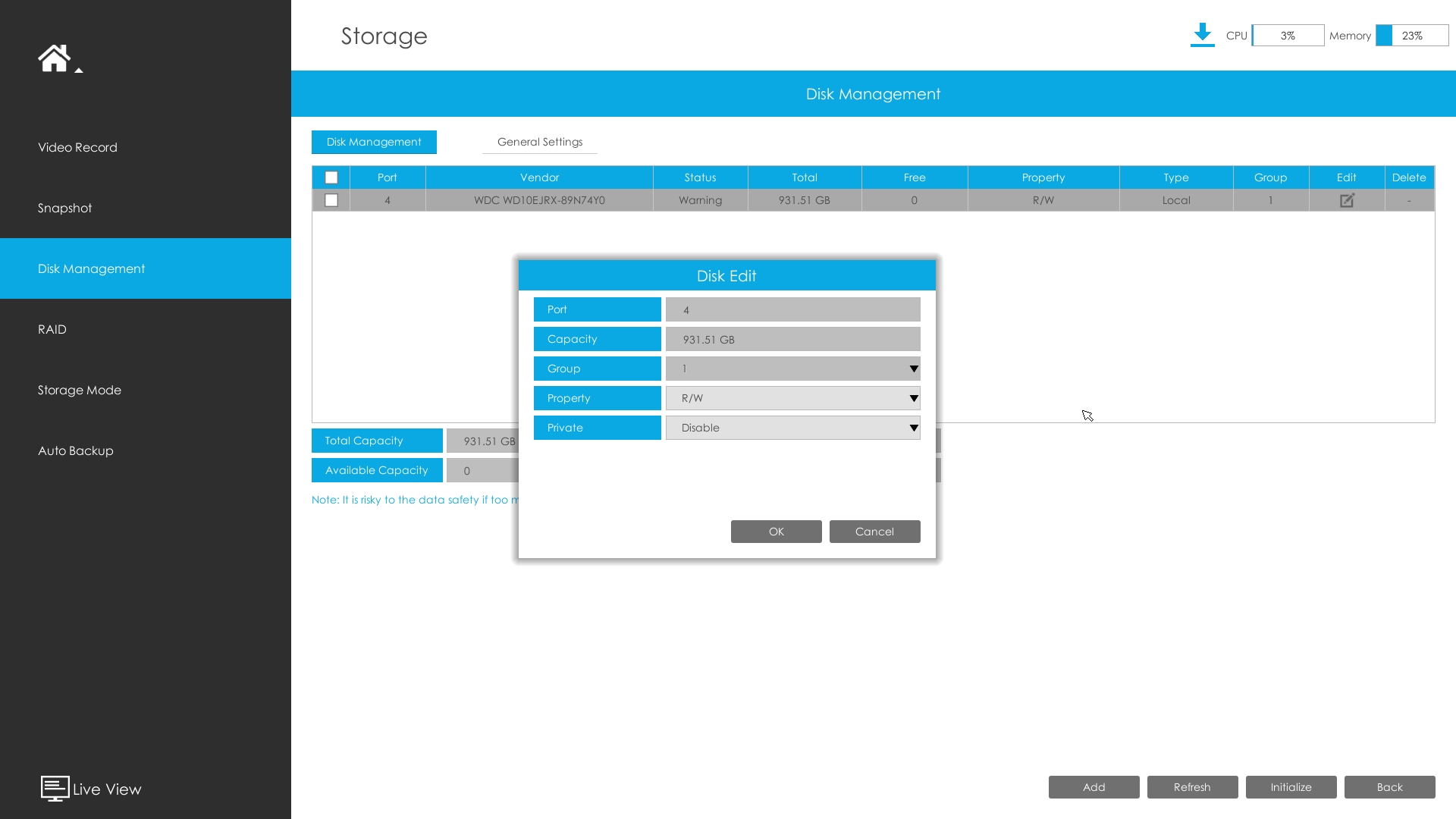

Property: R/W and Read-only are available for this option.

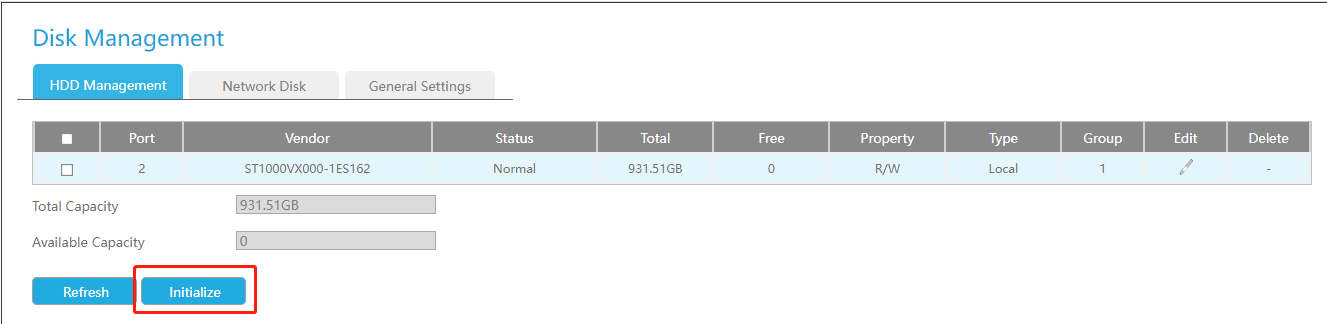

Note: Initializing the HDD before you set record schedule to ensure that record properly works.

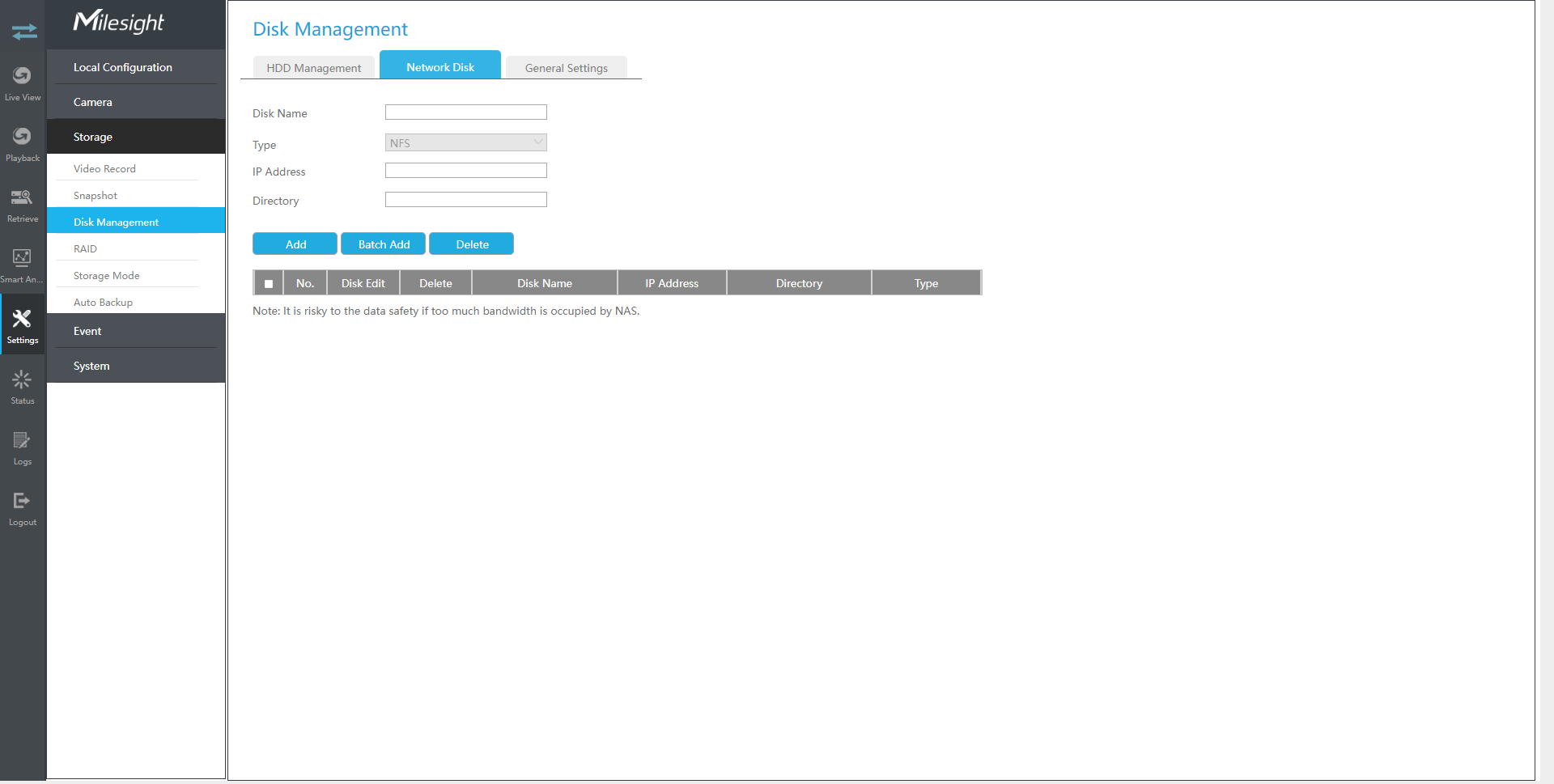

Network Disk

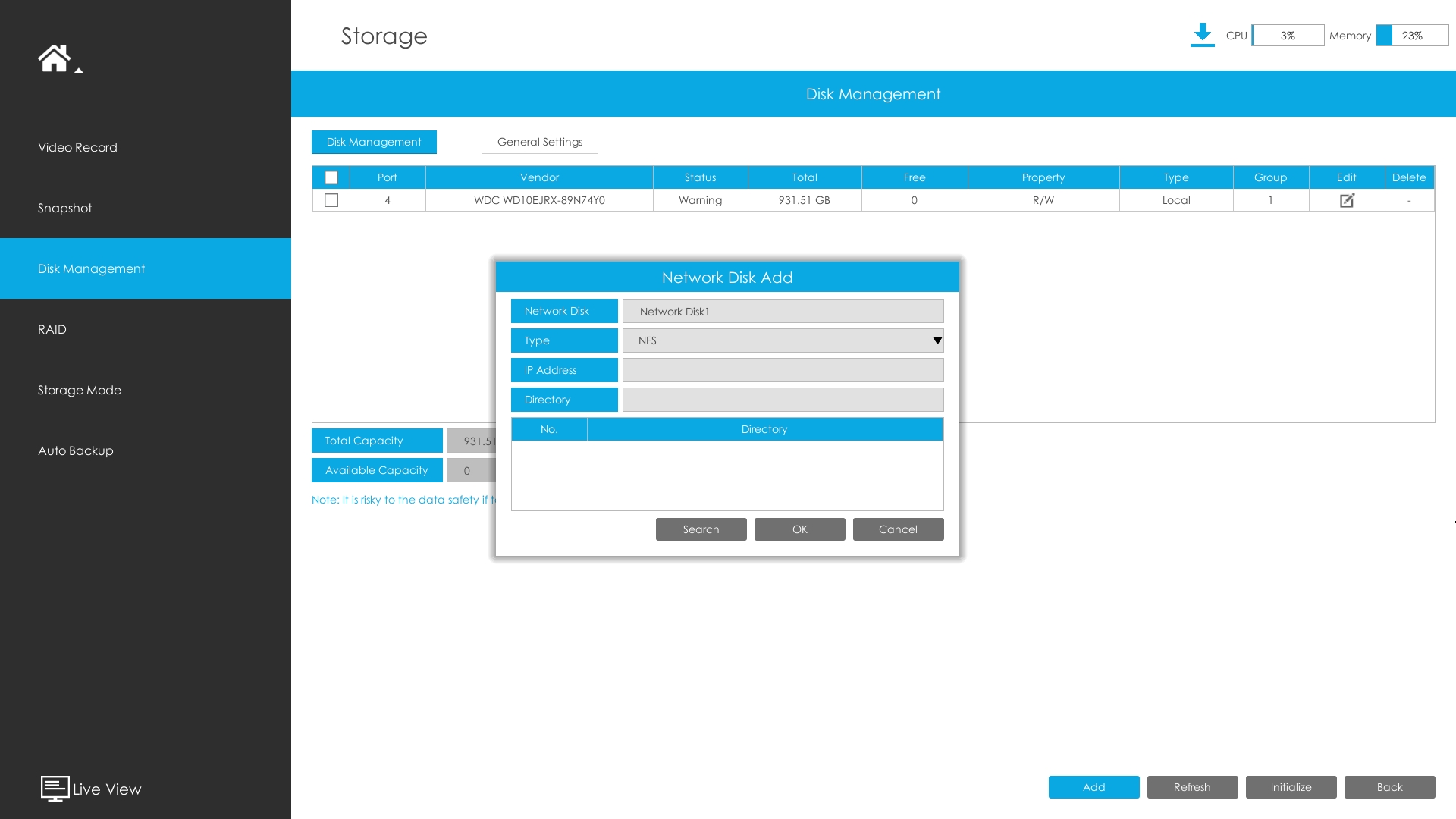

NAS (Network-Attached Storage) should be available within the network and properly configured to store the recorded files and snapshots. You can click and then input corresponded NAS information to add NAS.

Note:
  1. NAS with NFS format is the only type for network disk adding.
  2. It’s recommended to use Hard Disk rather than Network Disk.






Edit the Property by clicking . After that the storage device will be ready.



HDD Type: RAID means RAID, NAS means network attached storage while LOCAL means normal disk mode.

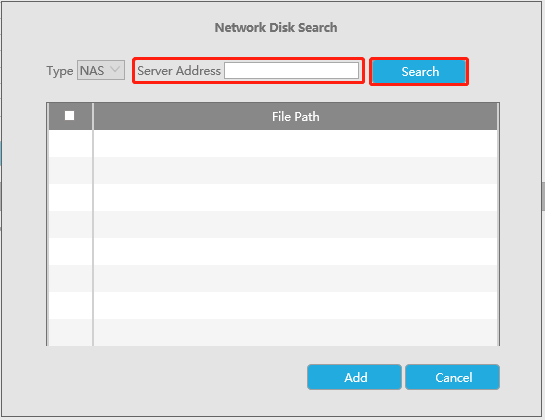

You can add it manually or search local NAS by clicking "Batch Add".

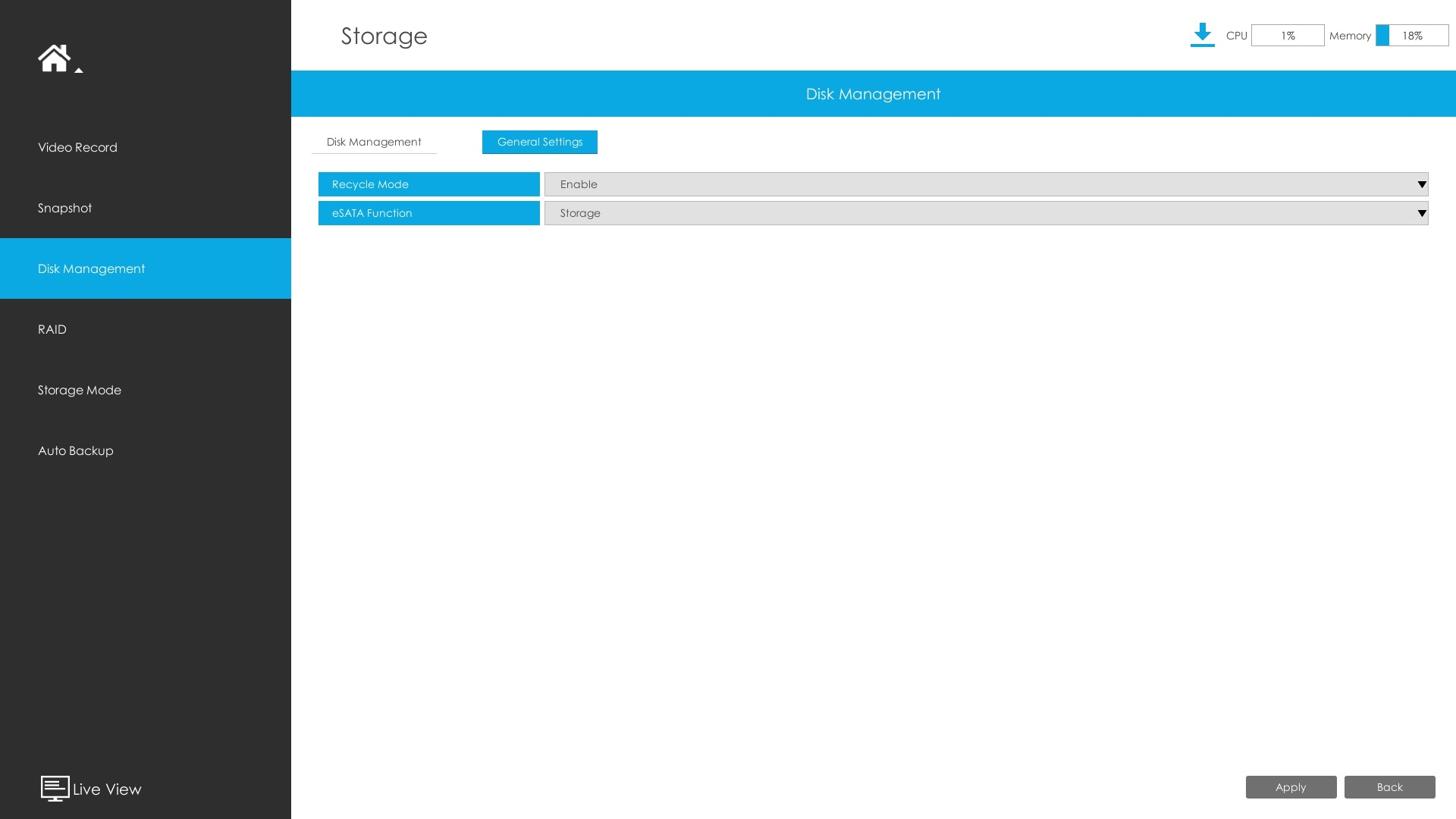

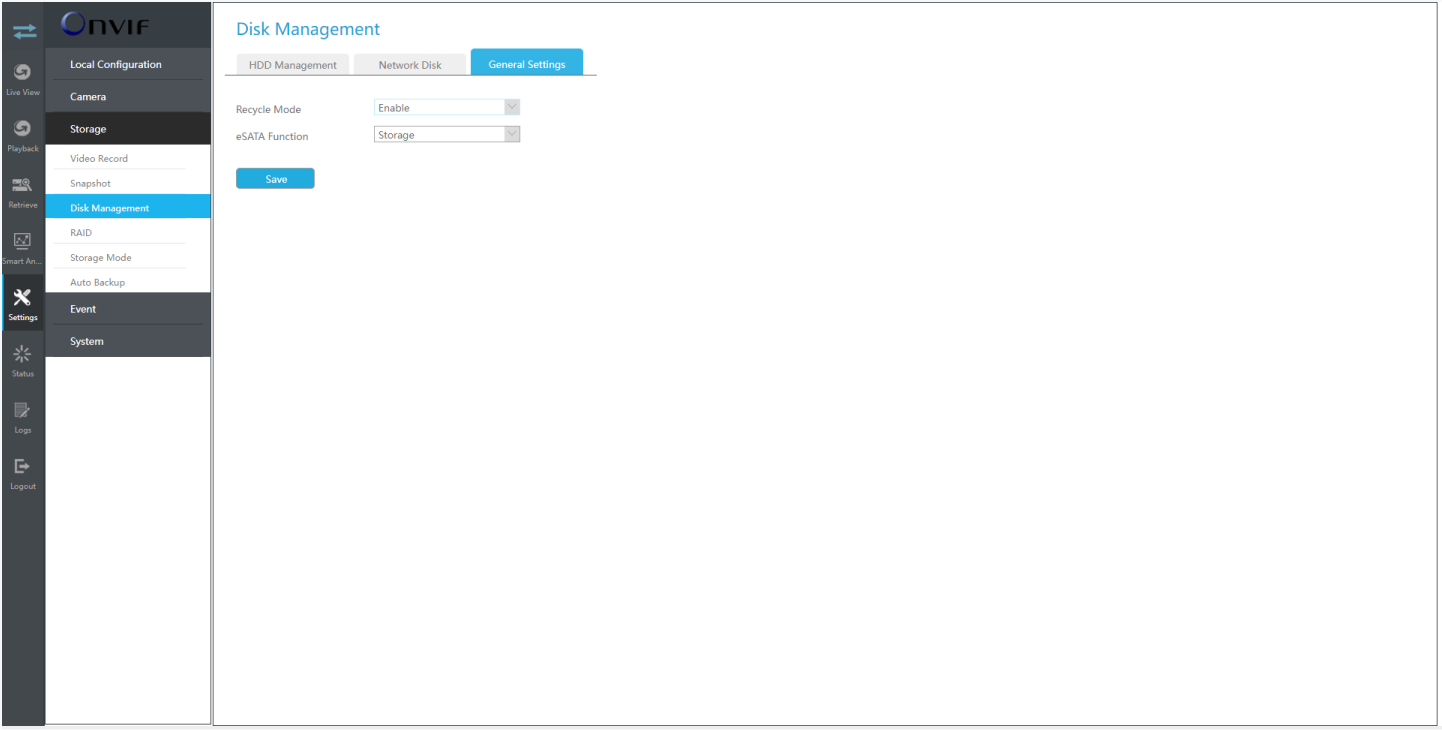

General Settings

Recycle Mode: You can enable or disable Recycle Mode for all storage devices.

eSATA Function: Both storage and backup are available.

Note: eSATA Function is only available for NVR 8000 Series.
