3.7.2 Snapshot

Note: NVR models ending with the letter C do not support this function.

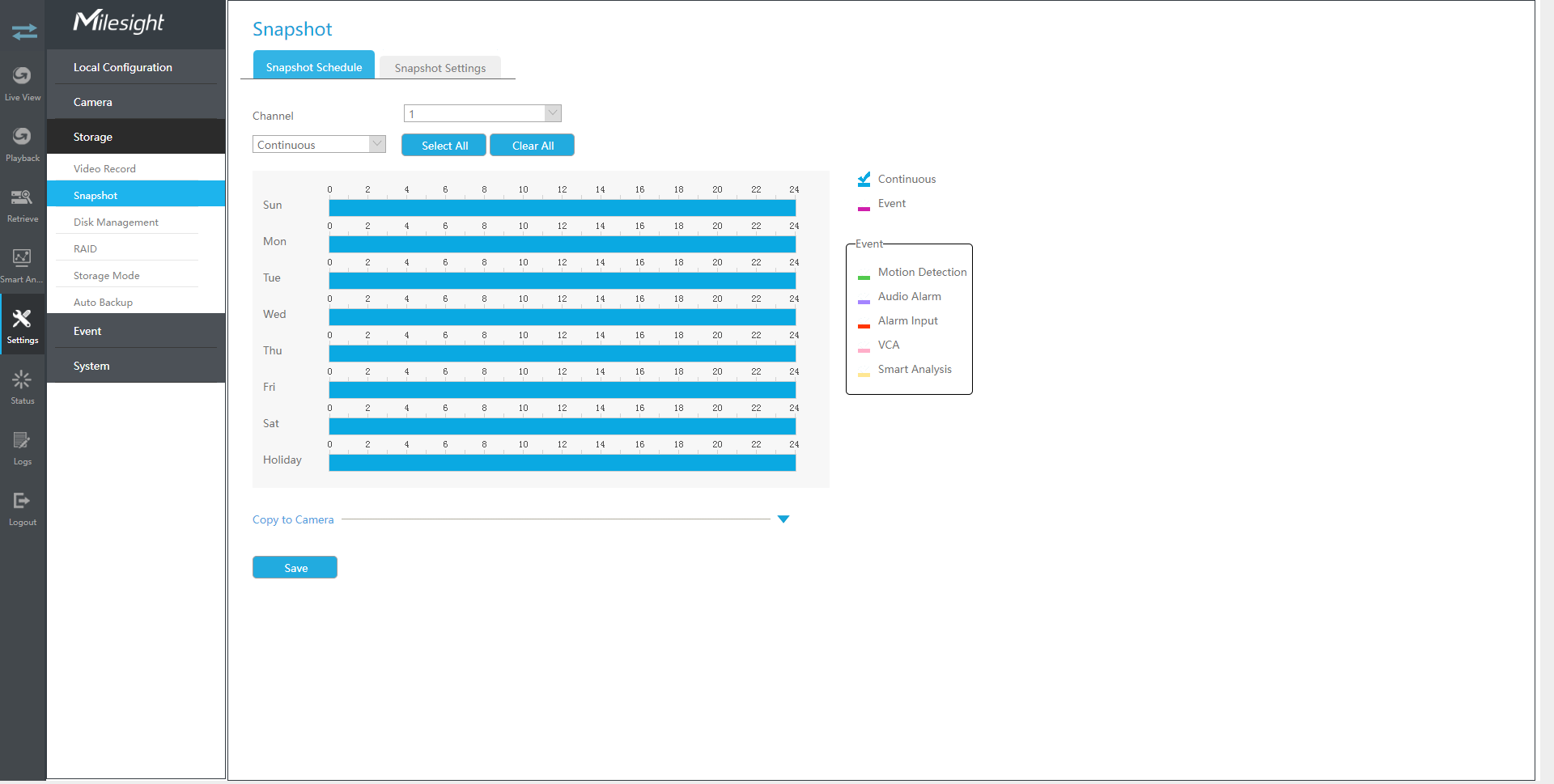

Snapshot Schedule

Step 1.Select channel.

Step 2.Set snapshot schedule.

Method 1: Click "Edit" to edit schedule. Select Day and Time to finish editing.

Method 2: Select operation type: Continuous, Event or Erase. Event record includes events like Motion Detection, Alarm, VCA and Smart Analysis,which can be searched in Event Playback. Then drag a square in the time table to set record effective time. It is convenient for you to set or clear all corresponding schedule by clicking "Select All" or "Clear All".

Also, you can click the time bar and reedit the record time.

Click to copy time setting to other days.

Step 3. Click "Copy" to copy the same snapshot configuration to other channels.

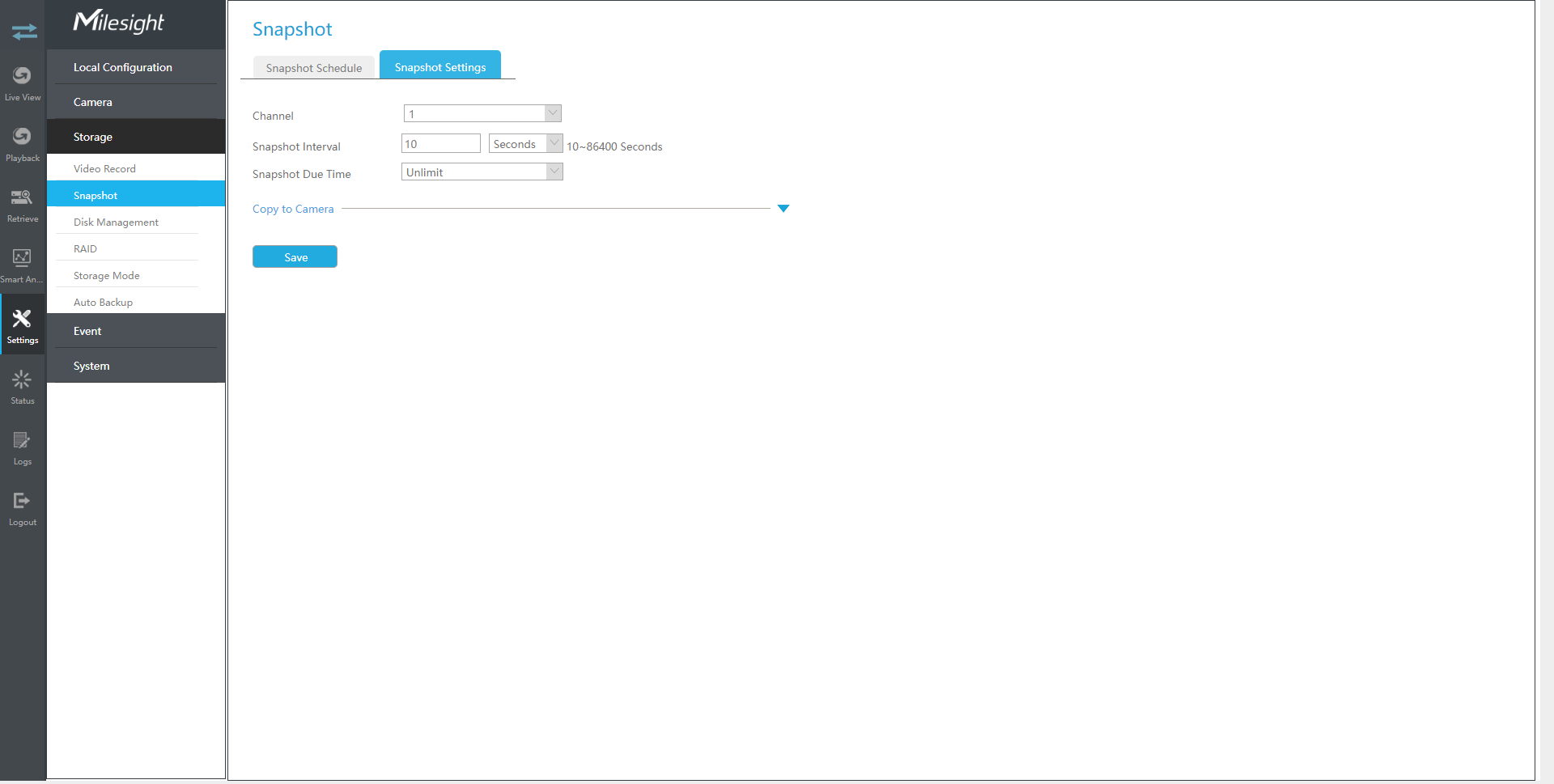

Snapshot Settings

Make general configuration for selected channels. Click "Copy" [Copy to Camera]to copy the same configuration to other channels.

Channel: Select the channel which will be set.

Snapshot Interval: Set the snapshot Interval, 3~86400 seconds are available.

Snapshot Due Time: Set the due time of snapshot files, 1~120days or unlimit are available.
