3.7.1 Video Record

Record Schedule

Step 1.Select channel.

Step 2.Set record schedule.

Method 1: Click "Edit" to edit schedule. Select Day, Record Type and Time to finish editing.

Method 2: Select operation type: Continuous, Event (including Motion, Alarm, VCA and Smart Analysis) or Erase. Then drag a square in the time table to set record effective time. It is convenient for you to set or clear all corresponding schedule by clicking "Select All" or "Clear All".

Also, you can click the time bar and reedit the record time.

Click to copy time setting to other days.

Step 3. Click "Copy" [Copy to Camera]to copy the same record configuration to other channels.

Step 1: Set Smart Analysis as Record Type in Storage -> Video Record -> Record Schedule interface; The exclamation mark next to Smart Analysis is used to indicate that Smart Analysis includes ANPR.

Step 2: Ensure Black List Mode or White List Mode or Visitor Mode is enabled as your demand.

Step 3: Effective time and Trigger Channels Record action of Black List Mode/White List Mode/Visitor Mode are set (Full effective time and trigger channel record are set by default).

Record Settings

Make general configuration for selected channels. Click "Copy" [Copy to Camera]to copy the same configuration to other channels.

Channel: Select the channel which will be set.

Pre Record : Event pre-record duration time. It will start recording before the event is triggered.

Post Record: Event post-record duration time. It will keep recording after the event is over.

Audio Record: Select to record audio or not.

Record Stream Type: Select Main stream or sub stream for record. Primary+Secondary Stream is available for NVR model ends with T & G and make sure the version of the G series is 7X.9.0.19 or above.

. If secondary stream is selected for recording while it is disabled, a prompt indicating that the secondary stream is unavailable will pop up.

Video Due Time: Set the due time of recording files, 1~120days or unlimit are available.

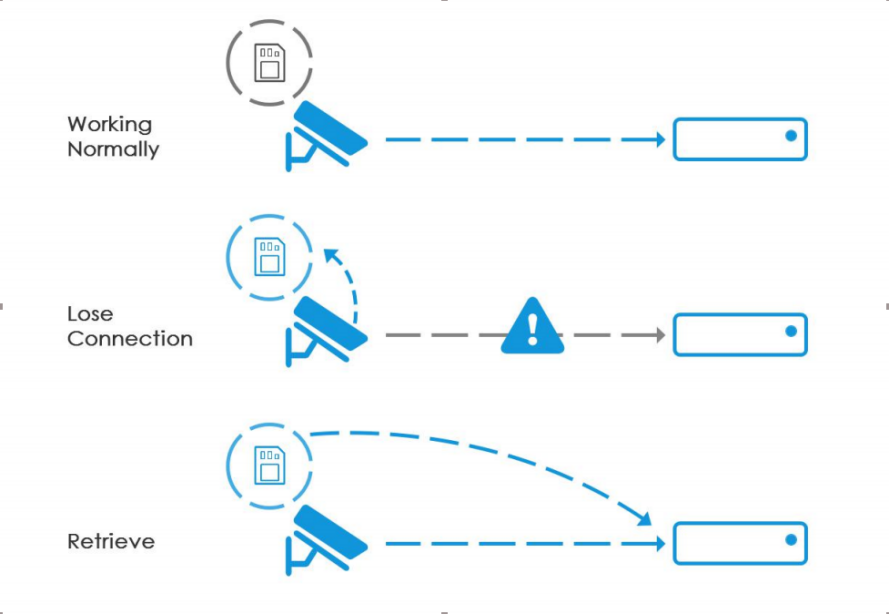

ANR (Automatic Network Replenishment) : Can automatically replenish the recording gap due to internet interruptions. As the picture shows below, NVR stores videos when the network connection between NVR and cameras is normal. When the connection lost, the camera would start continuous recording and store videos in SD card instead. Then after reconnection, NVR automatically retrieves the missed videos from camera’s SD card in a period of time to prevent data missing.

Here are some notes for using ANR below:
