3.9.1 3.9.2 General

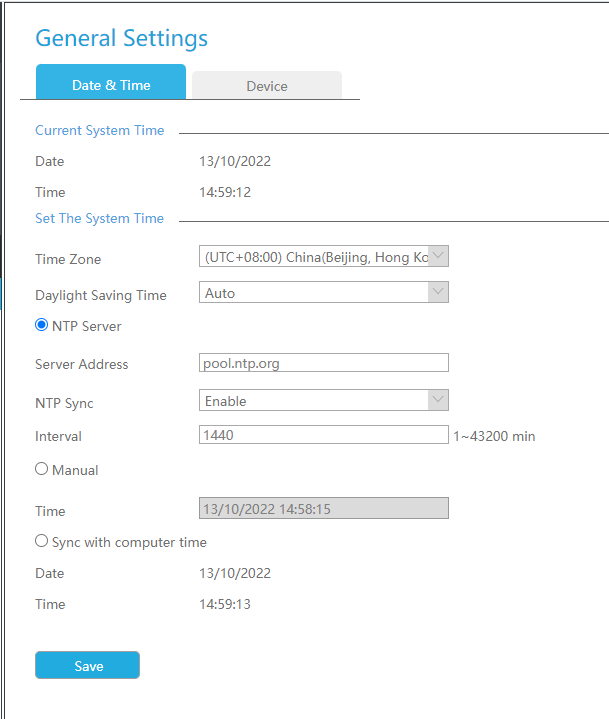

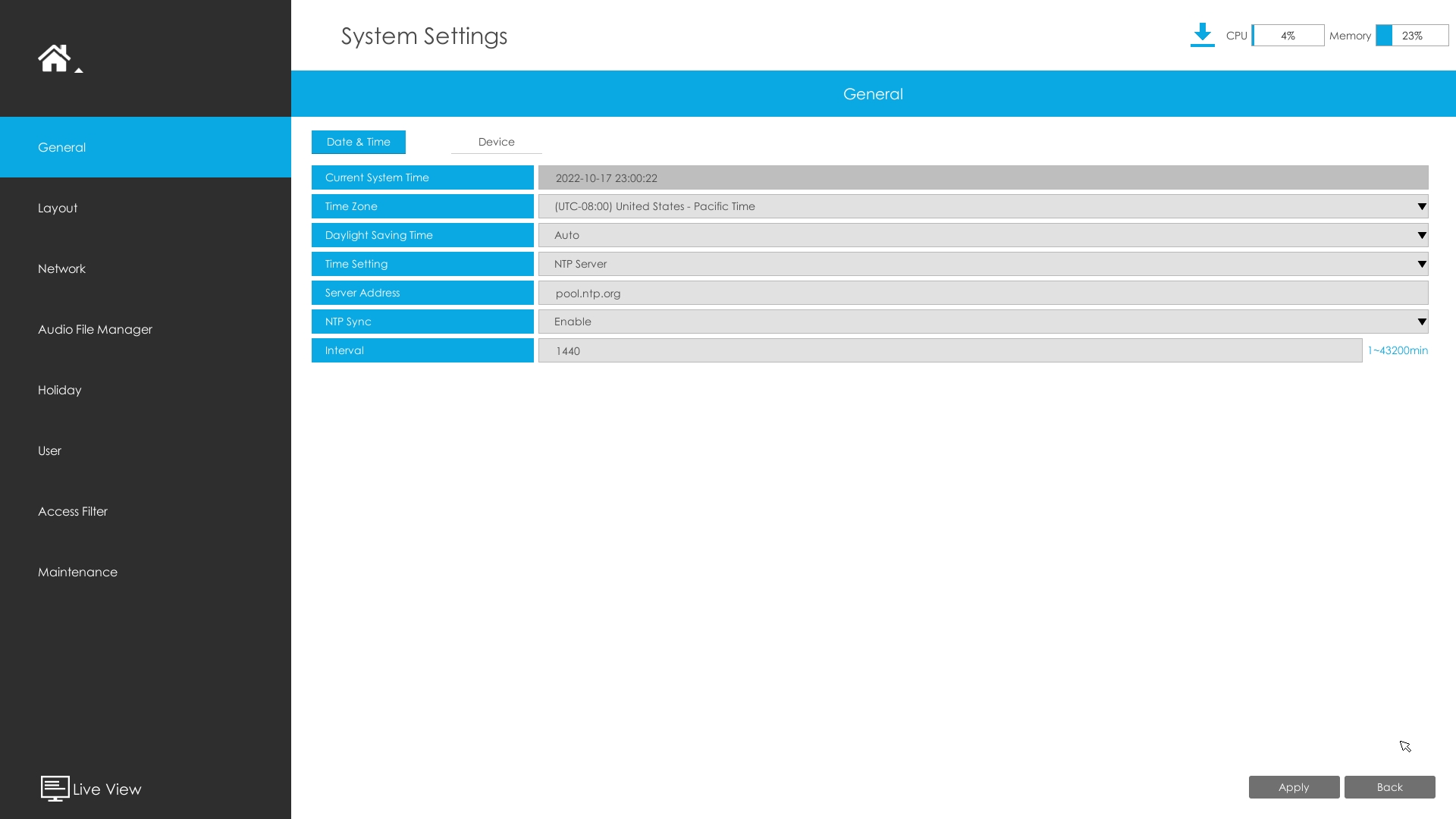

Date & Time
It is for setting up the Time parameters of NVR, including Time Z one, Daylight Saving Time, Time Setting, Server Address, NTP Sync, Interval, etc.
Server Address:Support to Enter the address of NTP Server manually.
NTP Sync:Set the time of NVR to synchronize with the NTP server.
Interval:The interval for synchronizing with NTP server can be set and support NTP Interval ranging from 1 to 43200 minutes.

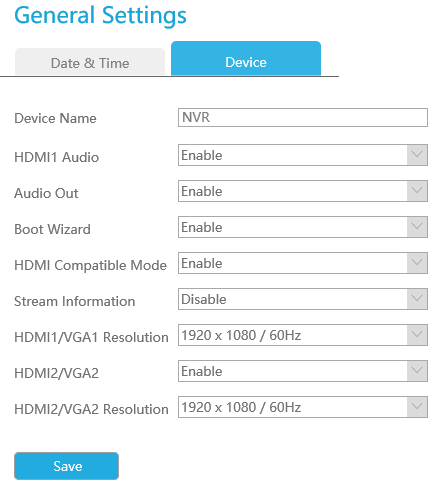

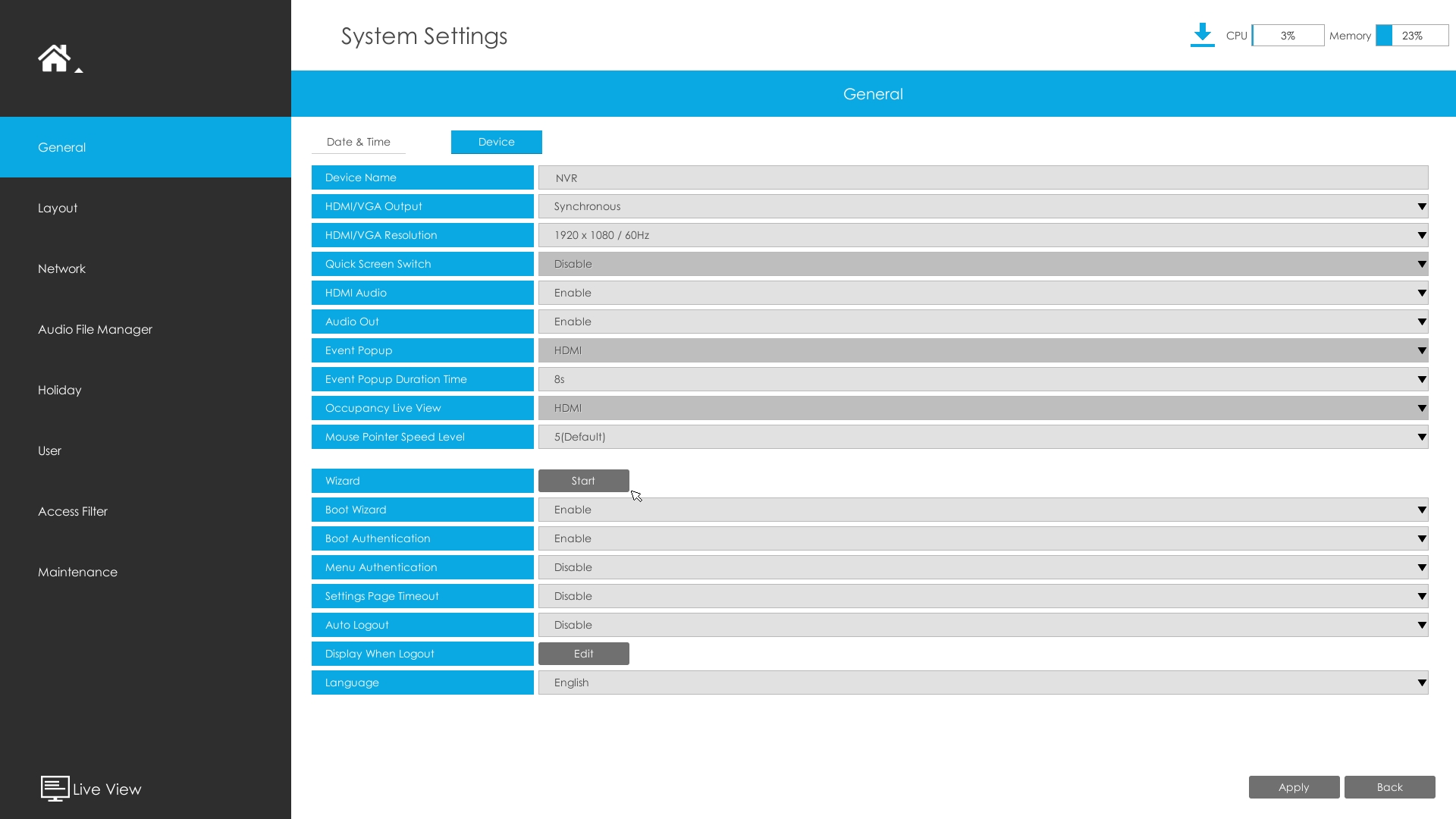

Device
It is for setting up the general parameters of NVR, including Device Name, HDMI/VGA Resolution, Language, HDMI2/VGA2, HDMI Audio, Audio Out, etc.
Device Name: Set the device name.
HDMI1/VGA1Resolution: Set the output resolution of HDMI1/VGA1 port.
HDMI2/VGA2: Enable it to use HDMI2/VGA2 port.
HDMI2/VGA2Resolution: Set the output resolution of HDMI2/VGA2 port.
Quick Screen Switch: After enabling Quick Screen Switch function, you can double-click the mouse to switch the main-screen and sub-screen control. The main-screen and sub-screen can be configured separately and have their own display settings which enable you to have different liveview or playback display layouts simultaneously, offering a more efficient and explicit surveillance.
HDMI1 Audio: Enable it to use HDMI1 Audio.
Audio Out: Enable Audio Out.
Boot Wizard: Enable it to pop up boot wizard after rebooting.

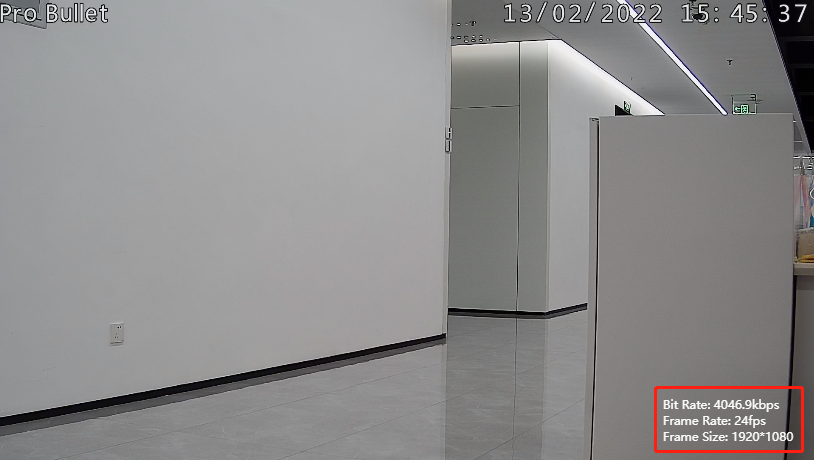

Stream Information: Enable it to see bit rate, frame rate and frame size in both live view and playback interface.
Event Popup: Select the port to display the alarm popup.
Event Popup Duration Time: The display duration time for the alarm popup screen. If users select “Manually Clear”, the live view will exit the alarm screen popup status only after manual operation.
Occupancy Live View: Select the port to display the Occupancy Live View.
Mouse Pointer Speed Level: Adjust the speed of mouse on monitor. From 1 to 7, there are 7 levels to choose. The default level is 5.
Level |
Adjusted speed |
---|---|
1 |
0.2 times the current speed |
2 |
0.3 times the current speed |
3 |
0.5 times the current speed |
4 |
the current speed |
5(Default) |
2 times the current speed |
6 |
3 times the current speed |
7 |
4 times the current speed |
Boot Wizard: Enable it to pop up boot wizard after rebooting.
Boot Authentication: Enable it to authenticate the user after rebooting.
Menu Authentication: Enable it to authenticate the user every time when you click menu.
Settings Page Timeout: The interface will switch to Live View automatically according to the time you set.
Auto Logout: Users will log out automatically when there is no operation within the set time period.
Display When Logout: Set display mode of the live view interface when users log out. There are three options: Regular Mode, Occupancy Mode and Target Mode.
- For some models, the stream information will reveal synchronously while transcoding is enabled.
- Channels that play H.265 in plugin-free mode will not display the stream information.
