3.9.2 Layout

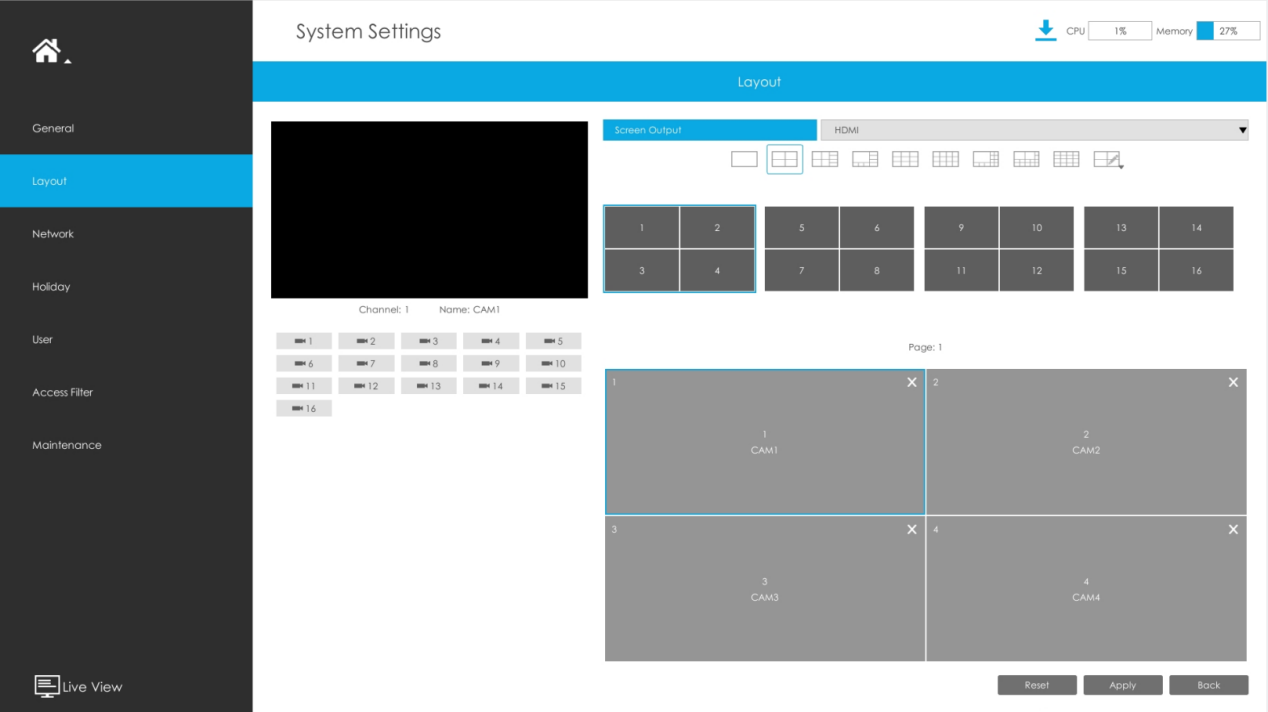

Step 1. Select Screen Output.

You can configure layout for different Screen Output separately to meet the needs of monitoring different scenarios through different Screen Output.

Note: Only NVR 7000 Series and NVR 8000 Series support this function.

Step 2. Select a layout format.

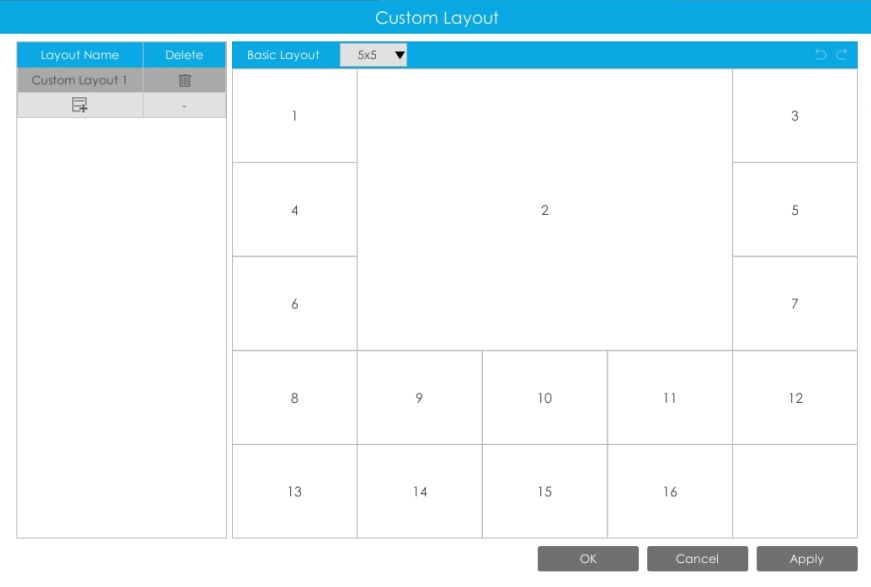

You can select 1/4/8/9/12/1+11/2+10/16 or Custom Layout. If you choose Custom Layout, please click button, then click button to add a new custom layout. Then drag the screen to customize the layout, click the "Apply" button and then click "OK" to save the custom layout.



Note: You can create a custom layout based on a basic layout, and it supports up to 5*5 basic layout.

Step 3. Set desired channels.

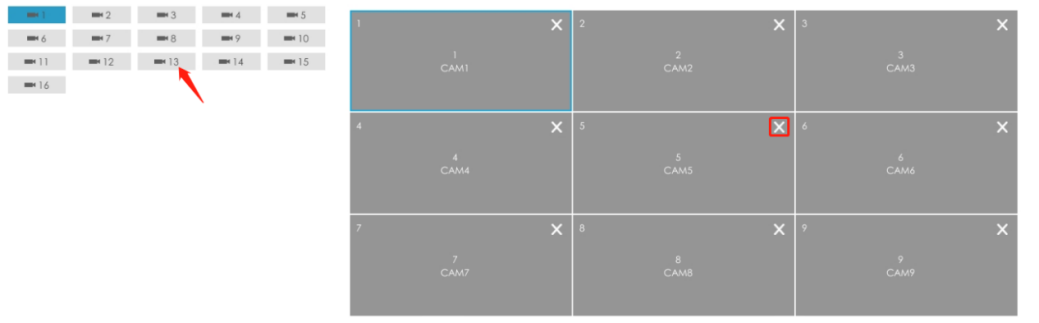

Click to close a channel. Select a window and then select a desired channel to add in. Click "Apply" to save the settings or click "Reset" to reset the layout.

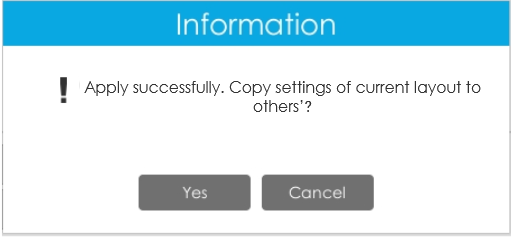

Step 4. Select whether to apply settings of current layout to others.
