3.9.3.4 Email

A screenshot will be sent to the receivers when alarm is triggered.

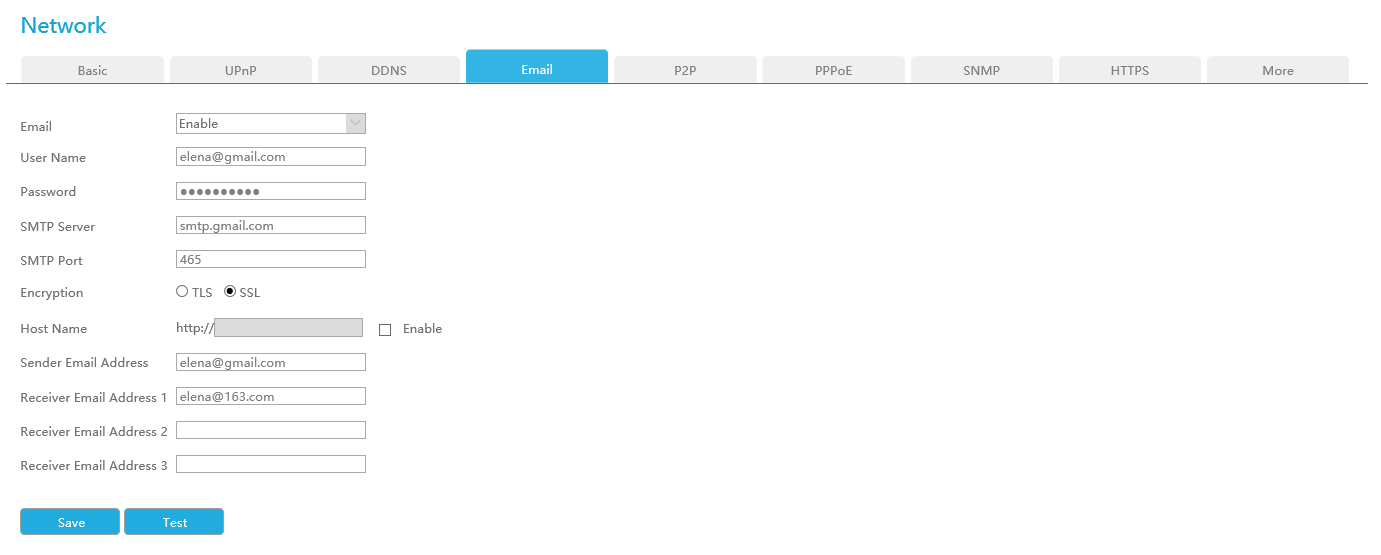

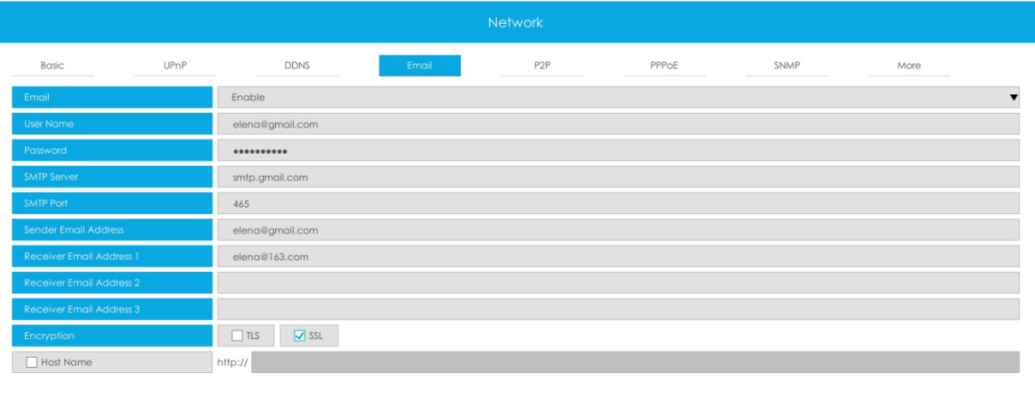

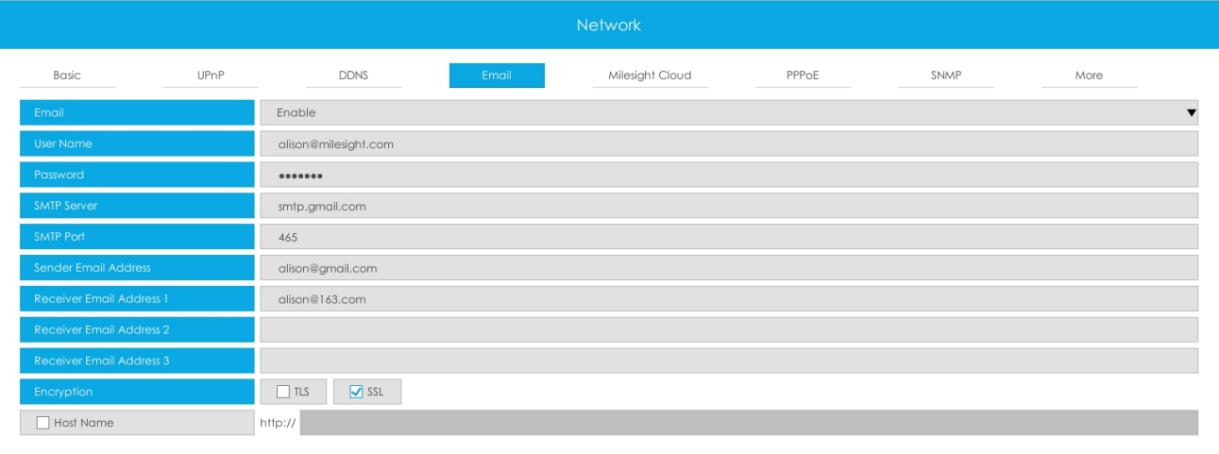

Enable Email selection and then begin configuration.

Username: The E-mail address you choose to send emails. Please input full email address.

Password: The password of the E-mail.

SMTP Server: The SMTP Server of your E-mail.

SMTP Port: The port of SMTP Server. It’s usually 25.

Sender Email Address: It must be same as [User name].

Receiver Email Address: E-mail Address for the receivers.

Encryption:Security Protocol of email sending, including TLS and SSL.

Host Name: It will be attached in the email.

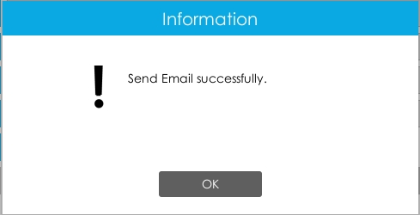

Select "Test" to check if the Mail function is workable.



Note: If your NVR has a port forwarding IP for Host Name, please input the complete address that contains the port.
