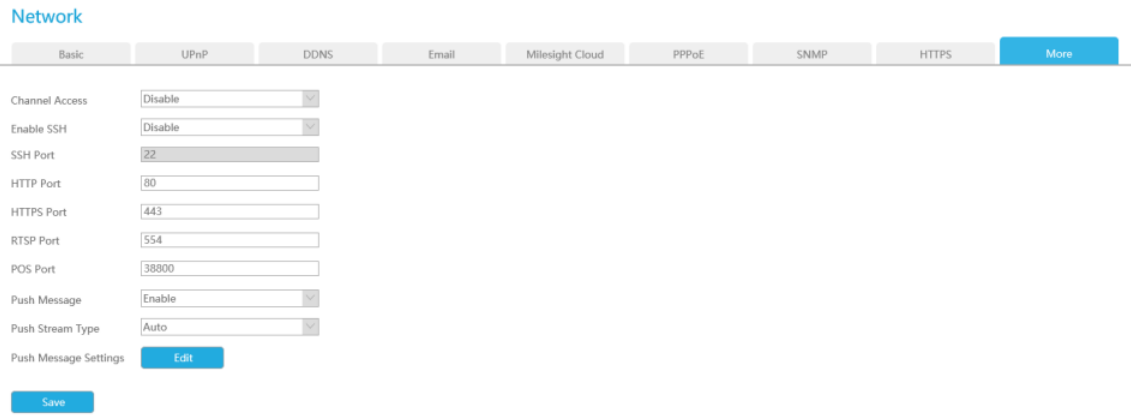

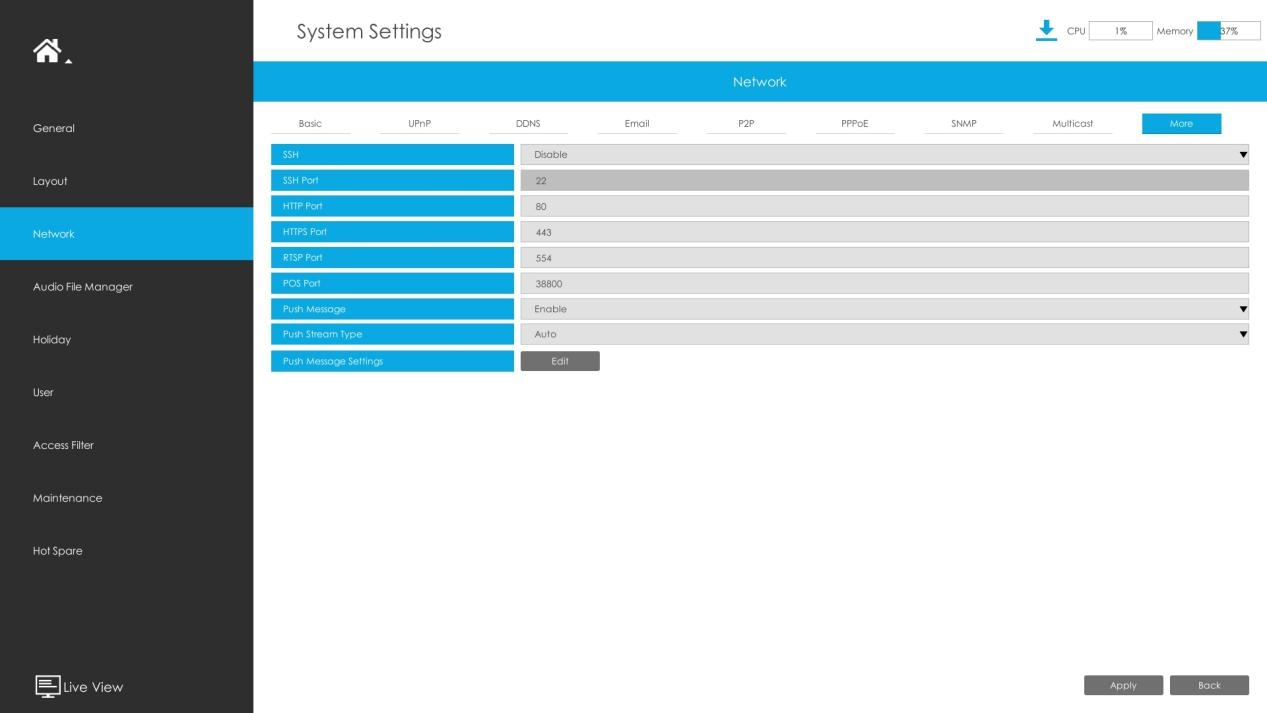

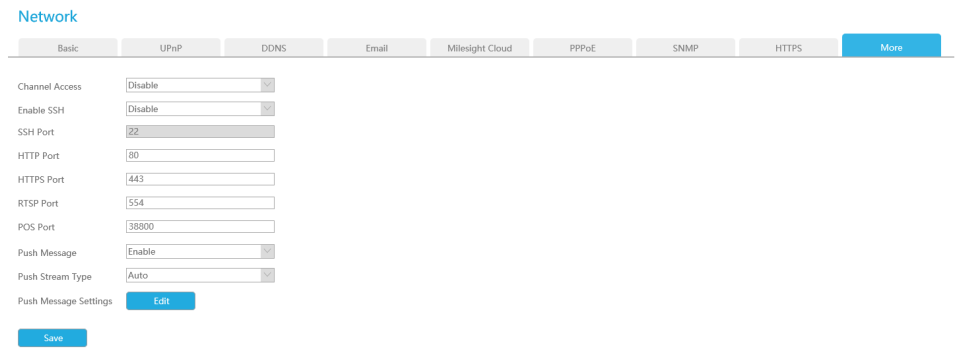

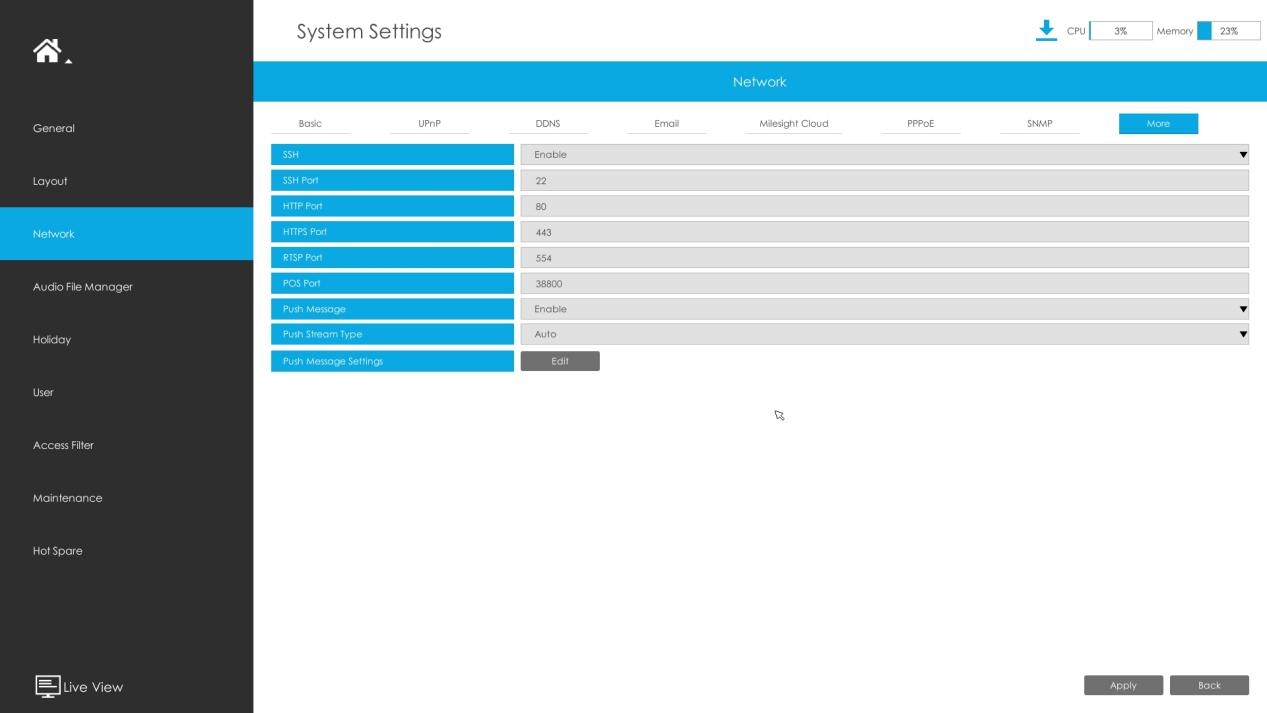

3.9.3.103.9.3.9 More









SSH

Enable or disable SSH access. Secure Shell (SSH) has many functions; it can replace Telnet, and also provides a secure channel for FTP, POP, even for PPP.

SSH Port

The default SSH port is 22. Only for R&D debugging.

HTTP Port

The default HTTP port is 80. Please modify HTTP ports according to actual application.

Note:
  1. The default HTTP port for IE browser is 80.
  2. HTTP port is used for remote network access for 4k/H.265 NVR Series.

HTTPS Port

The default HTTPS port is 443. Please modify HTTPS ports according to actual application.

Note:
  1. The default HTTPS port for IE browser is 443.
  2. HTTPS port is used for remote network access for 4k/H.265 NVR Series.

RTSP Port

Real Time Streaming Protocol (RTSP) is an application layer protocol in TCP/IP protocol system.

The default RTSP port is 554. Please modify RTSP port according to actual application.

Note:
  1. RTSP port is used for remote network live view.
  2. RTSP port valid range is 554 or 1024~65535.
  3. The RTSP format of Milesight NVR is “rtsp://IP:RTSP port/ch_xxx”.
    • IP: The IP address of NVR;
    • RTSP port: The default RTSP port is 554;
    • ch_xxx: The first number of xxx represents stream type, 1 for main stream and 4 for sub stream. The last two represents channel number, which start from ‘00’ (‘00’ means channel 1). Take ‘rtsp://192.168.8.179:554/ch_402’ as an example:
    • The IP address of NVR is 192.168.8.179.
    • The RTSP port is 554.
    • The stream type is sub stream and the channel number is 3.

POS Port

It is the communication port between NVR and the POS machine. The default POS port is 38800.

Push Message

With this option enabled, you can receive the alarm message on the mobile application.

Push Stream Type

Select which video stream will be pushed to APP M-Sight Proi-Sight. Auto, Primary Stream and Secondary Stream are available.

Note: Only NVR model ends with letter T support this option.

Push Message Settings

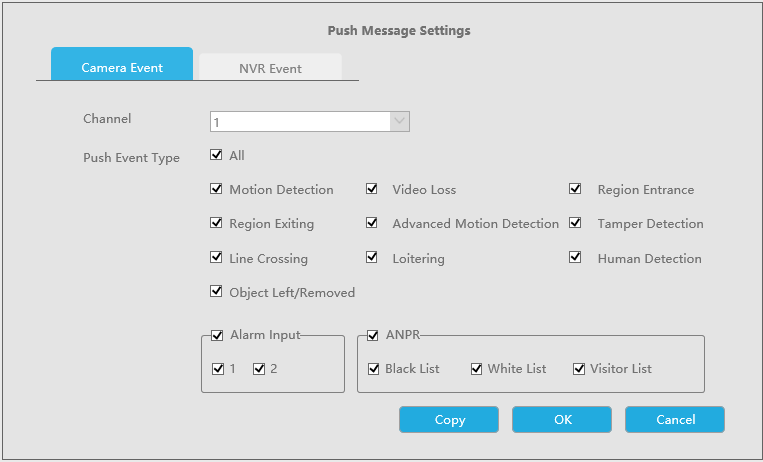

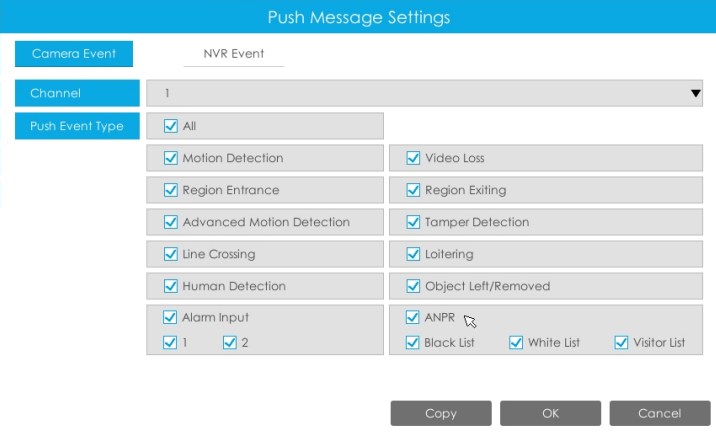

(1) Camera Event





Select Push Event Type which will be pushed to APP M-Sight Proi-Sight. There are different Push Event Types for every channel to choose, which means every camera added in this NVR can choose what Event Type it wants to push, like Motion Detection, Video Loss, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering Human Detection, Object Left/Removed, Alarm Input and ANPR(Only for MS-NNRXXXX-XXT/H).

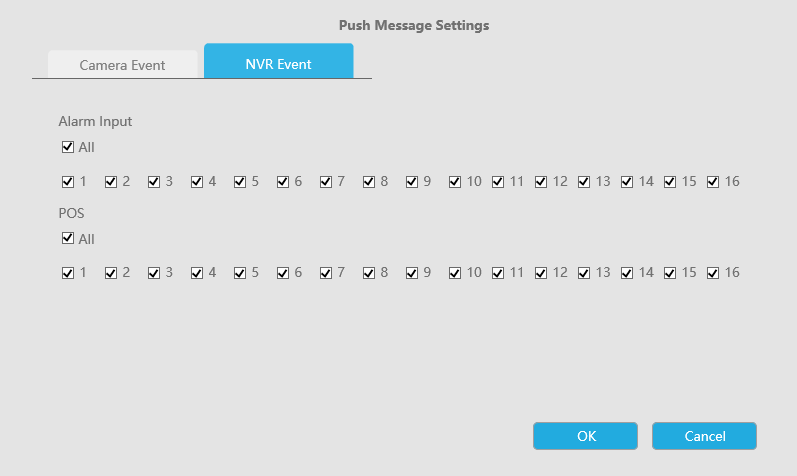

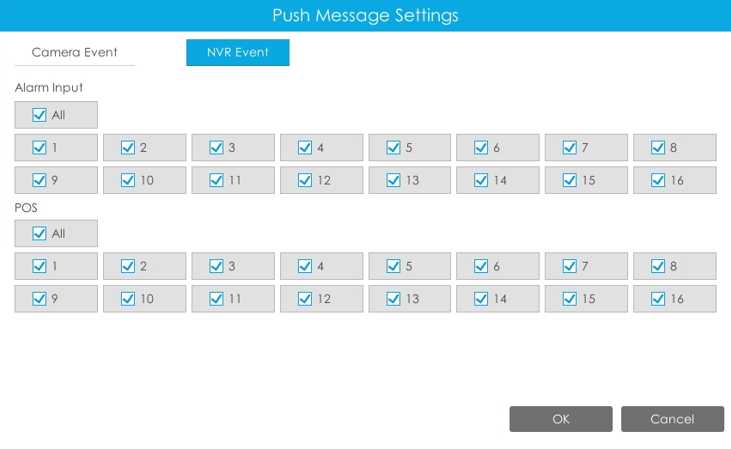

(2) NVR Event





Select channels which you want to push the Alarm Input Event or the POS Event of NVR.

Note: There would not have NVR Event interface if your NVR doesn’t have alarm input interface.
