5G Dongle
Embracing the 5G Era with Ease
UF31
Enjoy 5G Network Was Never This Easy
It is born to offer a 4G to 5G migration solution for mobility, embedded system, and general-purpose applications in the most economically and effortlessly.
- 5G Ultra Fast Connectivity
- Pint Size Design
- Industrial-Grade Design
- Outstanding Performance
- Plug & Play Networking
- Flexible Deployment
- Remote Management on DeviceHub
- FEATURES
- MODELS
- DOWNLOAD
How long will it take to download 12Gb file?
100
mb per second
10000
mb per second
11
6
Minutes
Seconds
Ultra Fast 5G Connectivity
The 5G Dongle delivers fast 5G speed which is around 100 times faster than 4G, higher bandwidth, and low latency to more applications. 4G and 5G are both available for preference.
- 5G Sub-6/LTE/WCDMA
- 4.13 Gbps Downlink Peak Rate
- 4 × 4 MIMO Downlink
- SA & NSA Modes
Plug & Play Networking
Delivering 5G connection by simply plugging the 5G dongle into the machines or robots, as long as there is power.
- No Configuration Is Required
- No Need for Software Installation
(* Currently supports Windows and Linux.)
Pint Size Design
The pint-size (90 x 72 x 15 mm) makes the 5G Dongle easily installed in the limited space like the interior of machines or robots.
Industrial-Grade Design
To fulfill the market demand, the 5G Dongle is built with heavy cast aluminum casing, which has a wide operation range from -20°C to 50°C for even harsh environments. It also features a broad supply voltage range of 5V to 24V DC.
Outstanding Performance
5G Dongle offers faster processing speeds and ample memory and storage capacity, which allows for improving performance, efficiency, and versatility.
- 5G Sub-6/LTE/WCDMA
- 4.13 Gbps Downlink Peak Rate
- 4 × 4 MIMO Downlink
- SA & NSA Modes
Remote Management
Milesight DeviceHub offers a high-efficiency and low maintenance solution to easily deploy 5G Dongle across multiple locations, reducing complexity and increasing productivity.
- Central Management
- Device Status Monitoring
- Remote & Bulk Configuration
Flexible Deployment

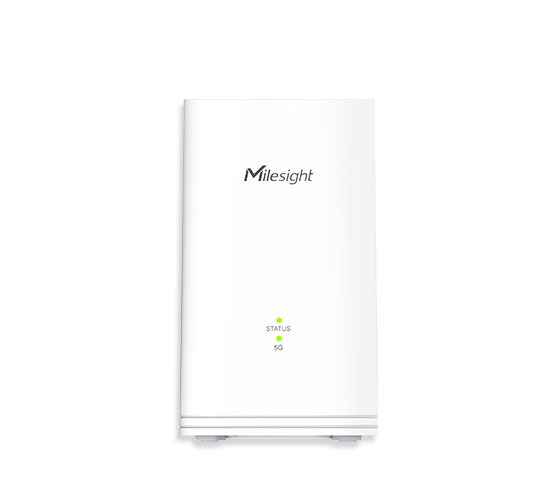

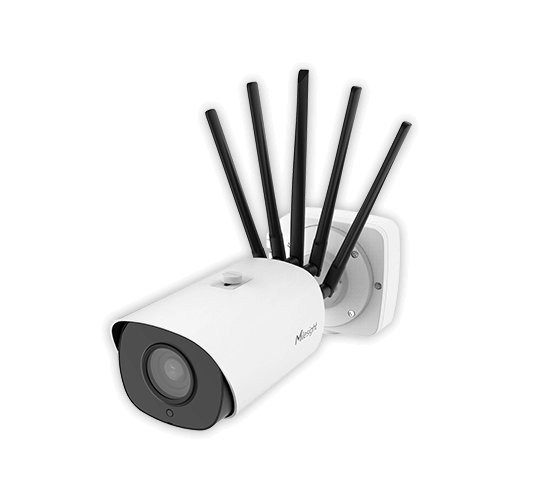

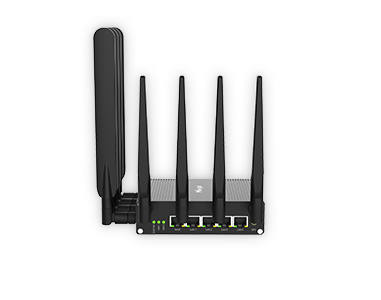

Related Products
Specifications
- UF31
| Hardware System | |
|---|---|
| CPU | Quad-core ARM Cortex-A55,2 GHz |
| Memory | 1 GB LPDDR4X RAM and 1 GB NAND Flash |
| Cellular Interface | |
| Network | 5G NR SA&NSA/4G LTE/WCDMA |
| Frequency | 5G Sub-6: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78/N79 LTE FDD: B1/B3/B5/B7/B8/B18/B19/B20/B28/B32 LTE TDD: B38/B40/B41/B42/B43/B46 WCDMA: B1/B5/B8 |
| Antenna Connector | 4 × 50 Ω SMA Connectors (Center PIN: SMA Female) |
| SIM Slot | 1（Micro SIM-3FF） |
| Ethernet Interface | |
| Numbers | 1 × 10/100/1000 Mbps LAN Port |
| Mode | Full or Half Duplex (Auto-Sensing) |
| GNSS | |
| Antenna Connector | 1 × 50 Ω SMA Connector (Center PIN: SMA Female) |
| Technology | GPS/GLONASS/Beidou/Galileo/QZSS |
| Others | |
| USB | 1 × USB 3.0 (Type-C) for Power Supply, Network Supply and Debug |
| Reset Button | 1 × RESET (Internal) |
| LED Indicators | 1 × STATUS,1 × Cellular Network |
| Built-in | Watchdog, Timer |
| Software | |
| Network Protocols | IPv4/IPv6, TCP, UDP, DHCPv4/DHCPv6, HTTP, HTTPS, DNS, ARP, Telnet, SSH, etc. |
| Security | Access Control, Port Mapping, Custom Rules |
| Management | Web, CLI, DeviceHub |
| Power Supply | |
| Power Input | 1. 5-24 VDC, with Surge-Protection and Reverse Polarity Protection 2. 5V/3A by USB Type-C Port |
| Power Connector | 2-pin 3.5 mm Terminal Block |
| Physical Characteristics | |
| Ingress Protection | IP30 |
| Housing & Color | Metal, Black |
| Dimension | 90 x 72 x 15 mm (3.54 x 2.83 x 0.59 in) |
| Installation | Desktop, Wall Mounting, DIN Rail Mounting |
| Environmental | |
| Operating Temperature | -20°C to +50°C (-4℉ to +122℉) |
| Storage Temperature | -40°C to +85°C (-40℉ to +185℉) |
| Ethernet Isolation | 1.5 kV RMS |
| Relative Humidity | 0% to 95% (Non-condensing) at 25°C/77℉ |
