Smart Water Flow Control and Monitoring
The UC51x Series is a LoRaWAN® Solenoid Valve Controller that facilitates automatic and precise irrigation. By seamlessly integrating with smart irrigation systems, it enables flexible irrigation strategies based on factors like time, volume, or soil moisture.
Equipped with 2 Outputs for Connecting 2 DC Latching Solenoid Valve
Supporting different typs of control mode
You can determine the valve, irrigation timing, and water usage
in each rule engine.
One-time scheduled irrigation
Periodic Irrigation within Pre-determined Period
Trigger through Milesight D2D
Trigger through pre-determined conditions
Every increase of water volume over threshold
Accumulated Water volume within pre-detemined period over Threshold
Equipped with 2 Digital Inputs for Connecting Pulse Water Meters

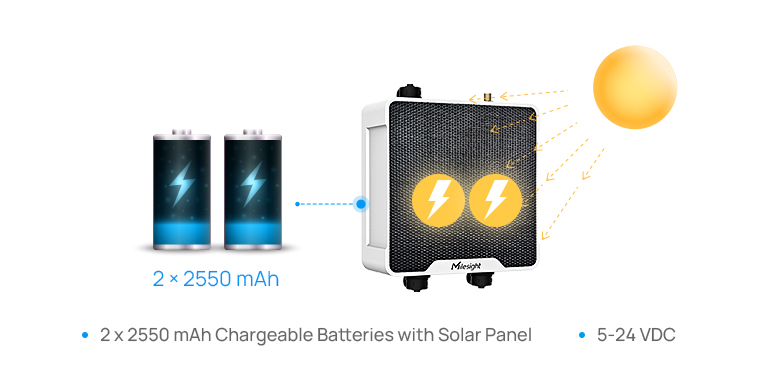

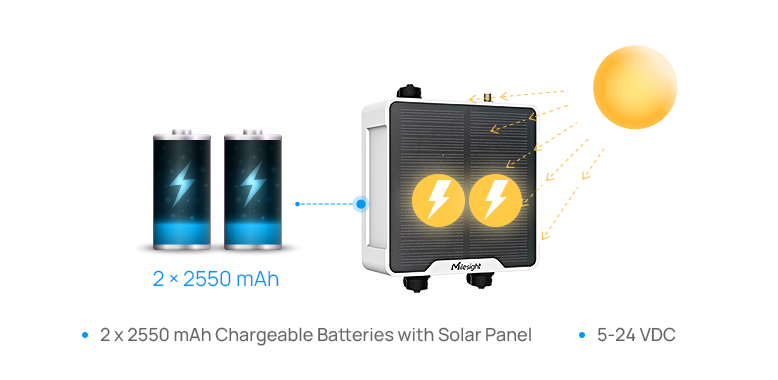

Solar-powered or battery-powered? It all depends on your needs.

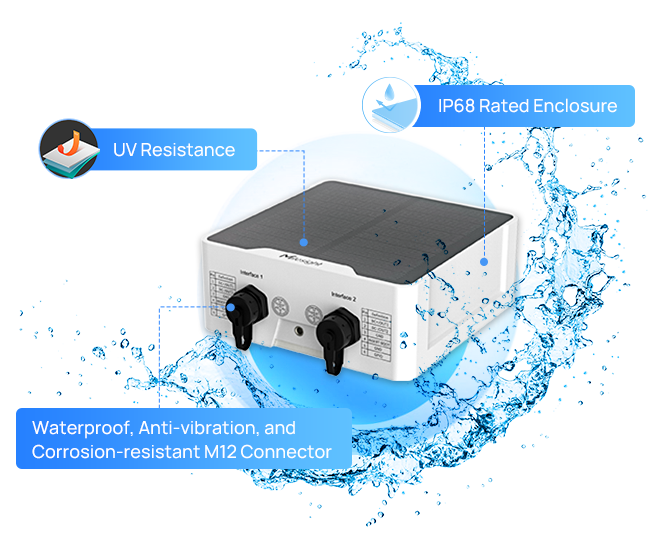

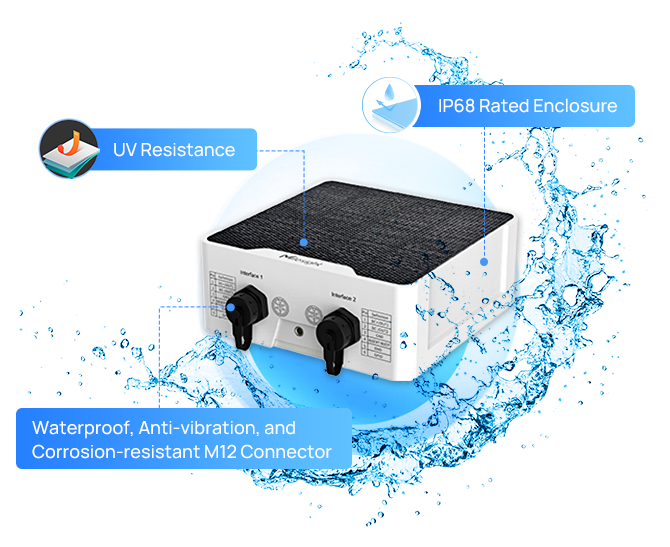

The UC51x Series features an IP67 rated enclosure and an M12 connector that offer robust protection against water ingress, corrosion, and vibrations. This combination of features ensures long-term, dependable operation in challenging all-weather environments.
The UC51x Series can execute the preset commands autonomously even when the network is unavailable.
By utilizing multicast, users can efficiently configure a group of devices in bulk. This feature streamlines the setup process, making it effortless to simultaneously manage multiple UC51x Controllers and enabling batch solenoid valve control, ultimately saving time and effort.
The UC51x Series provides flexibility in antenna placement, ensuring optimal signal strength and range, even in environments with obstacles or challenging RF conditions.
Remote Monitoring and Control
Seamlessly integrating cutting-edge hardware and advanced software, this kit offers unparalleled IoT connectivity. Gain instant access to valuable data insights, advanced analytics, and immersive visualization tools that will revolutionize your farming practices.
Get More DetailsData can be stored in the device and cannot be manually deleted, further securing the traceability of the reported information.
With support for data retransmission, the device guarantees that the web server gets all the data even if the network is down occasionally.
Milesight D2D (Device to Device) protocol featuring LoRa enables the communication among different Milesight LoRaWAN® node devices without a LoRaWAN® gateway. Meanwhile, UC511 can work as a D2D Agent in Class C mode. (Note: UC512 doesn't support Milesight D2D.)
Switching On/Off & Configuring the Devices Wirelessly
Install the
Milesight ToolBox
Enable NFC and run ToolBox,
then attach your phone to the device
Verify the password
and start configuring
Wall Mounting
DIN Rail Mounting
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN®, Milesight D2D |
| Antenna | Internal Antenna or External Antenna (Hardware Optional) External Antenna (EA) Version: 1 × 50 Ω SMA Female Connector |
| Frequency | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16dBm (868 MHz)/20dBm (915 MHz)/19dBm (470 MHz) |
| Sensitivity | -137dBm @300bps |
| Working Mode | OTAA/ABP Class A, Class B, Class C, Class C to B |
| Data Interfaces | |
| Interface Type | M12 A-Coded Male |
| Solenoid Interface | |
| Ports | 2 × Solenoid Interfaces |
| Solenoid Support | 2 Wires DC 12V Latching Solenoids |
| Cable Length | 1.5m (by Default) |
| GPIO Interface | |
| Ports | 2 × Digital Inputs, Dry Contact |
| Work Mode | Digital Input, Pulse Counter |
| Operation | |
| Power On & Off | Mobile App (via NFC), PC Software (via USB Type-C), Power Button (Internal), Cable Connection |
| Configuration | Mobile App(via NFC) or PC Software (via USB Type-C) |
| Advanced Feature | Multicast, Data Storage, Data Retransmission, Data Retrievability, Milesight D2D Agent, Local Rules |
| Physical Characteristics | |

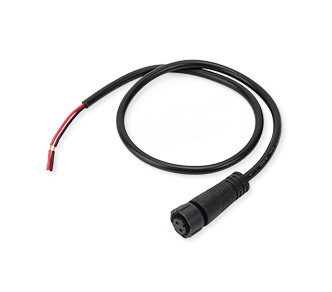

| Power Connector | M12 A-Coded Male (EA Version Only) |
| Power Supply | 1.Solar Powered (6V, 1.7W) 2.2 × 2550 mAh Chargeable Batteries 3.5-24 VDC (EA Version Only) |
| Battery Life*(20 min interval + control valve 4 times per day, 25°C) | When battery level is full and does not charge: Class A: Around 3 years Class B: Around 350 days Class C: Around 25 days |
| Operating Temperature | -20°C~60°C |
| Ingress Protection | IP67 |
| Dimension | 116 × 116 × 45.5 mm (4.56 × 4.56 × 1.79 in) (Connectors Excluded) |
| Weight | IA Version: 425g EA Version: 467g |
| Installation | Wall or Pole Mounting |
| Approvals | |
| Regulatory | CE, FCC |
| Environmental | RoHS |
* Tested under laboratory conditions and for guideline purposes only.
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN® |
| Antenna | Internal Antenna or External Antenna (Hardware Optional) External Antenna (EA) Version: 1 × 50 Ω SMA Female Connector |
| Frequency | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16dBm (868 MHz)/20dBm (915 MHz)/19dBm (470 MHz) |
| Sensitivity | -137dBm @300bps |
| Working Mode | OTAA/ABP Class A, Class B |
| Data Interfaces | |
| Interface Type | M12 A-Coded Male |
| Solenoid Interface | |
| Ports | 2 × Solenoid Interfaces |
| Solenoid Support | 2 Wires DC 12V Latching Solenoids |
| Cable Length | 1.5m (by Default) |
| GPIO Interface | |
| Ports | 2 × Digital Inputs, Dry Contact |
| Work Mode | Digital Input, Pulse Counter |
| Operation | |
| Power On & Off | Mobile App (via NFC), PC Software (via USB Type-C), Power Button (Internal), Cable Connection |
| Configuration | Mobile App(via NFC) or PC Software (via USB Type-C) |
| Advanced Feature | Multicast, Data Storage, Data Retransmission, Data Retrievability, Local Rules |
| Physical Characteristics | |
| Power Connector | - |

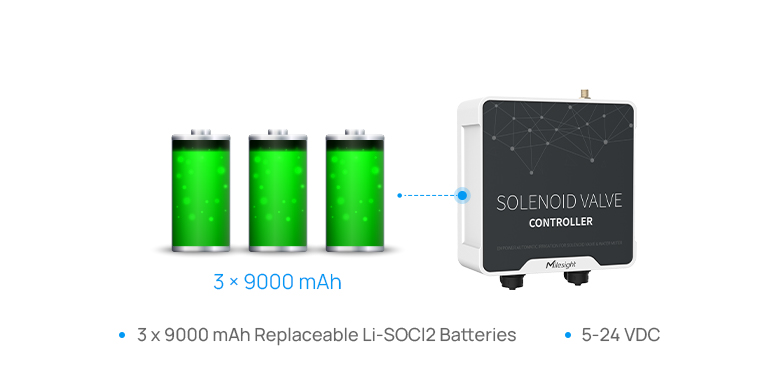

| Power Supply | 3 × 9000 mAh Replaceable ER26500 Li-SOCL2 Batteries |
| Battery Life*(20 min interval + control valve 4 times per day, 25°C) | Class A: >10 years Class B: Around 5 years |
| Operating Temperature | -30°C~70°C |
| Ingress Protection | IP67 |
| Dimension | 116 × 116 × 45.5 mm (4.56 × 4.56 × 1.79 in) (Connectors Excluded) |
| Weight | IA Version: 479g EA Version: 521g |
| Installation | Wall or Pole Mounting |
| Approvals | |
| Regulatory | CE, FCC |
| Environmental | RoHS |
* Tested under laboratory conditions and for guideline purposes only.
