AI Weather-proof Mini Bullet
Network Camera

Tiny yet Powerful & Smart

2/5/8MP
AI Deep Learning
0.005Lux Ultra Low-light
Smart IR II with 50m IR Distance

60fps High Frame Rate
IP67 & IK10

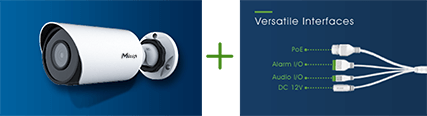

Versatile Interfaces (Optional)

FEATURES
MODELS
ACCESSORIES
DOWNLOAD

Home
Mini Series
AI Weather-proof Mini Bullet Camera

Compact but Powerful, Rain or Shine

AI Empowers Security

Milesight AI Camera with deep learning AI algorithms can intelligently filter objects to focus on human and vehicle detection, fitting into various situations to help level up the monitoring efficiency and security.

Superior Image Quality

With advanced image processing algorithms and SONY STARVIS sensor, it achieves excellent image performance, even in challenging lighting conditions. Its 0.005Lux Ultra Low-light, 140dB Super WDR and up to 4K Video Viewing Experience make it well-suited for various special circumstances.

Revolutionary IR
Performance

To maximize the IR performance, the camera innovated both in the structure and technology. The advanced Smart IR II technology with 50m IR distance guarantees IR performance with adjustable illumination intensity, while the IR anti-reflection panel greatly increases the infrared light transmittance.

IP67 & IK10

Equipped with industry-leading IP67-rated weather-proofing and IK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.

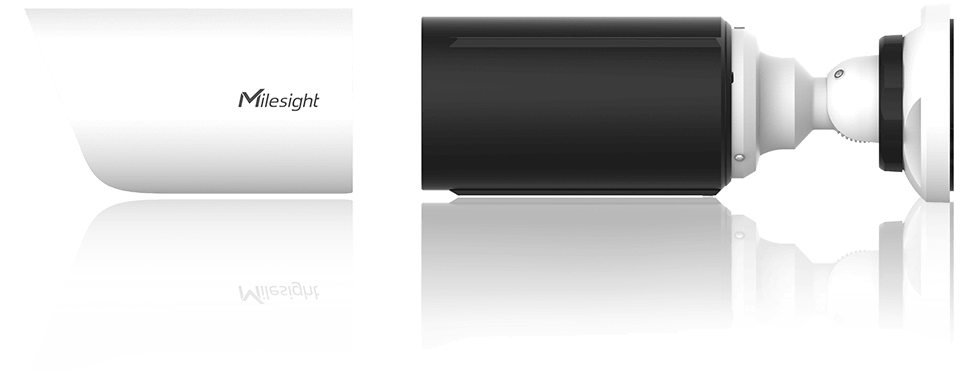

Unique Sunshield Design

This stylishly designed camera has a unique outdoor housing sunshield that almost encircles the camera body, which effectively blocks the sun from entering the lens path and offers great thermal insulation.

Built-in PoE Module

The camera incorporates IEEE 802.3af Power over Ethernet module inside the body which offers easy installation for Standard Version by providing power and networking connectivity with a single cable.

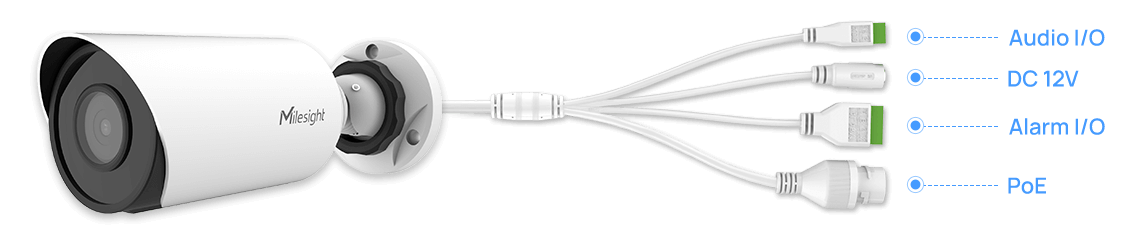

Versatile Interfaces (Optional)

Several interfaces such as PoE, DC, Audio I/O and Alarm I/O are available in the Multi-interface Version, offering more choices for easy management and various needs.

Easily Adjustable
3-Axis Bracket

The camera is easy to install on a wall or ceiling. It features 3-axis bracket which provides a robust mounting platform for tidy installation and camera angle adjustments on a 3-axis plane.

SIP/VoIP Support

Milesight AI Camera features industry leading SIP/VoIP function and video
streaming for mobile phones and video phones.

Success Story

Shiroro Power Station is Well Secured by Milesight Surveillance Solution

Milesight Safeguards Çankırı New Government Office to Guarantee the Best Government Value

Specifications

NDAA

MS-C2963-R(T)PE
MS-C5363-PE
MS-C8163-PE
MS-C2963-PD
MS-C2963-RPA
MS-C5363-PA
MS-C8163-PA

Non-NDAA

MS-C2963-RPC
MS-C5363-PC
MS-C8163-PC

Camera
Name	AI Weather-proof Mini Bullet Network Camera
Image Sensor	1/2.8″ Progressive Scan CMOS
Min. Illumination	Color: 0.005Lux@F1.6 B/W: 0Lux with IR on
WDR	140dB Super WDR
Lens	4mm/2.8mm/6mm@F1.6
Mount	M12
Field of View	H91°/D106°/V50°(4mm) H111°/D128°/V61°(2.8mm) H55°/D63°/V32°(6mm)
Shutter Time	1/100000s~1s
IR Distance	Up to 50m
Day/Night Mode	Day/Night/Auto/Customize/Schedule
S/N	>55dB
Video
Max. Image Resolution	1920x1080
Primary Stream	60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream	60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream	60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video Compression	H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate	16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy Masking	Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI	Up to 8 areas
Image Setting	Brightness/Contrast/Saturation/Sharpness
Interface
Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O	1/1 (Multi-interface Version)
Alarm I/O	1/1 (Multi-interface Version)
Network
Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Protocol	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/44.1/48KHz
Audio Bit Rate	16~256kbps
Two-way Audio	Support
Intelligent Analytics
Video Analysis	Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection&Face Attribute Recognition	Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & Report	Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas
System
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function	Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support	Yes, Voice & Video-over-IP
Event Trigger	Motion Detection, Network Disconnection, etc.; Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. (Multi-interface Version)
Event Action	FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.; FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. (Multi-interface Version)
System Compatibility	ONVIF Profile G & M & S & T, API
General
Working Temperature	-40℃~60℃
Working Humidity	0~95%(Non-condensing)
Power Supply	PoE (802.3af); PoE (802.3af) / DC 12V±10% (Multi-interface Version)
Power Consumption	7W MAX; 10W MAX (With IR on)
Weather Proof	Up to IP67-rated for Weather-resistant Performance
Housing	Vandal-proof IK10-rated Metal Housing
Weight	750g
Dimensions	Φ76mmX214.5mm
Warranty	3/5 Years

Naming Convention
R - High Frame Rate (60fps)
P - PoE Supported
A/C/D/E - AI Series

Camera
Name	AI Weather-proof Mini Bullet Network Camera
Image Sensor	1/2.8″ Progressive Scan CMOS
Min. Illumination	Color: 0.008Lux@F1.6 B/W: 0Lux with IR on
WDR	120dB Super WDR
Lens	4mm/2.8mm/6mm@F1.6
Mount	M12
Field of View	H86°/D108°/V63°(4mm) H105°/D131°/V78°(2.8mm) H52°/D63°/V40°(6mm)
Shutter Time	1/100000s~1s
IR Distance	Up to 50m
Day/Night Mode	Day/Night/Auto/Customize/Schedule
S/N	>55dB
Video
Max. Image Resolution	2592x1944
Primary Stream	60Hz: 30fps@(2592x1944, 2592x1520), 45fps@(2048x1536), 60fps@(1920x1080, 1280x960, 1280x720) 50Hz: 25fps@(2592x1944, 2592x1520), 45fps@(2048x1536), 50fps@(1920x1080, 1280x960, 1280x720)
Secondary Stream	60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream	60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video Compression	H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate	16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy Masking	Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI	Up to 8 areas
Image Setting	Brightness/Contrast/Saturation/Sharpness
Interface
Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O	1/1 (Multi-interface Version)
Alarm I/O	1/1 (Multi-interface Version)
Network
Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Protocol	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/44.1/48KHz
Audio Bit Rate	16~256kbps
Two-way Audio	Support
Intelligent Analytics
Video Analysis	Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection&Face Attribute Recognition	Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & Report	Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas
System
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function	Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support	Yes, Voice & Video-over-IP
Event Trigger	Motion Detection, Network Disconnection, etc.; Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. (Multi-interface Version)
Event Action	FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.; FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. (Multi-interface Version)
System Compatibility	ONVIF Profile G & M & S & T, API
General
Working Temperature	-40℃~60℃
Working Humidity	0~95%(Non-condensing)
Power Supply	PoE (802.3af); PoE (802.3af) / DC 12V±10% (Multi-interface Version)
Power Consumption	6W MAX 10W MAX (With IR on)
Weather Proof	Up to IP67-rated for Weather-resistant Performance
Housing	Vandal-proof IK10-rated Metal Housing
Weight	750g
Dimensions	Φ76mmX214.5mm
Warranty	3/5 Years

Naming Convention
R - High Frame Rate (60fps)
P - PoE Supported
A/C/D/E - AI Series

Camera
Name	AI Weather-proof Mini Bullet Network Camera
Image Sensor	1/2.8″ Progressive Scan CMOS
Min. Illumination	Color: 0.012Lux@F1.6 B/W: 0Lux with IR on
WDR	120dB Super WDR
Lens	4mm/2.8mm/6mm@F1.6
Mount	M12
Field of View	H91°/D106°/V50°(4mm) H110°/D126°/V60°(2.8mm) H55°/D63°/V32°(6mm)
Shutter Time	1/100000s~1s
IR Distance	Up to 50m
Day/Night Mode	Day/Night/Auto/Customize/Schedule
S/N	>55dB
Video
Max. Image Resolution	3840x2160
Primary Stream	60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream	60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream	60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video Compression	H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate	16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy Masking	Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI	Up to 8 areas
Image Setting	Brightness/Contrast/Saturation/Sharpness
Interface
Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O	1/1 (Multi-interface Version)
Alarm I/O	1/1 (Multi-interface Version)
Network
Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Protocol	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/44.1/48KHz
Audio Bit Rate	16~256kbps
Two-way Audio	Support
Intelligent Analytics
Video Analysis	Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection&Face Attribute Recognition	Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & Report	Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas
System
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function	Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support	Yes, Voice & Video-over-IP
Event Trigger	Motion Detection, Network Disconnection, etc.; Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. (Multi-interface Version)
Event Action	FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.; FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. (Multi-interface Version)
System Compatibility	ONVIF Profile G & M & S & T, API
General
Working Temperature	-40℃~60℃
Working Humidity	0~95%(Non-condensing)
Power Supply	PoE (802.3af); PoE (802.3af) / DC 12V±10% (Multi-interface Version)
Power Consumption	7W MAX 10W MAX (With IR on)
Weather Proof	Up to IP67-rated for Weather-resistant Performance
Housing	Vandal-proof IK10-rated Metal Housing
Weight	750g
Dimensions	Φ76mmX214.5mm
Warranty	3/5 Years

Naming Convention
R - High Frame Rate (60fps)
P - PoE Supported
A/C/D/E - AI Series

Camera
Name	2MP NDAA AI Weather-proof Mini Bullet Network Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Min. Illumination	Color: 0.005Lux @F1.6, B/W: 0Lux with IR on
WDR	120dB Super WDR
Lens	4mm/ 2.8mm/ 6mm @F1.6
Mount	M12
Field of View	H91°/D106°/V50°(4mm), H111°/D128°/V61°(2.8mm), H55°/D63°/V32°(6mm)
Shutter Time	1/100000s∼1s
Day/Night Mode	Day/Night/Auto/Customize/Schedule
IR Distance	Up to 50m
S/N	>55dB
Video
Max. Image Resolution	1920x1080
Primary Stream	60Hz: 30fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream	60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
Tertiary Stream	60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
Video Compression	H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate	16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking	Up to 4 areas
ROI	Up to 8 areas
Image Settings	Saturation/Brightness/Contrast/Sharpness
Interface
Ethernet	1*RJ45 10M/100M Ethernet Port
Network
Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Network Protocols	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Intelligent Analytics
Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting &Report	Count the number of people entering or exiting
System
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function	BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP Support	Yes, Voice&Video-over-IP
Event Trigger	Motion Detection, Network Disconnection, etc.
Event Action	FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility	ONVIF Profile G & Q & S & T, API
General
Working Temperature	-40℃∼60℃
Working Humidity	0∼90%(Non-condensing)
Power Supply	PoE(802.3af)
Power Consumption	3W MAX, 9W MAX (With IR on)
Weather Proof	Up to IP67-rated for weather-resistant performance
Housing	Vandal-proof IK10-rated metal housing
Weight	750g
Dimensions	Φ76mmX214.5mm
Warranty	3/5 Years

Naming Convention
R - High Frame Rate (60fps)
P - PoE Supported
A/C/D/E - AI Series

Camera
Name	2MP AI Weather-proof Mini Bullet Network Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Min. Illumination	Color: 0.005Lux @F1.6, B/W: 0Lux with IR on
WDR	120dB Super WDR
Lens	4mm/ 2.8mm/ 6mm @F1.6
Mount	M12
Field of View	H91°/D106°/V50°(4mm), H111°/D128°/V61°(2.8mm), H55°/D63°/V32°(6mm)
Shutter Time	1/100000s∼1s
Day/Night Mode	Day/Night/Auto/Customize/Schedule
IR Distance	Up to 50m
S/N	>55dB
Video
Max. Image Resolution	1920x1080
Primary Stream	60Hz: 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream	60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream	60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video Compression	H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate	16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking	Up to 24 areas
ROI	Up to 8 areas
Image Settings	Saturation/Brightness/Contrast/Sharpness
Interface
Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O	1/1(Multi-interface Version)
Alarm I/O	1/1(Multi-interface Version)
Network
Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Network Protocols	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/44.1/48KHz
Audio Bit Rate	16~256kbps
Two-way Audio	Support
Intelligent Analytics
Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting& Report	Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function	Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support	Yes, Voice&Video-over-IP
Event Trigger	Motion Detection, Network Disconnection, etc.;Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. (Multi-interface Version)
Event Action	FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.;FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. (Multi-interface Version)
System Compatibility	ONVIF Profile G & Q & S & T, API
General
Working Temperature	-40℃∼60℃
Working Humidity	0∼90%(Non-condensing)
Power Supply	PoE(802.3af);PoE (802.3af) / DC 12V±10% (Multi-interface Version)
Power Consumption	4W MAX, 9W MAX (With IR on)
Weather Proof	Up to IP67-rated for weather-resistant performance
Housing	Vandal-proof IK10-rated metal housing
Weight	750g
Dimensions	Φ76mmX214.5mm
Warranty	3/5 Years

Naming Convention
R - High Frame Rate (60fps)
P - PoE Supported
A/C/D/E - AI Series

Camera
Name	5MP AI Weather-proof Mini Bullet Network Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Min. Illumination	Color: 0.008Lux @F1.6, B/W: 0Lux with IR on
WDR	120dB Super WDR
Lens	4mm/2.8mm/6mm @F1.6
Mount	M12
Field of View	H86°/D108°/V63°(4mm), H105°/D131°/V78°(2.8mm), H52°/D63°/V40°(6mm)
Shutter Time	1/100000s∼1s
Day/Night Mode	Day/Night/Auto/Customize/Schedule
IR Distance	Up to 50m
S/N	>55dB
Video
Max. Image Resolution	2592x1944
Primary Stream	60Hz: 30fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream	60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream	60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video Compression	H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate	16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking	Up to 24 areas
ROI	Up to 8 areas
Image Settings	Saturation/Brightness/Contrast/Sharpness
Interface
Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O	1/1(Multi-interface Version)
Alarm I/O	1/1(Multi-interface Version)
Network
Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Network Protocols	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/44.1/48KHz
Audio Bit Rate	16~256kbps
Two-way Audio	Support
Intelligent Analytics
Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting& Report	Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function	Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support	Yes, Voice&Video-over-IP
Event Trigger	Motion Detection, Network Disconnection, etc.;Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. (Multi-interface Version)
Event Action	FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.;FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. (Multi-interface Version)
System Compatibility	ONVIF Profile G & Q & S & T, API
General
Working Temperature	-40℃∼60℃
Working Humidity	0∼90%(Non-condensing)
Power Supply	PoE(802.3af);PoE (802.3af) / DC 12V±10% (Multi-interface Version)
Power Consumption	5W MAX, 9W MAX (With IR on)
Weather Proof	Up to IP67-rated for weather-resistant performance
Housing	Vandal-proof IK10-rated metal housing
Weight	750g
Dimensions	Φ76mmX214.5mm
Warranty	3/5 Years

Naming Convention
R - High Frame Rate (60fps)
P - PoE Supported
A/C/D/E - AI Series

Camera
Name	4K AI Weather-proof Mini Bullet Network Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Min. Illumination	Color: 0.012Lux @F1.6, B/W: 0Lux with IR on
WDR	120dB Super WDR
Lens	4mm/2.8mm/6mm @F1.6
Mount	M12
Field of View	H91°/D106°/V50°(4mm), H110°/D126°/V60°(2.8mm), H55°/D63°/V32°(6mm)
Shutter Time	1/100000s∼1s
Day/Night Mode	Day/Night/Auto/Customize/Schedule
IR Distance	Up to 50m
S/N	>55dB
Video
Max. Image Resolution	3840x2160
Primary Stream	60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream	60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream	60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video Compression	H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate	16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking	Up to 24 areas
ROI	Up to 8 areas
Image Settings	Saturation/Brightness/Contrast/Sharpness
Interface
Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O	1/1(Multi-interface Version)
Alarm I/O	1/1(Multi-interface Version)
Network
Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Network Protocols	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/44.1/48KHz
Audio Bit Rate	16~256kbps
Two-way Audio	Support
Intelligent Analytics
Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting& Report	Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function	Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support	Yes, Voice&Video-over-IP
Event Trigger	Motion Detection, Network Disconnection, etc.;Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. (Multi-interface Version)
Event Action	FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.;FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. (Multi-interface Version)
System Compatibility	ONVIF Profile G & Q & S & T, API
General
Working Temperature	-40℃∼60℃
Working Humidity	0∼90%(Non-condensing)
Power Supply	PoE(802.3af);PoE (802.3af) / DC 12V±10% (Multi-interface Version)
Power Consumption	5W MAX, 9W MAX (With IR on)
Weather Proof	Up to IP67-rated for weather-resistant performance
Housing	Vandal-proof IK10-rated metal housing
Weight	750g
Dimensions	Φ76mmX214.5mm
Warranty	3/5 Years

Naming Convention
R - High Frame Rate (60fps)
P - PoE Supported
A/C/D/E - AI Series

Camera
Name	2MP AI Weather-proof Mini Bullet Network Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Min. Illumination	Color: 0.005Lux @F1.6, B/W: 0Lux with IR on
WDR	140dB Super WDR
Lens	4mm/ 2.8mm/ 6mm @F1.6
Mount	M12
Field of View	H91°/D106°/V50°(4mm), H111°/D128°/V61°(2.8mm), H55°/D63°/V32°(6mm)
Shutter Time	1/100000s∼1s
Day/Night Mode	Day/Night/Auto/Customize/Schedule
IR Distance	Up to 50m
S/N	>55dB
Video
Max. Image Resolution	1920x1080
Primary Stream	60Hz: 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream	60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream	60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression	H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate	16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking	Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI	Up to 8 areas
Image Settings	Saturation/Brightness/Contrast/Sharpness
Interface
Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O	1/1(Multi-interface Version)
Alarm I/O	1/1(Multi-interface Version)
Network
Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Network Protocols	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/44.1/48KHz
Audio Bit Rate	16~256kbps
Two-way Audio	Support
Intelligent Analytics
Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection	Detect and capture faces, get real-time snapshots
People Counting& Report	Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function	Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support	Yes, Voice&Video-over-IP
Event Trigger	Motion Detection, Network Disconnection, etc.;Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. (Multi-interface Version)
Event Action	FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.;FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. (Multi-interface Version)
System Compatibility	ONVIF Profile G & Q & S & T, API
General
Working Temperature	-40℃∼60℃
Working Humidity	0∼90%(Non-condensing)
Power Supply	PoE(802.3af);PoE (802.3af) / DC 12V±10% (Multi-interface Version)
Power Consumption	4W MAX, 6W MAX (With IR on)
Weather Proof	Up to IP67-rated for weather-resistant performance
Housing	Vandal-proof IK10-rated metal housing
Weight	750g
Dimensions	Φ76mmX214.5mm
Warranty	3/5 Years

Naming Convention
R - High Frame Rate (60fps)
P - PoE Supported
A/C/D/E - AI Series

Camera
Name	5MP AI Weather-proof Mini Bullet Network Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Min. Illumination	Color: 0.008Lux @F1.6, B/W: 0Lux with IR on
WDR	120dB Super WDR
Lens	4mm/2.8mm/6mm @F1.6
Mount	M12
Field of View	H86°/D108°/V63°(4mm), H105°/D131°/V78°(2.8mm), H52°/D63°/V40°(6mm)
Shutter Time	1/100000s∼1s
Day/Night Mode	Day/Night/Auto/Customize/Schedule
IR Distance	Up to 50m
S/N	>55dB
Video
Max. Image Resolution	2592x1944
Primary Stream	60Hz: 30fps@(2592x1944), 45fps@(2048x1536),60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(2592x1944), 45fps@(2048x1536),50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream	60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream	60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression	H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate	16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking	Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI	Up to 8 areas
Image Settings	Saturation/Brightness/Contrast/Sharpness
Interface
Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O	1/1(Multi-interface Version)
Alarm I/O	1/1(Multi-interface Version)
Network
Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Network Protocols	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/44.1/48KHz
Audio Bit Rate	16~256kbps
Two-way Audio	Support
Intelligent Analytics
Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection	Detect and capture faces, get real-time snapshots
People Counting& Report	Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function	Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support	Yes, Voice&Video-over-IP
Event Trigger	Motion Detection, Network Disconnection, etc.;Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. (Multi-interface Version)
Event Action	FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.;FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. (Multi-interface Version)
System Compatibility	ONVIF Profile G & Q & S & T, API
General
Working Temperature	-40℃∼60℃
Working Humidity	0∼90%(Non-condensing)
Power Supply	PoE(802.3af);PoE (802.3af) / DC 12V±10% (Multi-interface Version)
Power Consumption	4W MAX, 6W MAX (With IR on)
Weather Proof	Up to IP67-rated for weather-resistant performance
Housing	Vandal-proof IK10-rated metal housing
Weight	750g
Dimensions	Φ76mmX214.5mm
Warranty	3/5 Years

Naming Convention
R - High Frame Rate (60fps)
P - PoE Supported
A/C/D/E - AI Series

Camera
Name	4K AI Weather-proof Mini Bullet Network Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Min. Illumination	Color: 0.012Lux @F1.6, B/W: 0Lux with IR on
WDR	120dB Super WDR
Lens	4mm/2.8mm/6mm @F1.6
Mount	M12
Field of View	H91°/D106°/V50°(4mm), H110°/D126°/V60°(2.8mm), H55°/D63°/V32°(6mm)
Shutter Time	1/100000s∼1s
Day/Night Mode	Day/Night/Auto/Customize/Schedule
IR Distance	Up to 50m
S/N	>55dB
Video
Max. Image Resolution	3840x2160
Primary Stream	60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream	60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream	60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression	H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate	16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking	Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI	Up to 8 areas
Image Settings	Saturation/Brightness/Contrast/Sharpness
Interface
Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O	1/1(Multi-interface Version)
Alarm I/O	1/1(Multi-interface Version)
Network
Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Network Protocols	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/44.1/48KHz
Audio Bit Rate	16~256kbps
Two-way Audio	Support
Intelligent Analytics
Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection	Detect and capture faces, get real-time snapshots
People Counting& Report	Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function	Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support	Yes, Voice&Video-over-IP
Event Trigger	Motion Detection, Network Disconnection, etc.;Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. (Multi-interface Version)
Event Action	FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.;FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. (Multi-interface Version)
System Compatibility	ONVIF Profile G & Q & S & T, API
General
Working Temperature	-40℃∼60℃
Working Humidity	0∼90%(Non-condensing)
Power Supply	PoE(802.3af);PoE (802.3af) / DC 12V±10% (Multi-interface Version)
Power Consumption	5W MAX, 7W MAX (With IR on)
Weather Proof	Up to IP67-rated for weather-resistant performance
Housing	Vandal-proof IK10-rated metal housing
Weight	750g
Dimensions	Φ76mmX214.5mm
Warranty	3/5 Years

Naming Convention
R - High Frame Rate (60fps)
P - PoE Supported
A/C/D/E - AI Series

A01 V3 Pole Mount

Weight: 625g
Dimension: 140*136*46mm
Installation Environment: For strapping cameras on poles between 102-127mm(4.1-5 inches) in diameter

A03 External Corner Bracket

Weight: 900g
Dimension: 170*152.5*76mm
Installation Environment: For mounting cameras on an external corner

A63 Junction Box

Weight: 620g
Dimension: 134*126*40mm
Installation Environment: For the containing of electrical connections which need to be concealed from sight and deter tampering

AI Weather-proof Mini BulletNetwork Camera

Compact but Powerful, Rain or Shine

AI Empowers Security

Superior Image Quality

Revolutionary IRPerformance

IP67 & IK10

Unique Sunshield Design

Built-in PoE Module

Versatile Interfaces (Optional)

Easily Adjustable3-Axis Bracket

SIP/VoIP Support

Success Story

Related Products

Specifications

A01 V3 Pole Mount

A03 External Corner Bracket

A63 Junction Box

Documents

AI Weather-proof Mini Bullet
Network Camera

Revolutionary IR
Performance

Easily Adjustable
3-Axis Bracket
