AI Weather-proof Mini Dome
Network Camera
Smart Weather-proof Camera
Reliable, Durable, and Always on Guard
AI Weather-proof Mini Dome
- 2/4/5/8MP
- AI Deep Learning
- 0.005Lux Ultra Low-light
- Smart IR II with 25m IR Distance
- 60fps High Frame Rate
- IP67 & IK10
- Recessed Installation
- FEATURES
- MODELS
- ACCESSORIES
- DOWNLOAD
- Home
- Mini Series
- AI Weather-proof Mini Dome Camera
AI Video Analytics
Milesight AI Camera can intelligently filter objects to focus on human and vehicle detection in multiple events such as Region Entrance, Region Exiting, Loitering, Advanced Motion Detection, etc.
Superior Image Quality
With advanced image processing algorithms and SONY STARVIS sensor, it achieves excellent image performance, even in challenging lighting conditions. Its 0.005Lux Ultra Low-light, up to 4K Video Viewing Experience, and 60fps High Frame Rate features make it well-suited for various special circumstances.
Revolutionary IR Performance
To maximize the IR performance, the camera innovated both in the structure and technology. The advanced Smart IR II technology guarantees IR performance with adjustable illumination intensity. The infrared light transmittance is greatly increased with IR anti-reflection panel which is well designed for better IR effect.
IP67 & IK10
Equipped with industry-leading IP67-rated weather-proofing and IK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.

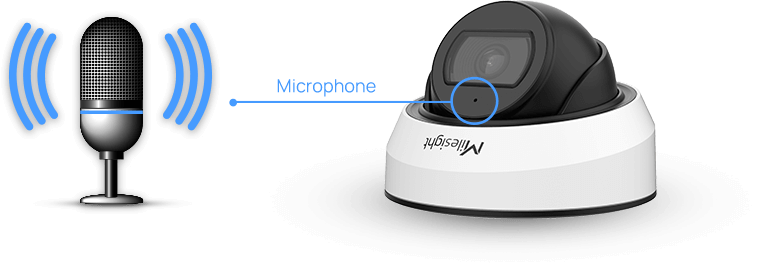

Advanced Built-in Microphone
With the built-in microphone which adopts the advanced codec, the camera is able to provide clearer voice. It is worth mentioning that Milesight uses PTFE Membrane to safeguard the built-in microphone, ensuring IP67-rated weather proof capability for reliable performance.

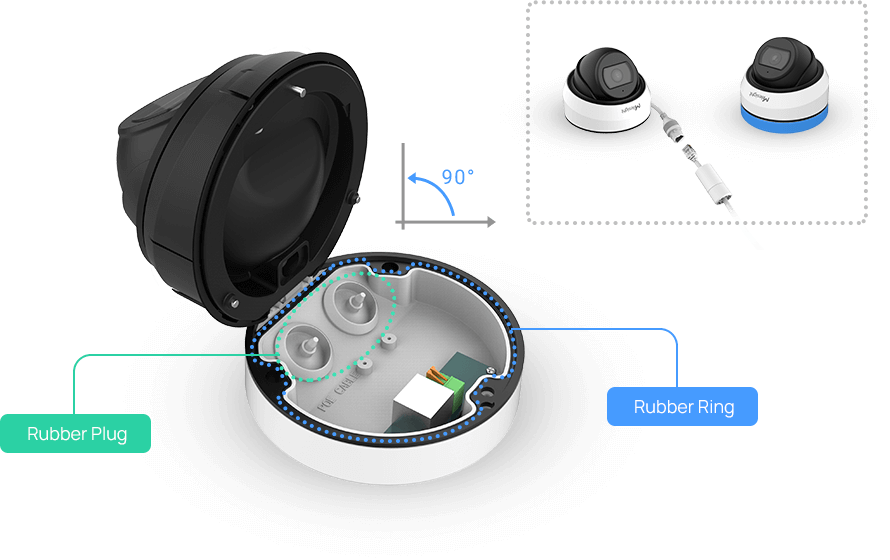

Integrated Junction Box
The creative clamshell design minimizes the installation troubles and enlarges the space to make cable connection a piece of cake.

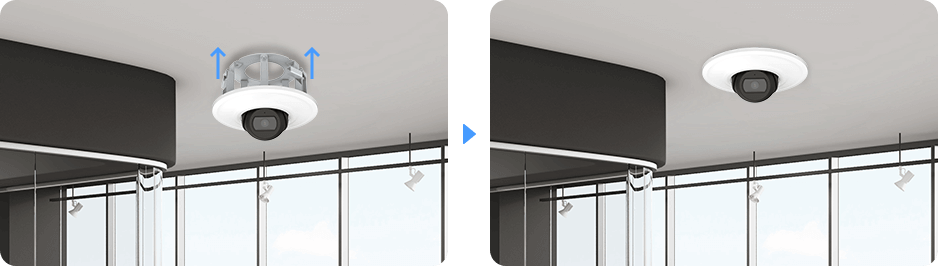

Discreet Installation
With recessed installation available, the camera can skillfully blend in with the environment and easily hide the direction, bringing discreet monitoring performance.

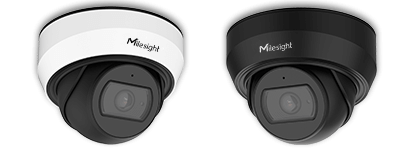

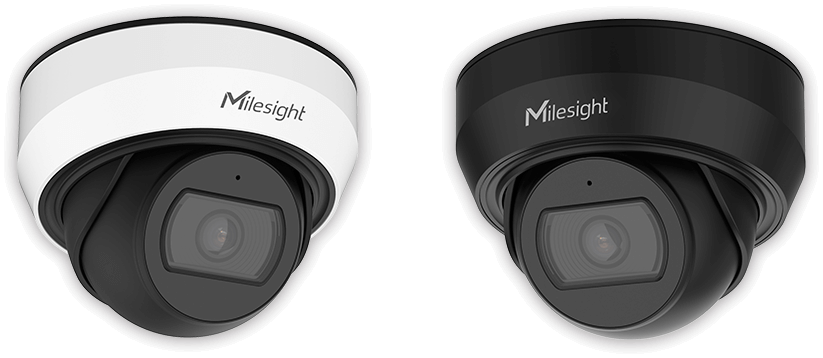

Two Colors Available
Available in White and Black, the camera provides more choices for your preference.
Success Story
Specifications
NDAA
- MS-C2975-(R)PD
- MS-C4575-PD
- MS-C5375-PD
- MS-C8175-(S)PD
Non-NDAA
- MS-C2975-RPC
- MS-C5375-PC
| Camera | |
|---|---|
| Name | 2MP AI Weather-proof Mini Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux @F1.6 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Lens | 2.8mm/ 4mm/ 6mm @F1.6 |
| Mount | M12 |
| Field of View | H111°/D128°/V61°(2.8mm) H91°/D106°/V50°(4mm) H55°/D63°/V32°(6mm) |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 25m |
| S/N | >55dB |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 60fps@(1920x1080)(Optional for R Series), 30fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 50fps@(1920x1080)(Optional for R Series), 25fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 4 areas |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio Interface | Built-in Microphone |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | N/A |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting &Report | Count the number of people entering or exiting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR,Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & S & T, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3af) |
| Power Consumption | 3W MAX, 5.1W MAX (With IR on) |
| Housing | Vandal-proof IK10-rated metal housing /Up to IP67-rated for weather-resistant performance |
| Weight | 600g(Junction Box Version) / 410g(Cable Out Version) |
| Dimensions | Φ108mmX96.5mm(Junction Box Version) / Φ106mmX76.5mm(Cable Out Version) |
| Warranty | 3/5 Years |
*Naming Convention
R - High Frame Rate (60fps)
S - 20fps@4K Series
P - PoE Supported
C/D - AI Series
| Camera | |
|---|---|
| Name | 4MP AI Weather-proof Mini Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux @F1.6 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Lens | 2.8mm/ 4mm/ 6mm @F1.6 |
| Mount | M12 |
| Field of View | H106°/D124°/V58°(2.8mm) H88°/D104°/V48°(4mm) H53°/D61°/V31°(6mm) |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 25m |
| S/N | >55dB |
| Video | |
| Max. Image Resolution | 2688x1520 |
| Primary Stream | 60Hz: 30fps@(2688x1520, 2304x1296, 1920x1080, 1280x720) 50Hz: 25fps@(2688x1520, 2304x1296, 1920x1080, 1280x720) |
| Secondary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480) 50Hz: 25fps@(1280x720, 704x576, 640x480) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480) 50Hz: 25fps@(1280x720, 704x576, 640x480) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 4 areas |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio Interface | Built-in Microphone |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | N/A |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting &Report | Count the number of people entering or exiting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR,Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & S & T, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3af) |
| Power Consumption | 3.8W MAX 5.8W MAX (With IR on) |
| Housing | Vandal-proof IK10-rated metal housing /Up to IP67-rated for weather-resistant performance |
| Weight | 600g(Junction Box Version) / 410g(Cable Out Version) |
| Dimensions | Φ108mmX96.5mm(Junction Box Version) / Φ106mmX76.5mm(Cable Out Version) |
| Warranty | 3/5 Years |
*Naming Convention
R - High Frame Rate (60fps)
S - 20fps@4K Series
P - PoE Supported
C/D - AI Series
| Camera | |
|---|---|
| Name | 5MP AI Weather-proof Mini Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.008Lux @F1.6 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Lens | 2.8mm/ 4mm/ 6mm @F1.6 |
| Mount | M12 |
| Field of View | H105°/D131°/V78°(2.8mm) H86°/D108°/V63°(4mm) H52°/D63°/V40°(6mm) |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 25m |
| S/N | >55dB |
| Video | |
| Max. Image Resolution | 2592x1944 |
| Primary Stream | 60Hz: 30fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 4 areas |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio Interface | Built-in Microphone |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | N/A |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting &Report | Count the number of people entering or exiting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR,Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & S & T, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3af) |
| Power Consumption | 3.8W MAX, 5.8W MAX (With IR on) |
| Housing | Vandal-proof IK10-rated metal housing /Up to IP67-rated for weather-resistant performance |
| Weight | 600g(Junction Box Version) / 410g(Cable Out Version) |
| Dimensions | Φ108mmX96.5mm(Junction Box Version) / Φ106mmX76.5mm(Cable Out Version) |
| Warranty | 3/5 Years |
*Naming Convention
R - High Frame Rate (60fps)
S - 20fps@4K Series
P - PoE Supported
C/D - AI Series
| Camera | |
|---|---|
| Name | 4K AI Weather-proof Mini Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.012Lux @F1.6 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Lens | 2.8mm/ 4mm/ 6mm @F1.6 |
| Mount | M12 |
| Field of View | H110°/D126°/V60°(2.8mm) H91°/D106°/V50°(4mm) H55°/D63°/V32°(6mm) |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 25m |
| S/N | >55dB |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz/50Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576), 20fps@(3840x2160)(Optional for S Series) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 4 areas |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio Interface | Built-in Microphone |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | N/A |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting &Report | Count the number of people entering or exiting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR,Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & S & T, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3af) |
| Power Consumption | 4.6W MAX, 6.6W MAX (With IR on) |
| Housing | Vandal-proof IK10-rated metal housing /Up to IP67-rated for weather-resistant performance |
| Weight | 600g(Junction Box Version) / 410g(Cable Out Version) |
| Dimensions | Φ108mmX96.5mm(Junction Box Version) / Φ106mmX76.5mm(Cable Out Version) |
| Warranty | 3/5 Years |
*Naming Convention
R - High Frame Rate (60fps)
S - 20fps@4K Series
P - PoE Supported
C/D - AI Series
| Camera | |
|---|---|
| Name | 2MP AI Weather-proof Mini Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux @F1.6 B/W: 0Lux with IR on |
| WDR | 140dB Super WDR |
| Lens | 2.8mm/ 4mm/ 6mm @F1.6 |
| Mount | M12 |
| Field of View | H111°/D128°/V61°(2.8mm) H91°/D106°/V50°(4mm) H55°/D63°/V32°(6mm) |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 25m |
| S/N | >55dB |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio Interface | Built-in Microphone |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | N/A |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection | Detect and capture faces, get real-time snapshots |
| People Counting& Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3af) |
| Power Consumption | 5W MAX, 6W MAX (With IR on) |
| Housing | Vandal-proof IK10-rated metal housing /Up to IP67-rated for weather-resistant performance |
| Weight | 600g(Junction Box Version) / 410g(Cable Out Version) |
| Dimensions | Φ108mmX96.5mm(Junction Box Version) / Φ106mmX76.5mm(Cable Out Version) |
| Warranty | 3/5 Years |
*Naming Convention
R - High Frame Rate (60fps)
S - 20fps@4K Series
P - PoE Supported
C/D - AI Series
| Camera | |
|---|---|
| Name | 5MP AI Weather-proof Mini Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.008Lux @F1.6 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Lens | 2.8mm/ 4mm/ 6mm @F1.6 |
| Mount | M12 |
| Field of View | H105°/D131°/V78°(2.8mm) H86°/D108°/V63°(4mm) H52°/D63°/V40°(6mm) |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 25m |
| S/N | >55dB |
| Video | |
| Max. Image Resolution | 2592x1944 |
| Primary Stream | 60Hz: 30fps@(2592x1944), 45fps@(2048x1536),60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(2592x1944), 45fps@(2048x1536),50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio Interface | Built-in Microphone |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | N/A |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection | Detect and capture faces, get real-time snapshots |
| People Counting& Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3af) |
| Power Consumption | 5W MAX, 7W MAX (With IR on) |
| Housing | Vandal-proof IK10-rated metal housing /Up to IP67-rated for weather-resistant performance |
| Weight | 600g(Junction Box Version) / 410g(Cable Out Version) |
| Dimensions | Φ108mmX96.5mm(Junction Box Version) / Φ106mmX76.5mm(Cable Out Version) |
| Warranty | 3/5 Years |
*Naming Convention
R - High Frame Rate (60fps)
S - 20fps@4K Series
P - PoE Supported
C/D - AI Series
A01 V3 Pole Mount
- Weight: 625g
- Dimension: 140*136*46mm
- Installation Environment: For strapping cameras on poles between 102-127mm(4.1-5 inches) in diameter
A03 External Corner Bracket
- Weight: 900g
- Dimension: 170*152.5*76mm
- Installation Environment: For mounting cameras on an external corner
A71 Wall Mount
- Weight: 530g
- Dimension: 162*124*78mm
- Installation Environment: Used to install cameras on an wall or vertical structure
A81 Recessed Mount(Only for cable out version)
- Weight: 450g
- Dimension: Φ168.7*91.3mm
- Installation Environment: For in-ceiling installations
A83 Junction Box
- Weight: 270g
- Dimension: Φ122*46.5mm
- Installation Environment: For the containing of electrical connections which need to be concealed from sight and deter tampering
