Stay on Top of Temperature Control
TS101

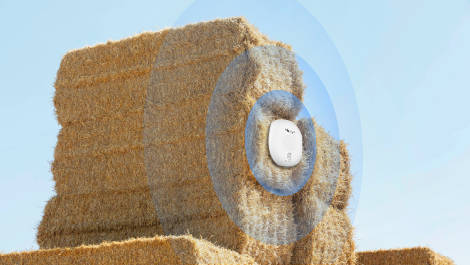

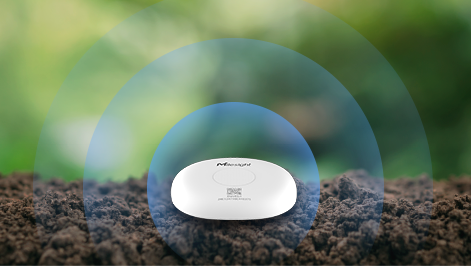

Milesight TS101, an innovative all-in-one insertion temperature sensor with an integrated transmitter, offers a wide temperature measuring range, making it versatile for various applications. TS101 features a professional-grade temperature monitoring design, IP67 ingress protection, and rated IK10 for strike resistance, making it ideal for various environmental conditions. With a battery life of up to 10 years, it features wireless deployment for easy plug-and-play use across different internal temperature monitoring applications.

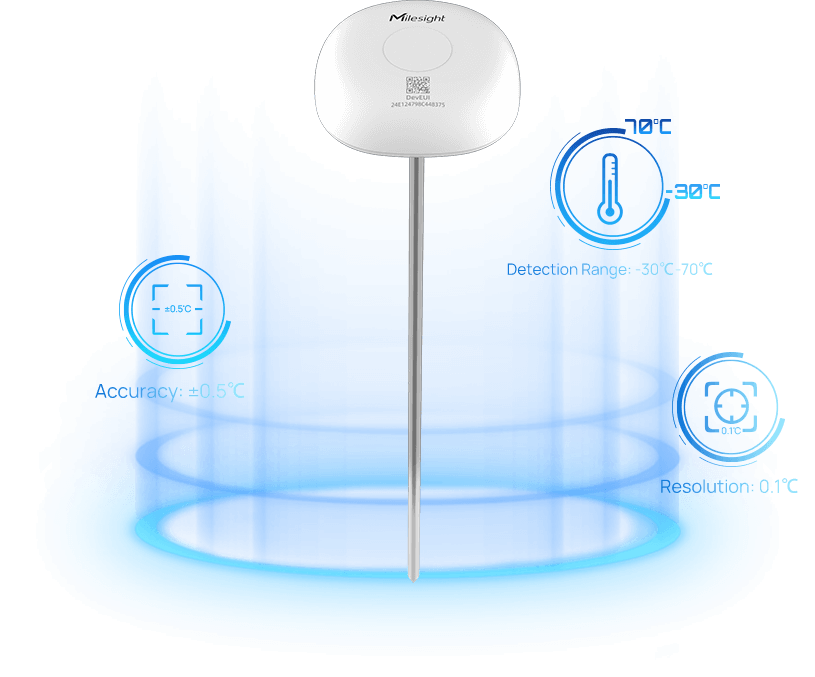

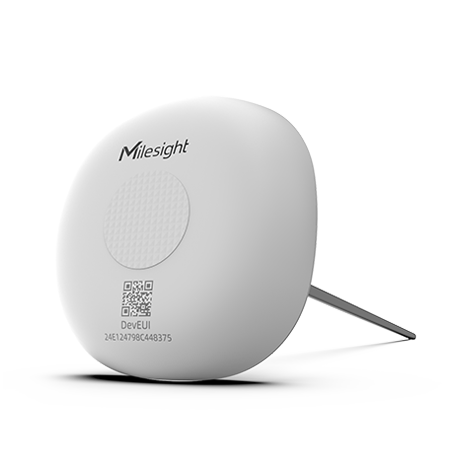

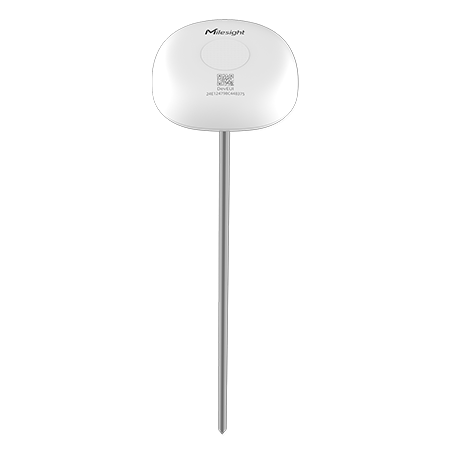

Milesight TS101 is an all-in-one insertion temperature sensor with an integrated transmitter. With an advanced measuring unit that provides a wide temperature measuring range, TS101 provides high precision and reliable consistency.

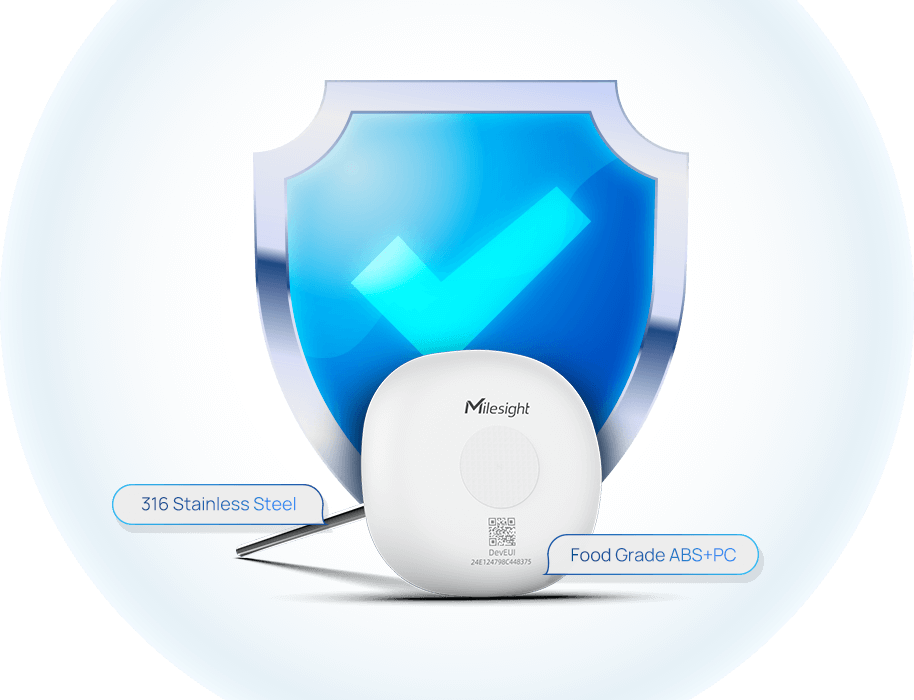

The housing and probe are made of food-grade materials, with an ABS+PC main body and a 316 stainless steel probe, ensuring the device is safe to use and compliant with safety regulations.

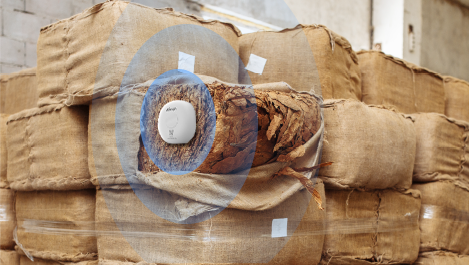

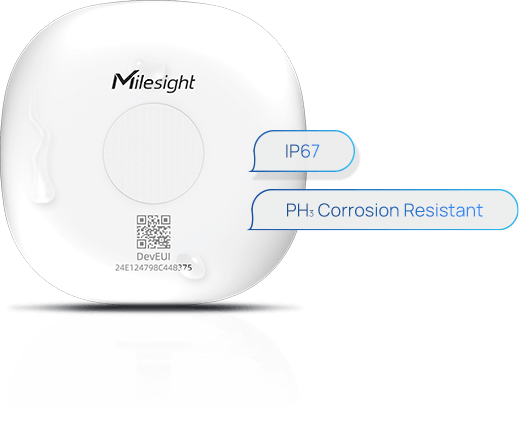

This device is designed to withstand even the toughest environments. With an IP67 waterproof rating and resistance to phosphine corrosion, TS101 can withstand harsh environment, especially for tobacco storage where needs sanitizing frequently.

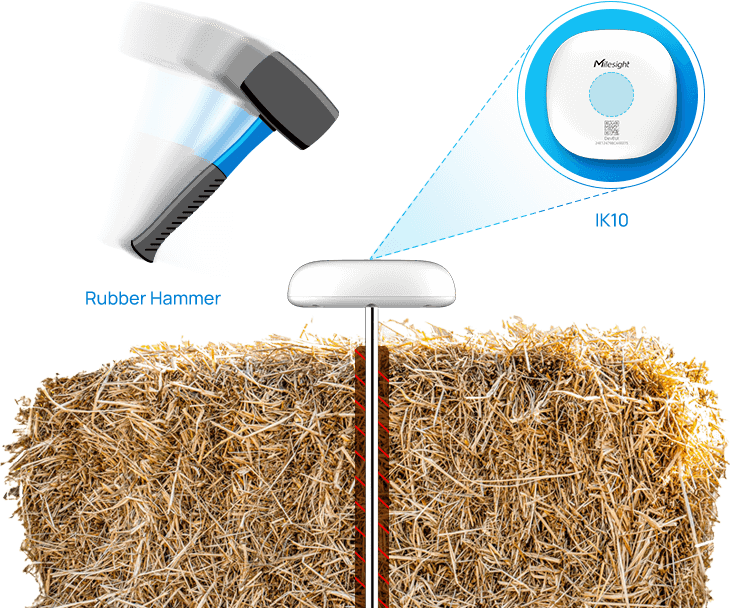

TS101's tranceiver is rated IK10 for impact resistance, making it a robust and reliable option for use in challenging environments where it may be subject to knocks, bumps, or other impacts.

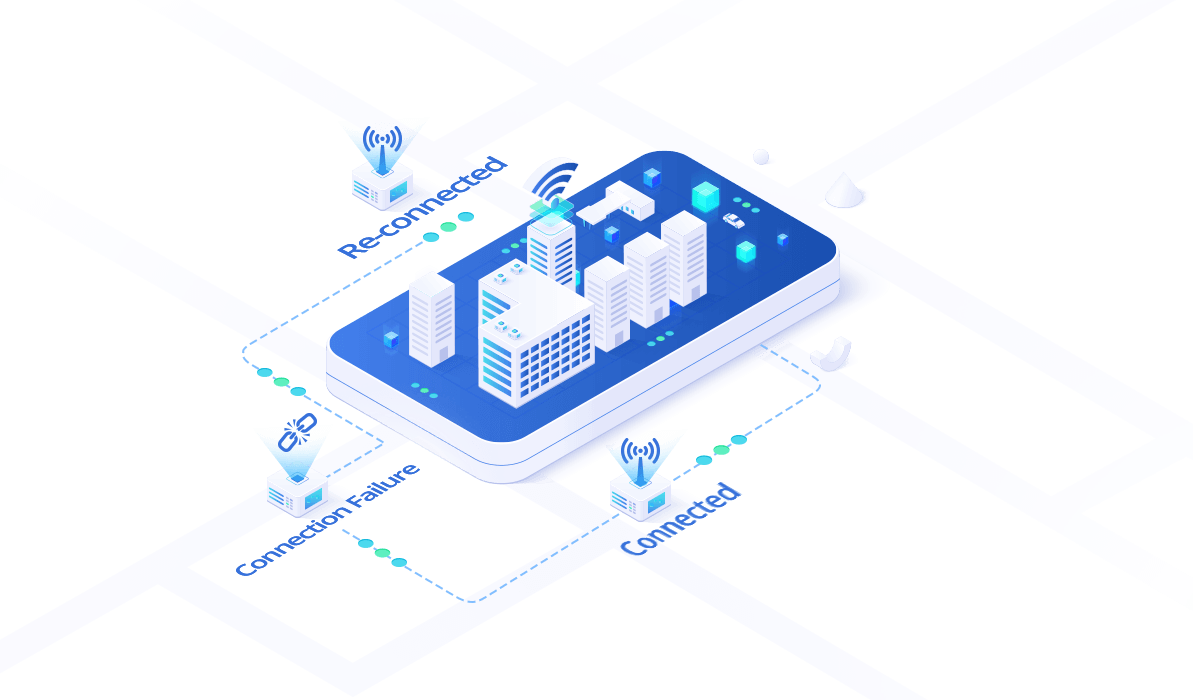

TS101 can store up to 1200 sets of historical data records locally. TS101 also support Data Retrieval and Retransmission to avoid data loss and ensure data integrity.
With a battery life of up to 10 years, TS101 is the device that you can set it and forget it, making it a cost-effective and hassle-free option.
Switching On/Off & Configuring the Devices Wirelessly
Install the
Milesight ToolBox
Enable NFC and run ToolBox,
then attach your phone to the device
Verify the password
and start configuring
| Wireless Transmission | |
|---|---|
| Protocol | LoRaWAN® |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16 dBm (868 MHz)/20 dBm (915 MHz)/19 dBm (470 MHz) |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA/ABP Class A |
| Measurement | |
| Detecting Range | -30°C ~ +70°C |
| Accuracy | ± 0.5°C |
| Resolution | 0.1°C |
| Operation | |
| Power On & Off | NFC, Power Button (Internal) |
| Configuration | NFC Configuration via Mobile App |
| Advanced Feature | Data Storage, Data Retransmission, Data Retrievability, Abrupt Temperature Change Alarm |
| Physical Characteristics | |
| Power Supply | 1 × 4000 mAh ER18505 Li-SOCl2 Replaceable Battery |
| Battery Life* | 10 Years (1 Hour Report Interval, 25°C) |
| Operating Temperature | -30°C ~ +70°C |
| Relative Humidity | 0 ~ 95% (Non-condensing) |
| Material & Color | Transceiver: ABS+PC(Food-Grade, Phosphine Corrosion resistant), White Sensor Probe: 316 Stainless Steel (Food-Grade, Phosphine Corrosion Resistant) , Silver Grey |
| Ingress Protection | IP67 |
| Impact Protection | IK10 (Transceiver) |
| Dimension | Transceiver: Ф 92 × 92 × 26 mm (Ф 3.62 × 3.62 × 1.02 in) Sensor Probe: Ф 7 × 400 mm (Ф 0.28 × 15.75 in) |
| Installation | Insert Installation |
1 Tested under laboratory conditions and for guideline purposes only.
