IoT Weather Station

Accurate, Reliable and Continuous Weather Monitoring

WTS506

All-in-One Weather Station
Robust and Rugged
Various Application Scenarios
Easy Configuration (via NFC)

Solar-Powered & Chargeable Batteries Backup
Data Storage and Retransmission
LoRaWAN® Based

FEATURES
MODELS
DOWNLOAD

Live Stream Your Weather Data

Milesight IoT Weather Station is an ultimate all-in-one LoRaWAN® weather monitoring system for various and continuous atmospheric conditions including temperature, humidity, wind speed, wind direction, barometric pressure and rainfall. It is solar-powered and has chargeable batteries backup lasting up to seven days. It boasts high resolution and accuracy with rugged and aesthetic housing.

Barometric
Pressure

Wind
Direction

Wind Speed

Humidity

Temperature

Rainfall

WTS506

All-in-One Weather Station

Specially designed for continuous weather monitoring, Milesight IoT Weather Station is an ultimate all-in-one weather monitoring system with WTS Sensors, WTS Hub, and solar panel for various atmospheric conditions.

Professional Version

RECOMMENDED WTS506

Temperature, humidity, wind speed, wind direction, barometric pressure, rainfall
High resolution and accuracy with research-grade measurement data
Robust aluminum alloy with resistance to rust, corrosion and oxidation
Weather monitoring for challenging or accuracy-focus environments like meteorology, agriculture, flash flood warning, forestry, port, railway, school, building, etc.

Smart Agriculture

Get reliable data faster so you can plan, react, and grow better

Agricultural production depends mostly on environmental conditions, whereas Milesight Smart Agriculture Solution will help automatically collect and analyze data about various atmospheric conditions including temperature, humidity, light, soil moisture, electrical conductivity and many more remotely and timely.

Highlights

Accurate, reliable and automated environment monitoring and analyses
Save time, money and resources
Improve yield and quality of plants

EM300-TH Temperature & Humidity Sensor

UC511 LoRaWAN® Solenoid Valve Controller

EM500-CO₂ Carbon Dioxide Sensor

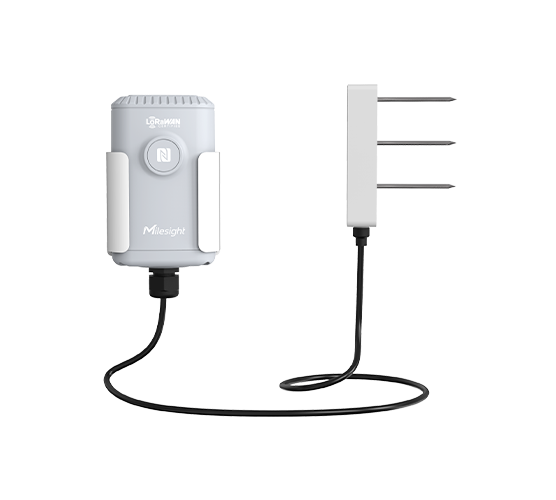

EM500-SMTC Soil Moisture, Temperature & Electrical Conductivity Sensor

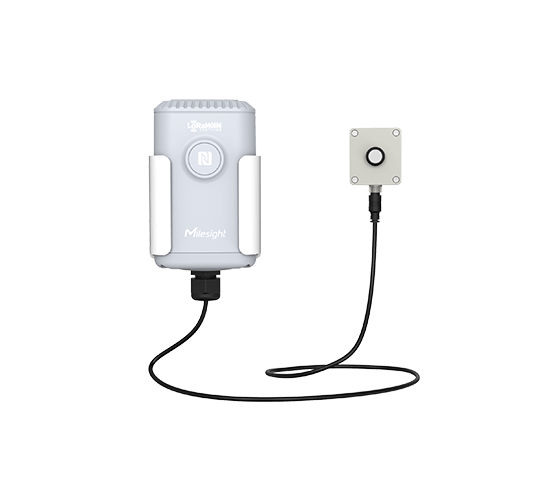

EM500-LGT Light Sensor

EM500-UDL Ultrasonic Distance/Level Sensor

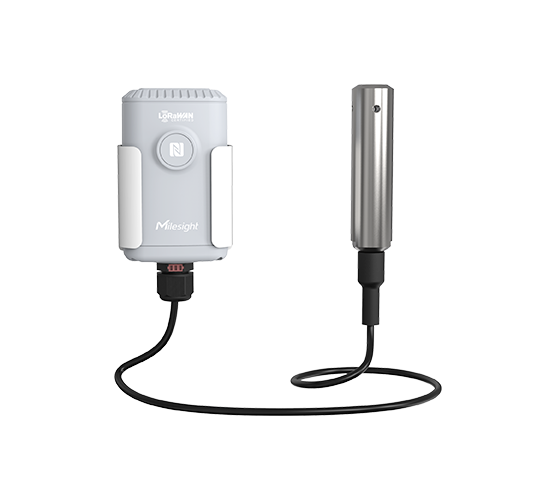

EM500-SWL Submersible Water Level Sensor

Smart Building

Gain actionable insight into changing weather conditions

Milesight IoT Weather Station provides the most important weather data in just one device for buildings like office building, apartment building, smart home, etc, protecting your buildings against sudden and unexpected changes in weather, as well as keep people safe and sound.

Highlights

Reliable and real-time weather monitoring
Save energy and resources by automation
Stay comfortable and safe

Solar-Powered & Chargeable Batteries Backup

IoT Weather Station utilizes solar power to achieve operation. With built-in batteries, it can work at least a week without sunlight due to its low-power consumption capability.

Robust and Rugged

Milesight IoT Weather Station is qualified to work in harsh and wet environment with IP65 rating of its WTS Sensors and IP67 rating of its WTS Hub to protect against powerful jets of water.

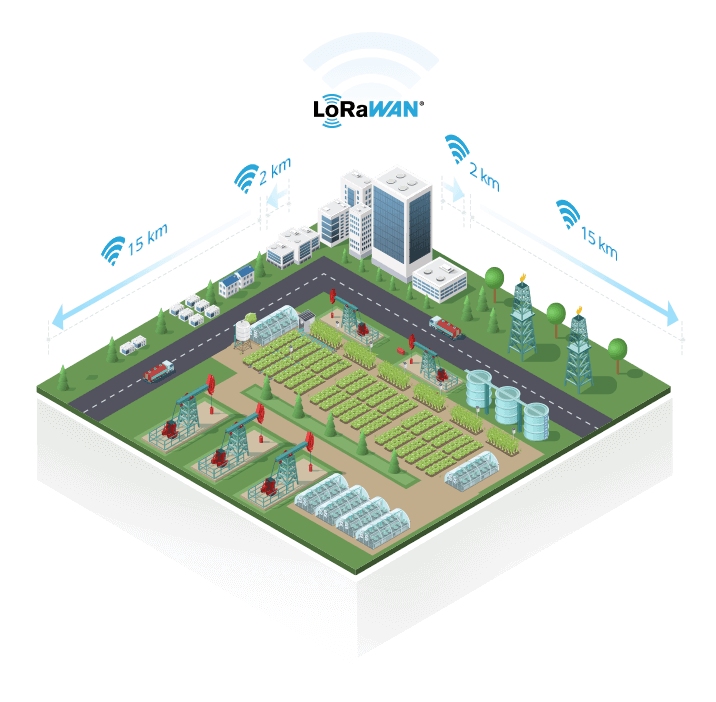

LoRaWAN® Based

Penetrating Signals:
data transmission range up to 2 km in urban areas and
15 km in rural areas
High Compatibility:
compliant with standard LoRaWAN® gateways and network servers

Store Capacity with
19000 Sets of Historical Data
Records

Support Retransmission for Reliable Communication

With support for data retransmission,the device guarantees that the web server gets all the data even if the network is down occasionally.

Cloud Data Management
Milesight IoT Cloud

Data Visualization Dashboard:
All figures in a glance
Automatic Triggers:
Interactive collaboration with Milesight IoT sensors
to realize scene-based automation
Regular Reports & Real-Time Alerts:
Data-based insights
Android & iOS App:
Manage devices at your fingertips

Smart Agriculture Kit

Simplify the process of remote monitoring
Build a data-driven and insightful farming strategy
Help farmers earn more money

Learn More

NFC Configuration

Switching On/Off & Configuring the Devices Wirelessly

1^st Step

Install the
Milesight ToolBox

2^nd Step

Enable NFC and run ToolBox,
then attach your phone to the device

3^rd Step

Verify the password
and start configuring

Explore More About NFC Configuration >>

Installation Methods

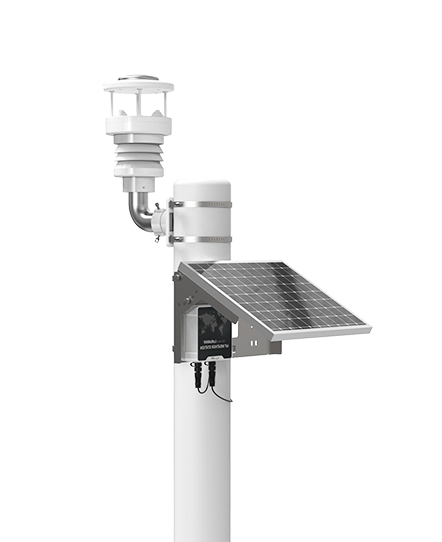

Side-of-Pole Mounting (WTS506)

Specifications

WTS506

Temperature
Operating Principle	Thermistor
Range	-40°C – 85°C
Accuracy	± 0.3°C
Resolution	0.1°C
Humidity
Operating Principle	Capacitive humidity sensor
Range	0% – 100% RH
Accuracy	± 3% RH
Resolution	0.5% RH
Wind Direction
Operating Principle	Ultrasonic
Range	0° – 360°
Accuracy	± 3°
Resolution	0.1°C
Wind Speed	undefined
Operating Principle	Ultrasonic
Range	0 -60 m/s
Accuracy	± 0.3 m/s or ± 3% (whichever is greater)
Resolution	0.1 m/s
Barometric Pressure
Operating Principle	Piezoresistive absolute pressure sensor
Range	500 – 1100 hPa
Accuracy	±0.5 hPa
Resolution	0.1 hPa
Rainfall
Operating Principle	Piezoelectric
Range	0 – 1000 mm
Accuracy	±0.5 mm (< 10 mm), ±5 %( >10 mm)
Resolution	0.01 mm
Physical Characteristics
Material	Aluminium Alloy
Weight	WTS506: 2.15 kg
Dimension	WTS506: ф160 x 263 x ф73 mm
Operating Temperature	-40°C ~ 85°C
Relative Humidity	0% – 100% (non-condensing)
Ingress Protection	IP65
Installation	Pole Mounting
