Outdoor LoRaWAN® Gateway

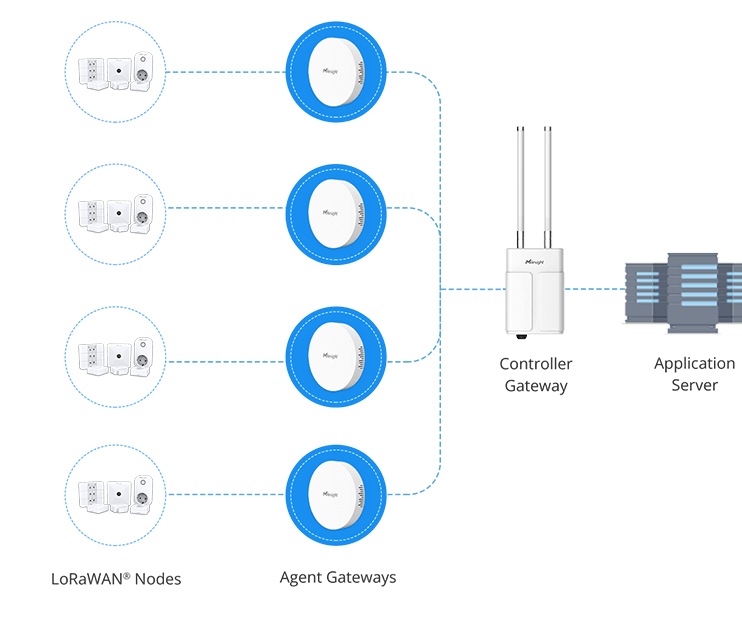

• End Devices (LoRa® Nodes): Sensors that collect data or perform actions, such as temperature sensors, GPS trackers, and smart meters.
• LoRaWAN® Gateways: Act as intermediaries, forwarding data packets from end devices to the network server. They extend network coverage but do not process data.
• Network Server: Manages the LoRaWAN® infrastructure by authenticating devices, routing data, deduplicating messages, and optimizing resources.
• Application Server: Processes application-specific data, triggers actions, and stores historical data for analysis.

Together, these components form a star topology that ensures secure, efficient communication for IoT applications across diverse environments.

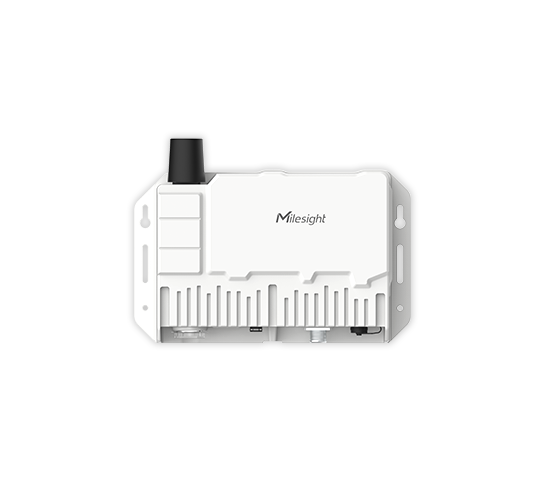

A single LoRaWAN® gateway can typically handle hundreds to thousands of devices, depending on the network environment, frequency plan, the types of devices communicating, etc. Multi-channel gateways, which can receive data on multiple channels simultaneously, can support a significantly larger number of devices compared to single-channel gateways. Milesight LoRaWAN® gateways, such as the UG63, UG65, UG56, UG67, and SG50 can typically handle up to 2000 end devices with a maximum of 8 full-duplex channels.

The number of LoRaWAN® gateways required depends on factors like coverage area, device density, and environmental conditions. In rural areas, a gateway can cover up to 15 km, while urban environments may require more gateways due to obstacles. High device density or frequent transmissions require additional gateways to handle data traffic. Antenna type, network architecture (single vs. multi-channel), and future scalability considerations further influence gateway requirements. Pilot testing and simulations can help optimize gateway placement and ensure reliable network coverage. Efficient planning ensures effective performance without overspending.

Indoor Use Cases include:

• Smart Buildings for energy management and HVAC control.
• Healthcare for temperature & humidity monitoring and asset tracking.
• Offices with occupancy sensors and air quality monitoring.
• Retail for real-time inventory management and customer behavior analysis.

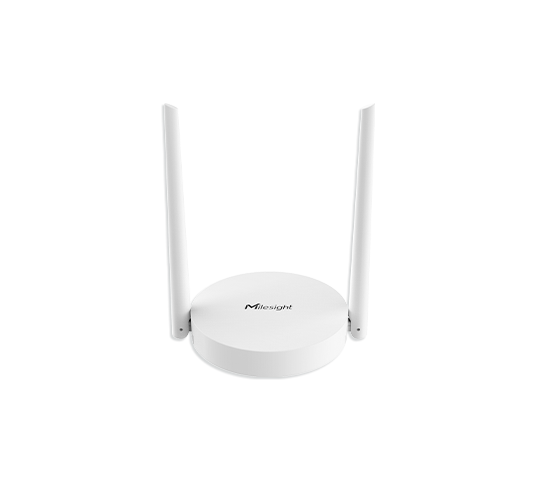

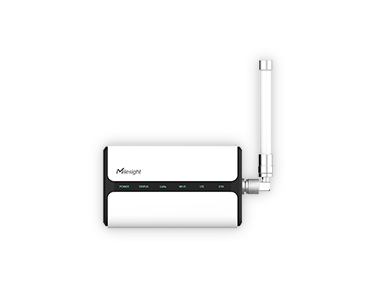

For example, the compact and mountable Milesight UG63 Mini LoRaWAN® Gateway is ideal for small-scale deployments in offices. IP65-rated for dust and water resistance, with robust processing power, the UG65 Semi-Industrial LoRaWAN® Gateway is perfect for semi-outdoor or industrial indoor use.

Outdoor Use Cases include:

• Smart Cities for street lighting control and waste management.
• Agriculture for crop monitoring and livestock tracking.
• Environmental Monitoring for weather and irragation management.
• Public Safety for disaster management and emergency response.

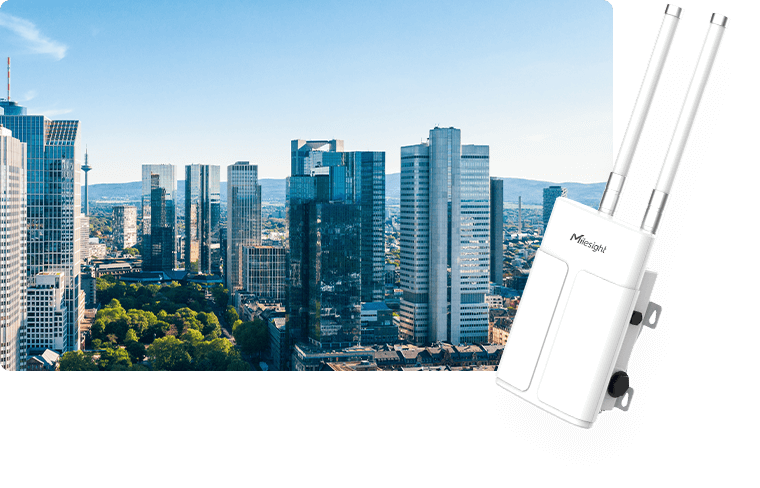

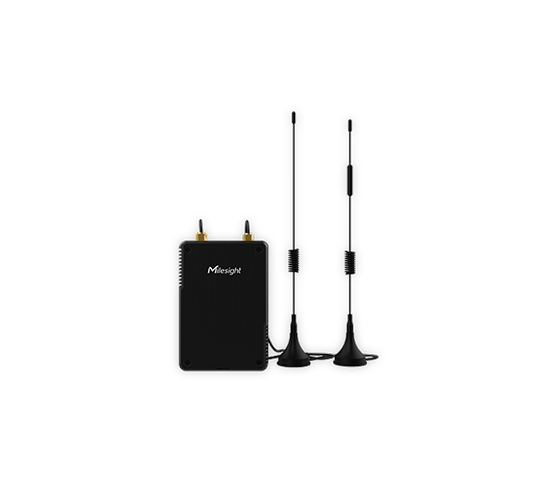

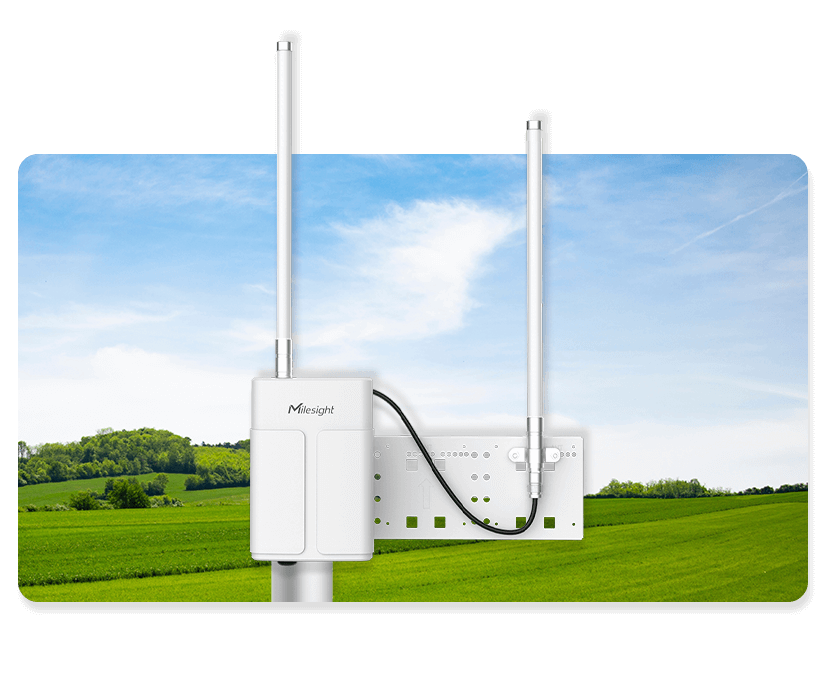

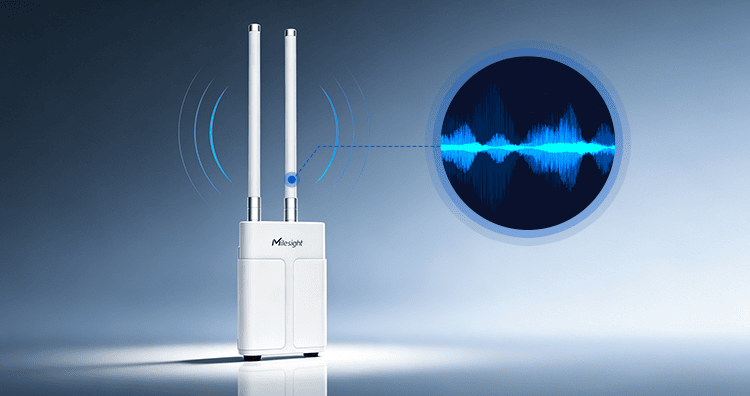

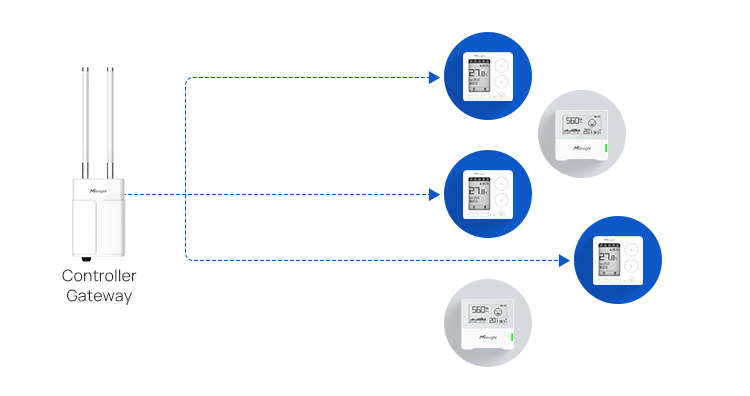

For example, Milesight UG56 Industrial LoRaWAN® Gateway supports advanced features like Listen Before Talk (LBT) for large-scale deployments. With an IP67 rating, the UG67 Outdoor LoRaWAN® Gateway is designed for harsh outdoor environments and long-range applications.

When selecting a LoRaWAN® gateway, consider the following key factors to ensure it meets your IoT project's requirements:

• Compatibility and Protocol Support: Ensure the gateway supports standard protocols like Semtech UDP or BasicStation and is compatible with popular network servers such as The Things Network (TTN) or ChirpStack for seamless integration.
• Frequency Band: Choose a gateway that operates on the correct frequency bands for your region to ensure regulatory compliance and optimal performance.
• Channel Capacity: Opt for gateways with multiple channels (ideally 8 or more) to handle high device density and ensure scalability.
• Backhaul Connectivity: Consider gateways with flexible connectivity options (Ethernet, Wi-Fi, cellular) for reliable data transmission.
• Power Supply Options: Look for gateways offering various power options (PoE, battery, or solar) depending on deployment needs.
• Environmental Protection: For outdoor deployments, ensure the gateway has high ingress protection and can operate in extreme temperatures.
• Security Features: Select gateways with robust security, including encryption and firewalls, to protect data and prevent unauthorized access.
• Scalability: Choose a gateway that can grow with your project, handling more devices and adapting to future needs.

Click here for our video tutorial and a comprehensive model comparison chart.
