AI 12X/20X/23X PTZ
Dome Network Camera
Smart and Speedy PTZ for Security
Smooth and Accurate Tracking with AI PTZ Cameras
AI 12X/20X/23X PTZ
- AI Deep Learning
- 0~360° Pan Range, 350°/s Pan Speed
- -5°~90° Tilt Range, 360°/s Tilt Speed
- PTZ Auto Tracking
- 12X/20X/23X Optical Zoom
- Smart IR II with 160m IR Distance

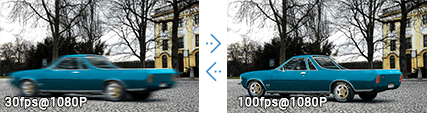

- 90fps High Frame Rate
- Recessed Installation
- FEATURES
- MODELS
- ACCESSORIES
- DOWNLOAD
- Home
- PTZ Series
- AI 12X/20X/23X PTZ Dome Camera

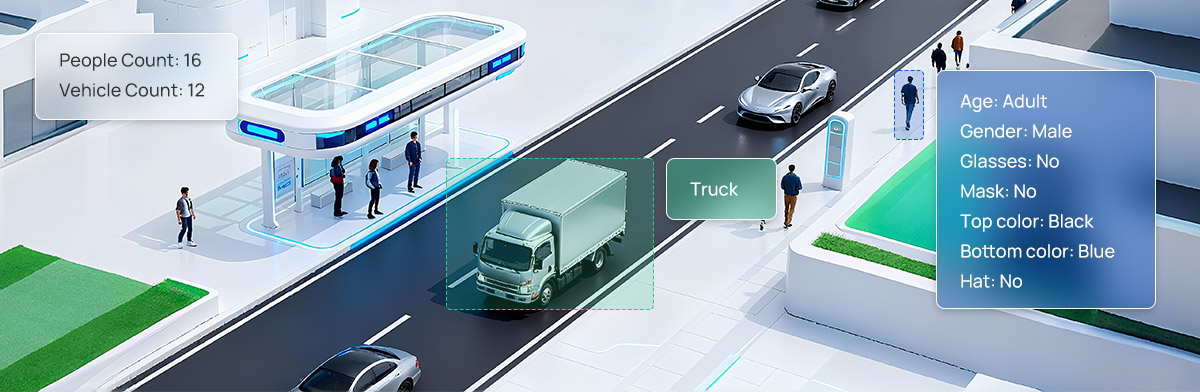

AI Empowers Security
Milesight AI Camera with deep learning AI algorithms can intelligently filter objects to focus on human and vehicle detection, fitting into various situations to help level up the monitoring efficiency and security.

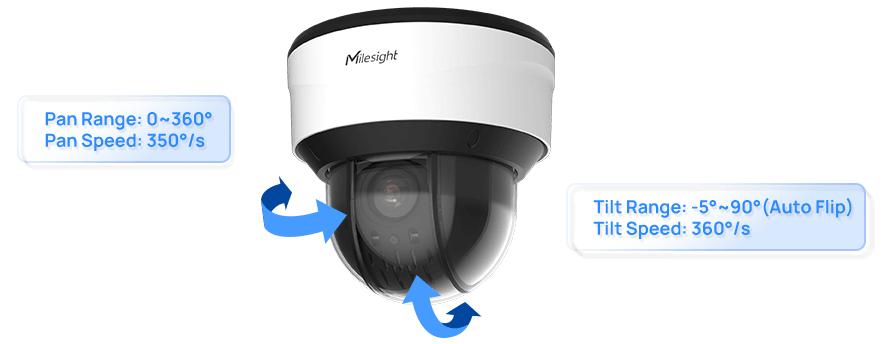

Flexible Pan, Tilt and Zoom Tasks
Milesight PTZ Camera offers the ability to fast and precisely rotate on a 360° pan and 95° tilt to survey a wide range of territory. The user can easily set up to 300 preset positions and up to 8 patrol routes and maximum 4 patterns of the manual operation paths. Moreover, the user is able to schedule specific PTZ tasks by date and time.
12X/20X/23X Optical Zoom
The 12X/20X/23X Optical Zoom can zoom up to distant objects while still maintaining the clarity, delivering high quality video over the entire zoom image.

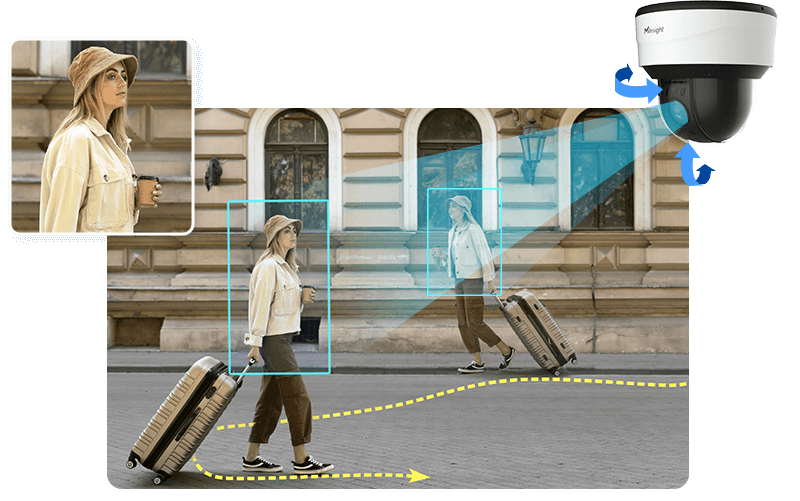

PTZ Auto Tracking
Creating a 3D model within the monitoring range, Milesight PTZ cameras mark and track the object after target detection and selection to ensure that the object maintains a fixed proportion for superb tracking views by automatically controlling the direction and zoom-level.

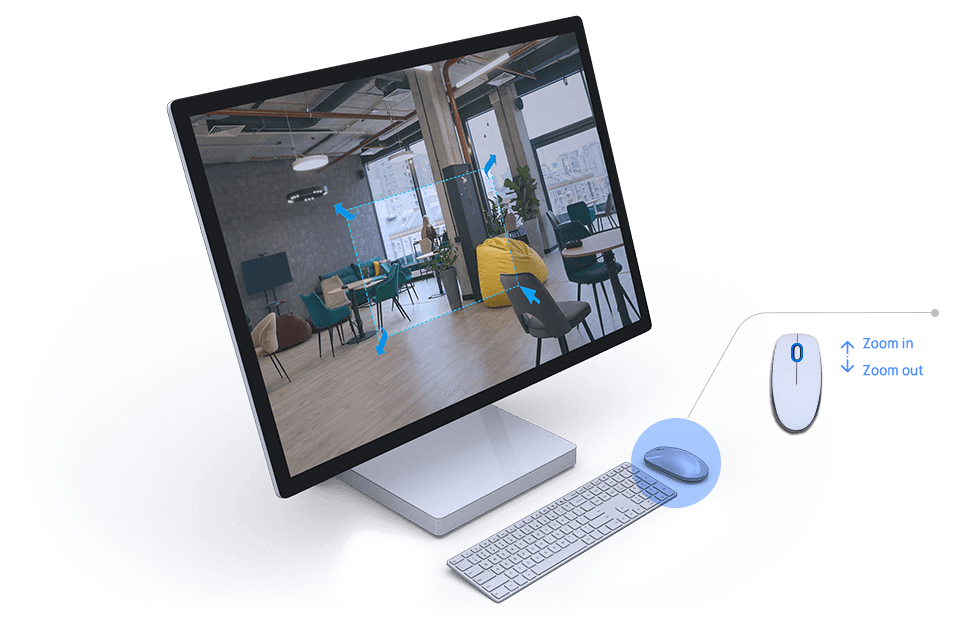

3D Positioning
With a comprehensive operating system, Milesight PTZ cameras can be easily controlled. To monitor the region of interest for more details,operators can adjust the angle of cameras' view and zoom ratio by just using a mouse.

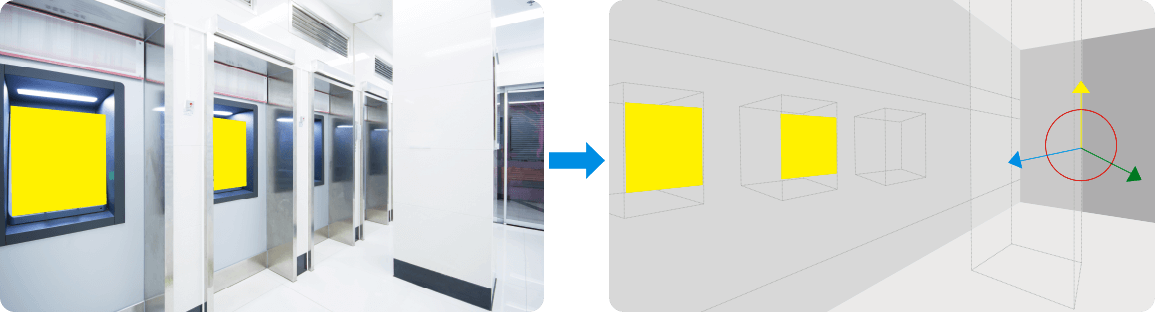

PTZ Privacy Mask
Adopting anonymization and limitation functionality for further privacy protection, Milesight supports 3D Privacy Mask in all Al PTZ cameras with their coordinate system, which keeps the specified area masked from monitoring through manual operations no matter how cameras pan/tilt/zoom.
Superior Image Quality
With advanced image processing algorithms and SONY STARVIS sensor, it achieves excellent image performance, even in challenging lighting conditions. Its 0.002Lux Ultra Low-light, 140dB Super WDR, and 90fps High Frame Rate features make it well-suited for various special circumstances.

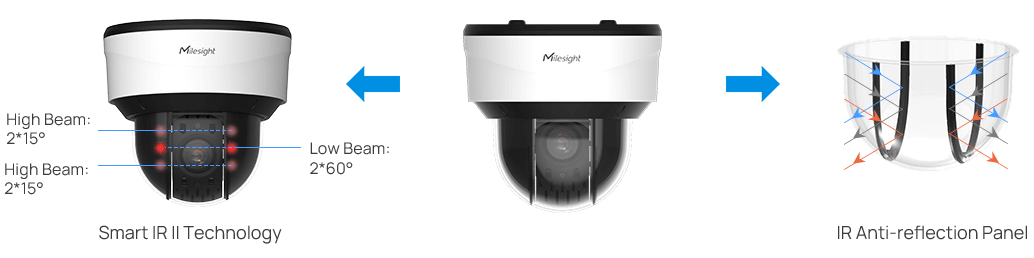

Revolutionary IR Design
The IR Anti-reflection Design adopts elaborate panels to completely remove the worries of the IR reflection. Meanwhile, the Smart IR II technology with combination of high & low beams release its second-to-none IR performance.
IP66 & IK10
Equipped with industry-leading IP66-rated weather-proofing and IK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.

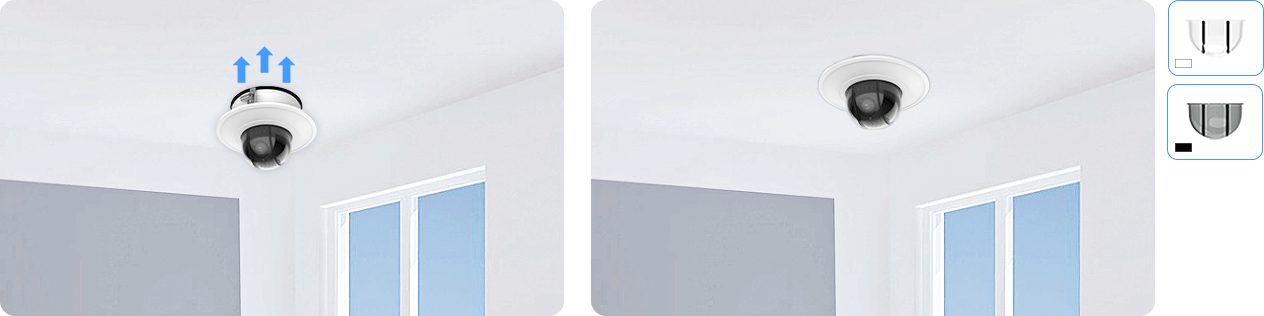

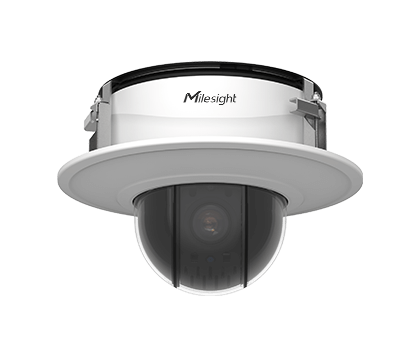

Discreet Installation
With recessed installation and smoked dome cover available, the camera can skillfully blend in with the environment and easily hide the direction, bringing discreet monitoring performance.

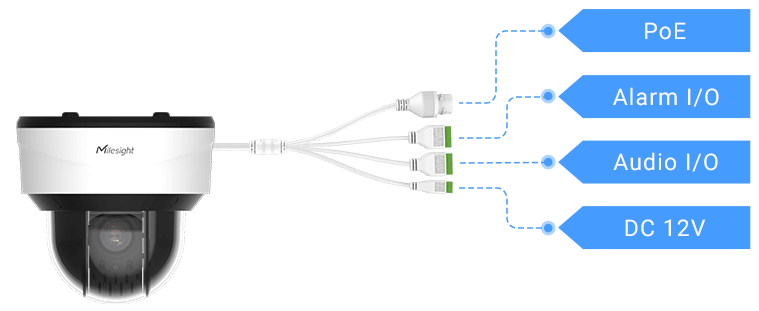

Versatile Interfaces
In the base, the AI PTZ Dome Camera comes with a whole array of interfaces such as Alarm I/O, Audio I/O, DC 12V and PoE port. Such complete interface design is available to meet different kinds of demands.

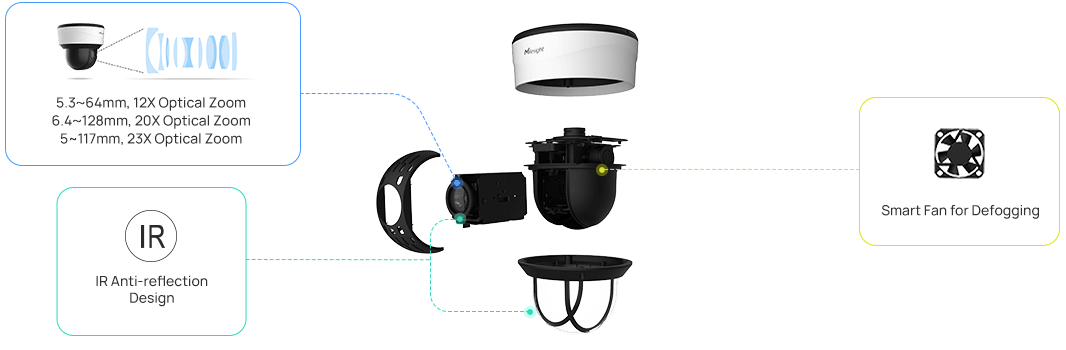

Easy Deployment and Compact Structure
To meet the different needs of customers, AI 12X/20X/23X PTZ Dome Cameras offer a wide selection of autofocus lenses. Furthermore, the built-in fan and IR anti-reflection design ensure its rugged performance, even in complex environments.
Success Stories
Specifications
NDAA
- MS-C2971-X12R(T)PE
- MS-C4471-X20RPE
- MS-C2871-X20TPE
- MS-C2971-X23R(T)PE
- MS-C5371-X12PE
- MS-C2971-X12TPA
- MS-C2871-X20TPA
- MS-C2971-X23TPA
Non-NDAA
- MS-C2971-X12R(T)PC
- MS-C2871-X20TPC
- MS-C2971-X23R(T)PC
- MS-C5371-X12PC
| Camera | |
|---|---|
| Name | 2MP 12X AI PTZ Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux @F1.6, B/W: 0Lux with IR on |
| WDR | 140dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Digital Zoom | 16X |
| Lens | |
| Focal Length | 5.3∼64mm, 12X Optical Zoom |
| Zoom Speed | Approx 4s (Wide-Tele) |
| Field of View | H61°∼H5°/D69°∼D5°/V36°∼V2° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1000/1500mm (Wide/Tele) |
| Aperture | F1.6∼F2.8 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360° endless/ Pan Manual Speed: 0.1°∼350°/s, Pan Preset Speed: 350°/s |
| Tilt Range/Tilt Speed | -5°∼90°(Auto Flip); Tilt Manual Speed: 0.1°∼360°/s, Tilt Preset Speed: 360°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| IR | |
| Irradiation Distance | Up to 160m |
| Irradiation Angle | Auto/Manual |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Condition | Temperature: -40℃∼60℃ / Humidity: 0∼95%(Non-condensing) |
| Power Supply | PoE(802.3at)/ DC 12V/3A ±10% |
| Power Consumption | 12W MAX/ 20W MAX (With IR on) |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Surge Protection | 4KV |
| Dimensions | Φ183mmX174.8mm |
| Weight | 2658g |
| Warranty | 2 Years/3 Years(Optional) |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C/E - AI Series
| Camera | |
|---|---|
| Name | 4MP 20X AI PTZ Dome Network Camera |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.002Lux @F1.6, B/W: 0Lux with IR on |
| WDR | 140dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Digital Zoom | 16X |
| Lens | |
| Focal Length | 6.4∼128mm, 20X Optical Zoom |
| Zoom Speed | Approx 5s (Wide-Tele) |
| Field of View | H60°∼H3°/D67°∼D4°/V37°∼V1° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 100/2000mm (Wide/Tele) |
| Aperture | F1.6∼F4.0 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360° endless/ Pan Manual Speed: 0.1°∼350°/s, Pan Preset Speed: 350°/s |
| Tilt Range/Tilt Speed | -5°∼90°(Auto Flip); Tilt Manual Speed: 0.1°∼360°/s, Tilt Preset Speed: 360°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| IR | |
| Irradiation Distance | Up to 160m |
| Irradiation Angle | Auto/Manual |
| Video | |
| Max. Image Resolution | 2688x1520 |
| Primary Stream | 60Hz: 60fps@(2688x1520, 2304x1296, 1920x1080, 1280x720) 50Hz: 50fps@(2688x1520, 2304x1296, 1920x1080, 1280x720) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Condition | Temperature: -40℃∼60℃ / Humidity: 0∼95%(Non-condensing) |
| Power Supply | PoE(802.3at)/ DC 12V/3A ±10% |
| Power Consumption | 12W MAX 20W MAX (With IR on) |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Surge Protection | 4KV |
| Dimensions | Φ183mmX174.8mm |
| Weight | 2658g |
| Warranty | 2 Years/3 Years(Optional) |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C/E - AI Series
| Camera | |
|---|---|
| Name | 2MP 20X AI PTZ Dome Network Camera |
| Image Sensor | 1/2" Progressive Scan CMOS |
| Min. Illumination | Color: 0.002Lux @F1.6, B/W: 0Lux with IR on |
| WDR | 140dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Digital Zoom | 16X |
| Lens | |
| Focal Length | 6.4∼128mm, 20X Optical Zoom |
| Zoom Speed | Approx 5s (Wide-Tele) |
| Field of View | H60°∼H3°/D67°∼D4°/V37°∼V1° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 100/2000mm (Wide/Tele) |
| Aperture | F1.6∼F4.0 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360° endless/ Pan Manual Speed: 0.1°∼350°/s, Pan Preset Speed: 350°/s |
| Tilt Range/Tilt Speed | -5°∼90°(Auto Flip); Tilt Manual Speed: 0.1°∼360°/s, Tilt Preset Speed: 360°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| IR | |
| Irradiation Distance | Up to 160m |
| Irradiation Angle | Auto/Manual |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 90fps@(1920x1080)(Optional for T Series) ,50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Condition | Temperature: -40℃∼60℃ / Humidity: 0∼95%(Non-condensing) |
| Power Supply | PoE(802.3at)/ DC 12V/3A ±10% |
| Power Consumption | 12W MAX/ 20W MAX (With IR on) |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Surge Protection | 4KV |
| Dimensions | Φ183mmX174.8mm |
| Weight | 2658g |
| Warranty | 2 Years/3 Years(Optional) |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C/E - AI Series
| Camera | |
|---|---|
| Name | 2MP 23X AI PTZ Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux @F1.5, B/W: 0Lux with IR on |
| WDR | 140dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Digital Zoom | 16X |
| Lens | |
| Focal Length | 5∼117mm, 23X Optical Zoom |
| Zoom Speed | Approx 6s (Wide-Tele) |
| Field of View | H60°∼H3°/D69°∼D4°/V35°∼V2° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 100/1500mm (Wide/Tele) |
| Aperture | F1.5∼F3.5 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360° endless/ Pan Manual Speed: 0.1°∼350°/s, Pan Preset Speed: 350°/s |
| Tilt Range/Tilt Speed | -5°∼90°(Auto Flip); Tilt Manual Speed: 0.1°∼360°/s, Tilt Preset Speed: 360°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| IR | |
| Irradiation Distance | Up to 160m |
| Irradiation Angle | Auto/Manual |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Condition | Temperature: -40℃∼60℃ / Humidity: 0∼95%(Non-condensing) |
| Power Supply | PoE(802.3at)/ DC 12V/3A ±10% |
| Power Consumption | 12W MAX/ 20W MAX (With IR on) |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Surge Protection | 4KV |
| Dimensions | Φ183mmX174.8mm |
| Weight | 2658g |
| Warranty | 2 Years/3 Years(Optional) |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C/E - AI Series
| Camera | |
|---|---|
| Name | 5MP 12X AI PTZ Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.008Lux @F1.6, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Digital Zoom | 16X |
| Lens | |
| Focal Length | 5.3∼64mm, 12X Optical Zoom |
| Zoom Speed | Approx 4s (Wide-Tele) |
| Field of View | H57°∼H4°/D69°∼D5°/V44°∼V1° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 100/1500mm (Wide/Tele) |
| Aperture | F1.6∼F2.8 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360° endless/ Pan Manual Speed: 0.1°∼350°/s, Pan Preset Speed: 350°/s |
| Tilt Range/Tilt Speed | -5°∼90°(Auto Flip); Tilt Manual Speed: 0.1°∼360°/s, Tilt Preset Speed: 360°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| IR | |
| Irradiation Distance | Up to 160m |
| Irradiation Angle | Auto/Manual |
| Video | |
| Max. Image Resolution | 2592x1944 |
| Primary Stream | 60Hz: 30fps@(2592x1944, 2592x1520), 45fps@(2048x1536), 60fps@(1920x1080, 1280x960, 1280x720) 50Hz: 25fps@(2592x1944, 2592x1520), 45fps@(2048x1536), 50fps@(1920x1080, 1280x960, 1280x720) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Condition | Temperature: -40℃∼60℃ / Humidity: 0∼95%(Non-condensing) |
| Power Supply | PoE(802.3at)/ DC 12V/3A ±10% |
| Power Consumption | 12W MAX/ 20W MAX (With IR on) |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Surge Protection | 4KV |
| Dimensions | Φ183mmX174.8mm |
| Weight | 2658g |
| Warranty | 2 Years/3 Years(Optional) |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C/E - AI Series
| Camera | |
|---|---|
| Name | 2MP 12X AI PTZ Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux @F1.6, B/W: 0Lux with IR on |
| WDR | 140dB Super WDR (Super WDR Pro is optional for T Series) |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Digital Zoom | 16X |
| Lens | |
| Focal Length | 5.3∼64mm, 12X Optical Zoom |
| Zoom Speed | Approx 4s (Wide-Tele) |
| Field of View | H61°∼H5°/D69°∼D5°/V36°∼V2° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1000/1500mm (Wide/Tele) |
| Aperture | F1.6∼F2.8 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360° endless/ Pan Manual Speed: 0.1°∼450°/s, Pan Preset Speed: 450°/s |
| Tilt Range/Tilt Speed | -5°∼90°(Auto Flip); Tilt Manual Speed: 0.1°∼360°/s, Tilt Preset Speed: 360°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| IR | |
| Irradiation Distance | Up to 160m |
| Irradiation Angle | Auto/Manual |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 100fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 100fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) |
| ROI | Up to 8 areas |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face detection | Detect and capture faces, get real-time snapshots |
| People Counting&Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Condition | Temperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3at)/ DC 12V/3A ±10% |
| Power Consumption | 11W MAX/ 19W MAX(With IR on) |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Surge Protection | 4KV |
| Dimensions | Φ183mmX174.8mm |
| Weight | 2Kg |
| Warranty | 2 Years/3 Years(Optional) |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C/E - AI Series
| Camera | |
|---|---|
| Name | 2MP 20X AI PTZ Dome Network Camera |
| Image Sensor | 1/2" Progressive Scan CMOS |
| Min. Illumination | Color: 0.002Lux @F1.6, B/W: 0Lux with IR on |
| WDR | 140dB Super WDR Pro |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Digital Zoom | 16X |
| Lens | |
| Focal Length | 6.4∼128mm, 20X Optical Zoom |
| Zoom Speed | Approx 5s (Wide-Tele) |
| Field of View | H60°∼H3°/D67°∼D4°/V37°∼V1° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 100/2000mm (Wide/Tele) |
| Aperture | F1.6∼F4.0 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360° endless/ Pan Manual Speed: 0.1°∼450°/s, Pan Preset Speed: 450°/s |
| Tilt Range/Tilt Speed | -5°∼90°(Auto Flip); Tilt Manual Speed: 0.1°∼360°/s, Tilt Preset Speed: 360°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| IR | |
| Irradiation Distance | Up to 160m |
| Irradiation Angle | Auto/Manual |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 100fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080,1280x960,1280x720,704x576) 50Hz: 100fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080,1280x960,1280x720,704x576) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) |
| ROI | Up to 8 areas |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face detection | Detect and capture faces, get real-time snapshots |
| People Counting&Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Condition | Temperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3at)/ DC 12V/3A ±10% |
| Power Consumption | 11W MAX/ 19W MAX(With IR on) |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Surge Protection | 4KV |
| Dimensions | Φ183mmX174.8mm |
| Weight | 2Kg |
| Warranty | 2 Years/3 Years(Optional) |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C/E - AI Series
| Camera | |
|---|---|
| Name | 2MP 23X AI PTZ Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux @F1.5, B/W: 0Lux with IR on |
| WDR | 140dB Super WDR (Super WDR Pro is optional for T Series) |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Digital Zoom | 16X |
| Lens | |
| Focal Length | 5∼117mm, 23X Optical Zoom |
| Zoom Speed | Approx 6s (Wide-Tele) |
| Field of View | H60°∼H3°/D69°∼D4°/V35°∼V2° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 100/1500mm (Wide/Tele) |
| Aperture | F1.5∼F3.5 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360° endless/ Pan Manual Speed: 0.1°∼450°/s, Pan Preset Speed: 450°/s |
| Tilt Range/Tilt Speed | -5°∼90°(Auto Flip); Tilt Manual Speed: 0.1°∼360°/s, Tilt Preset Speed: 360°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| IR | |
| Irradiation Distance | Up to 160m |
| Irradiation Angle | Auto/Manual |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 100fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 100fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) |
| ROI | Up to 8 areas |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face detection | Detect and capture faces, get real-time snapshots |
| People Counting&Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Condition | Temperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3at)/ DC 12V/3A ±10% |
| Power Consumption | 11W MAX/ 19W MAX(With IR on) |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Surge Protection | 4KV |
| Dimensions | Φ183mmX174.8mm |
| Weight | 2Kg |
| Warranty | 2 Years/3 Years(Optional) |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C/E - AI Series
| Camera | |
|---|---|
| Name | 5MP 12X AI PTZ Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.008Lux @F1.6, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Digital Zoom | 16X |
| Lens | |
| Focal Length | 5.3∼64mm, 12X Optical Zoom |
| Zoom Speed | Approx 4s (Wide-Tele) |
| Field of View | H57°∼H4°/D69°∼D5°/V44°∼V1° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 100/1500mm (Wide/Tele) |
| Aperture | F1.6∼F2.8 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360° endless/ Pan Manual Speed: 0.1°∼450°/s, Pan Preset Speed: 450°/s |
| Tilt Range/Tilt Speed | -5°∼90°(Auto Flip); Tilt Manual Speed: 0.1°∼360°/s, Tilt Preset Speed: 360°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| IR | |
| Irradiation Distance | Up to 160m |
| Irradiation Angle | Auto/Manual |
| Video | |
| Max. Image Resolution | 2592x1944 |
| Primary Stream | 60Hz: 30fps@(2592x1944), 45fps@(2048x1536), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(2592x1944), 45fps@(2048x1536), 50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) |
| ROI | Up to 8 areas |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face detection | Detect and capture faces, get real-time snapshots |
| People Counting&Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Condition | Temperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3at)/ DC 12V/3A ±10% |
| Power Consumption | 11W MAX/ 19W MAX(With IR on) |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Surge Protection | 4KV |
| Dimensions | Φ183mmX174.8mm |
| Weight | 2Kg |
| Warranty | 2 Years/3 Years(Optional) |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C/E - AI Series
| Camera | |
|---|---|
| Name | 2MP 12X AI PTZ Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux @F1.6, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Digital Zoom | 16X |
| Lens | |
| Focal Length | 5.3∼64mm, 12X Optical Zoom |
| Zoom Speed | Approx 4s (Wide-Tele) |
| Field of View | H61°∼H5°/D69°∼D5°/V36°∼V2° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1000/1500mm (Wide/Tele) |
| Aperture | F1.6∼F2.8 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360° endless/ Pan Manual Speed: 0.1°∼450°/s, Pan Preset Speed: 450°/s |
| Tilt Range/Tilt Speed | -5°∼90°(Auto Flip)/ Tilt Manual Speed: 0.1°∼360°/s, Tilt Preset Speed: 360°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| IR | |
| Irradiation Distance | Up to 160m |
| Irradiation Angle | Auto/Manual |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz/50Hz: 90fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz/50Hz: 90fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 24 areas |
| ROI | Up to 8 areas |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting&Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Condition | Temperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3at)/ DC 12V/3A ±10% |
| Power Consumption | 12W MAX/ 20W MAX(With IR on) |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Surge Protection | 4KV |
| Dimensions | Φ183mmX174.8mm |
| Weight | 2Kg |
| Warranty | 2 Years/3 Years(Optional) |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C/E - AI Series
| Camera | |
|---|---|
| Name | 2MP 20X AI PTZ Dome Network Camera |
| Image Sensor | 1/2" Progressive Scan CMOS |
| Min. Illumination | Color: 0.002Lux @F1.6, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Digital Zoom | 16X |
| Lens | |
| Focal Length | 6.4∼128mm, 20X Optical Zoom |
| Zoom Speed | Approx 5s (Wide-Tele) |
| Field of View | H60°∼H3°/D67°∼D4°/V37°∼V1° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 100/2000mm (Wide/Tele) |
| Aperture | F1.6∼F4.0 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360° endless/ Pan Manual Speed: 0.1°∼450°/s, Pan Preset Speed: 450°/s |
| Tilt Range/Tilt Speed | -5°∼90°(Auto Flip)/ Tilt Manual Speed: 0.1°∼360°/s, Tilt Preset Speed: 360°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| IR | |
| Irradiation Distance | Up to 160m |
| Irradiation Angle | Auto/Manual |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 90fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 90fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz/50Hz: 90fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 24 areas |
| ROI | Up to 8 areas |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting&Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Condition | Temperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3at)/ DC 12V/3A ±10% |
| Power Consumption | 12W MAX/ 20W MAX(With IR on) |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Surge Protection | 4KV |
| Dimensions | Φ183mmX174.8mm |
| Weight | 2Kg |
| Warranty | 2 Years/3 Years(Optional) |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C/E - AI Series
| Camera | |
|---|---|
| Name | 2MP 23X AI PTZ Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux @F1.5, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Digital Zoom | 16X |
| Lens | |
| Focal Length | 5∼117mm, 23X Optical Zoom |
| Zoom Speed | Approx 6s (Wide-Tele) |
| Field of View | H60°∼H3°/D69°∼D4°/V35°∼V2° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 100/1500mm (Wide/Tele) |
| Aperture | F1.5∼F3.5 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360° endless/ Pan Manual Speed: 0.1°∼450°/s, Pan Preset Speed: 450°/s |
| Tilt Range/Tilt Speed | -5°∼90°(Auto Flip)/ Tilt Manual Speed: 0.1°∼360°/s, Tilt Preset Speed: 360°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| IR | |
| Irradiation Distance | Up to 160m |
| Irradiation Angle | Auto/Manual |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz/50Hz: 90fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz/50Hz: 90fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Privacy Masking | Up to 24 areas |
| ROI | Up to 8 areas |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting&Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Condition | Temperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3at)/ DC 12V/3A ±10% |
| Power Consumption | 12W MAX/ 20W MAX(With IR on) |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Surge Protection | 4KV |
| Dimensions | Φ183mmX174.8mm |
| Weight | 2Kg |
| Warranty | 2 Years/3 Years(Optional) |
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
P - PoE Supported
A/C/E - AI Series
A02 V2 Pole Mount
- Weight: 1kg
- Dimension: 180*136*46mm
- Installation Environment: For strapping cameras on poles between 102-127mm(4.1-5 inches) in diameter
A03 External Corner Bracket
- Weight: 900g
- Dimension: 170*152.5*76mm
- Installation Environment: For mounting cameras on an external corner
A42-L Extension Lever
- Weight: 330g
- Dimension: Φ 55*255mm
- Installation Environment: Used as extensions for pendant mount
A43 Junction Box
- Weight: 1000g
- Dimension: 195*164*80mm
- Installation Environment: For the containing of electrical connections which need to be concealed from sight and deter tampering
AC-71 Smoked Dome Cover
- Weight: 120g
- Dimension: Φ136.8*92.5mm
- Installation Environment: For concealing where a camera is pointed
A77 Wall Mount
- Weight: 650g
- Dimension: 262*185*138mm
- Installation Environment: For wall or parapet installations
A78 Recessed Mount
- Weight: 715g
- Dimension: Φ256*94mm
- Installation Environment: For in-ceiling installations
A79 Pendant Mount
- Weight: 850g
- Dimension: Φ 185*295mm
- Installation Environment: Used to install cameras on a ceiling or horizontal structure
