AI IR Mini Dome Camera

See Clearly, Even in the Dark

AI Video Analytics

Milesight AI Camera can intelligently filter objects to focus on human and vehicle detection in multiple events such as Region Entrance, Region Exiting, Loitering, Advanced Motion Detection, etc.

0.005Lux Ultra Low-light

Up to 4K Viewing Experience

60fps High Frame Rate

Superior Image Quality

With advanced image processing algorithms and SONY STARVIS sensor, it achieves excellent image performance, even in challenging lighting conditions. Its 0.005Lux Ultra Low-light, up to 4K Video Viewing Experience, and 60fps High Frame Rate features make it well-suited for various special circumstances.

Smart IR II Technology

The IR distance is up to 20m with upgraded IR LEDs of which brightness can be adjusted. Moreover, with the IR anti-reflection panel, the infrared light transmittance is highly increased.

3-axis Mechanical Design

3-axis mechanical design with 180° pan, 15°-90° tilt and 360° roll for fast and easy adjustment of the camera's viewing angle.

New Microphone

Upgraded with new codec, the microphone voice is clearer, which is much better than the previous one.

Better Thermal Design

The base of the new AI IR Mini Dome Network Camera has been upgraded with bulged strips to enlarge the heat dissipating area for improved heat dissipation.

Discreet Installation

With recessed installation available, the camera can skillfully blend in with the environment and easily hide the direction, bringing discreet monitoring performance.

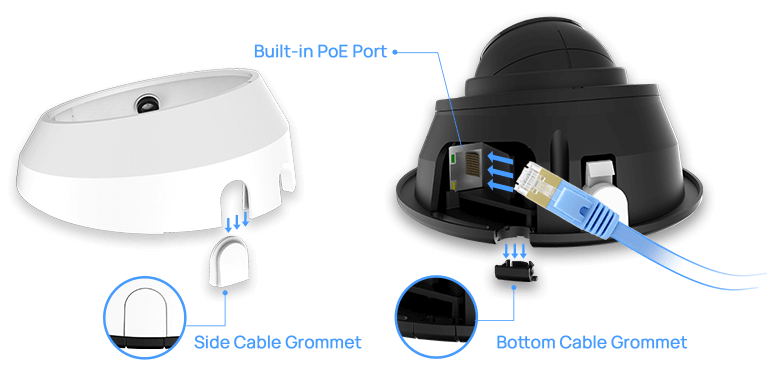

Simple to Install & Adjust

Milesight specially designs a press button, a unique panel on the side of cover and built-in PoE port, making the installation a piece of cake.

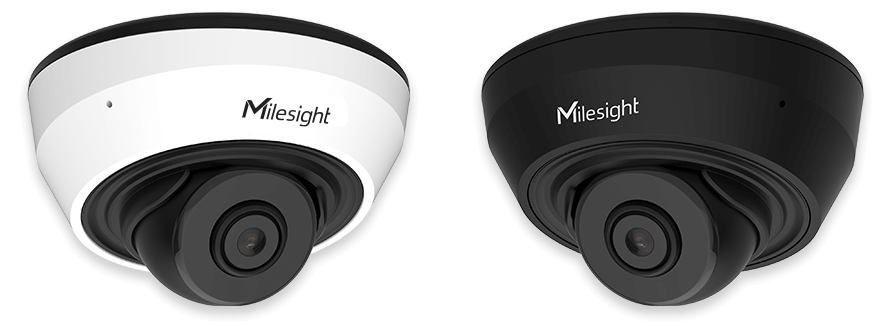

Two Colors Available

Available in White and Black, the camera provides more choices for your preference.

SIP/VoIP Support

Milesight AI Camera features industry leading SIP/VoIP function and video
streaming for mobile phones and video phones.

Success Story

Milesight Goes to Bama Chain Stores

Milesight IP Video Surveillance Solution to Protect Lbn Sina Hospital

Milesight was Enlisted to Secure Every Classroom in Manav Sehyog School

Specifications

NDAA

MS-C2983-(R)PD
MS-C4583-PD
MS-C5383-PD
MS-C8183-(S)PD

Non-NDAA

MS-C2983-RPC
MS-C5383-PC
MS-C8183-PC

Camera
Name	2MP AI IR Mini Dome Network Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Min. Illumination	Color: 0.005Lux @F1.6 B/W: 0Lux with IR on
WDR	120dB Super WDR
Lens	2.8mm/ 4mm/ 6mm @F1.6
Mount	M12
Field of View	H111°/D128°/V61°(2.8mm) H91°/D106°/V50°(4mm) H55°/D63°/V32°(6mm)
Shutter Time	1/100000s∼1s
Day/Night Mode	Day/Night/Auto/Customize/Schedule
IR Distance	Up to 20m
S/N	>55dB
Video
Max. Image Resolution	1920x1080
Primary Stream	60Hz: 60fps@(1920x1080)(Optional for R Series), 30fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 50fps@(1920x1080)(Optional for R Series), 25fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream	60Hz: 30fps@(704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288)
Tertiary Stream	60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
Video Compression	H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate	16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking	Up to 4 areas
ROI	Up to 8 areas
Image Settings	Saturation/Brightness/Contrast/Sharpness
Interface
Ethernet	1*RJ45 10M/100M Ethernet Port
Audio Interface	Built-in Microphone
Network
Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Network Protocols	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/48KHz
Audio Bit Rate	16~256kbps
Two-way Audio	N/A
Intelligent Analytics
Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting &Report	Count the number of people entering or exiting
System
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function	BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP Support	Yes, Voice&Video-over-IP
Event Trigger	Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action	FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility	ONVIF Profile G & S & T, API
General
Working Temperature	-40℃∼60℃
Working Humidity	0∼90%(Non-condensing)
Power Supply	PoE(802.3af)
Power Consumption	2.6W MAX, 4.6W MAX (With IR on)
Weight	200g
Dimensions	Φ97.8mmX57.9mm
Warranty	3/5 Years

*Naming Convention
R - High Frame Rate (60fps)
S - 20fps@4K Series
P - PoE Supported
C/D - Al Series

Camera
Name	4MP AI IR Mini Dome Network Camera
Image Sensor	1/2.8″ Progressive Scan CMOS
Min. Illumination	Color: 0.005Lux@F1.6 B/W: 0Lux with IR on
WDR	120dB Super WDR
Lens	2.8mm/4mm/6mm@F1.6
Mount	M12
Field of View	H106°/D124°/V58°(2.8mm) H88°/D104°/V48°(4mm) H53°/D61°/V31°(6mm)
Shutter Time	1/100000s~1s
Day/Night Mode	Day/Night/Auto/Customize/Schedule
IR Distance	Up to 20m
S/N	>55dB
Video
Max. Image Resolution	2688x1520
Primary Stream	60Hz: 30fps@(2688x1520, 2304x1296, 1920x1080, 1280x720) 50Hz: 25fps@(2688x1520, 2304x1296, 1920x1080, 1280x720)
Secondary Stream	60Hz: 30fps@(1280x720, 704x576, 640x480) 50Hz: 25fps@(1280x720, 704x576, 640x480)
Tertiary Stream	60Hz: 30fps@(1280x720, 704x576, 640x480) 50Hz: 25fps@(1280x720, 704x576, 640x480)
Video Compression	H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate	16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy Masking	Up to 4 areas
ROI	Up to 8 areas
Image Settings	Saturation/Brightness/Contrast/Sharpness
Interface
Ethernet	1*RJ45 10M/100M Ethernet Port
Audio Interface	Built-in Microphone
Network
Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Network Protocols	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS1.2
Audio
Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/48KHz
Audio Bit Rate	16~256kbps
Two-way Audio	N/A
Intelligent Analytics
Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting &Report	Count the number of people entering or exiting
System
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function	BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP Support	Yes, Voice & Video-over-IP
Event Trigger	Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action	FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility	ONVIF Profile G & S & T, API
General
Working Temperature	-40℃∼60℃
Working Humidity	0~90%(Non-condensing)
Power Supply	PoE (802.3af)
Power Consumption	3.3W MAX 5W MAX (With IR on)
Weight	200g
Dimensions	Φ97.8mmX57.9mm
Warranty	3/5 Years

*Naming Convention
R - High Frame Rate (60fps)
S - 20fps@4K Series
P - PoE Supported
C/D - Al Series

Camera
Name	5MP AI IR Mini Dome Network Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Min. Illumination	Color: 0.008Lux @F1.6 B/W: 0Lux with IR on
WDR	120dB Super WDR
Lens	2.8mm/ 4mm/ 6mm @F1.6
Mount	M12
Field of View	H105°/D131°/V78°(2.8mm) H86°/D108°/V63°(4mm) H52°/D63°/V40°(6mm)
Shutter Time	1/100000s∼1s
Day/Night Mode	Day/Night/Auto/Customize/Schedule
IR Distance	Up to 20m
S/N	>55dB
Video
Max. Image Resolution	2592x1944
Primary Stream	60Hz: 30fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream	60Hz: 30fps@(704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288)
Tertiary Stream	60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
Video Compression	H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate	16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking	Up to 4 areas
ROI	Up to 8 areas
Image Settings	Saturation/Brightness/Contrast/Sharpness
Interface
Ethernet	1*RJ45 10M/100M Ethernet Port
Audio Interface	Built-in Microphone
Network
Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Network Protocols	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/48KHz
Audio Bit Rate	16~256kbps
Two-way Audio	N/A
Intelligent Analytics
Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting &Report	Count the number of people entering or exiting
System
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function	BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP Support	Yes, Voice&Video-over-IP
Event Trigger	Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action	FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility	ONVIF Profile G & S & T, API
General
Working Temperature	-40℃∼60℃
Working Humidity	0∼90%(Non-condensing)
Power Supply	PoE(802.3af)
Power Consumption	3.3W MAX, 5W MAX (With IR on)
Weight	200g
Dimensions	Φ97.8mmX57.9mm
Warranty	3/5 Years

*Naming Convention
R - High Frame Rate (60fps)
S - 20fps@4K Series
P - PoE Supported
C/D - Al Series

Camera
Name	4K AI IR Mini Dome Network Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Min. Illumination	Color: 0.012Lux @F1.6 B/W: 0Lux with IR on
WDR	120dB Super WDR
Lens	2.8mm / 4mm/ 6mm @F1.6
Mount	M12
Field of View	H110°/D126°/V60°(2.8mm) H91°/D106°/V50°(4mm) H55°/D63°/V32°(6mm)
Shutter Time	1/100000s∼1s
Day/Night Mode	Day/Night/Auto/Customize/Schedule
IR Distance	Up to 20m
S/N	>55dB
Video
Max. Image Resolution	3840x2160
Primary Stream	60Hz/50Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576), 20fps@(3840x2160)(Optional for S Series)
Secondary Stream	60Hz: 30fps@(704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288)
Tertiary Stream	60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
Video Compression	H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate	16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking	Up to 4 areas
ROI	Up to 8 areas
Image Settings	Saturation/Brightness/Contrast/Sharpness
Interface
Ethernet	1*RJ45 10M/100M Ethernet Port
Audio Interface	Built-in Microphone
Network
Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Network Protocols	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/48KHz
Audio Bit Rate	16~256kbps
Two-way Audio	N/A
Intelligent Analytics
Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting &Report	Count the number of people entering or exiting
System
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function	BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP Support	Yes, Voice&Video-over-IP
Event Trigger	Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action	FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility	ONVIF Profile G & S & T, API
General
Working Temperature	-40℃∼60℃
Working Humidity	0∼90%(Non-condensing)
Power Supply	PoE(802.3af)
Power Consumption	3.7W MAX, 5.4W MAX (With IR on)
Weight	200g
Dimensions	Φ97.8mmX57.9mm
Warranty	3/5 Years

*Naming Convention
R - High Frame Rate (60fps)
S - 20fps@4K Series
P - PoE Supported
C/D - Al Series

Camera
Name	2MP AI IR Mini Dome Network Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Min. Illumination	Color: 0.005Lux @F1.6 B/W: 0Lux with IR on
WDR	140dB Super WDR
Lens	2.8mm/ 4mm/ 6mm @F1.6
Mount	M12
Field of View	H111°/D128°/V61°(2.8mm) H91°/D106°/V50°(4mm) H55°/D63°/V32°(6mm)
Shutter Time	1/100000s∼1s
Day/Night Mode	Day/Night/Auto/Customize/Schedule
IR Distance	Up to 20m
S/N	>55dB
Video
Max. Image Resolution	1920x1080
Primary Stream	60Hz: 60fps@(1920x1080, 1280x960, 1280x720, 704x576)50Hz: 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream	60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream	60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression	H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate	16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking	Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI	Up to 8 areas
Image Settings	Saturation/Brightness/Contrast/Sharpness
Interface
Ethernet	1*RJ45 10M/100M Ethernet Port
Audio Interface	Built-in Microphone
Network
Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Network Protocols	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/44.1/48KHz
Audio Bit Rate	16~256kbps
Two-way Audio	N/A
Intelligent Analytics
Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection	Detect and capture faces, get real-time snapshots
People Counting& Report	Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function	Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support	Yes, Voice&Video-over-IP
Event Trigger	Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action	FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility	ONVIF Profile G & Q & S & T, API
General
Working Temperature	-40℃∼60℃
Working Humidity	0∼90%(Non-condensing)
Power Supply	PoE(802.3af)
Power Consumption	4W MAX, 6W MAX (With IR on)
Weight	200g
Dimensions	Φ97.8mmX57.9mm
Warranty	3/5 Years

*Naming Convention
R - High Frame Rate (60fps)
S - 20fps@4K Series
P - PoE Supported
C/D - Al Series

Camera
Name	5MP AI IR Mini Dome Network Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Min. Illumination	Color: 0.008Lux @F1.6 B/W: 0Lux with IR on
WDR	120dB Super WDR
Lens	2.8mm/ 4mm/ 6mm @F1.6
Mount	M12
Field of View	H105°/D131°/V78°(2.8mm) H86°/D108°/V63°(4mm) H52°/D63°/V40°(6mm)
Shutter Time	1/100000s∼1s
Day/Night Mode	Day/Night/Auto/Customize/Schedule
IR Distance	Up to 20m
S/N	>55dB
Video
Max. Image Resolution	2592x1944
Primary Stream	60Hz: 30fps@(2592x1944), 45fps@(2048x1536),60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(2592x1944), 45fps@(2048x1536),50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream	60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream	60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression	H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate	16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking	Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI	Up to 8 areas
Image Settings	Saturation/Brightness/Contrast/Sharpness
Interface
Ethernet	1*RJ45 10M/100M Ethernet Port
Audio Interface	Built-in Microphone
Network
Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Network Protocols	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/44.1/48KHz
Audio Bit Rate	16~256kbps
Two-way Audio	N/A
Intelligent Analytics
Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection	Detect and capture faces, get real-time snapshots
People Counting& Report	Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function	Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support	Yes, Voice&Video-over-IP
Event Trigger	Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action	FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility	ONVIF Profile G & Q & S & T, API
General
Working Temperature	-40℃∼60℃
Working Humidity	0∼90%(Non-condensing)
Power Supply	PoE(802.3af)
Power Consumption	4W MAX, 6W MAX (With IR on)
Weight	200g
Dimensions	Φ97.8mmX57.9mm
Warranty	3/5 Years

*Naming Convention
R - High Frame Rate (60fps)
S - 20fps@4K Series
P - PoE Supported
C/D - Al Series

Camera
Name	4K AI IR Mini Dome Network Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Min. Illumination	Color: 0.012Lux @F1.6 B/W: 0Lux with IR on
WDR	120dB Super WDR
Lens	2.8mm / 4mm/ 6mm @F1.6
Mount	M12
Field of View	H110°/D126°/V60°(2.8mm) H91°/D106°/V50°(4mm) H55°/D63°/V32°(6mm)
Shutter Time	1/100000s∼1s
Day/Night Mode	Day/Night/Auto/Customize/Schedule
IR Distance	Up to 20m
S/N	>55dB
Video
Max. Image Resolution	3840x2160
Primary Stream	60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream	60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream	60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression	H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate	16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking	Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI	Up to 8 areas
Image Settings	Saturation/Brightness/Contrast/Sharpness
Interface
Ethernet	1*RJ45 10M/100M Ethernet Port
Audio Interface	Built-in Microphone
Network
Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Network Protocols	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/44.1/48KHz
Audio Bit Rate	16~256kbps
Two-way Audio	N/A
Intelligent Analytics
Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection	Detect and capture faces, get real-time snapshots
People Counting& Report	Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function	Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support	Yes, Voice&Video-over-IP
Event Trigger	Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action	FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility	ONVIF Profile G & Q & S & T, API
General
Working Temperature	-40℃∼60℃
Working Humidity	0∼90%(Non-condensing)
Power Supply	PoE(802.3af)
Power Consumption	5W MAX, 7W MAX (With IR on)
Weight	200g
Dimensions	Φ97.8mmX57.9mm
Warranty	3/5 Years
