High Accuracy and Reliability
EM320-TILT utilizes the advanced MEMS Accelerometer to deliver high accuracy and stable measurement of the tilt angle of 3 axis X, Y, and Z. With a wide measurement range of -90° – +90°, EM320-TILT can achieve an ultra-high resolution of 0.01° and accuracy of ±1°.
Flexible Settings

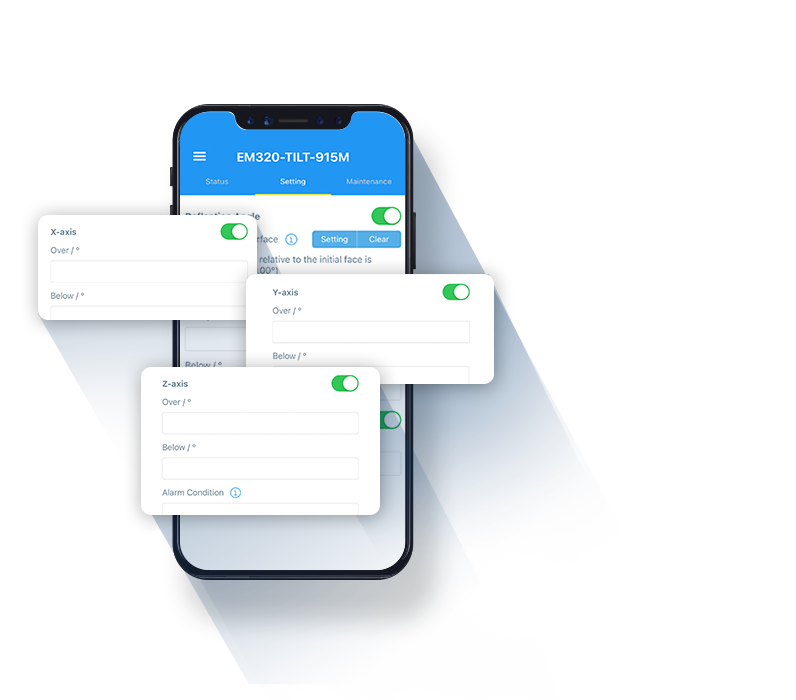

- Up to 36 Triggers
EM320-TILT supports up to 36 customized trigger alarms based on the angle or inclinations on X, Y and Z, enabling various applications and providing great flexibility.

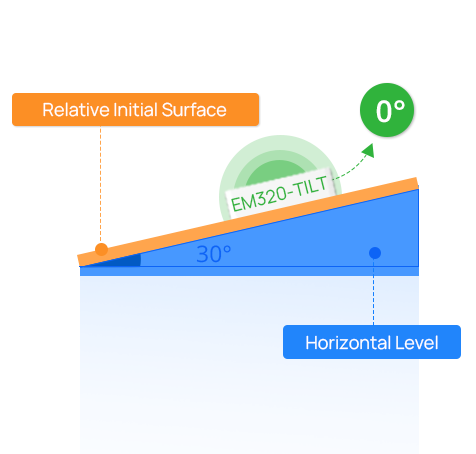

- Relative Initial Position
Instead of pre-fixed position, EM320-TILT supports customizing initial position to detect angle changes and send threshold alarms, facilitating the installation and enhancing user experience.
Safeguard in Various Applications
Tilt angle and inclination monitoring is important for safety and structural integrity, as any changes in the angle of inclination can indicate potential issues with the structure's stability. Tilt sensing will send alerts to people to predict and track the status of specific objects.
Tree Bending Monitoring

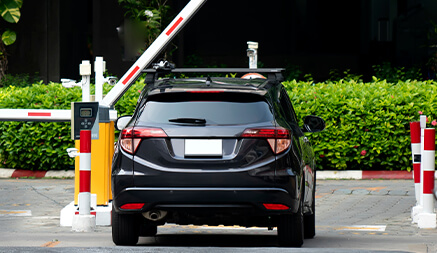

Barrier Gate Monitoring

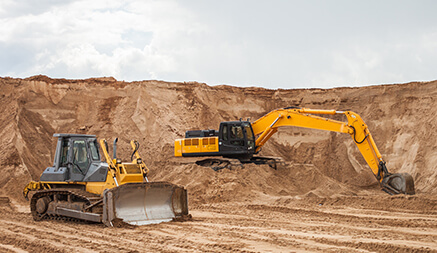

Cranes and Construction Machines Monitoring

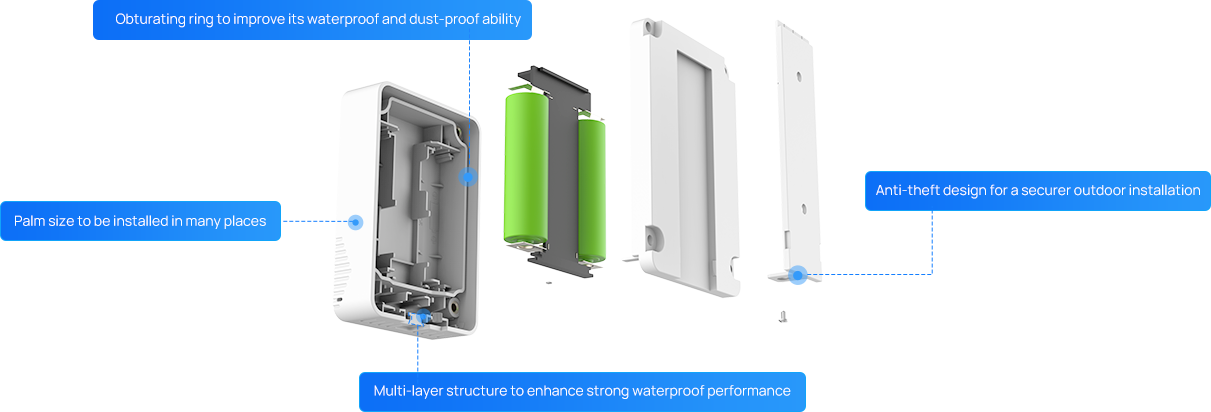

Artful Design and Robust Enclosure
EM320-TILT is equipped with IP67 rated enclosure which enables it to function properly even in the most demanding environments.
LoRaWAN® Based
- Penetrating Signals: data transmission range up to 2 km in urban areas and
15 km in rural areas - High Compatibility: compliant with standard LoRaWAN® gateways and network servers
Cloud Data Management
Milesight IoT Cloud
- Data Visualization Dashboard:
All figures in a glance - Automatic Triggers:
Interactive collaboration with Milesight IoT sensors
to realize scene-based automation - Regular Reports & Real-Time Alerts:
Data-based insights - Android & iOS App:
Manage devices at your fingertips
NFC Configuration
Switching On/Off & Configuring the Devices Wirelessly
1st Step
Install the
Milesight ToolBox
2nd Step
Enable NFC and run ToolBox,
then attach your phone to the device
3rd Step
Verify the password
and start configuring
Installation
Wall Mounting
Specifications
- EM320-TILT
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN® |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA/ABP Class A |
| Measurement | |
| Axis | X, Y, Z |
| Range | - 90° ~ +90° |
| Accuracy | ± 1° |
| Resolution | 0.01° |
| Others | |
| Power On & Off | NFC Configuration via Mobile App, Power Button (Internal) |
| Configuration | NFC Configuration via Mobile App |
| Physical Characteristics | |
| Power Supply | 2 × 2700 mAh ER14505 Li-SOCl2 Batteries |
| Battery Life* | ≥3 Years (10min reporting interval, SF10) |
| Operating Temperature | -30°C to +60°C |
| Relative Humidity | ≤95% (non-condensing) |
| Ingress Protection | IP67 |
| Dimension | 85 × 58 × 18 mm (3.34 × 2.28 × 0.70 in) |
| Material & Color | PC + ABS, White |
| Installation | Wall Mounting |
